Application between azure service bus and dynamics 365 service endpoint

Dynamics 365 Ability to create Service Endpoint To deliver a message to Azure Of Service Bus, Today, let's take a look at how to realize the linkage between them .

1. Sign in Microsoft Azure, And find Service Bus

2. establish Service Bus Of namespace

Fill in the necessary information and select Review + Create

After verification, click Create

3. Once created , We go back to Service Bus, choice Queues

  Create a new Queue

  We need to fill in a queue Name , Other defaults are fine

 Note:

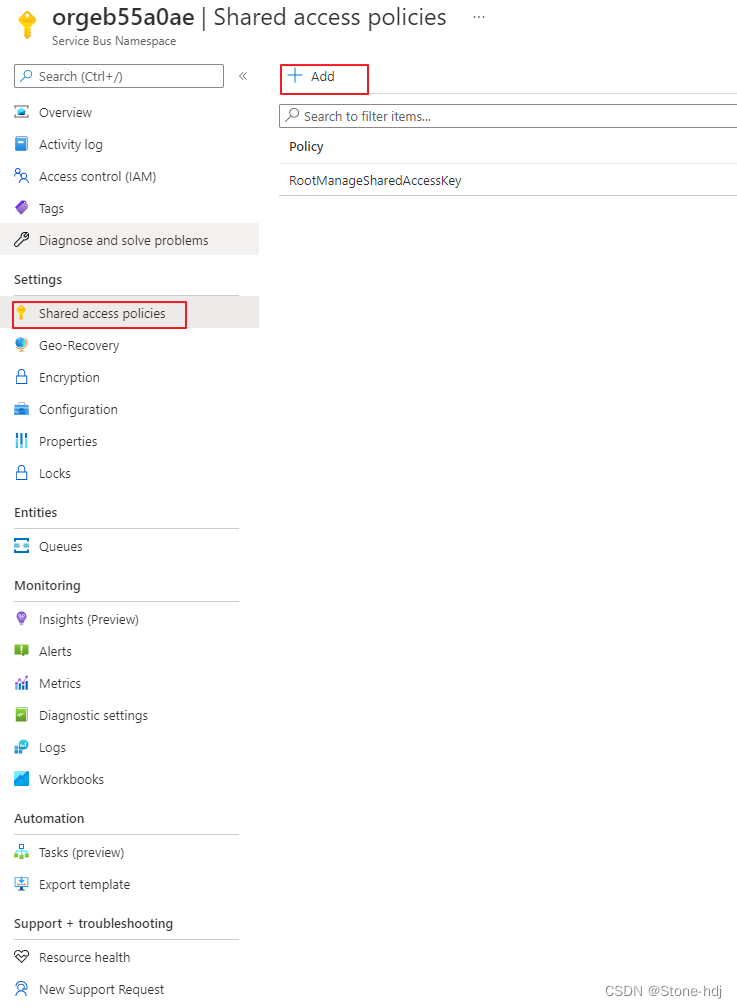

4. Once created , We also need to set up Shared access policies

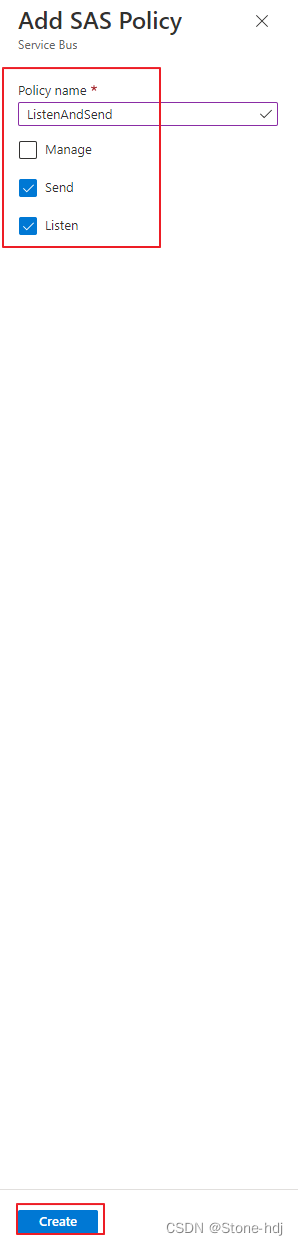

  take Send and Listen Choose , Then create

  After creation , Let's click on the new , You can see the connection string information inside

 5. stay D365 In the plug-in registration tool Service Endpoint

 6. Choose to connect to using a connection string Azure Service Bus, Copy we created in step 4 Shared access policies I got it Primary Connection String, And then click Next

  If it is filled in correctly, the contents will be filled in automatically , except Queue Name

Queue Name Fill in the third step to create Queue When the name can be .

 7. Create a new step

  Let's sign up for Account Create steps for , And choose PostOperation and Asynchhronous

Note: register Serice Endpoint Only asynchronous can be selected here , Error will be reported if synchronization is selected

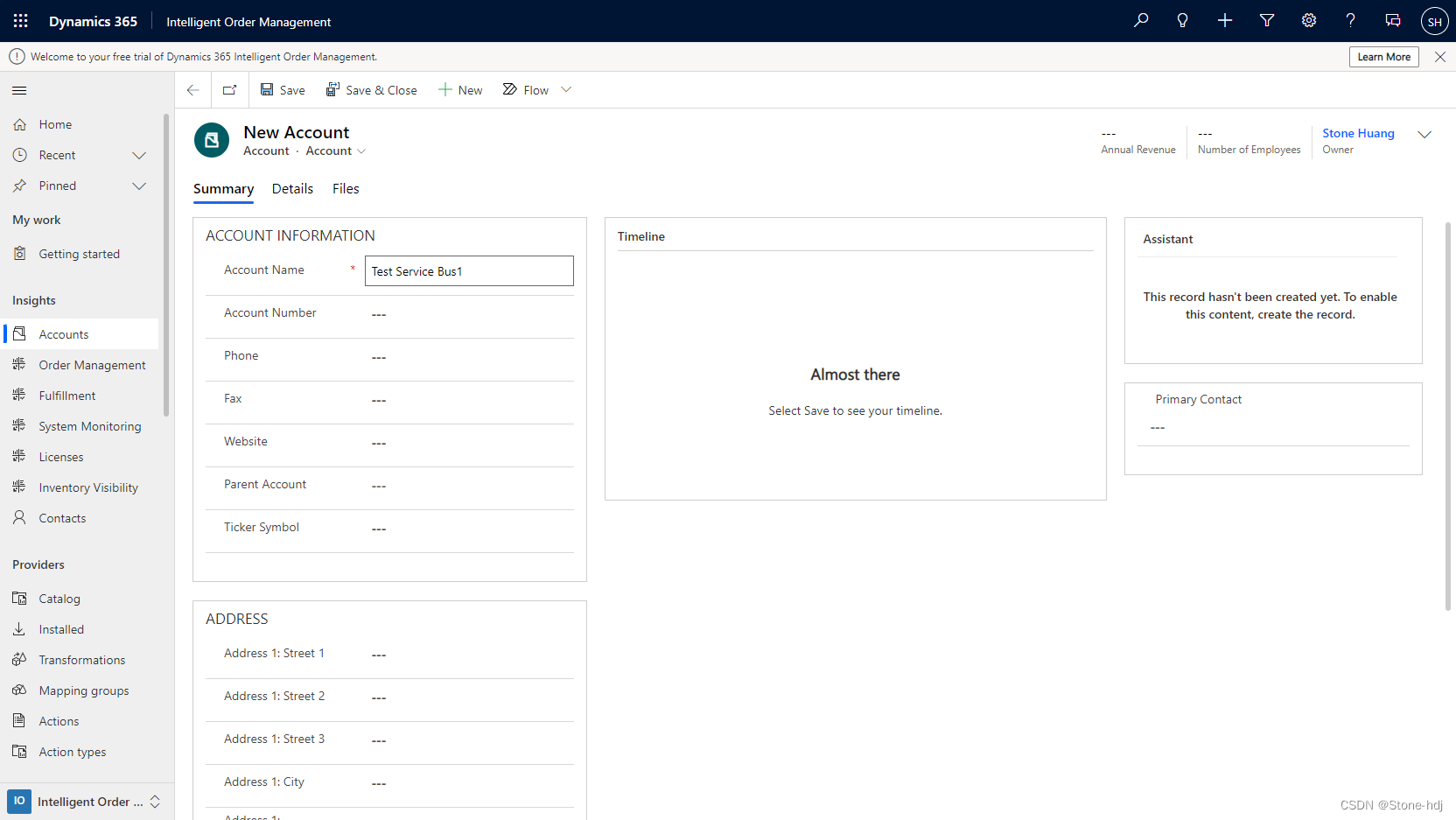

 8. Create a new Account Record to trigger the plug-in

 9. Go to the System Job You can see a new job Generated Settings -> System Jobs

 10. stay Service Bus Of Queue We can see a new Incoming Message

  So far the whole Azure Service Bus And Dynamics 365 Service Endpoint The configuration process between is completed .
