Lane change detection

author |Hitesh Valecha compile |VK source |Towards Data Science

In this tutorial , We will learn how to use computer vision and image processing to detect whether a car is changing lanes on the road .

You must have heard of using Opencv haar cascade Can detect faces 、 Eyes or cars 、 Things like buses ？ This time, let's use this simple detection method to build something cool .

1. Data sets

In this tutorial , Video files of cars on the road are used as data sets . Besides , We can use images in the data set to detect vehicles , But here, , When the traffic changes lanes , We'll use pop-up windows to alert , So for the dynamic information , Video input is more feasible .

2. Input

We use OpenCV Of haar cascade To detect the coordinates of the car , The input is a video file of a car on the road

cascade_src = 'cascade/cars.xml'
video_src = 'dataset/cars.mp4'

cap = cv2.VideoCapture(video_src)
car_cascade = cv2.CascadeClassifier(cascade_src)

cv2.VideoCapture() Method is used to capture the input video , A video is usually per second 25 Frame image (fps). After capturing the input , Loop extraction frames , And make use of haar cascade testing , Draw a rectangle around the car in the loop , To achieve consistency , Perform other operations on the captured frame at the same time .

while(1):
    #  Get every frame
    _, frame = cap.read()
    cars = car_cascade.detectMultiScale(frame, 1.1, 1)
    for (x,y,w,h) in cars:
        roi = cv2.rectangle(frame,(x,y),(x+w,y+h),(0,0,255),2)   # Region of interest

stay OpenCV Use in BGR instead of RGB, therefore (0,0,255) A red rectangle will be drawn on the car , Not blue .

3. The image processing

We use frames , But if the frame resolution is very high , It will slow down the execution of the operation , Besides , Frames contain noise , You can use blur to reduce , Here we use Gaussian Blur .

Now? , Let's look at some of the concepts of image processing

3.1 HSV frame

In this article , We use from cv2.VideoCapture() Capture in the frame HSV frame , Highlight only the point where the vehicle is turning , And cover the rest of the road and the vehicles that are going straight on the road . Set the upper and lower limits to define HSV Color range in , To see where the car changed lanes , And used as a mask for frames . Here is a snippet of code to get this information -

#  Using blur to eliminate noise in video frames
frame = cv2.GaussianBlur(frame,(21,21),0)

#  transformation BGR To HSV
hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)

#  stay HSV Define the color range in , To see where the vehicle changes angle
lower_limit = np.array([0,150,150])
upper_limit = np.array([10,255,255])

# HSV Image limit threshold
mask = cv2.inRange(hsv, lower_limit, upper_limit)

3.2 Corrosion and expansion

Corrosion and dilation are two basic morphological operations for image processing . The erosion operator has a local minimum effect on the region of the kernel function , Kernel functions are templates or masks . Corrosion is used to reduce speckle noise in images . Dilation is the convolution of image and kernel , It has the function of local maximum operator . When a pixel is added to the edge of a smooth object in the image , Apply inflation to recover some lost areas .

from HSV The mask generated in the first step of the frame is now operated with basic morphology ( Corrosion and expansion ) To deal with it . The generated frame is obtained by bitwise sum between the frame and mask ROI( Region of interest ).

kernel = np.ones((3,3),np.uint8)
kernel_lg = np.ones((15,15),np.uint8)

#  Image processing technology known as corrosion is used to reduce noise
mask = cv2.erode(mask,kernel,iterations = 1)

#  Image processing technology called dilation , To recover some of the lost areas
mask = cv2.dilate(mask,kernel_lg,iterations = 1)

#  Except for areas of interest , Everything else turns black
result = cv2.bitwise_and(frame,frame, mask= mask)

3.3 Lane detection

utilize canny Edge detection operators combine Hough Lane change for lane detection .

# Lane detection
def canny(frame):
    gray=cv2.cvtColor(frame,cv2.COLOR_RGB2GRAY)
    blur=cv2.GaussianBlur(gray,(5,5),0)
    canny=cv2.Canny(blur,50,150)
    return canny

def region_of_interest(frame):
    height=frame.shape[0]
    polygons=np.array([
    [(0,height),(500,0),(800,0),(1300,550),(1100,height)]
    ])
    mask=np.zeros_like(frame)
    cv2.fillPoly(mask,polygons,255)
    masked_image=cv2.bitwise_and(frame,mask)
    return masked_image

def display_lines(frame,lines):
    line_image=np.zeros_like(frame)
    if lines is not None:
    for line in lines:
    x1,y1,x2,y2=line.reshape(4)
    cv2.line(line_image, (x1, y1), (x2, y2), (0, 255, 0), 3)
    return line_image

lane_image=np.copy(frame)
canny=canny(lane_image)
cropped_image=region_of_interest(canny)
lines=cv2.HoughLinesP(cropped_image,2,np.pi/180,100,np.array([]),minLineLength=5,maxLineGap=300)
line_image=display_lines(lane_image,lines)
frame=cv2.addWeighted(lane_image,0.8,line_image,1,1)
cv2.imshow('video', frame)

4. contour

canny Edge detector and other algorithms are used to find edge boundaries in edge pixel images , But it doesn't tell us how to find points and edges where objects or entities can't combine , Here we can use OpenCV Realized cv2.findContours() As a concept of outline .

Definition -“ The outline represents a list of the points of the curve in the image .”

The outline is represented by a sequence , Each sequence encodes the location of the next point . We are roi Run many times in the cv2.findConteurs() To get the entity , And then use cv2.drawContours() Draw the outline area . The outline can be a dot 、 edge 、 Polygon, etc , So when you draw a contour line , We do polygonal approximation , Find the length of the edge and the area of the region .

function cv2.drawContours() It works by drawing a tree from the root node ( data structure ), And then connect the following points 、 Bounding box and Freeman Chain code .

thresh = mask
contours, hierarchy = cv2.findContours(thresh,cv2.RETR_TREE,cv2.CHAIN_APPROX_SIMPLE)

#  Define the minimum area of the contour ( Ignore min All values below )
min_area = 1000
cont_filtered = []

#  Filter out all contours below the minimum area
for cont in contours:
  if cv2.contourArea(cont) > min_area:
    cont_filtered.append(cont)

cnt = cont_filtered[0]

#  Draw a rectangle around the outline
rect = cv2.minAreaRect(cnt)
box = cv2.boxPoints(rect)
box = np.int0(box)
cv2.drawContours(frame,[box],0,(0,0,255),2)
rows,cols = thresh.shape[:2]
[vx,vy,x,y] = cv2.fitLine(cnt, cv2.DIST_L2,0,0.01,0.01)
lefty = int((-x*vy/vx) + y)
righty = int(((cols-x)*vy/vx)+y)
cv2.line(frame,(cols-1,righty),(0,lefty),(0,255,0),2)

Another important task after finding the contours is to match them . Matching contours means that we have two independent computational contours to compare with each other , Or have a profile compared to an abstract template .

5. Characteristic moment

We can compare two contours by calculating contour moments .“ The characteristic of the total contour is the moment , Calculate by adding all the pixels of the contour .”

Torque type

Space characteristic moment ：m00, m10, m01, m20, m11, m02, m30, m21, m12, m03.

Central characteristic moment ：mu20, mu11, mu02, mu30, mu21, mu12, mu03.

Hu Characteristic moment ： There are seven Hu Characteristic moment (h0-h6) or (h1-h7), Both symbols use .

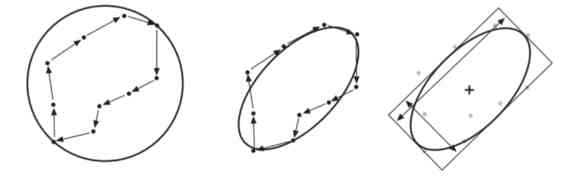

We use cv2.fitEllipse() Calculate the characteristic moment and fit the ellipse on the point . Find the angle from the contour line and the feature moment , Because changing lanes requires 45 Degree of rotation , This is seen as the threshold for the car's turning angle .

M = cv2.moments(cnt)
cx = int(M['m10']/M['m00'])
cy = int(M['m01']/M['m00'])
(x,y),(MA,ma),angle = cv2.fitEllipse(cnt)
print('x= ', cx, '  y= ', cy, ' angle = ', round(rect[2],2))
if(round(rect[2],2))<-45:
    # print('Lane change detected')
    popupmsg('Lane change detected')

Now? , We can use Tkinter To create a simple pop-up window to warn of changes , It's not just about printing the change detection results .

if(round(rect[2],2))<-45:
    popupmsg('Lane change detected')

def popupmsg(msg):
    popup = tk.Tk()
    popup.wm_title("Message")
    label = ttk.Label(popup, text=msg, font=NORM_FONT)
    label.pack(side="top", fill="x", pady=10)
    B1 = ttk.Button(popup, text="Okay", command = popup.destroy)
    B1.pack()
    popup.mainloop()

Draw a rectangle on the frame , Measure the angle with a green line

6. Summary and future

In this tutorial , Will use lane change detection method to explore a small demonstration of smart car navigation .

Computer vision is developing rapidly , It's not only used in local car navigation , And there's progress in navigation and product testing on Mars , Even in medical applications it is being developed and used in the early days of X Cancer and tumor detection in X-ray images .

Click here to get GitHub The source code of the account :https://github.com/Hitesh-Valecha/Car_Opencv

reference

• Bradski, Gary and Kaehler, Adrian, Learning OpenCV: Computer Vision in C++ with the OpenCV Library, O’Reilly Media, Inc., 2nd edition, 2013, @10.5555/2523356, ISBN — 1449314651.
• Laganiere, Robert, OpenCV Computer Vision Application Programming Cookbook, Packt Publishing, 2nd edition, 2014, @10.5555/2692691, ISBN — 1782161481.
