harbor安装
2022-07-20 13:50:00 【萌褚】
镜像下载、域名解析、时间同步请点击 阿里云开源镜像站
系统版本：CentOS Linux release 7.6.1810 (Core)
docker版本：20.10.12
docker-compose版本：v2.3.2
一、安装docker-compose：
把在百度网盘下载的docker-compose文件到服务器里
[[email protected] 14:57:42~]# chmod +x docker-compose-linux-x86_64
[[email protected] 14:57:48~]# mv docker-compose-linux-x86_64 /usr/local/sbin/docker-compose二、安装harbor
1、上传在百度网盘下载的harbor压缩包文件到服务器里：
[[email protected] 14:58:29/data/recycle]# ll
total 1237904
-rw-r--r-- 1 root root 612698835 Mar 9 14:59 harbor-offline-installer-v2.4.1.tgz
[[email protected] 14:59:20/data/recycle]#2、解压harbor：
[[email protected] 14:59:20/data/recycle]# tar zxf harbor-offline-installer-v2.4.1.tgz
[[email protected] 14:59:30/data/recycle]# ll
total 1237908
drwxr-xr-x 2 root root 4096 Mar 9 14:59 harbor
-rw-r--r-- 1 root root 612698835 Mar 9 14:59 harbor-offline-installer-v2.4.1.tgz3、移动到部署目录：
[[email protected] 14:59:47/data/recycle]# mv harbor /data/software/
[[email protected] 14:59:54/data/recycle]# cd /data/software/harbor/
[[email protected] 15:00:00/data/software/harbor]# ll
total 601612
-rw-r--r-- 1 root root 3361 Dec 16 12:22 common.sh
-rw-r--r-- 1 root root 616006217 Dec 16 12:23 harbor.v2.4.1.tar.gz
-rw-r--r-- 1 root root 8999 Dec 16 12:22 harbor.yml.tmpl
-rwxr-xr-x 1 root root 2500 Dec 16 12:22 install.sh
-rw-r--r-- 1 root root 11347 Dec 16 12:22 LICENSE
-rwxr-xr-x 1 root root 1881 Dec 16 12:22 prepare4、修改配置文件
[[email protected] 15:00:06/data/software/harbor]# cp harbor.yml.tmpl harbor.ymlvim harbor.yml
5、修改daemon，并添加http的通信地址，不然docker默认使用https进行通信，如果配置了https协议就不需要添加
## 如果不修改，可能会碰到如下错误，只是不一定
## [WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". [[email protected] 16:08:52/data/software/harbor]# cat /etc/docker/daemon.json
{
"registry-mirrors": ["https://nr240upq.mirror.aliyuncs.com", "https://registry.docker-cn.com", "https://docker.mirrors.ustc.edu.cn", "https://dockerhub.azk8s.cn", "http://hub-mirror.c.163.com"],
"exec-opts": ["native.cgroupdriver=systemd"],
"log-driver": "json-file",
"log-opts": {
"max-size": "100m"
},
"insecure-registries": ["172.17.0.100:5000"]
}
[[email protected] 16:16:59/data/software/harbor]#
改好之后，重新加载配置和重启docker
[[email protected] 15:00:50/data/software/harbor]# systemctl daemon-reload && systemctl restart docker6、执行部署脚本：./install.sh
[[email protected] 15:03:56/data/software/harbor]# ./install.sh
[Step 0]: checking if docker is installed ...
Note: docker version: 20.10.12
[Step 1]: checking docker-compose is installed ...
Note: docker-compose version: 2.3.2
[Step 2]: loading Harbor images ...
1e3f0dc884e2: Loading layer [==================================================>] 39.45MB/39.45MB
3fd9ccd5eeaa: Loading layer [==================================================>] 5.275MB/5.275MB
c600bceee2f7: Loading layer [==================================================>] 4.096kB/4.096kB
724cd8711815: Loading layer [==================================================>] 3.072kB/3.072kB
d7c82a981c89: Loading layer [==================================================>] 17.32MB/17.32MB
a814341c2c44: Loading layer [==================================================>] 18.12MB/18.12MB
Loaded image: goharbor/registry-photon:v2.4.1
b00595b6932d: Loading layer [==================================================>] 5.27MB/5.27MB
e34892d856ce: Loading layer [==================================================>] 5.928MB/5.928MB
ac5a22c6047d: Loading layer [==================================================>] 14.47MB/14.47MB
3d1ac12eb215: Loading layer [==================================================>] 29.29MB/29.29MB
394b4b2ea0fa: Loading layer [==================================================>] 22.02kB/22.02kB
bb0deb7416e0: Loading layer [==================================================>] 14.47MB/14.47MB
Loaded image: goharbor/notary-signer-photon:v2.4.1
c3b02aec560c: Loading layer [==================================================>] 8.422MB/8.422MB
4d5b3acd128e: Loading layer [==================================================>] 3.584kB/3.584kB
7afbf44c3706: Loading layer [==================================================>] 2.56kB/2.56kB
31f95ac6eb9a: Loading layer [==================================================>] 75.59MB/75.59MB
8981a12f5c17: Loading layer [==================================================>] 5.632kB/5.632kB
16eb0821dcc3: Loading layer [==================================================>] 96.26kB/96.26kB
b19eba29a0de: Loading layer [==================================================>] 11.78kB/11.78kB
f0785d2e9965: Loading layer [==================================================>] 76.49MB/76.49MB
26ce29b9d7ab: Loading layer [==================================================>] 2.56kB/2.56kB
Loaded image: goharbor/harbor-core:v2.4.1
59e3814aa5f1: Loading layer [==================================================>] 119.8MB/119.8MB
1e99e9cd580e: Loading layer [==================================================>] 3.072kB/3.072kB
2bab205001c7: Loading layer [==================================================>] 59.9kB/59.9kB
c51450af480c: Loading layer [==================================================>] 61.95kB/61.95kB
Loaded image: goharbor/redis-photon:v2.4.1
3636ff090145: Loading layer [==================================================>] 8.421MB/8.421MB
fa3d57c372c8: Loading layer [==================================================>] 3.584kB/3.584kB
a2c97825dcbf: Loading layer [==================================================>] 2.56kB/2.56kB
366b1363b528: Loading layer [==================================================>] 86.95MB/86.95MB
3d2fd6d13a0f: Loading layer [==================================================>] 87.74MB/87.74MB
Loaded image: goharbor/harbor-jobservice:v2.4.1
8f71cf8bc1c6: Loading layer [==================================================>] 5.275MB/5.275MB
5cb3457d8e25: Loading layer [==================================================>] 4.096kB/4.096kB
02c18fad9dc6: Loading layer [==================================================>] 17.32MB/17.32MB
7bbcea1ec44e: Loading layer [==================================================>] 3.072kB/3.072kB
f2842e1ada70: Loading layer [==================================================>] 28.69MB/28.69MB
4665575c3f9e: Loading layer [==================================================>] 46.81MB/46.81MB
Loaded image: goharbor/harbor-registryctl:v2.4.1
439595cfbbc0: Loading layer [==================================================>] 7.192MB/7.192MB
Loaded image: goharbor/nginx-photon:v2.4.1
a19de03ace6b: Loading layer [==================================================>] 5.27MB/5.27MB
35bbd4cf35b6: Loading layer [==================================================>] 5.928MB/5.928MB
88f852ebd746: Loading layer [==================================================>] 15.88MB/15.88MB
e3c0db81a28c: Loading layer [==================================================>] 29.29MB/29.29MB
f74e521b7a55: Loading layer [==================================================>] 22.02kB/22.02kB
7d97a705f439: Loading layer [==================================================>] 15.88MB/15.88MB
Loaded image: goharbor/notary-server-photon:v2.4.1
1e6473070b18: Loading layer [==================================================>] 124MB/124MB
f05c1a477d2d: Loading layer [==================================================>] 3.584kB/3.584kB
bcab3e00aa98: Loading layer [==================================================>] 3.072kB/3.072kB
970d569f474a: Loading layer [==================================================>] 2.56kB/2.56kB
c659c9812277: Loading layer [==================================================>] 3.072kB/3.072kB
9d401ff8bf07: Loading layer [==================================================>] 3.584kB/3.584kB
968dfed00d2e: Loading layer [==================================================>] 19.97kB/19.97kB
Loaded image: goharbor/harbor-log:v2.4.1
b64000a1cd2c: Loading layer [==================================================>] 1.097MB/1.097MB
e3fb7ac15701: Loading layer [==================================================>] 5.889MB/5.889MB
d6e7f8008582: Loading layer [==================================================>] 165.9MB/165.9MB
eff0812a8c6f: Loading layer [==================================================>] 15.07MB/15.07MB
91a6abd7a540: Loading layer [==================================================>] 4.096kB/4.096kB
47e875926154: Loading layer [==================================================>] 6.144kB/6.144kB
04876e025d4a: Loading layer [==================================================>] 3.072kB/3.072kB
b817a88114e6: Loading layer [==================================================>] 2.048kB/2.048kB
e5fb37021dff: Loading layer [==================================================>] 2.56kB/2.56kB
767486d5c318: Loading layer [==================================================>] 2.56kB/2.56kB
b92f2b842b46: Loading layer [==================================================>] 2.56kB/2.56kB
e90e3a7ea4e9: Loading layer [==================================================>] 8.704kB/8.704kB
Loaded image: goharbor/harbor-db:v2.4.1
daf3d38cddc8: Loading layer [==================================================>] 8.422MB/8.422MB
8013b2cbc0b9: Loading layer [==================================================>] 18.13MB/18.13MB
4445f5ea7083: Loading layer [==================================================>] 4.608kB/4.608kB
32e035f0af8e: Loading layer [==================================================>] 18.93MB/18.93MB
Loaded image: goharbor/harbor-exporter:v2.4.1
0ad72e88d766: Loading layer [==================================================>] 8.54MB/8.54MB
fe195f48d47b: Loading layer [==================================================>] 4.096kB/4.096kB
71f2671db231: Loading layer [==================================================>] 3.072kB/3.072kB
ddda0b4a8eae: Loading layer [==================================================>] 39.27MB/39.27MB
c3fe76027866: Loading layer [==================================================>] 12.37MB/12.37MB
d82a7403c39a: Loading layer [==================================================>] 52.43MB/52.43MB
Loaded image: goharbor/trivy-adapter-photon:v2.4.1
03e449493f09: Loading layer [==================================================>] 5.275MB/5.275MB
4f4a25c7cc0d: Loading layer [==================================================>] 64.5MB/64.5MB
77a37df05436: Loading layer [==================================================>] 3.072kB/3.072kB
47c58e48962d: Loading layer [==================================================>] 4.096kB/4.096kB
5dd56c28f3fc: Loading layer [==================================================>] 65.29MB/65.29MB
Loaded image: goharbor/chartmuseum-photon:v2.4.1
8b7cbddd8918: Loading layer [==================================================>] 165.6MB/165.6MB
b8157b6f7cb8: Loading layer [==================================================>] 57.6MB/57.6MB
4a53b9a92b30: Loading layer [==================================================>] 2.56kB/2.56kB
59184fc56c3c: Loading layer [==================================================>] 1.536kB/1.536kB
99431fe2c10f: Loading layer [==================================================>] 12.29kB/12.29kB
3735b7f4881f: Loading layer [==================================================>] 2.62MB/2.62MB
bcff3633b236: Loading layer [==================================================>] 325.6kB/325.6kB
Loaded image: goharbor/prepare:v2.4.1
eb57d0945b2e: Loading layer [==================================================>] 7.192MB/7.192MB
dd9069fd53a8: Loading layer [==================================================>] 7.355MB/7.355MB
e779dab1d180: Loading layer [==================================================>] 1.754MB/1.754MB
Loaded image: goharbor/harbor-portal:v2.4.1
[Step 3]: preparing environment ...
[Step 4]: preparing harbor configs ...
prepare base dir is set to /data/software/harbor
WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
Generated and saved secret to file: /data/secret/keys/secretkey
Successfully called func: create_root_cert
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir
[Step 5]: starting Harbor ...
[+] Running 10/10
? Network harbor_harbor Created 0.0s
? Container harbor-log Started 0.6s
? Container redis Started 1.3s
? Container registryctl Started 1.4s
? Container registry Started 1.4s
? Container harbor-db Started 1.4s
? Container harbor-portal Started 1.3s
? Container harbor-core Started 1.7s
? Container harbor-jobservice Started 2.3s
? Container nginx Started 2.4s
? ----Harbor has been installed and started successfully.----

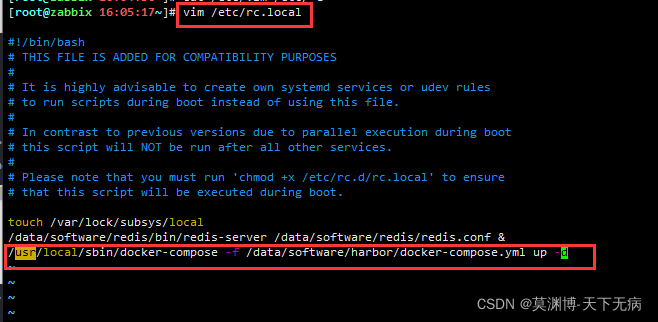

[[email protected] 15:04:47/data/software/harbor]#7、配置开机自启：
/usr/local/sbin/docker-compose -f /data/software/harbor/docker-compose.yml up -d
8、设置权限
chmod +x /etc/rc.local /etc/rc.d/rc.local9、尝试登陆harbor
10、命令行登陆
[[email protected] 15:08:00/data/software/harbor]# docker login 172.17.0.100:5000
Username: admin
Password:
Login Succeeded
[[email protected] 15:08:57/data/software/harbor]# 三、测试上传和下载

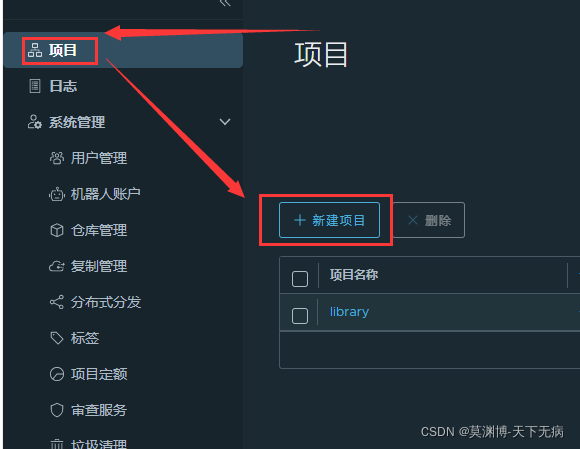

1、新建一个项目目录：
2、我以nginx为例进行推送到harbor上：
[[email protected] 16:45:33/data/software/harbor]# docker image ls | grep nginx
nginx latest 605c77e624dd 2 months ago 141MB
goharbor/nginx-photon v2.4.1 78aad8c8ef41 2 months ago 45.7MB
[[email protected] 16:45:42/data/software/harbor]# docker tag nginx:latest 172.17.0.100:5000/test/nginx1.8:v1
[[email protected] 16:59:00/data/software/harbor]# docker image ls | grep nginx
172.17.0.100:5000/test/nginx1.8 v1 605c77e624dd 2 months ago 141MB
nginx latest 605c77e624dd 2 months ago 141MB
goharbor/nginx-photon v2.4.1 78aad8c8ef41 2 months ago 45.7MB
[[email protected] 16:59:04/data/software/harbor]# docker push 172.17.0.100:5000/test/nginx1.8:v1
The push refers to repository [172.17.0.100:5000/test/nginx1.8]
d874fd2bc83b: Pushed
32ce5f6a5106: Pushed
f1db227348d0: Pushed
b8d6e692a25e: Pushed
e379e8aedd4d: Pushed
2edcec3590a4: Pushed
v1: digest: sha256:ee89b00528ff4f02f2405e4ee221743ebc3f8e8dd0bfd5c4c20a2fa2aaa7ede3 size: 1570
[[email protected] 16:59:25/data/software/harbor]# 3、查看镜像仓库，可以看到多了一个镜像
4、镜像拉取(镜像下载)
[[email protected] 16:59:25/data/software/harbor]# docker image rm 172.17.0.100:5000/test/nginx1.8:v1
Untagged: 172.17.0.100:5000/test/nginx1.8:v1
Untagged: 172.17.0.100:5000/test/[email protected]:ee89b00528ff4f02f2405e4ee221743ebc3f8e8dd0bfd5c4c20a2fa2aaa7ede3
[[email protected] 17:01:15/data/software/harbor]# docker image ls | grep nginx
nginx latest 605c77e624dd 2 months ago 141MB
goharbor/nginx-photon v2.4.1 78aad8c8ef41 2 months ago 45.7MB
[[email protected] 17:02:07/data/software/harbor]# docker pull 172.17.0.100:5000/test/nginx1.8:v1
v1: Pulling from test/nginx1.8
Digest: sha256:ee89b00528ff4f02f2405e4ee221743ebc3f8e8dd0bfd5c4c20a2fa2aaa7ede3
Status: Downloaded newer image for 172.17.0.100:5000/test/nginx1.8:v1
172.17.0.100:5000/test/nginx1.8:v1
[[email protected] 17:02:12/data/software/harbor]# docker image ls | grep nginx
172.17.0.100:5000/test/nginx1.8 v1 605c77e624dd 2 months ago 141MB
nginx latest 605c77e624dd 2 months ago 141MB
goharbor/nginx-photon v2.4.1 78aad8c8ef41 2 months ago 45.7MB
[[email protected] 17:02:16/data/software/harbor]# 至此，harbor部署完毕
知识补充：
1、如果以后修改了harbor.yml文件，那么先停止使用docker-compose down，再去修改harbor.yml文件，重新启动部署 ./install.sh
2、正常启动harbor启动：
docker-compose up -d3、未修改配置文件，重启Harbor命令：docker-compose start | stop | restart
原文链接：https://blog.csdn.net/moyuanbomo/article/details/123378825
边栏推荐
- 理财产品的收益率是越高越好吗？
- In depth analysis of string source code - Hard box
- 淘宝/天猫：畅销榜 API 返回值说明
- 面试题
- Taobao / tmall search by category Taobao live broadcast interface API instructions
- EfCore 表关系一对一，使用案例
- 今日来介绍关于淘宝相似商品搜索的API接口
- 【漏洞复现】Apache Log4j2 远程代码执行漏洞
- 深入Go Map的使用技巧
- App automated test -1 Appium installation and configuration
猜你喜欢
![[upload range 17-21] secondary rendering, conditional competition, black and white list bypass](/img/72/d3e46a820796a48b458cd2d0a18f8f.png)
[upload range 17-21] secondary rendering, conditional competition, black and white list bypass
Parsing JPEG decoding format
行业现状令人失望，工作之后我又回到UC伯克利读博了
APP自动化测试-2. Appium录制测试用例
Research on the method of weight judgment of BFS node in path finding problem
Fraud detection using CSP
什么是IFTMCS指示合同状态报文？
Judge whether view slides in or out of the visible area of the screen
Sorting and retrieval (merging / quick sorting / bisection)
Opengauss kernel analysis: query rewriting
随机推荐
js 常见的replace()方法案例
三伏天的食物
路径寻找问题（暴力求解法）例题分析
Redis - 管理工具 redis-cli 详解
How to solve the RSA public key not find problem in Navicat
细分行业的机会
使用 CSP进行欺诈检测
App automated test -1 Appium installation and configuration
Matlab point cloud roughness calculation
Window enters another directory
探究路径寻找问题BFS结点的判重方法
Scala 高阶（八）：集合内容汇总（下篇）
Airbnb的动态kubernetes集群扩缩容
面试题
Klocwork部署的安全最佳实践
Android kotlin uses arouter componentized routing and datastore to save data instead of SharedPreferences
Taobao / tmall: description of API return value of bestseller list
MATLAB 点云粗糙度计算
线上交流丨知识驱动的多策略多模态问答技术实践（青源Talk第22期 王昊奋）
Other application examples of backtracking method
