know RTP Baotou and h264 Of nalu head

Refer to the header of the server

know RTSP agreement

Reference server RTSP_state_machine Function pair RTSP Interpretation of the agreement

Client source code

Connect to server

send out RTSP agreement

/* MAXBUF use to receive message from stream server */
    bzero(buffer, MAXBUF + 1);
	/* send message to server */
	Handel_OPTION(buffer);// Send to server RTSP Of option agreement
    len = send(sockfd, buffer, strlen(buffer), 0);
    if (len < 0)
        printf("_____%d_____OPTION Reply Msg:\n %s send error! error code is %d, error content is %s \n", __LINE__,buffer, errno, strerror(errno));
    else
        printf("_____%d_____OPTION Reply Msg:\n %s send successfully,total content is %d bytes!\n", __LINE__, buffer, len);
	bzero(buffer, MAXBUF + 1);
	printf("____%d____\n",__LINE__);
    /* receive message from server */
    len = recv(sockfd, buffer, MAXBUF, 0); /*  Confirm that the server replies OPTION Reply */
    if (len < 0){

        printf("_____%d_____OPTION Reply Msg:\n %s receive error! error code is %d, error content is %s \n", __LINE__, buffer, errno, strerror(errno));
	}
    else{

        printf("_____%d_____OPTION Reply Msg:\n %s receive successfully,total content is %dbytes!\n", __LINE__,buffer, len);
	}
	if (memcmp(buffer, successfullyReplyStr, sizeof(successfullyReplyStr) -1) == 0){

		Handel_DESCRIBE(buffer, sockfd);// Send to server RTSP Of DESCRIBE agreement
	}
	else{

		printf("_____%d_____the OPTION answer Msg is wrong!\n", __LINE__);
		return 0;
	}
	bzero(buffer, MAXBUF + 1);
    /* DESCRIBE Reply */
    len = recv(sockfd, buffer, MAXBUF, 0);/*  Confirm that the server replies OPTION Reply */
    if (len < 0){

        printf("_____%d_____DESCRIBE Reply Msg:\n %s receive error! error code is %d, error content is %s \n",  __LINE__,buffer, errno, strerror(errno));
	}
    else{

        printf("_____%d_____DESCRIBE Reply Msg:\n %s receive successfully,total content is %dbytes!\n", __LINE__,buffer, len);
	}
	if (memcmp(buffer, successfullyReplyStr, sizeof(successfullyReplyStr)-1) == 0){

		Handel_SETUP(buffer, sockfd);// Send to server RTSP Of SETUP agreement
	}
	else{

		printf("_____%d_____the DESCRIBE answer Msg is wrong!\n",__LINE__);
		return 0;
	}
	bzero(buffer, MAXBUF + 1);
    len = recv(sockfd, buffer, MAXBUF, 0);/*  Confirm that the server replies OPTION Reply */
    if (len < 0){

	    printf("_____%d_____SETUP Reply Msg:\n %s receive error! error code is %d, error content is %s \n", __LINE__,buffer, errno, strerror(errno));
	}
    else{

		printf("_____%d_____SETUP Reply Msg:\n %s receive successfully,total content is %dbytes!\n", __LINE__,buffer, len);
	}
	char sessionIdTmp[30];
	bzero(sessionIdTmp,sizeof(sessionIdTmp));
	strsearch(buffer, "Session: ", 9, sessionIdTmp);
	printf("___%d___sessionIDTmp:%s\n",__LINE__,sessionIdTmp);
	if (memcmp(buffer, successfullyReplyStr, sizeof(successfullyReplyStr)-1) == 0)
	{

		char searchStrTmp[13]="port=";
		udpPort=intsearch(buffer,searchStrTmp,5);
		if(udpPort==0){

			return 0;
		}
		printf("the udp port is %d\n",udpPort);

		bzero(&RTPAddr,sizeof(RTPAddr));
		bzero(&RTCPAddr,sizeof(RTCPAddr));

		rtpsockfd  = init_udpsocket(udpPort, &RTPAddr, mcast_addr);
		//rtcpsockfd = init_udpsocket(udpPort+1, &RTCPAddr, mcast_addr);

		Handel_PLAY(buffer, sockfd,sessionIdTmp);// Send to server RTSP Of SETUP agreement
	}
	else
	{

		printf("_____%d_____the SETUP answer Msg is wrong!\n",__LINE__);
		return 0;
	}
	bzero(buffer, MAXBUF + 1);
	len = recv(sockfd, buffer, MAXBUF, 0);/*  Confirm that the server replies OPTION Reply */
    if (len < 0){

		printf("_____%d_____PLAY Reply Msg:\n %s receive error! error code is %d, error content is %s \n", __LINE__,buffer, errno, strerror(errno));
	}else{

		printf("_____%d_____PLAY Reply Msg:\n %s receive successfully,total content is %dbytes!\n", __LINE__,buffer, len);
	}
	if (memcmp(buffer, successfullyReplyStr, sizeof(successfullyReplyStr)-1) != 0){

		printf("_____%d_____the play answer Msg is wrong!\n",__LINE__);
		return 0;
	}
	printf("_____%d_____now,receiving RTP packets data......\n",__LINE__);

The key function

int  H264rtp_Handle(unsigned char *write_buf, int write_size)
{

	rtp_header_t *rtp_header = (rtp_header_t *)write_buf;// obtain RTP The baotou
	unsigned char *rtp_payload = write_buf + RTP_HEADER_LEN; //  Address offset obtains the starting position of data
	uint8_t nalu_type = rtp_payload[0] & 0x1F; // NaluHeader After 5 position   or  FuIndicator After 5 position , Reference resources NALU The head and FU Description of subcontracting header , They can be distinguished here
	stream_p pointer_addr = calloc(sizeof(stream), 1);
	pointer_addr->stream_buffer = NULL;
	if (pointer_addr == NULL)
	{

		perror("calloc failed");
		return 0;
	}
	if (nalu_type == 0x1C) // 0x1C by FU Package, otherwise NALU package
	{

		uint8_t fua_type = rtp_payload[1] & 0xE0; // FuHeader  The top three of , The first package is 100b, Tundish 000, Tail package 010 Reference resources FU Package introduction
		int header_len = RTP_HEADER_LEN + FU_INDICATOR_LEN + FU_HEADER_LEN;
		unsigned char *nalu_payload = write_buf + header_len; //  Address offset
		if (fua_type == 0x80) // Fu Package for  Nalu Starting position , Need to write  NaluStarter + NaluHeader + NaluPayload.
		{

			uint8_t nalu_header = (rtp_payload[0] & 0xE0) | (rtp_payload[1] & 0x1F); // FuIndicator  Before 3 Bit and  FuHeader After 5 position
			int input_size = NALU_STARTER_LEN + NALU_HEADER_LEN + (write_size - header_len);
			pointer_addr->stream_buffer = calloc(input_size,1);
			if (pointer_addr->stream_buffer == NULL)
			{

				perror("calloc failed");
				return 0;
			}
			memset(pointer_addr->stream_buffer, 0, input_size);
			pointer_addr->stream_buffer[NALU_STARTER_LEN - 1] = 1; // NaluStarter - [00, 00, 00, 01]
			memcpy(pointer_addr->stream_buffer + NALU_STARTER_LEN, &nalu_header, NALU_HEADER_LEN); // NaluHeader
			memcpy(pointer_addr->stream_buffer + NALU_STARTER_LEN + NALU_HEADER_LEN, nalu_payload, write_size - header_len); // NaluPayload
			pointer_addr->stream_size = input_size;
			tail_insert_in_ker_list(stream_head, pointer_addr);
			printf("111%d\n", input_size);
		}
		else // Fu Package for  Nalu Other places , Just write  NaluPayload.
		{

			int input_size = write_size - header_len;
			pointer_addr->stream_buffer = calloc(input_size, 1);
			if (pointer_addr->stream_buffer == NULL)
			{

				perror("calloc failed");
				return 0;
			}
			memset(pointer_addr->stream_buffer, 0, input_size);
			memcpy(pointer_addr->stream_buffer, nalu_payload, input_size); // NaluPayload
			pointer_addr->stream_size = input_size;
			tail_insert_in_ker_list(stream_head, pointer_addr);
			printf("222%d\n", input_size);
		}
	}
	else //  complete  Nalu  The package needs to be written  NaluStarter + NaluHeader + NaluPayload.
	{

		int input_size = NALU_STARTER_LEN + (write_size - RTP_HEADER_LEN);
		pointer_addr->stream_buffer = calloc(input_size, 1);
		if (pointer_addr->stream_buffer == NULL)
		{

			perror("calloc failed");
			return 0;
		}
		memset(pointer_addr->stream_buffer, 0, input_size);
		pointer_addr->stream_buffer[NALU_STARTER_LEN - 1] = 1; // NaluStarter - [00, 00, 00, 01]
		memcpy(pointer_addr->stream_buffer + NALU_STARTER_LEN, rtp_payload, write_size - RTP_HEADER_LEN); // RtpPayload = NaluHeader + NaluPayload.
		pointer_addr->stream_size = input_size;
		tail_insert_in_ker_list(stream_head, pointer_addr);
		printf("3333%d\n", input_size);
	}
}

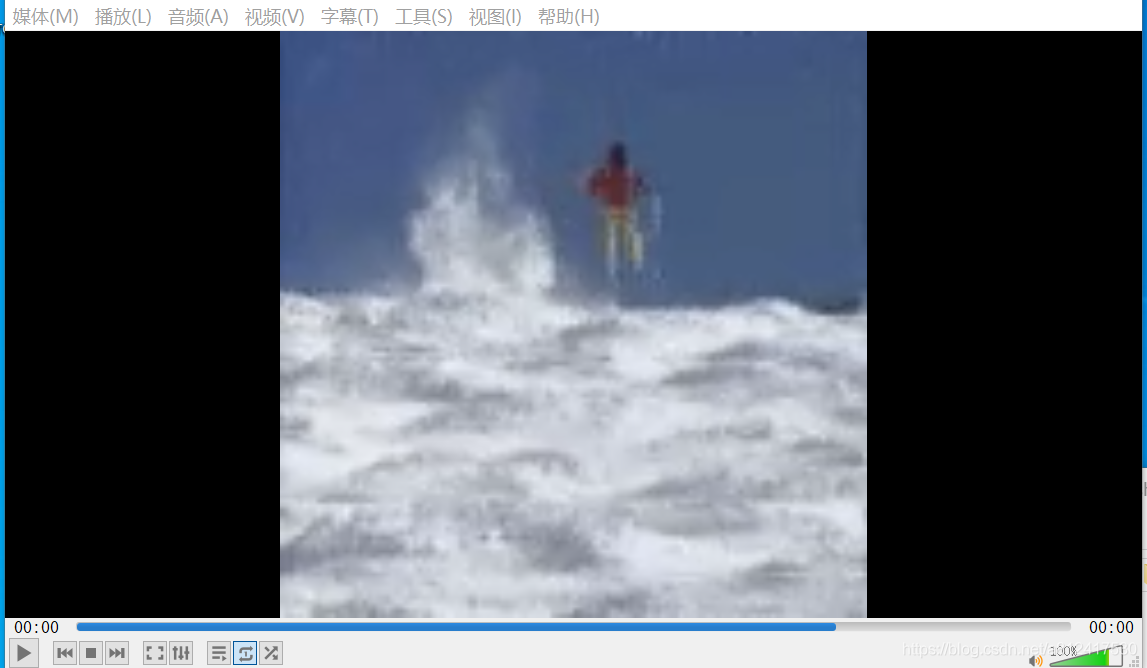

Effect unpacking data is saved to file , use VLC Played successfully ~~

The code download ( Click here )
