ACL and NAT

2022-07-21 14:10:00 【stars293】

1.ACL Overview and background

ACL：access list Access control list

In order to ensure the security of financial data , R & D departments are not allowed to access the financial server , But there is no limit to the president's office . Realization way ：
stay Interface 1 In the same direction ACL, The R & D department is forbidden to access the message of financial server through .Interface 2 There is no need to deploy ACL, Messages from the president's office accessing the financial server are allowed to pass through by default .
Protect the security of Intranet environment , prevent Internet Virus invasion . Realization way ：
stay Interface 3 In the same direction ACL, Block the port that the virus often uses .
White list ： Reject all by default , Let's play one. Can communicate with one Within oneself
Business of the Department
The blacklist ： Open all by default , Add a , Cannot communicate with one

2.ACL working principle

ACL Is a set of rules , It is applied to an interface of the router . For routers ,ACL There are two directions ：

entrance
An entry refers to a packet that has reached the router interface , Will be processed by the router .
exit
Exit means that it has been processed by the router , Packets leaving the router .

3.ACL species

basic ACL（2000~2999）： Only match IP Address
senior ACL（3000~3999）： Can match source IP, The goal is IP, Source port , Target port and other three-tier and four tier fields and protocols
On the second floor ACL（4000~4999）： According to the source of the packet MAC Address , The goal is MAC Address ,802.1q priority , Layer 2 protocol

[Huawei] acl number 2000 ### establish acl 2000
[Huawei-acl-basic-2000]rule 5 deny source 192.168.1.1 0
# The rejection source address is 192.168.1.1 Of traffic ,0 Represents only this one ,5 Is the serial number of this rule ( Not to add )[Huawei] interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192. 168.2.254 24
[Huawei -GigabitEthernet0/0/1]traffic-filter outbound acl 2000
### Interface out direction call acl 2000,outbound Represents the direction ,inbound Represents the direction of entry [Huawei-GigabitEthernet0/0/1]undo sh

[Huawei]acl number 2001 ### Get into acl 2001 list
[Huawei-acl-basic-2001]rule permit source 192.168.1.0 0.0.0.255
###permit On behalf of the allowed ,source On behalf of the source , The mask part is unmasked
[Huawei-acl-basic-2001]rule deny source any perhaps rule deny
### Deny all access ,any On behalf of all 0.0.0.0 255.255.255.255
[Huawei] interface GigabitEthernet 0/0/1 ### Enter the exit interface
[Huawei-GigabitEthernet0/0/1]ip address 192.168.2.254 24
[Huawei -Gigabi tEthernet0/0/1]traffic-filter outbound acl 2001

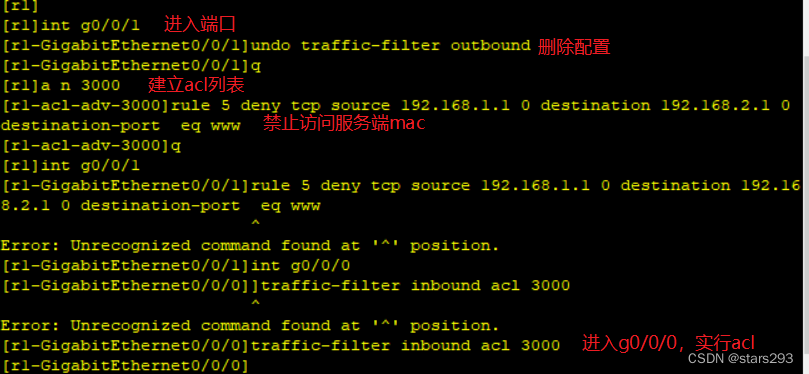

[Huawei]aclnumber 3000 ### Refuse tcp For advanced control , therefore 3000 rise
[Huawei-acl-adv-3000]rule deny icmp source 192.168.1.0 0.0.0.255 destination 192.168.3.1 0 ### Refuse Ping
[Huawei-acl-adv-3000]rule permit tcp source 192.168.1.3 0 destination 192.168.3.1 0 destination-port eq 80
###destination Represents the destination address ,destination- port Represents the destination port number ,80 You can use www Instead of
### Configuration stops , No further execution
[Huawei-acl-adv-3000] rule deny tcp source any destination 192.168.3.1 0 destination-port eq 80

[Huawei-acl-adv-3000]rule deny tcp source 192.168.10.0 0.0.0.255 destination 12.0.0.2 destination-port eq 21
### Reject source address 192.168.10.0 Segment access FTP The server 12.0.0.2
[Huawei-acl-adv-3000]dis this ### View the current ACL Whether the configuration is successful

[Huawei]interface g0/0/0
[Huawei -GigabitEthernet0/0/1]ip address 192.168.2.254 24
[Huawei-GigabitEthernet0/0/0]traffic- filter inbound acl 3000 ### Apply in the direction of interface entry acl

[Huawei-GigabitEthernet0/0/1]undo traffic- filter inbound ### Cancel on interface acl Application

[Huawei] display acl 3000 ### Show acl To configure

[Huawei]acl number 3000
[Huawei-acl-adv-3000]dis this ### View rule sequence number
[Huawei-acl-adv-3000]undo rule 5 ### Delete one acl sentence

[Huawei]undo acl number 3000 ### Delete the whole ACL
