One 、 Experimental environment

Three hosts are needed , The configuration is as follows

Ansible host

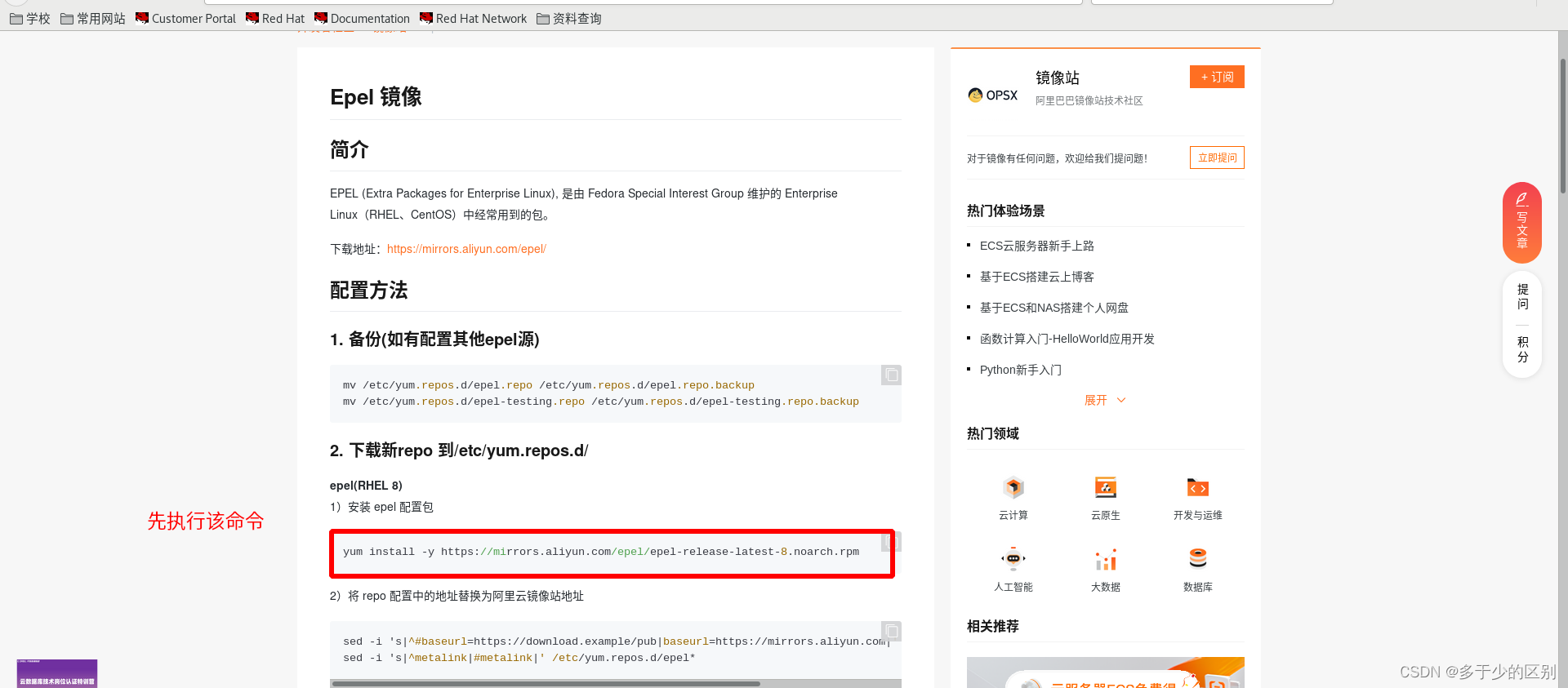

To configure epel Source

node200 Host configuration

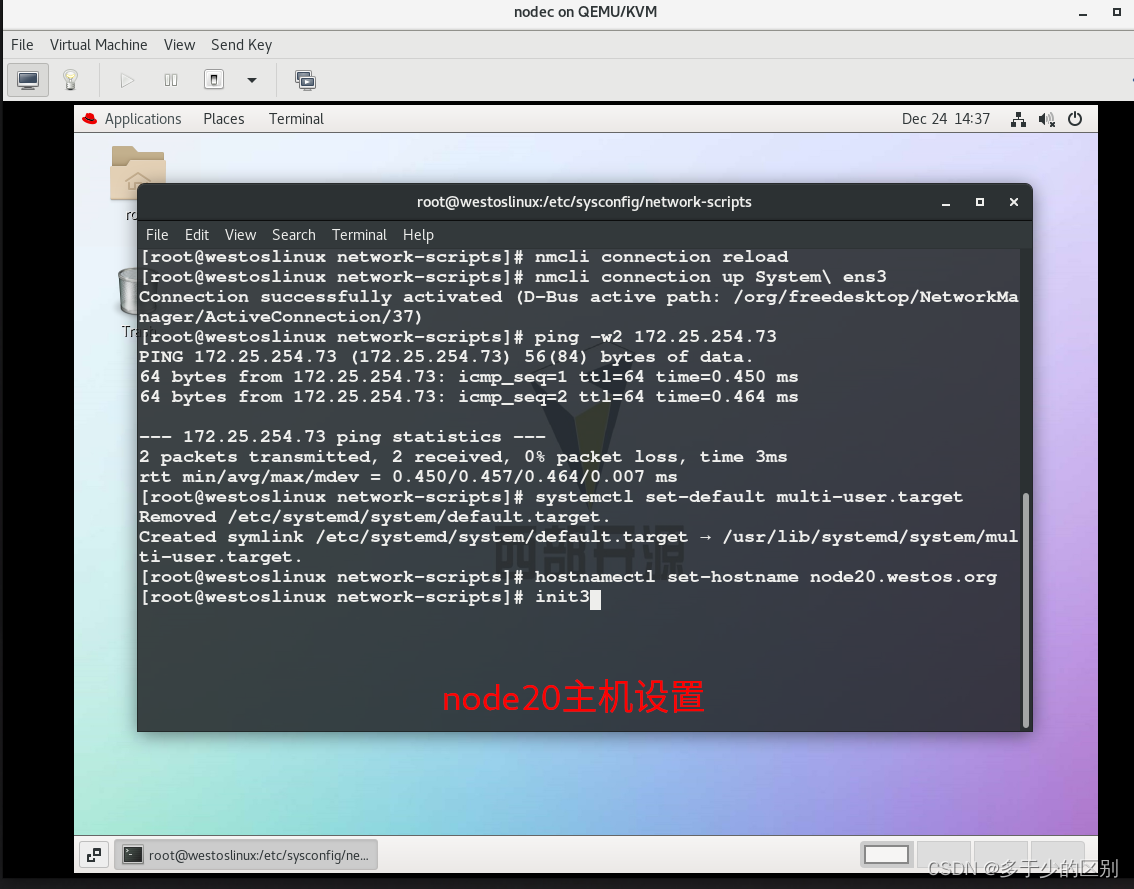

node20 Host configuration

One 、Ansible Great significance for enterprise operation and maintenance

Hosts in Enterprises , The number of systems to be controlled is certainly not unique , The number of servers to be controlled must be huge , Use traditional ssh It will be very troublesome to control . The software is also based on ssh, To complete one to many deployment . A tool for remote one to many management , Tools for automatic deployment .

Two 、Ansible Installation

For specific operation, please refer to the environment installation section

epel Source
dnf install ansible -y
ansible --vier** Bold style **sion

ansible Basic information of :
/etc/ansible/ansible.conf 		## Global profile , The default is rarely modified
/etc/ansible/hosts			# Global host manifest file

3、 ... and 、 structure Ansible detailed list

The list is ansible List of control hosts
/etc/ansible/hosts # Global manifest file

1. List view

ansible  Group name in list  [-i  Inventory file ]	--list-hosts

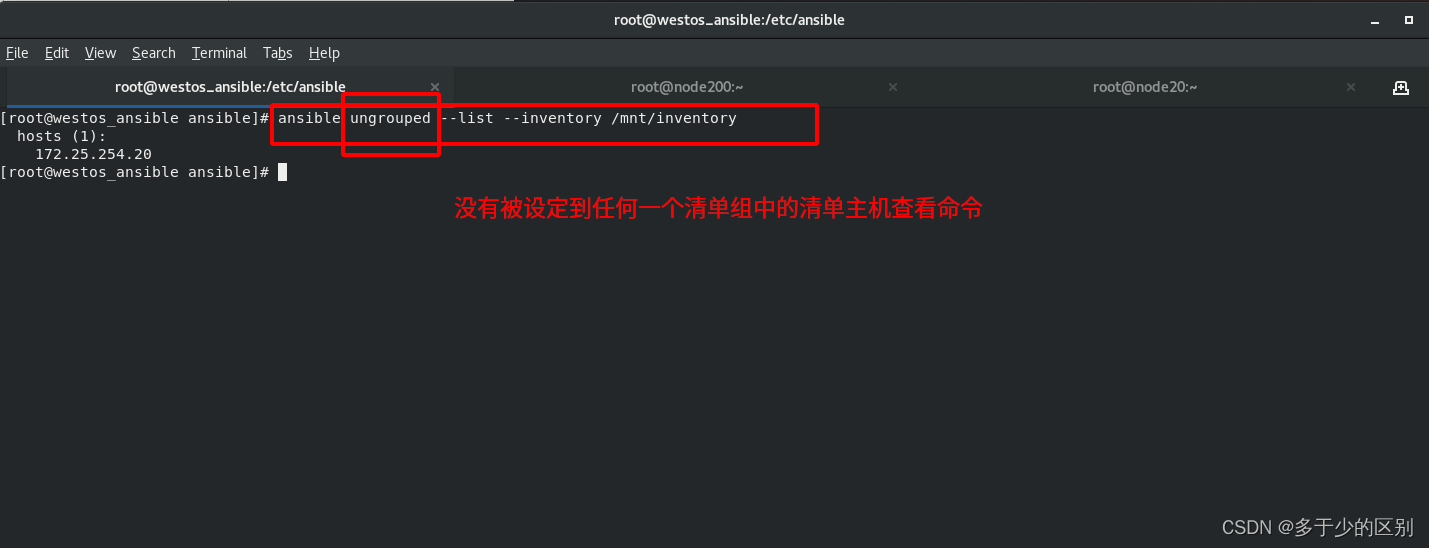

ansible ungrouped --list-hosts
ansible all --list-hosts

The list is not the list in the list group or the list not in the list group

2. Prepare list

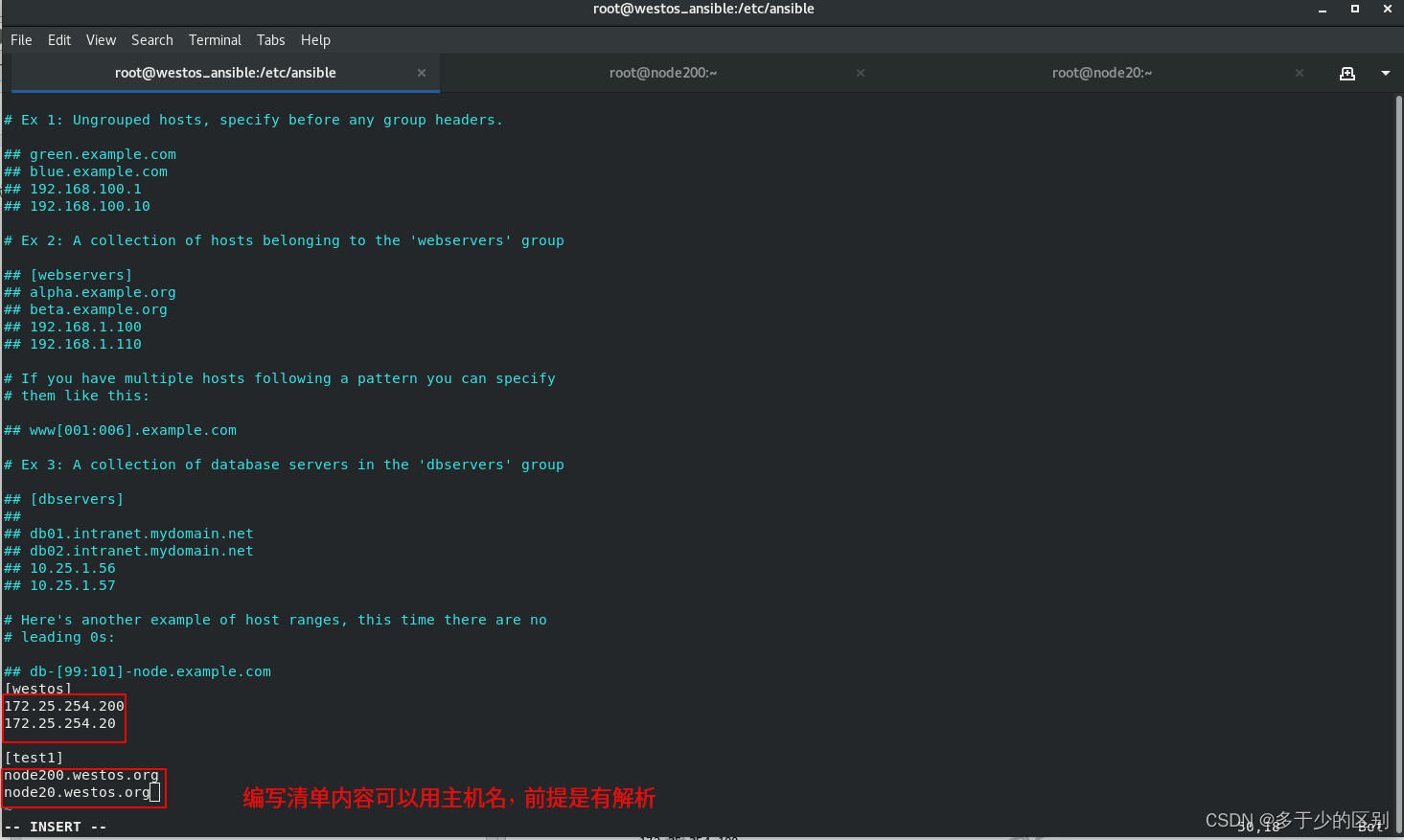

1) Write default list

Single layer list

# Single layer list #
[westos]
172.25.254.200
172.25.254.20

[test1]
node200.westos.org
node20.westos.org

Nested list

[testall:children]
westos
test1

test
## 3) Scope operation of host specification

 By specifying the host name or IP The scope of can be simplified Ansible Host list
# grammar :
#[start:end]

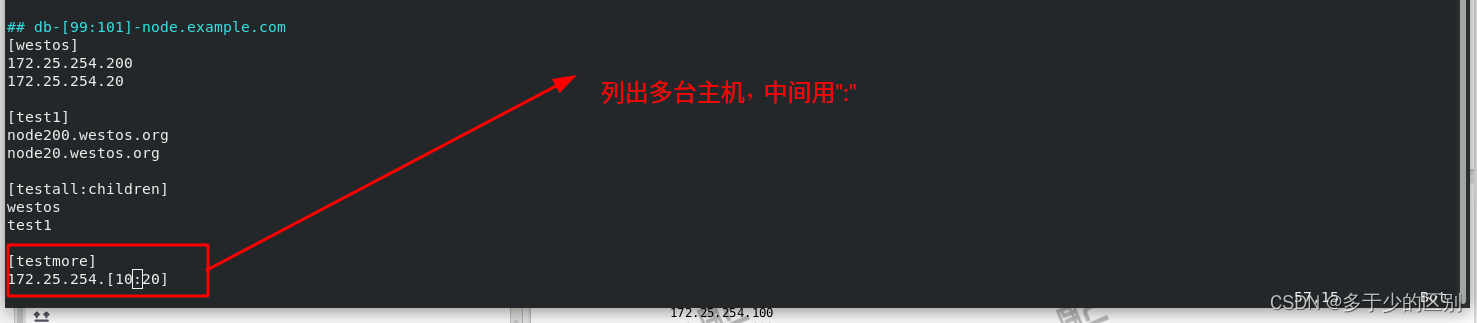

[westostest]
172.25.254.[10:20]

test

4） Specify other manifest files

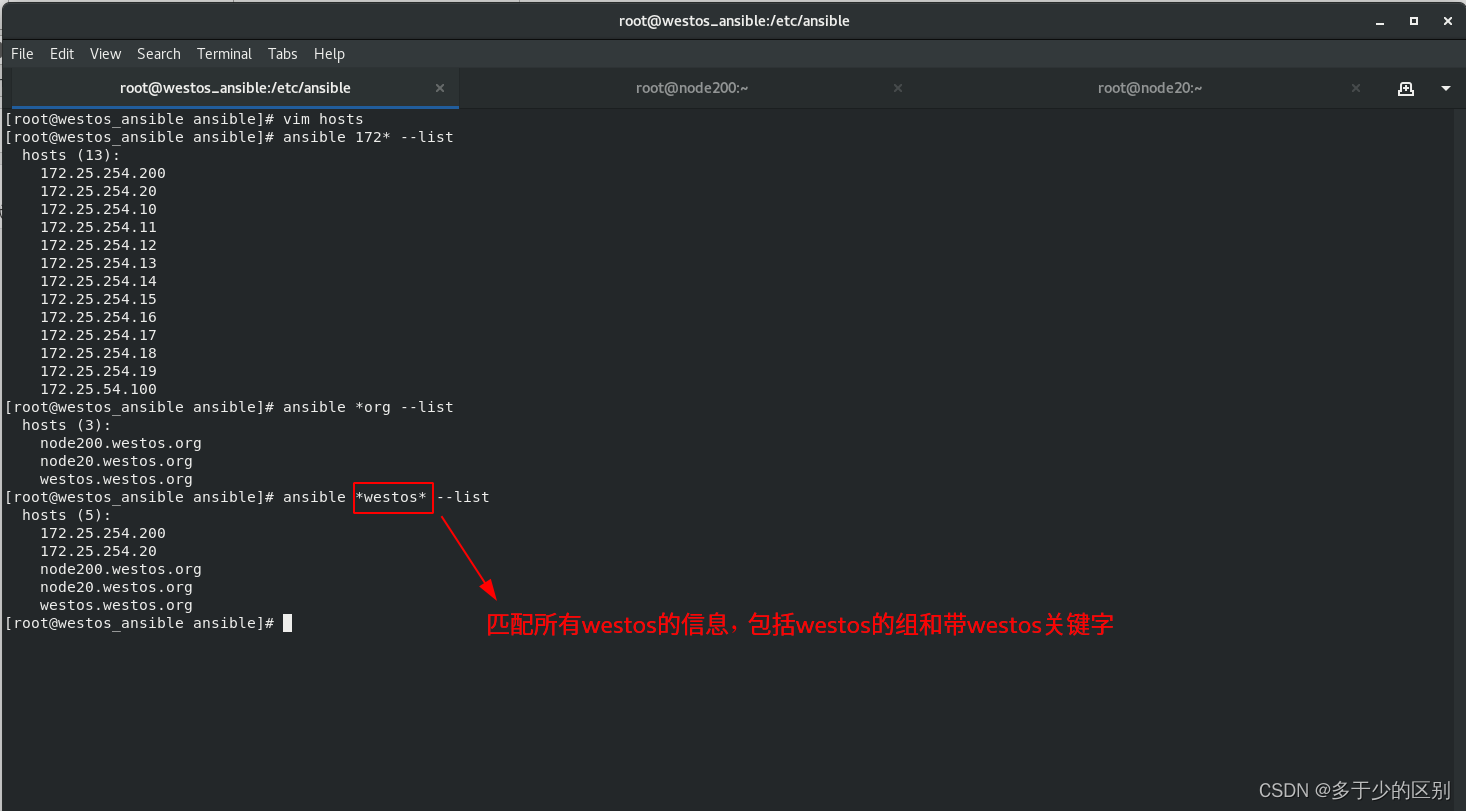

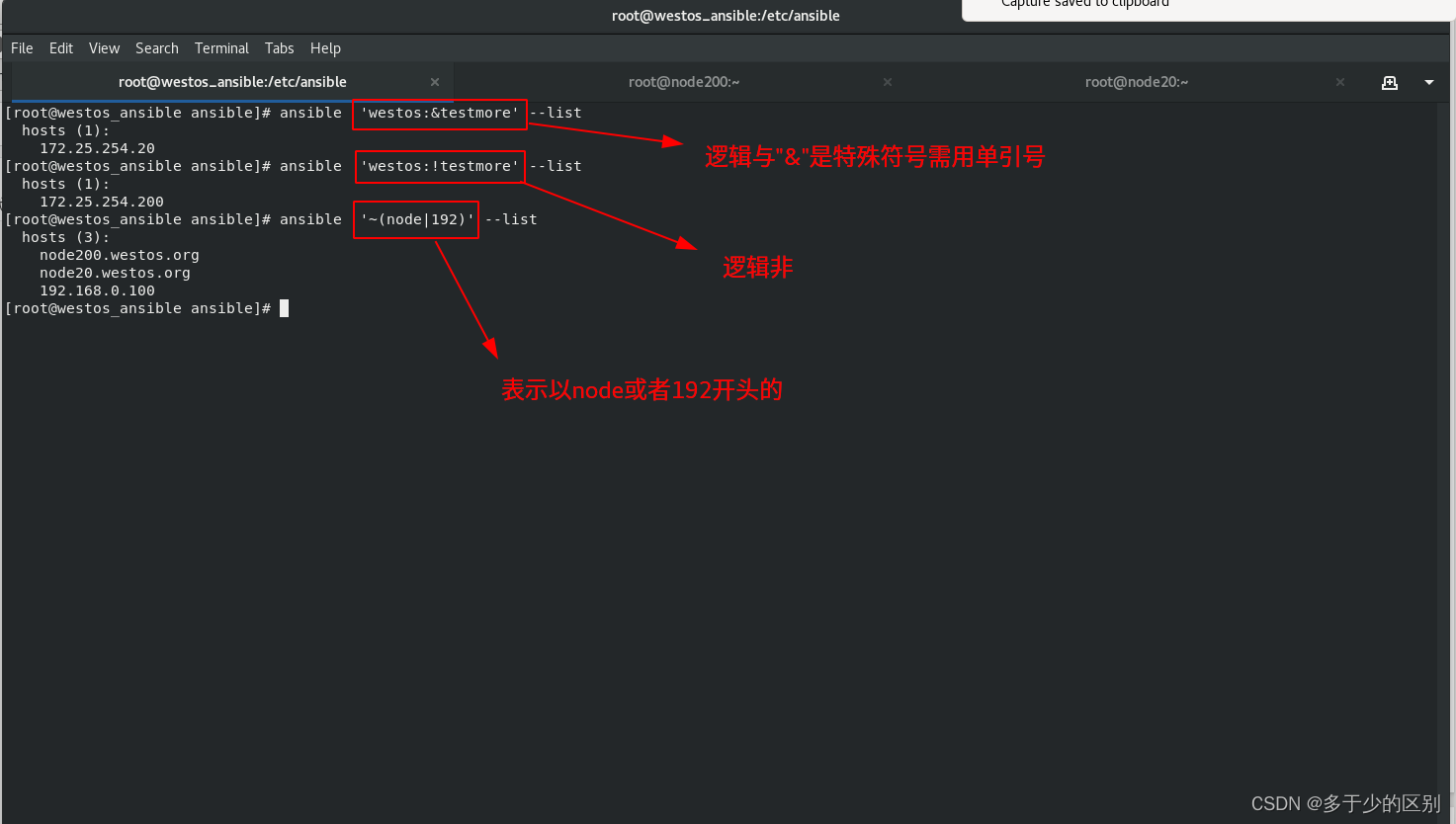

## 4）ansible The command specifies the regular expression of the manifest

*			## all
			##172.25.254.*
			##westos*

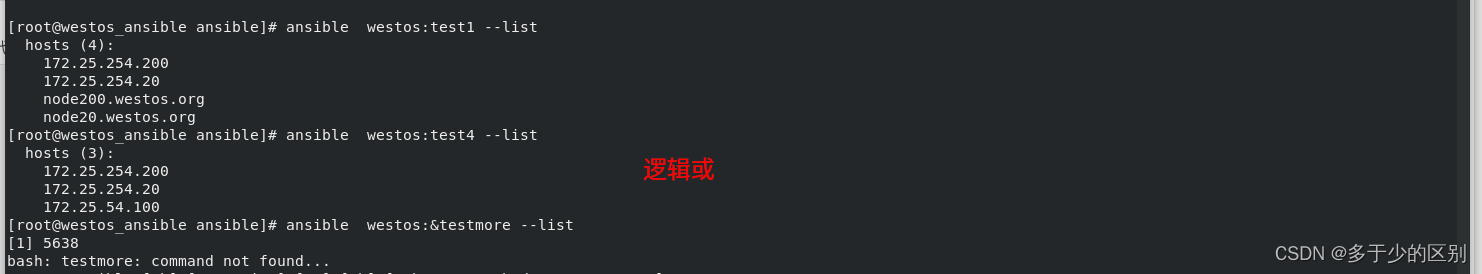

: 			## Logic or
			##westos1:linux
			##172.25.254.100:172.25.254.200

:& 			## Logic and
			##westos1:&linux
			## The host is at westos1 The list is also here linux In the list

:! 			## Logic is not
			##westos1:!linux
			## stay westos1 Not in linux in

~ 			## Start with a keyword

~(str1|str2) ## On condition of 1 Or the conditions 2 start

Four 、Ansible Detailed explanation of configuration file parameters

Ansible Execute command format

ansible  Group name in list  -m  modular  -u remote_user	#-u After remoute_user Refers to the identity of the remote user executing

1. Classification and priority of configuration files

/etc/ansible/ansible.cfg	# Basic configuration file , No other configuration files were found. This file takes effect

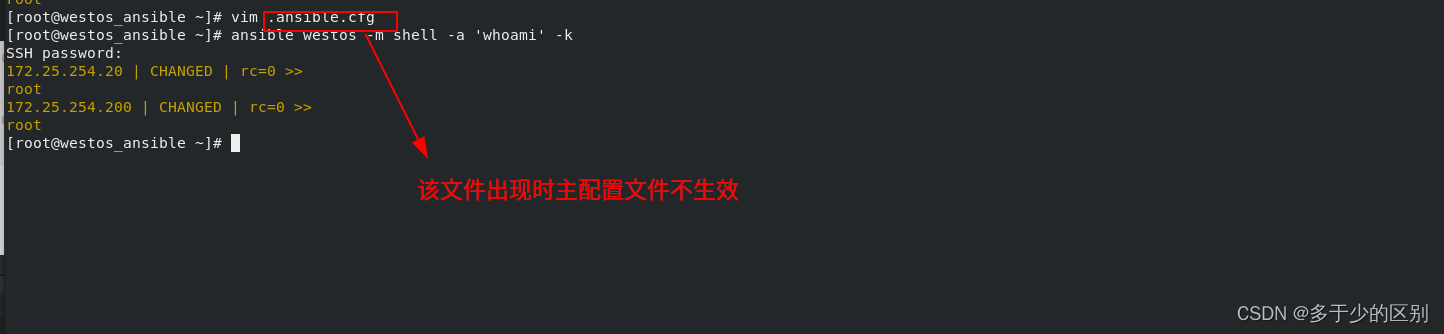

~/.ansible.cfg		# The user does not exist in the current directory ansible.cfg This document takes effect

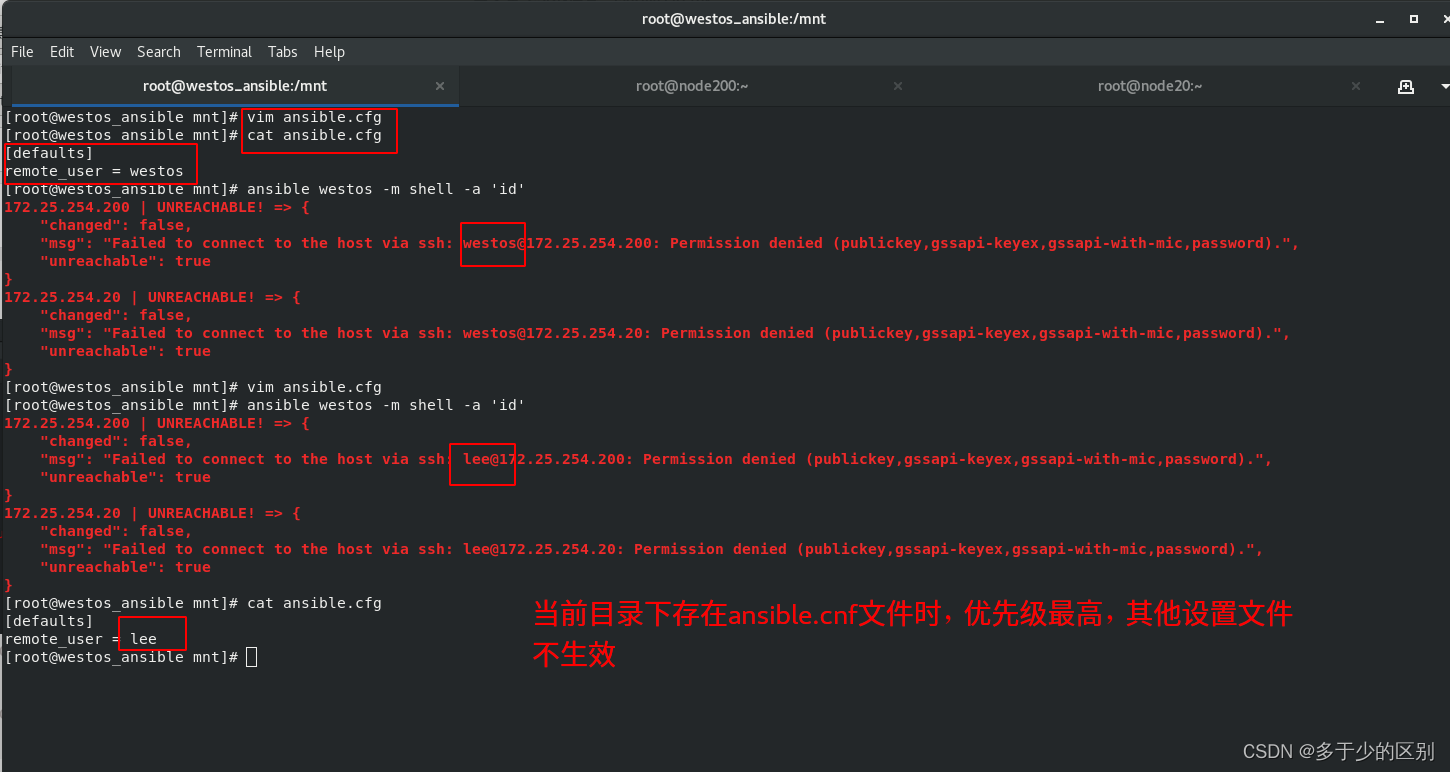

./ansible.cfg		 In the user's current directory ansible.cfg The file has the highest priority

Solution

Profile priority

2. Common configuration parameters

[default]		## Basic information setting

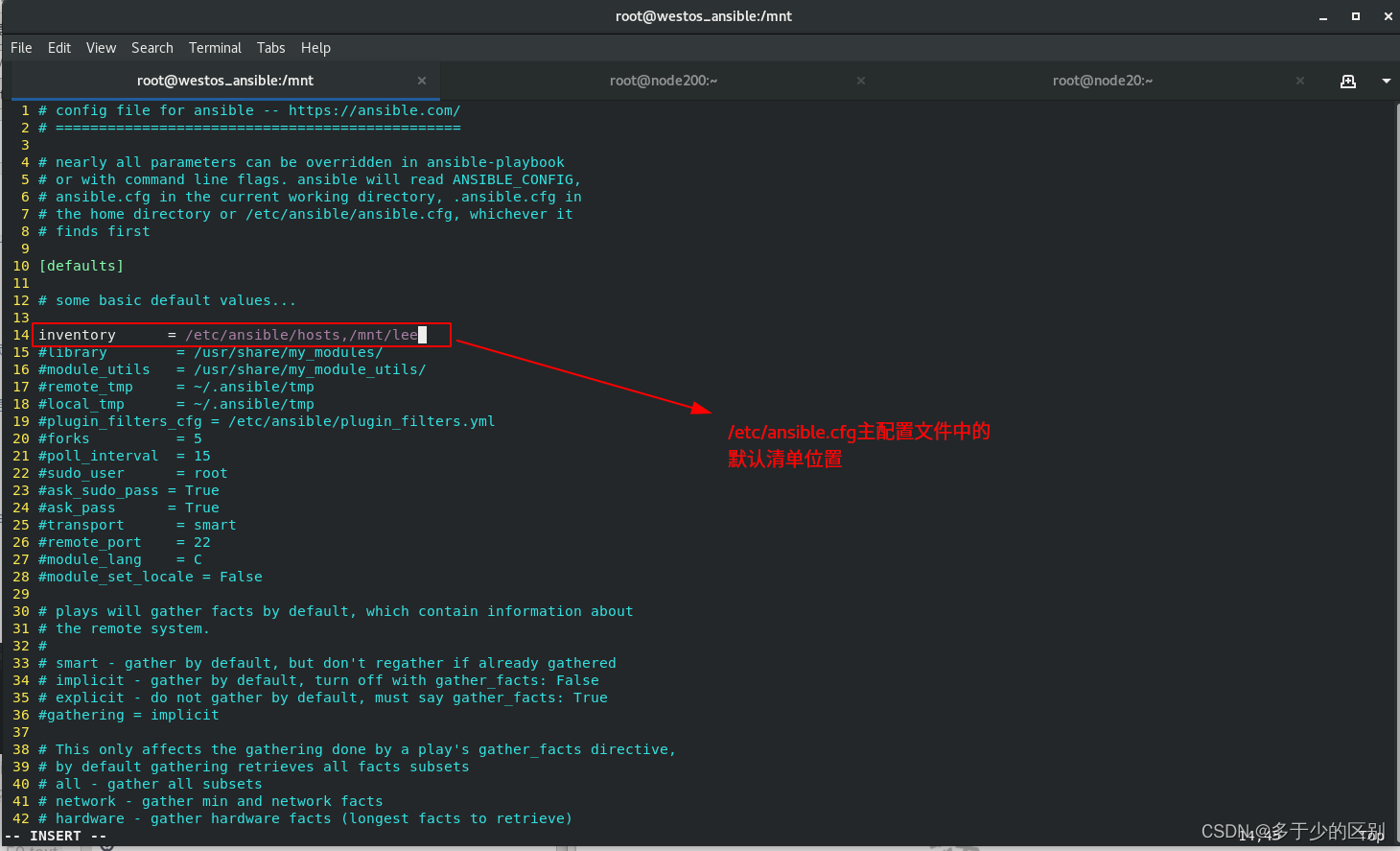

inventory=		## Specify the manifest path
remote_user=	## The name of the user logged in on the managed host , The current user is not specified
ask_pass=		## Do you want to prompt for SSH password , If the public key login is set to false
library=		## Library file storage directory
local_tmp=		## Local temporary command execution Directory
remote_tmp=		## Remote host temporary py Command file storage directory
forks=			## Default concurrency number

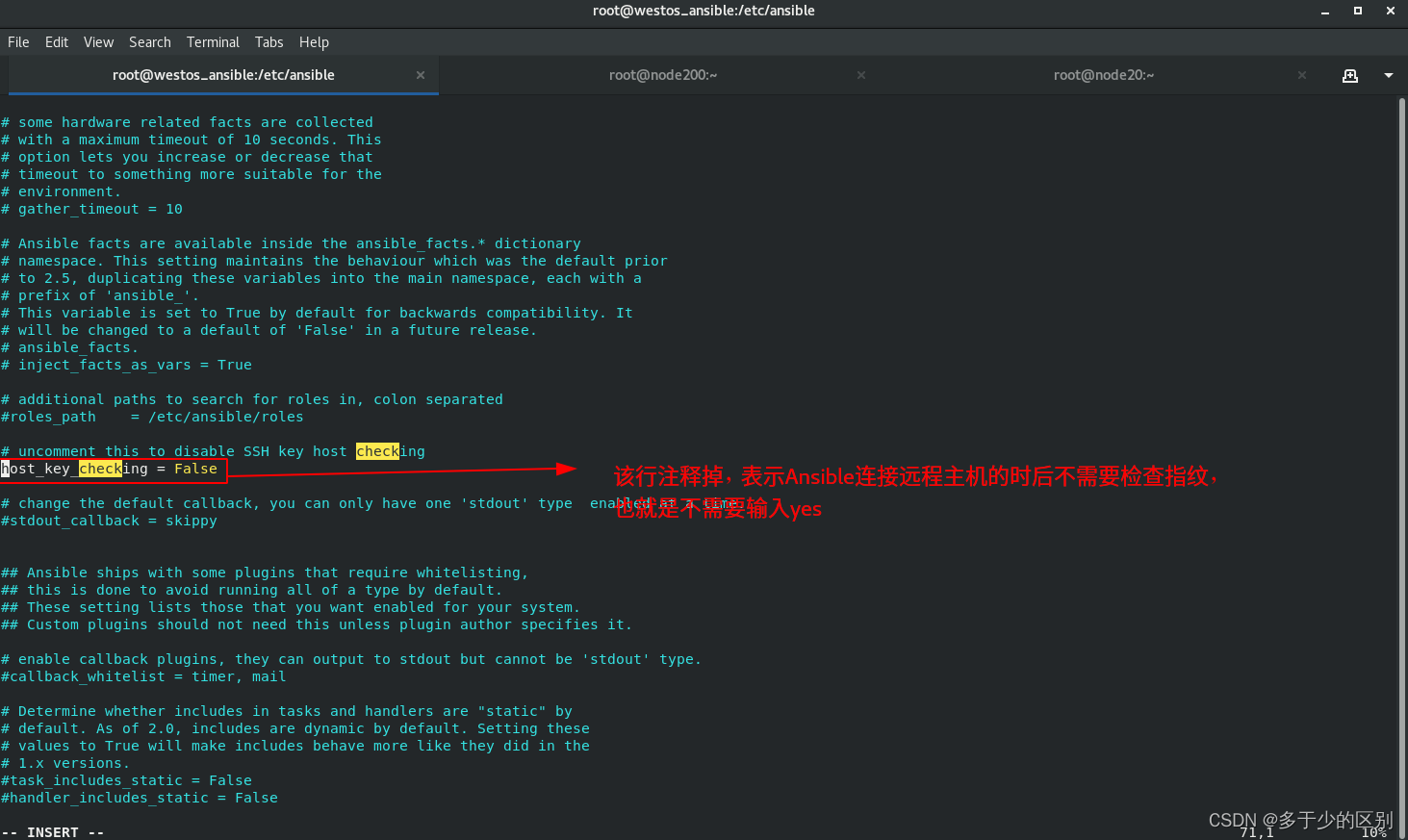

host_key_checking=	## Whether to enter... When connecting to the managed host for the first time yes establish host_key
sudo_user=		## Default sudo user
ask_sudo_pass=	## Every time... Is performed on the controlled host ansible Whether to ask sudo password

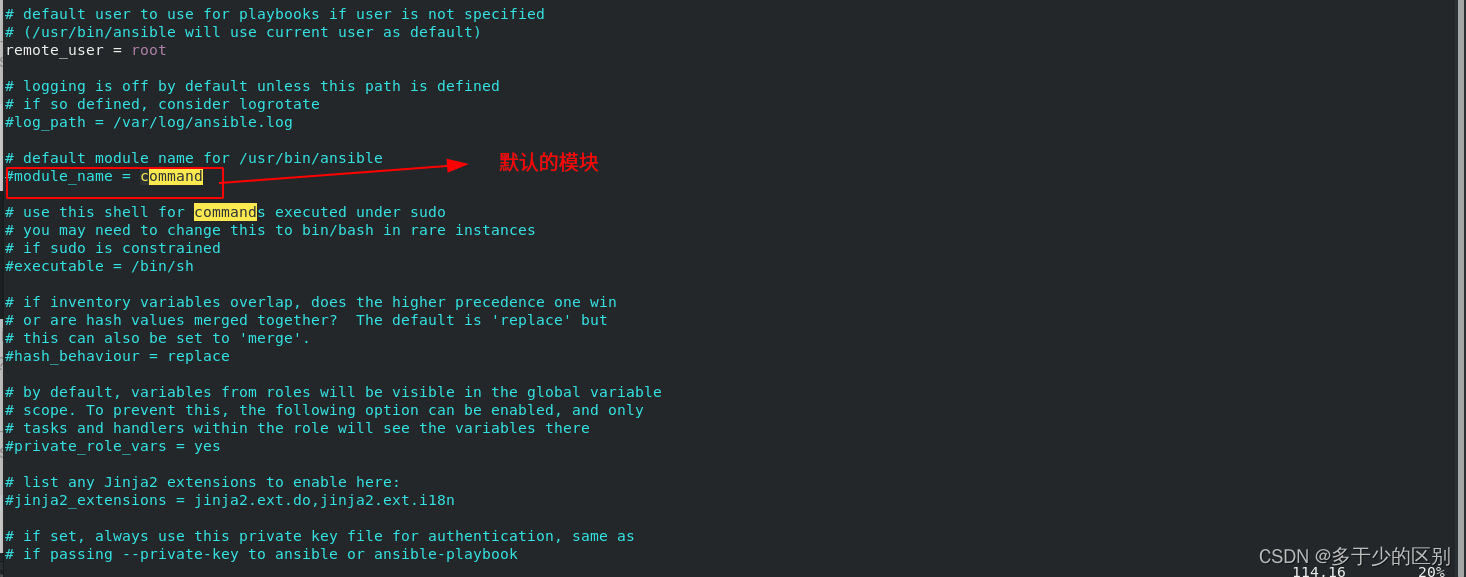

module_name=	## Default module , By default command, It can be changed to shel
log_path=		## Log file path

[privilege_escalation]		## Identity settings
become=		## Whether to automatically switch users after connection
become_method=		## Set the way to switch users , Usually use sudo
become_user=	## The user to switch to in the managed host , Usually it is root
become_ask_pass		## Do you need to become_method Prompt for password , The default is false

In execution ansible When ordered , Is to generate a local python Script , And then through ssh Method is stored in a directory of the remote host , Then execute in the remote host .

Ansible The host is remotely connected to devops User identity execution useadd command

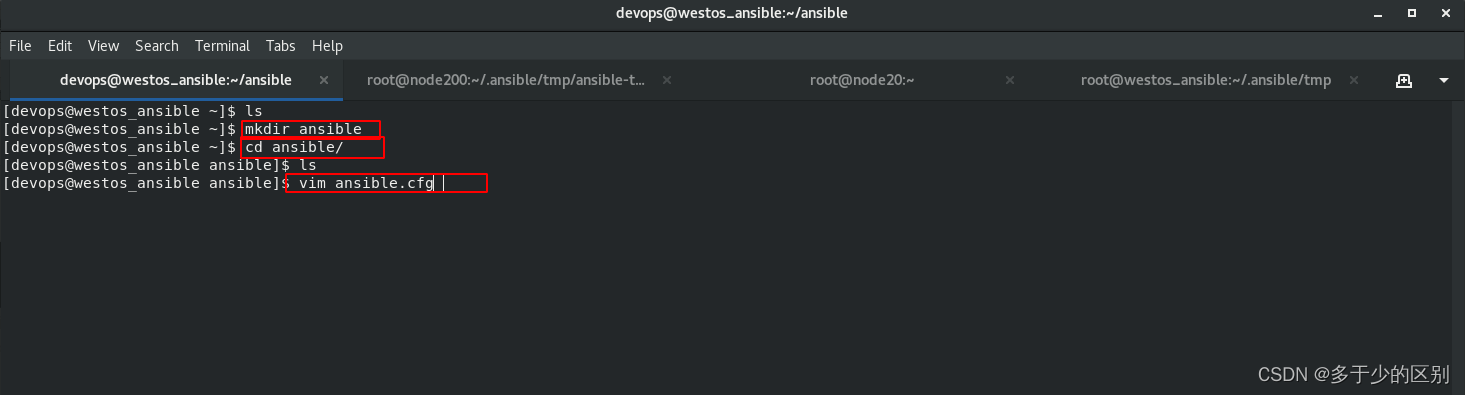

5、 ... and 、 Build user level Ansible Operating environment

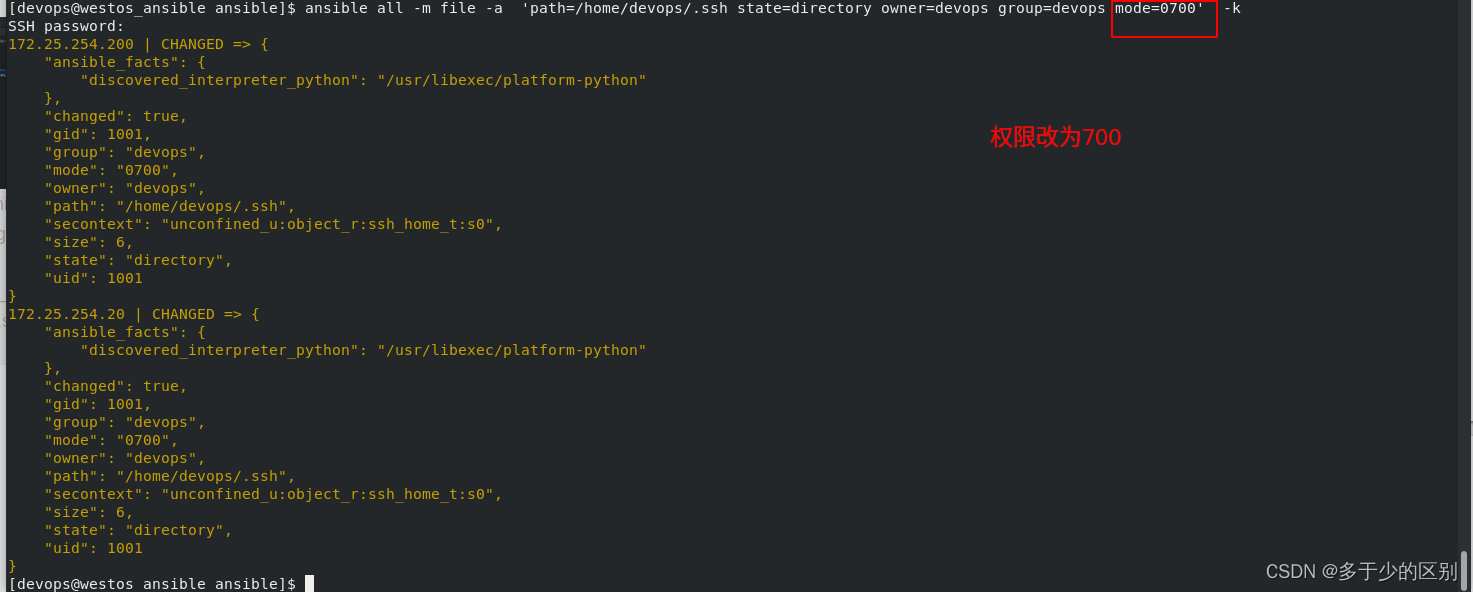

Establish users in the controlled host devops, And set sudo jurisdiction
