One 、 Download and unzip the installation package

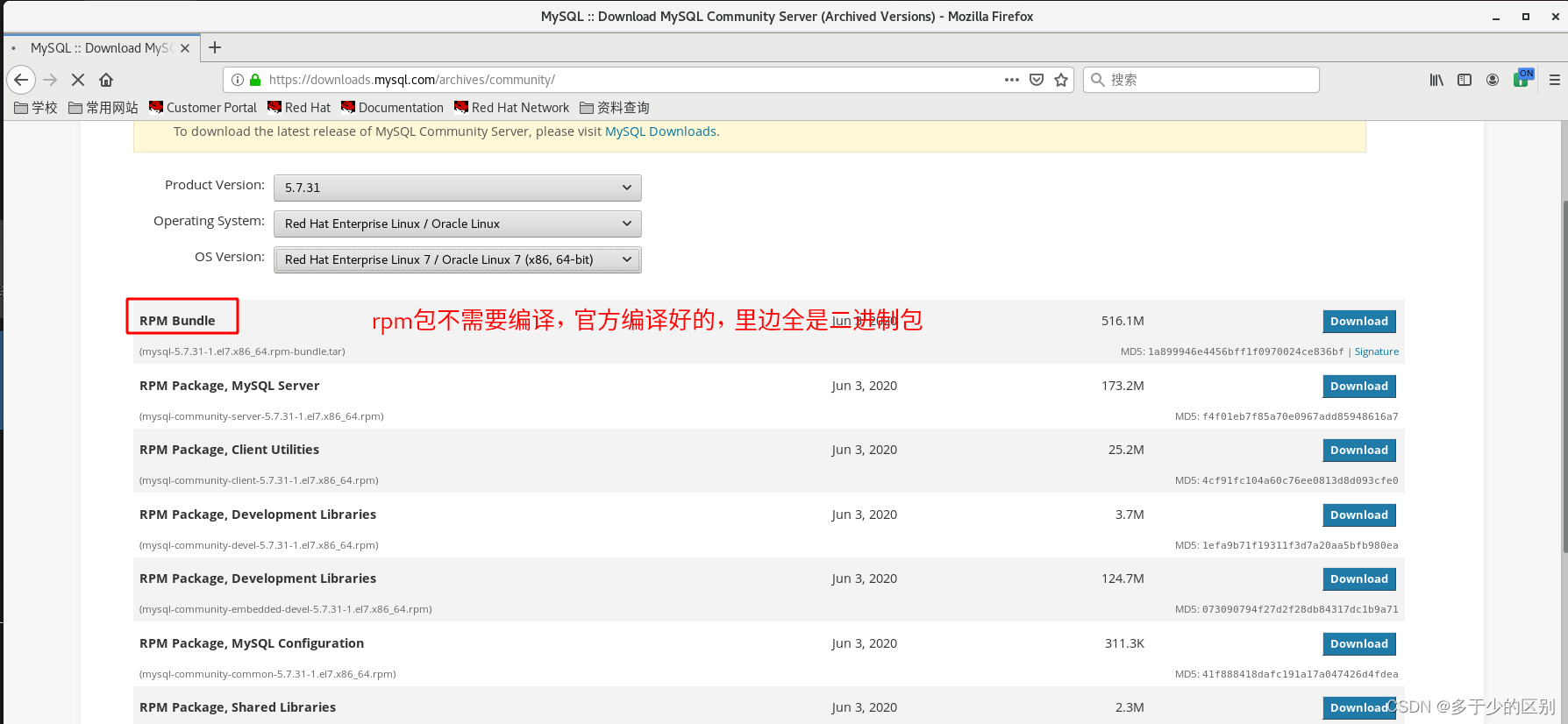

1. Source code installation package download

Update download location

2. Install and compile software

install cmake
mysql When compiling, you need to use cmake

install gcc and gcc-c++

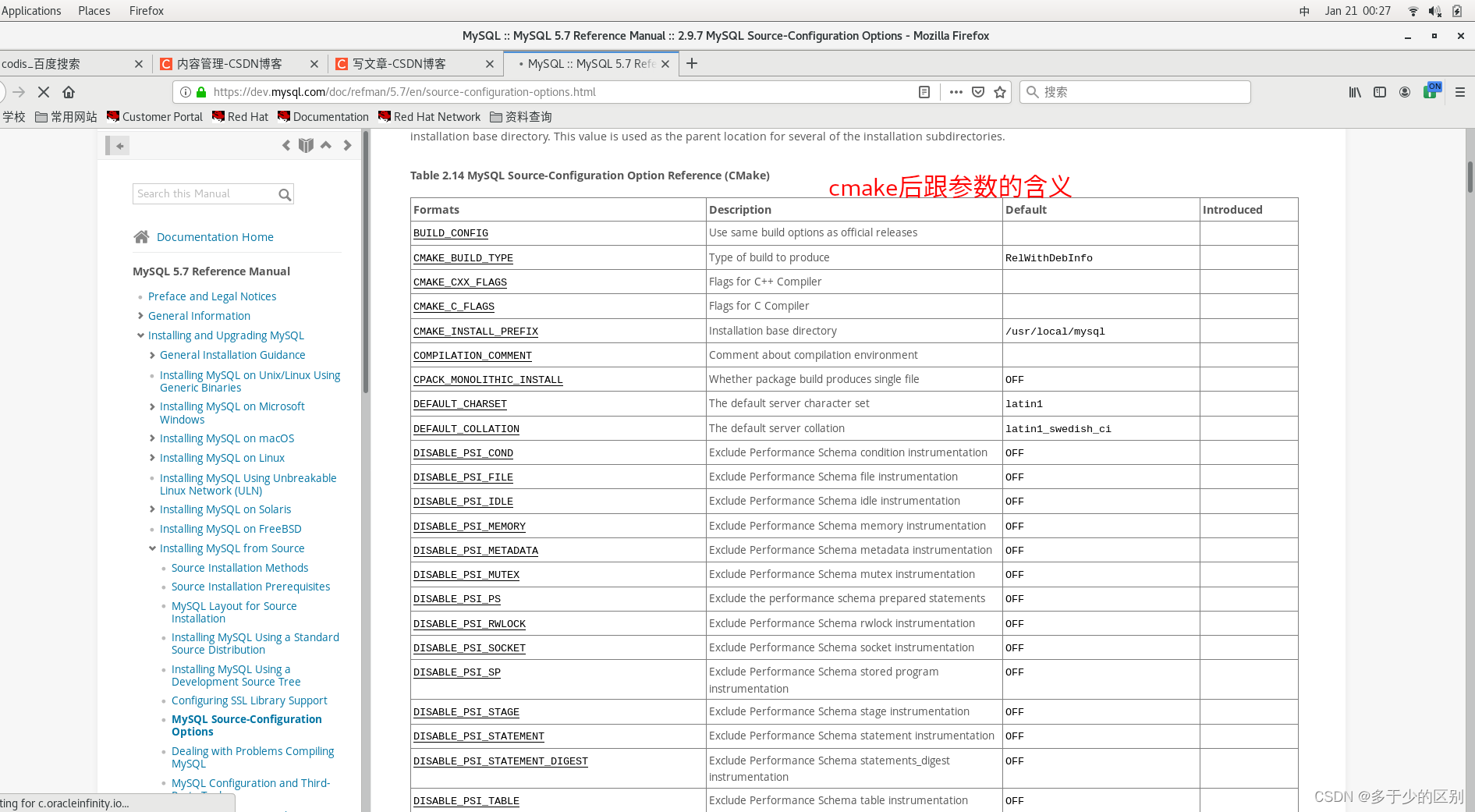

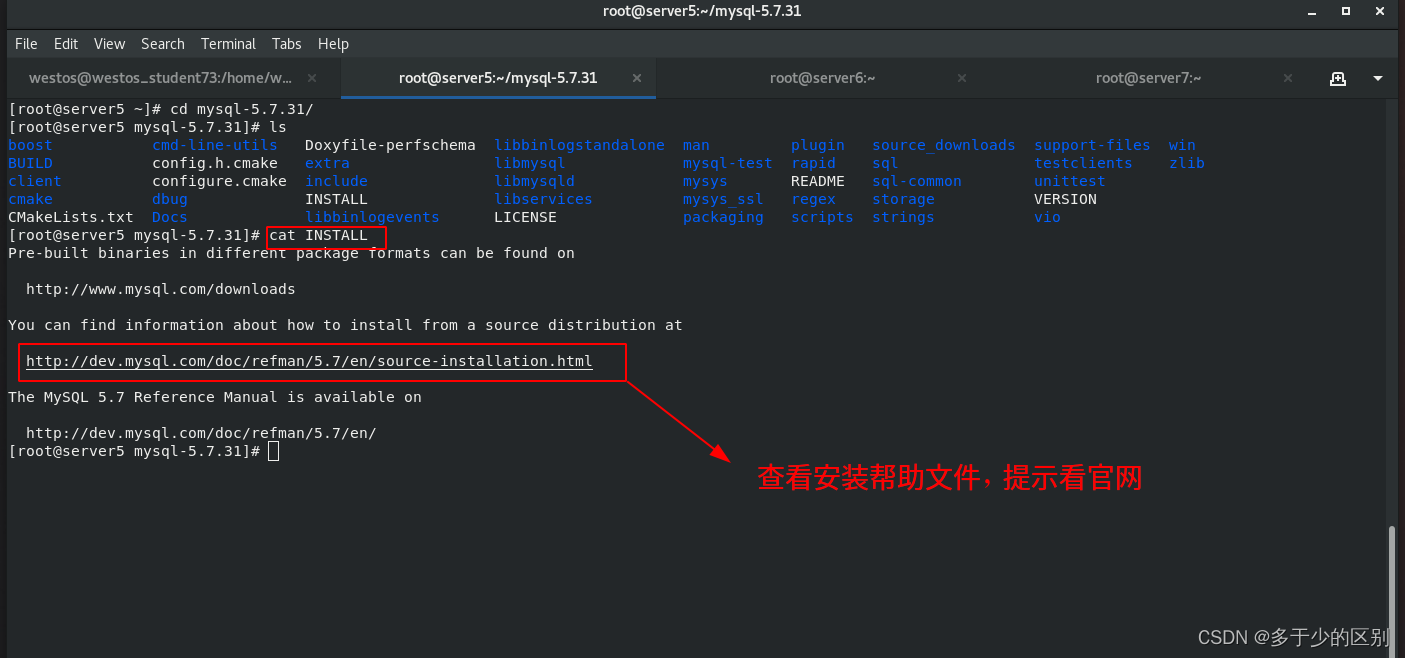

You can check the official installation manual during installation

compile

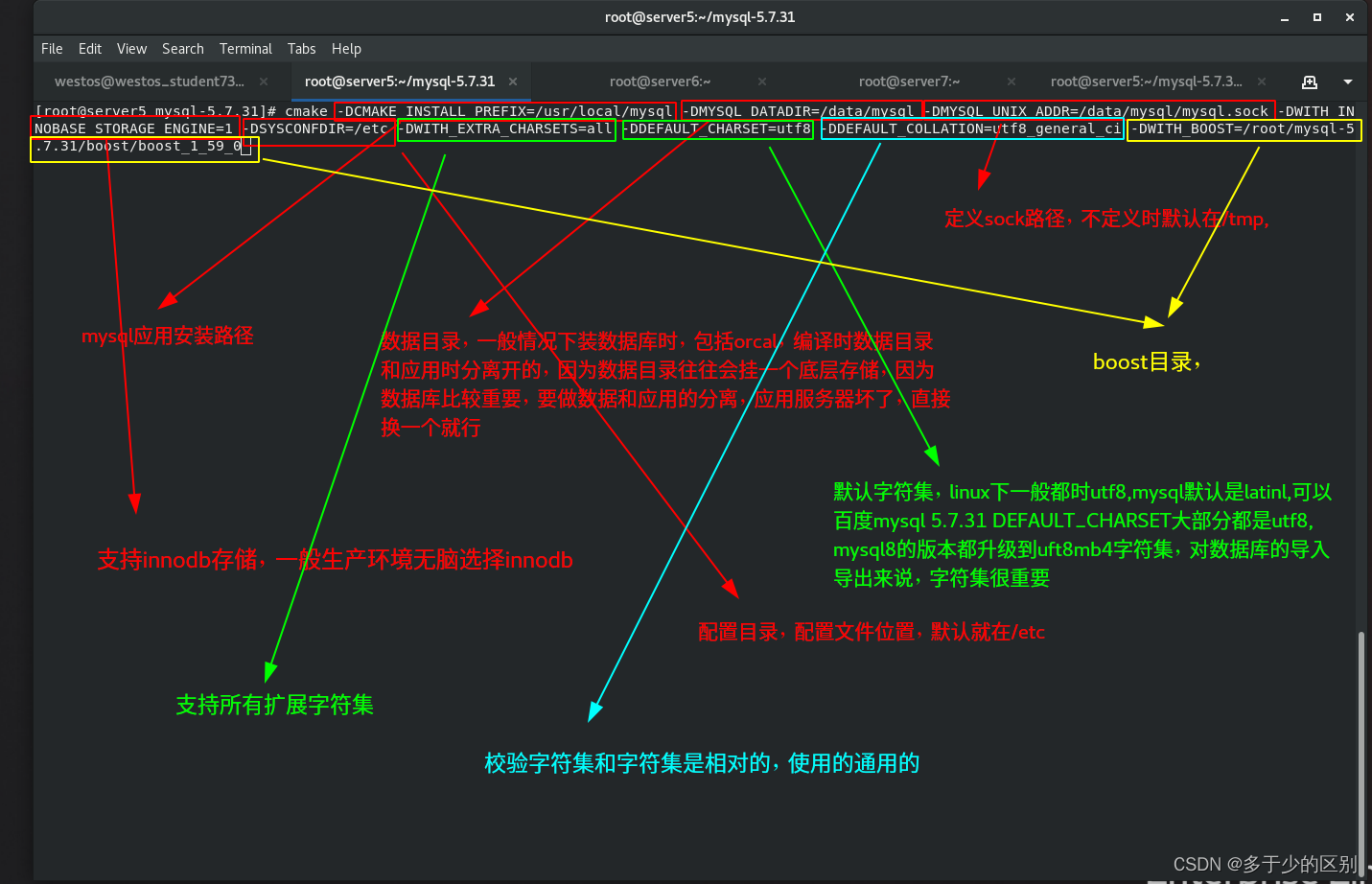

cmake -DCMAKE_INSTALL_PREFIX=/usr/local/mysql -DMYSQL_DATADIR=/data/mysql -DMYSQL_UNIX_ADDR=/data/mysql/mysql.sock -DWITH_INNOBASE_STORAGE_ENGINE=1 -DSYSCONFDIR=/etc -DWITH_EXTRA_CHARSETS=all -DDEFAULT_CHARSET=utf8 -DDEFAULT_COLLATION=utf8_general_ci -DWITH_BOOST=/root/mysql-5.7.31/boost/boost_1_59_0

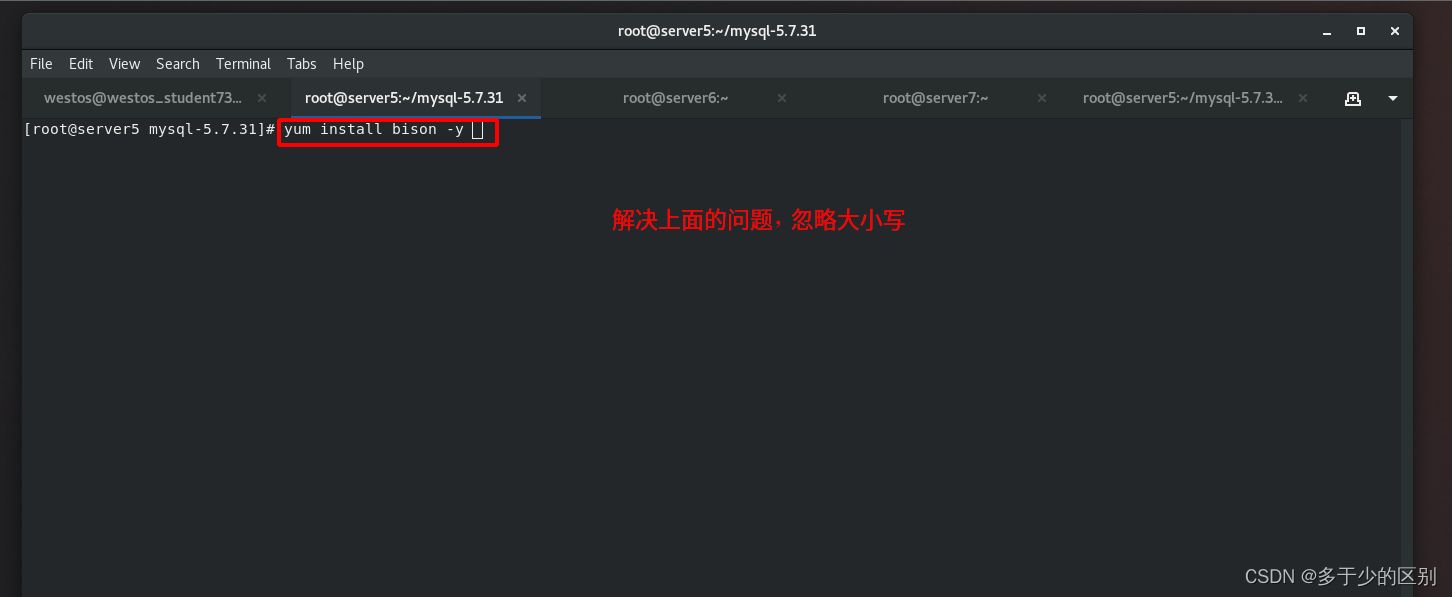

[[email protected] mysql-5.7.31]# yum install bison -y

Solve problems during compilation

recompile

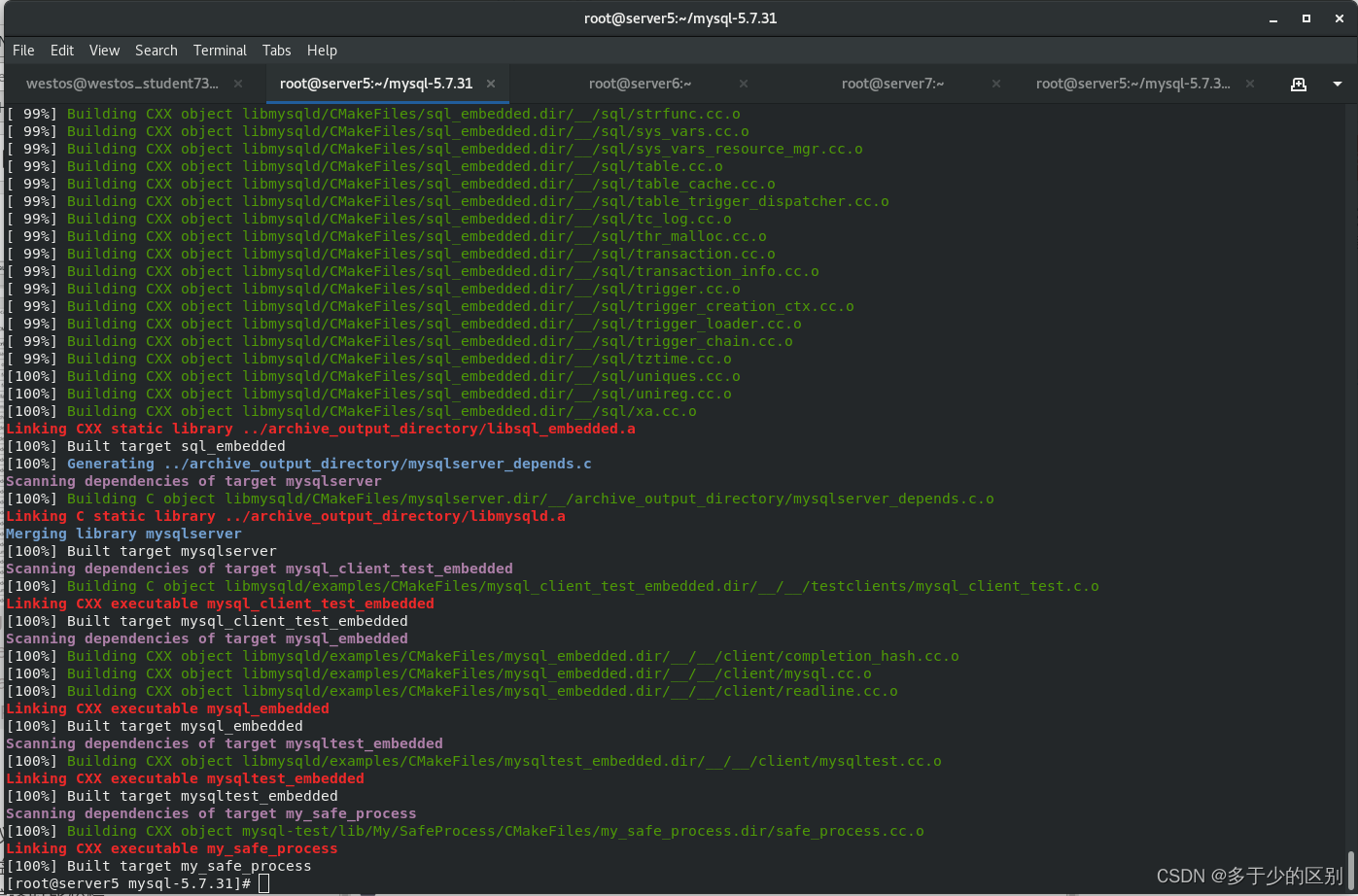

make
make -j4 To express with 4 individual cpu To calculate , But not recommended , Because it's a virtual machine , Out of memory , If you open multiple core parallel computing , It will cause the problem of memory overflow .make There will be some red errors in the middle , As long as you don't stop, it won't affect , Compilation is slow .
install

3. initialization mysql

establish mysql user

[[email protected] mysql-5.7.31]# useradd -s /sbin/nologin -M -d /data/mysql mysql

Copy startup script 、 Create a data directory and assign permissions

Modify the configuration file

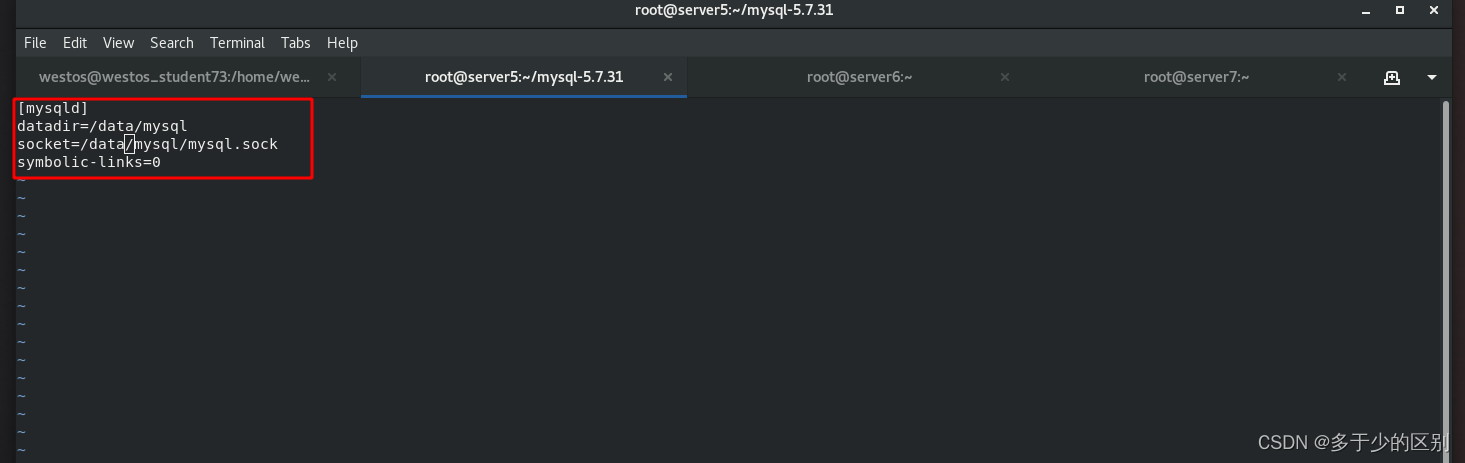

[[email protected] mysql-5.7.31]# vim /etc/my.cnf
[mysqld]
datadir=/data/mysql
socket=/data/mysql/mysql.sock
symbolic-links=0

mysql Put the command into the environment variable

[[email protected] mysql-5.7.31]# cd /usr/local/mysql/
[[email protected] mysql]# cd bin/
[[email protected] bin]# pwd
/usr/local/mysql/bin
[[email protected] bin]# vim ~/.bash_profile
[[email protected] bin]# source ~/.bash_profile

Use mysql User attribute initialization , And change the password

[[email protected] bin]# mysqld --initialize --user=mysql # initialization
[[email protected] bin]# /etc/init.d/mysqld start # Turn on mysql
[[email protected] bin]# mysql_secure_installation # Change Password

test
![ Insert picture description here ](https://img-blog.csdnimg.cn/6e13bdf44d0f45a1bb08809af747f9cd.png?x-oss-process=image/watermark,type_d3F5LXplbmhlaQ,shadow_50,text_Q1NETiBA5aSa5LqO5bCR55

Two 、 Series connection Lamp framework ,nginx+php+mysql

1. Install the software phpMyAdmin

[[email protected]_student73 file_recv]# scp phpMyAdmin-5.0.2-all-languages.zip server5:/usr/local/nginx/html
 install phpMyAdmin Software , Graphical management interface
[[email protected] mysql]# cd /usr/local/nginx/html/
[[email protected] html]# unzip phpMyAdmin-5.0.2-all-languages.zip

 Turn on php-fpm service
[[email protected] html]# ln -s phpMyAdmin-5.0.2-all-languages myadmin
[[email protected] myadmin]# systemctl start php-fpm.service
[[email protected] myadmin]# netstat -antlp
 Turn on Nginx, And look at the port
[[email protected] myadmin]# nginx
[[email protected] myadmin]# netstat -antlp

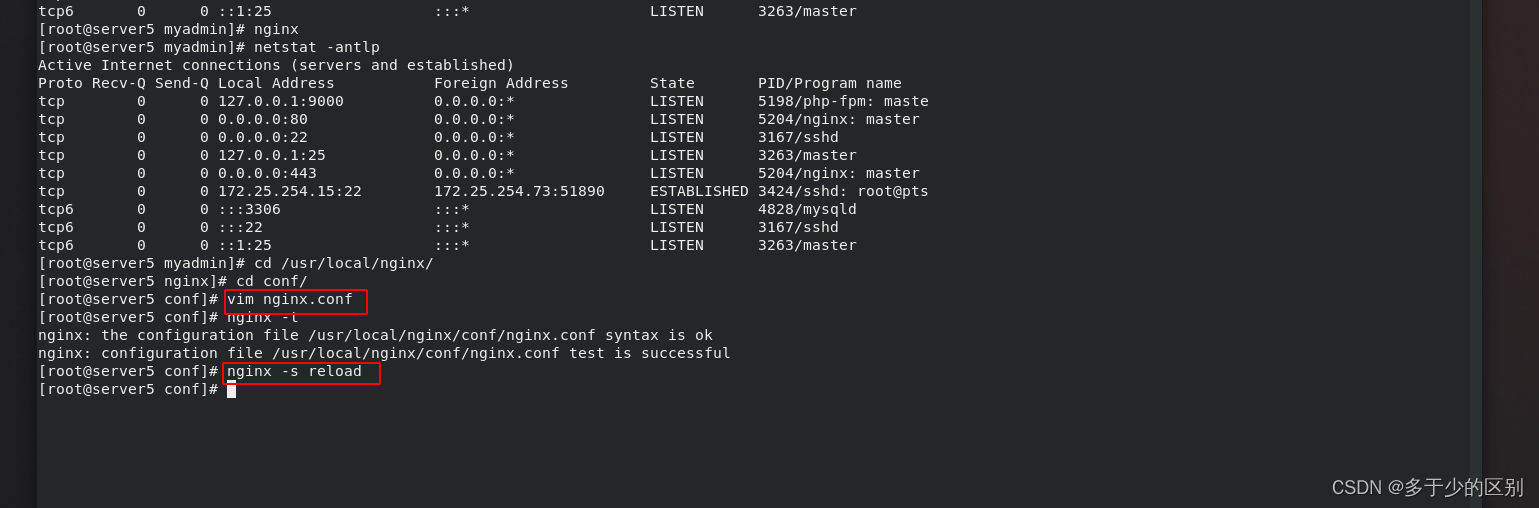

 Modify the configuration file , Specify the default publishing page
[[email protected] myadmin]# cd /usr/local/nginx/
[[email protected] nginx]# cd conf/
[[email protected] conf]# vim nginx.conf
     location / {

            root   html;
            index  index.php index.html index.htm;
        }
    }

 modify php.in The configuration file
[[email protected] conf]# cd /usr/local/php/
[[email protected] php]# cd etc/
[[email protected] etc]# vim php.ini
pdo_mysql.default_socket= /data/mysql/mysql.sock
mysqli.default_socket = /data/mysql/mysql.sock

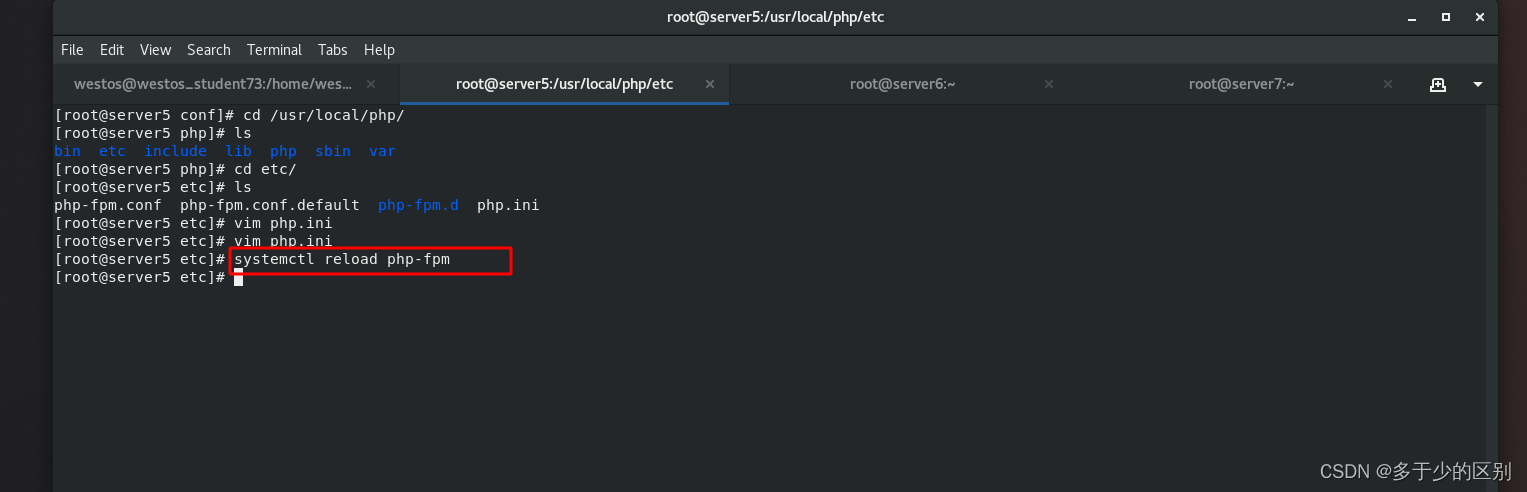

[[email protected] etc]# systemctl reload php-fpm

Download zip
Decompress the package
Create soft link , And open php-fpm service

Turn on nginx

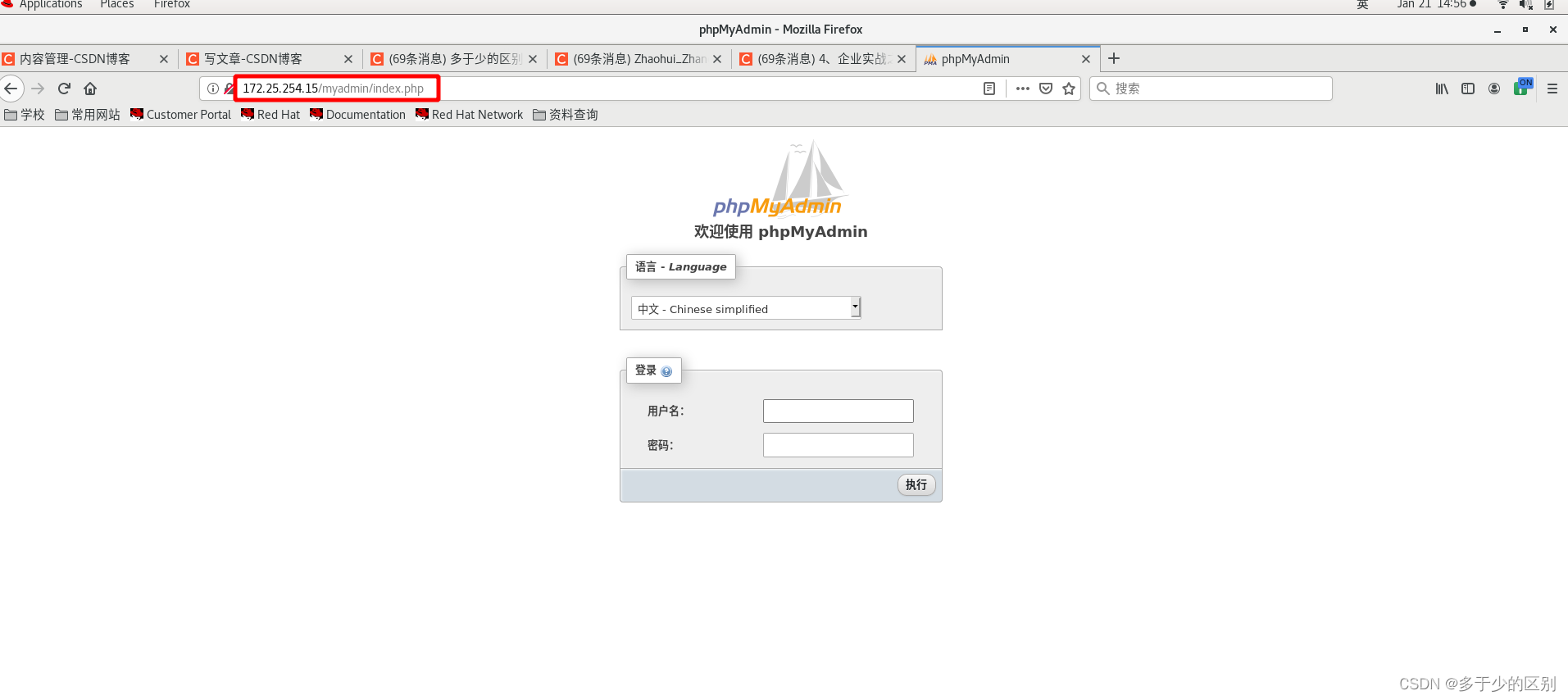

Browser access to test
index.php Not the default publishing page , So you need to assign it to this page

Modify the configuration file , Specify the default publishing page

modify php.in The configuration file

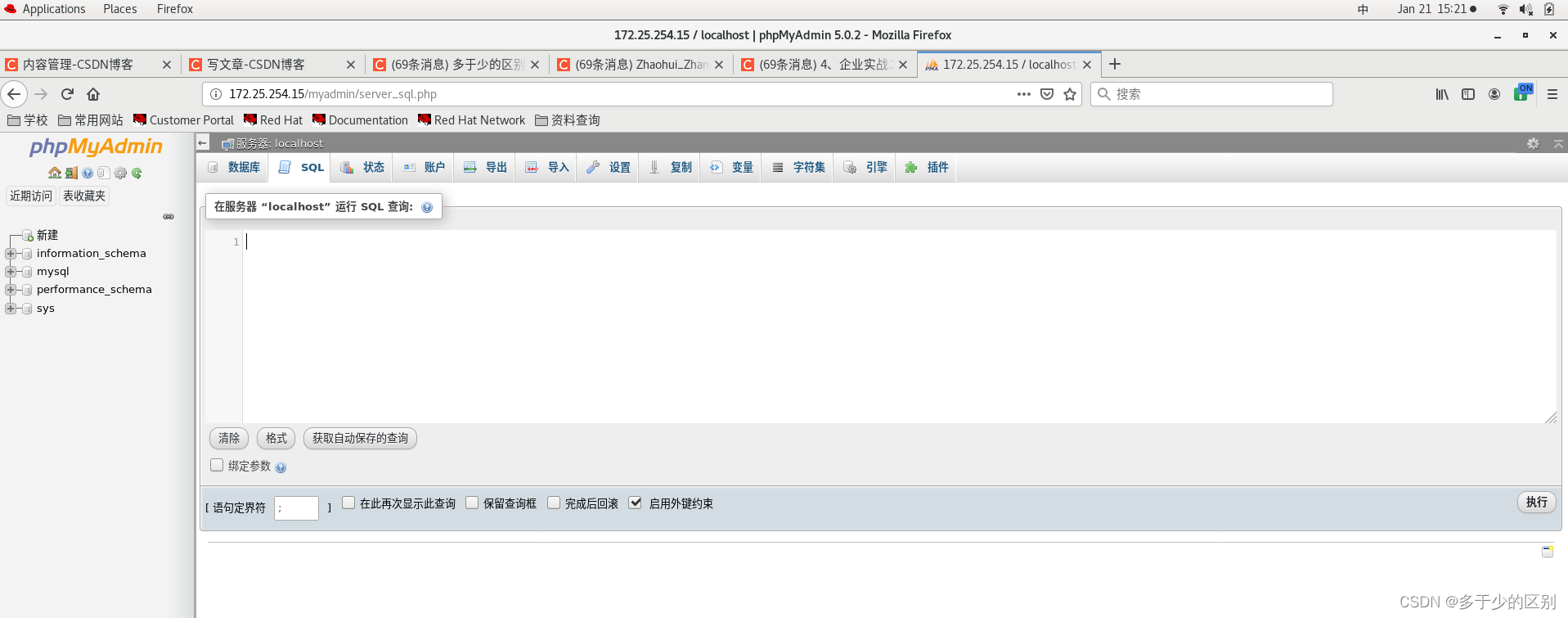

Seeing this interface indicates the whole Lamp Architecture deployment succeeded , What I visited was nginx, But because it's php file , So give it to php-fpm Handle , The dynamic language code needs to connect to the database , Access database , And then fetch the data , return nginx, Finally, return to the browser .

2. Database master-slave cluster environment configuration

The experimental environment requires two sets equipped with mysql The host sever5 and server6.
To configure server6 The host mysql, No compilation required , Just copy the file directly , Because it has been compiled .

 Copy the program to server6
[[email protected] ~]# scp -r /usr/local/mysql/ server6:/usr/local/

 Copy the configuration file to server6
[[email protected] etc]# scp my.cnf server6:/etc

 Copy the startup script to server6
[[email protected] etc]# scp /etc/init.d/mysqld server6:/etc/init.d/

 Create users and directories , And modify the authority
[[email protected] ~]# useradd -s /sbin/nologin -M -d /data/mysql mysql
[[email protected] ~]# id mysql
uid=1000(mysql) gid=1000(mysql) groups=1000(mysql)
[[email protected] ~]# mkdir -p /data/mysql
[[email protected] ~]# chown mysql.mysql /data/mysql/

 add to mysql Commands to environment variables
[[email protected] ~]# vim .bash_profile
PATH=$PATH:$HOME/bin:/usr/local/mysql/bin
[[email protected] ~]# source .bash_profile

 Initialize database
[[email protected] ~]# mysqld --initialize --user=mysql
[[email protected] ~]# /etc/init.d/mysqld start
[[email protected] ~]# mysql_secure_installation

To configure server6 Of mysql
Copy the program to server6
Copy the configuration file to server6

Copy the startup script to server6
Create users and directories , And modify the authority

add to mysql Commands to environment variables

initialization mysql

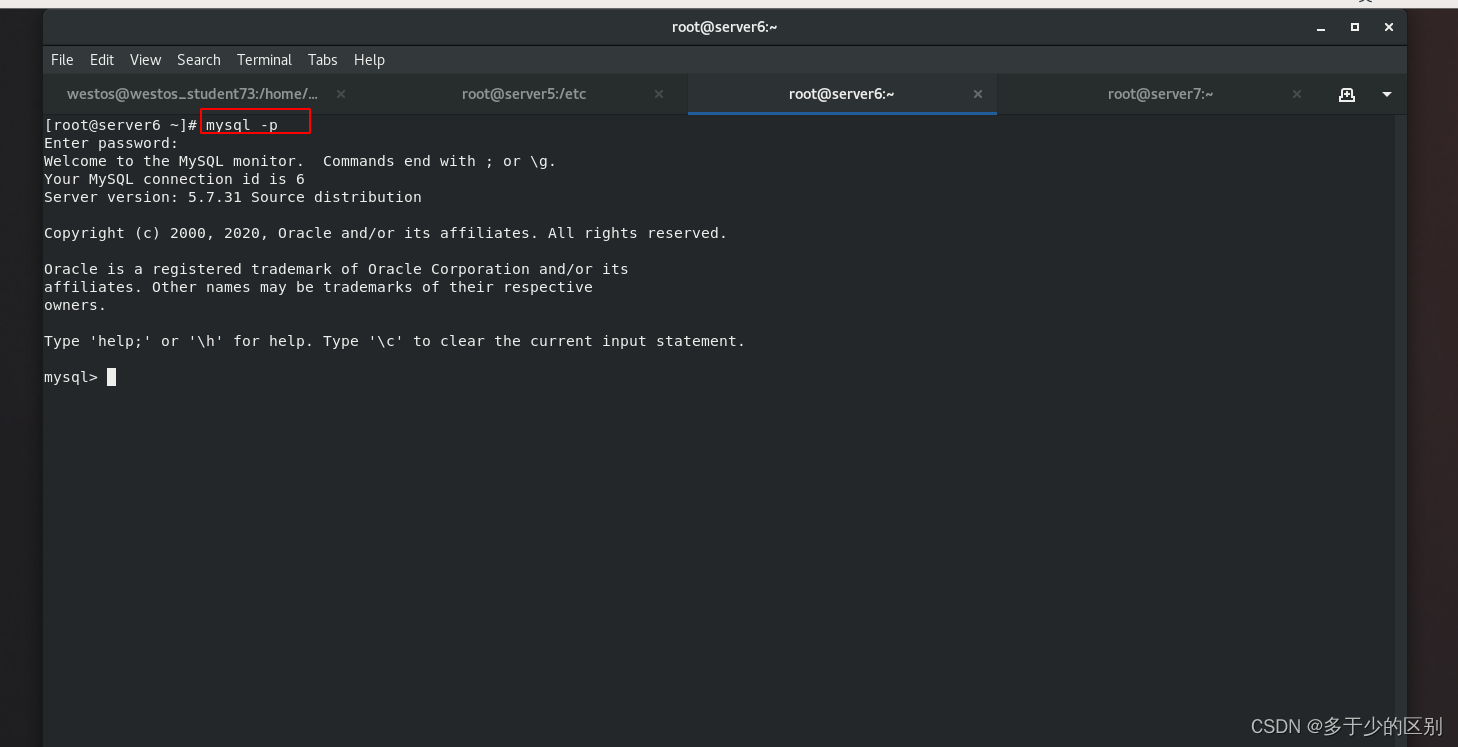

Database login test

3.mysql Master-slave cluster

In fact, that is mysql Master slave copy

1） To configure master node server5

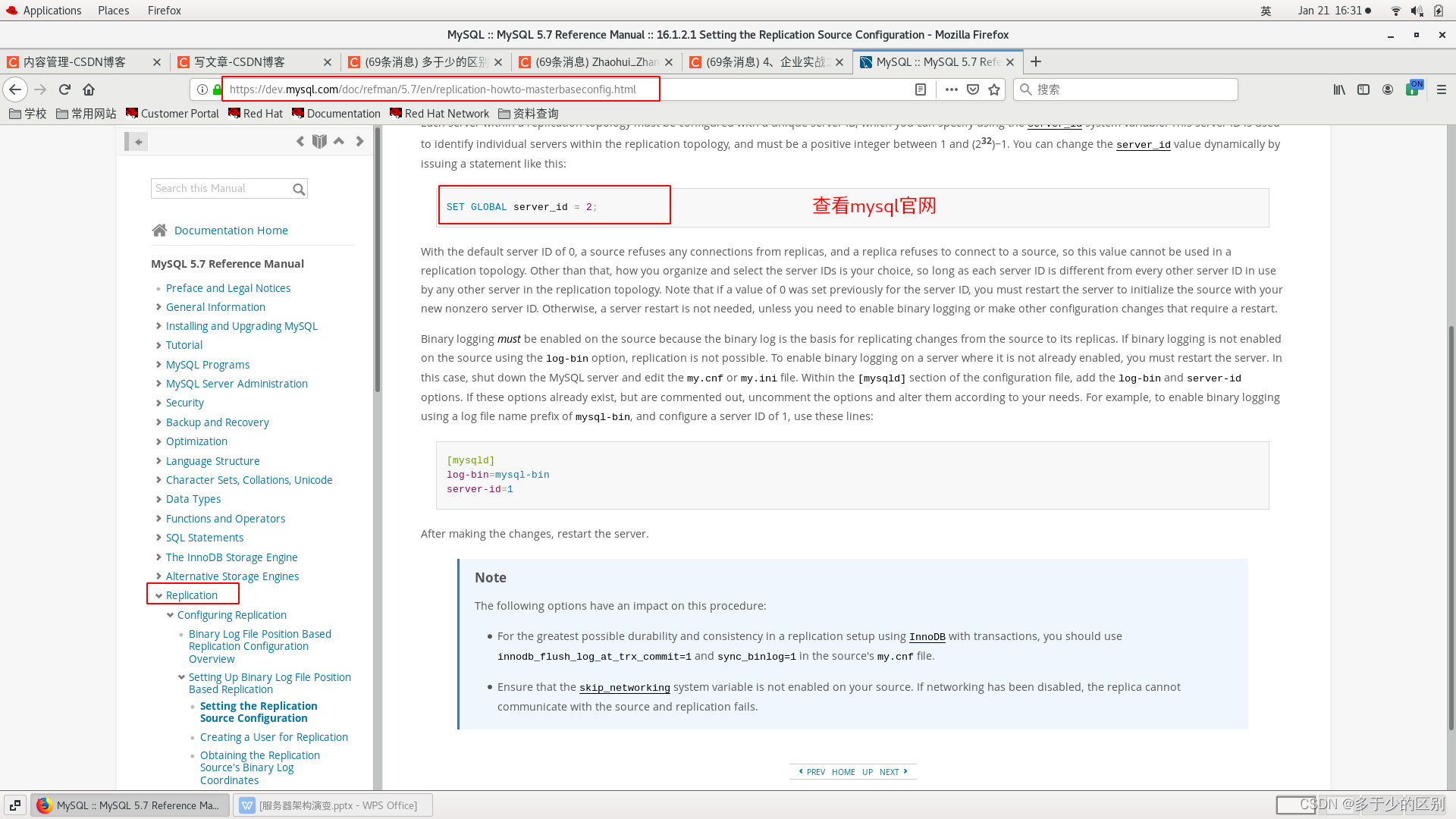

To configure server1 Of mysql Of server-id And binary log names

[[email protected] etc]# vim /etc/my.cnf

log-bin=mysql-bin
server-id=1

[[email protected] etc]# /etc/init.d/mysqld restart

View binary log files
mysql Create user repl, And authorize

[[email protected] mysql]# mysql -p
Enter password:
mysql> CREATE USER 'repl'@'%' IDENTIFIED BY 'westos';
mysql> GRANT REPLICATION SLAVE ON *.* TO 'repl'@'%';
mysql> show master status;

The number indicates where the copy starts
mysql> FLUSH TABLES WITH READ LOCK; # This instruction indicates locking table ,

2） To configure slave node server6

slave To configure server-id

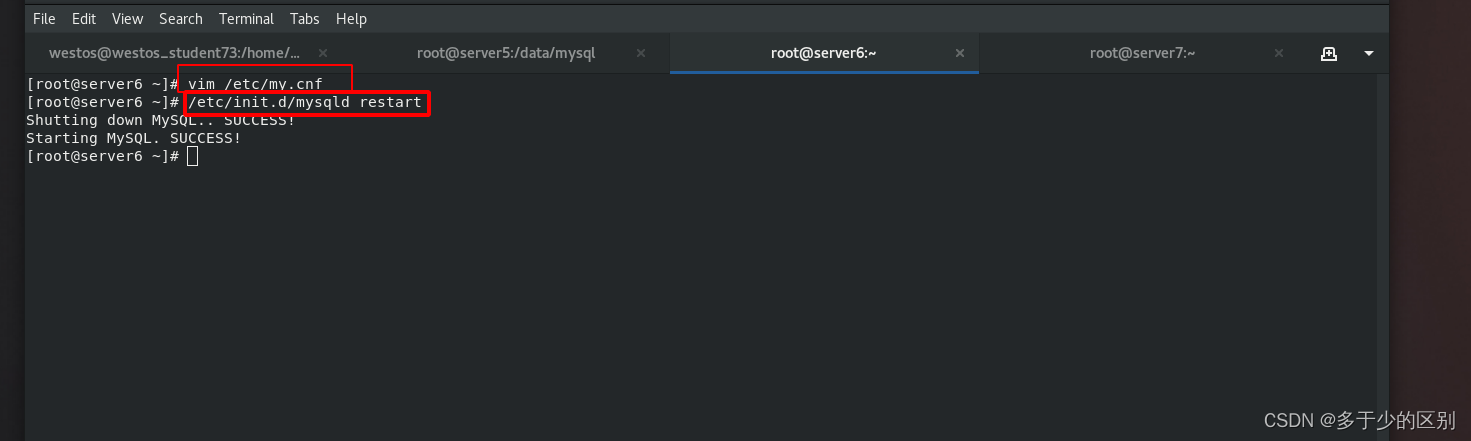

[[email protected] ~]# vim /etc/my.cnf
[[email protected] ~]# /etc/init.d/mysqld restart
server-id=2

slave Configure replication

[[email protected] ~]# mysql -p
mysql> CHANGE MASTER TO MASTER_HOST='172.25.254.15', MASTER_USER='repl', MASTER_PASSWORD='westos', MASTER_LOG_FILE='mysql-bin.000001', MASTER_LOG_POS=595;
mysql> start slave;
mysql> show slave status\G;

slave End replication requires authentication , Users previously created in the main library are required

3） test

master Add data to test

[[email protected] mysql]# mysql -p
Enter password:

mysql> create database westos;
mysql> use westos;
mysql> > create table users (
    -> username varchar(20) not null,
    -> password varchar(25) not null);
mysql> show tables;
mysql> desc users;
mysql> insert into users values ('user1','123');
mysql> insert into users values ('user2','456');
mysql> select * from users;

slave End view

4.mysql One master and many slaves

One master one slave structure

One master and many slaves
The architecture of one master and many slaves is suitable for the scenario of reading more and writing less , There are two modes , The first one is ：A—>B&A---->C; The second kind ：A---->B----->C, In this mode ,A The pressure on the node will be smaller .

IO The thread mainly saves the binary log sent to its own data directory

1. Expand one server7 Nodal work slave

Copy app 、 Configuration files and startup scripts

[[email protected] ~]# scp -r /usr/local/mysql/ server7:/usr/local/
[[email protected] mysql]# scp /etc/my.cnf server7:/etc
[[email protected] mysql]# scp /etc/init.d/mysqld server7:/etc/init.d/

establish mysql user , Create a database directory and assign permissions , take mysql Command to the environment variable , modify server-id, start-up mysql

[[email protected] ~]# useradd -s /sbin/nologin -M -d /data/mysql mysql
[[email protected] ~]# chown mysql.mysql /data/mysql/
[[email protected] ~]# vim .bash_profile
PATH=$PATH:$HOME/bin:/usr/local/mysql/bin
[[email protected] ~]# source .bash_profil

[[email protected] ~]# vim /etc/my.cnf
server-id=3
[[email protected] ~]# cat /etc/my.cnf
[[email protected] ~]# mysqld --initialize --user=mysql
[[email protected] ~]# /etc/init.d/mysqld start

Initialize and change password

[[email protected] ~]# mysql_secure_installation

2. Create a master-slave architecture ：A—>B---->C

server5 As the primary server A,server6 As slave The server B( This node also needs to have binary logs , Binary logging needs to be enabled ),server7 As a slave C
server6 Turn on binary log , because server7 When copying, the binary log is copied, not the relay log

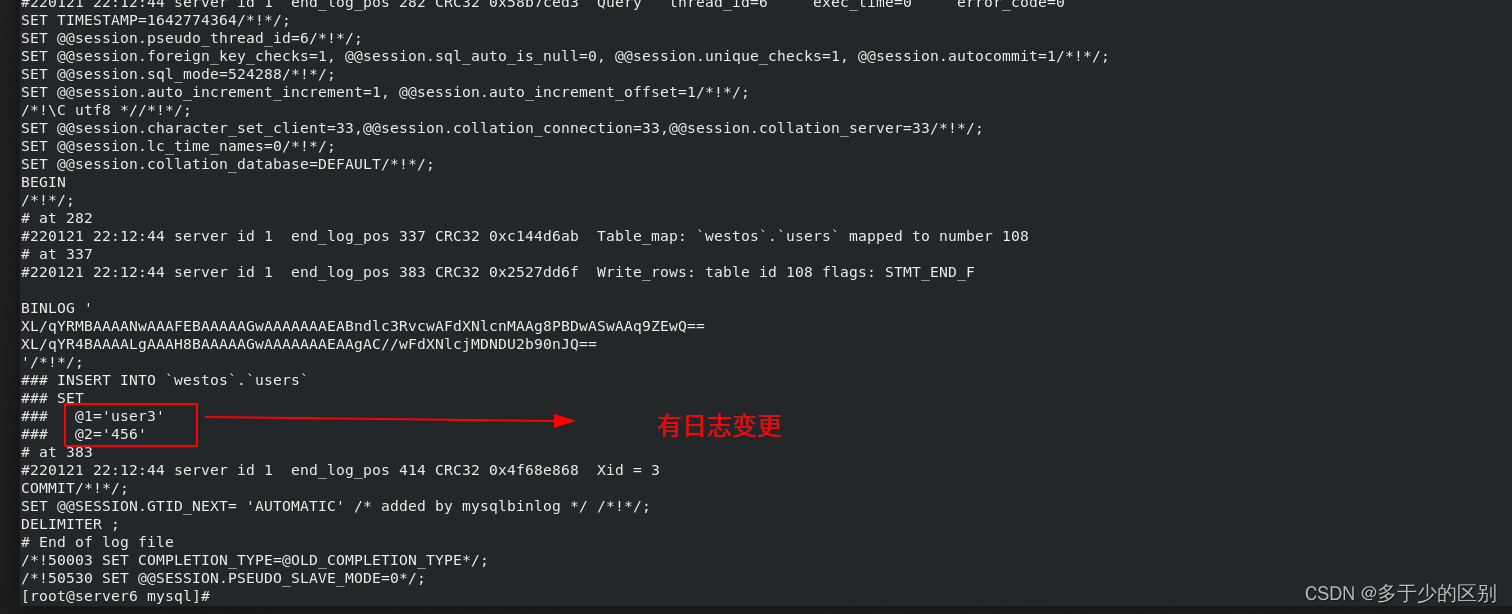

test ,server5 Add data , see server6 The playback log will be written to the binary log


Relay log index file , Record all relay logs

Use mysqldump Backup server5 Of westos database information , And copy to server7
When backing up database information, you need to lock the table , Because when the data information is large , Backup will not complete in an instant , Someone may be writing information at the time of backup , The backed up database may be inconsistent with the current information , Locking the table means that you can read but not write .

use mysqldump There is a hole in the data
server7 Create a database on wesstos, And import server5 Data backed up on

server6 establish repl user , And give authority replication slave



server7 The database specifies the replication host and file location and number

test
server5 The primary server database inserts data
