8. ZABBIX distributed

Distributed

zabbix proxy Can replace zabbix server Collect performance and availability data , And then report the data to zabbix server, And to some extent, they share zabbix server The pressure of the . Besides , When all agents and proxies Report to a Zabbix server And when all the data is collected centrally , Use proxy Is the simplest way to achieve centralized and distributed monitoring

zabbix proxy Use scenarios ：

• Monitoring remote area equipment
• Monitor local network instability areas
• When zabbix When monitoring thousands of devices , Use it to reduce server The pressure of the , Achieve load balancing
• Simplify the maintenance of Distributed Monitoring

Architecture diagram

Distributed installation

# Environmental Science
server 5.4
proxy  5.5
agent  5.6

# Firewall OFF , Turn off autodiscover , Automatic registration
systemctl stop firewalld
setenforce 0

# The server needs no operation , The default installation is enough

#agent2 End default installation

#proxy If installed agent2, close
systemctl stop zabbix-agent2

# To configure proxy The server , Deploy proxy, Deploy database , If Alibaba cloud is not configured zabbix Source , Then configure , Refer to installation
yum -y install zabbix-proxy-mysql zabbix-get             #zabbix-proxy-mysql Connected database usage
yum -y install mariadb-server mariadb
systemctl start mariadb

# To configure proxy The database of
mysql -uroot -p
MariaDB [(none)]> set password=password('Root000.');
Query OK, 0 rows affected (0.00 sec)

MariaDB [(none)]> create database zabbix_proxy character set utf8 collate utf8_bin;
Query OK, 1 row affected (0.00 sec)

MariaDB [(none)]> grant all privileges on zabbix_proxy.* to 'zabbix'@'localhost' identified by 'Root000.';
Query OK, 0 rows affected (0.00 sec)

MariaDB [(none)]> flush privileges;
Query OK, 0 rows affected (0.00 sec)

exit

# Import sql data
rpm -ql zabbix-proxy-mysql
/usr/share/doc/zabbix-proxy-mysql-5.0.25/schema.sql.gz
zcat /usr/share/doc/zabbix-proxy-mysql-5.0.25/schema.sql.gz  | mysql -uzabbix -p'Root000.' zabbix_proxy
# Check whether the database is imported successfully
MariaDB [(none)]> use zabbix_proxy;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A
Database changed

MariaDB [zabbix_proxy]> show tables;
+----------------------------+
| Tables_in_zabbix_proxy     |
+----------------------------+
| acknowledges               |

exit

# modify zabbix-proxy The configuration file
cp /etc/zabbix/zabbix_proxy.conf /etc/zabbix/zabbix_proxy.bak
vim /etc/zabbix/zabbix_proxy.conf
30 Server=192.168.5.4                      # Server address
49 Hostname=zbx1                           # The host name of this machine
DBName=zabbix_proxy
DBUser=zabbix
196 DBPassword=Root000.

# Start the agent service
systemctl start zabbix-proxy

# Server configuration analysis
vim /etc/hosts
192.168.5.4 localhost.localdomain
192.168.5.5 zbx1
192.168.5.6 zbx2

# Detection log
tail -f /var/log/zabbix/zabbix_server.log

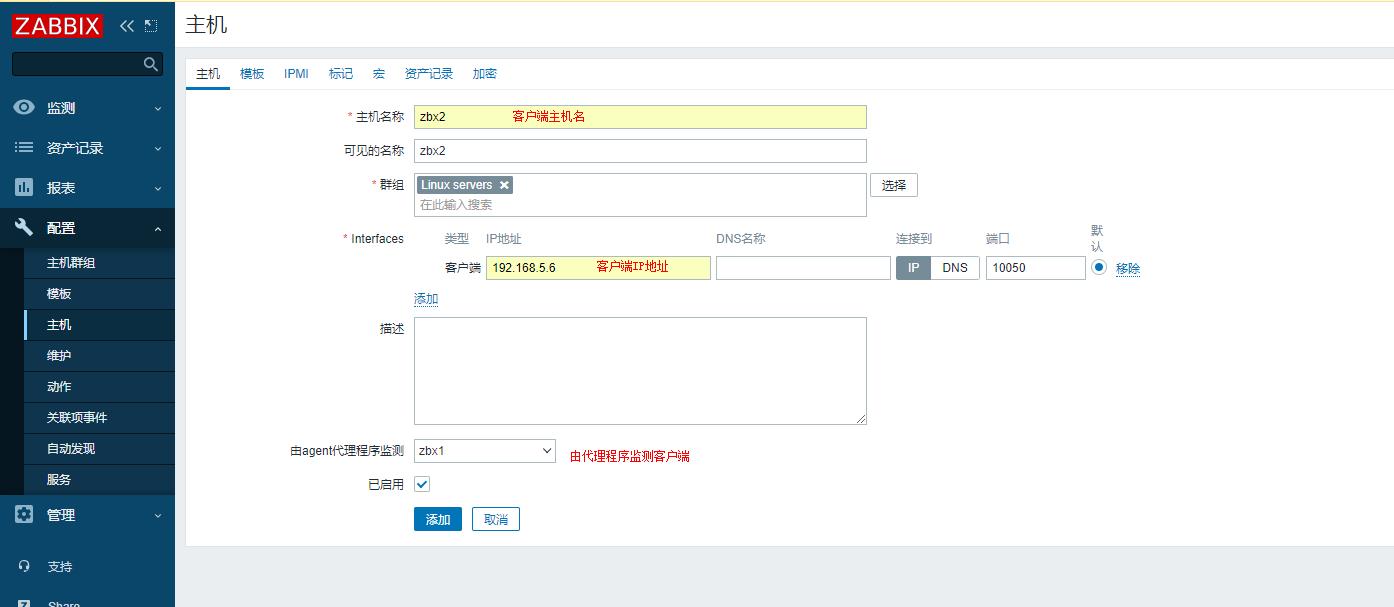

server Configure client

add to agent node

# hold server The address is configured to proxy
vim /etc/zabbix/zabbix_agent2.conf
Server=192.168.5.5
ServerActive=192.168.5.5
Hostname=zbx2
HostnameItem=system.hostname

systemctl restart zabbix-agent2

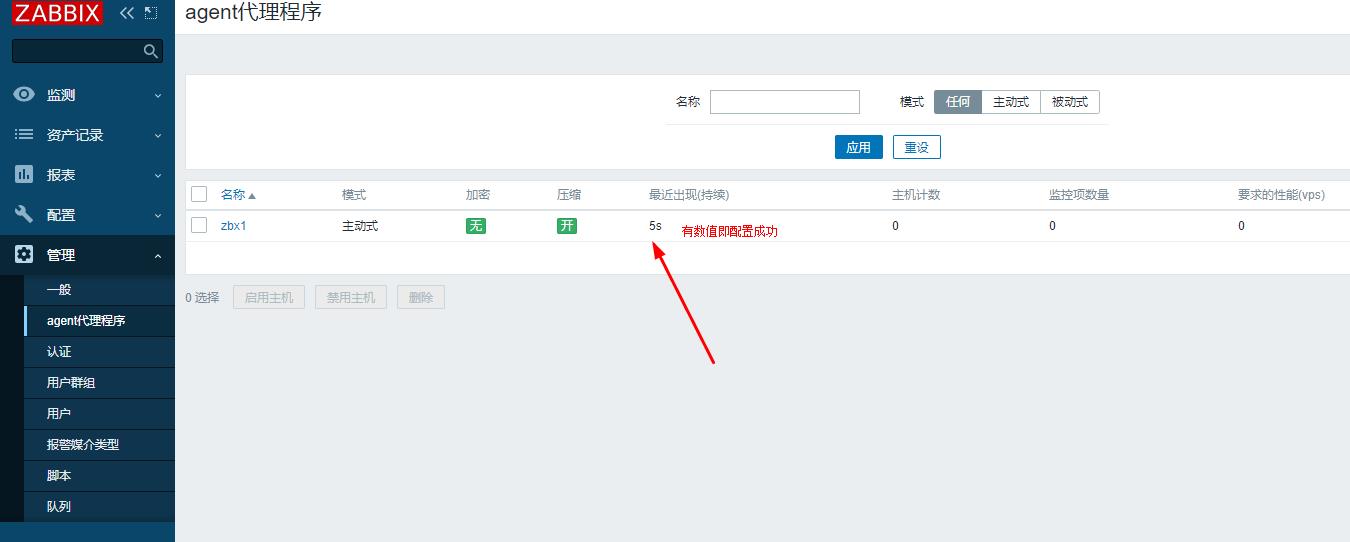

Waiting to view the configuration , host

Problems arise

1. Check the configuration file , Main inspection server hostname

2. Restart the service proxy and agent
32721)]

[ Outside the chain picture transfer in …(img-fs99H3dN-1658374932721)]

Waiting to view the configuration , host

Problems arise

1. Check the configuration file , Main inspection server hostname

2. Restart the service proxy and agent
