Project summary: document management system

This article mainly combs and summarizes the project of document management system ：

System language localization

Because the system requires Bilingual , A form parameter is used in the design ：

After setting these two parameters , You can see two resource files in the solution , One is the design language , One is localized .

You can modify the display name of the control in the resource file .


When the system is running, it will be localized according to its own local language . But this is not very convenient to use , If the system localization is set , That is, after changing the values of the above two parameters, you can no longer add controls , If you need to add controls, restore these two parameters to the default , Then add controls , You also need to reset the name of the control in the localized resource file .
Moreover, this method can only localize the controls added at the front end , If it's written directly in the background , such as GridControl Column name of ,Messagebox The news of , Cannot localize settings , This makes the system seem inconsistent .

Form animation

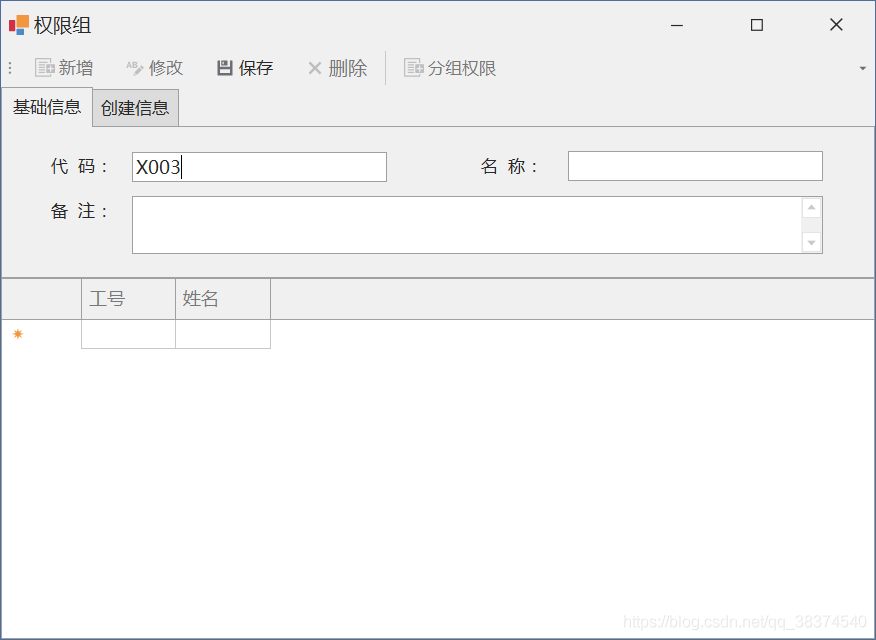

Take a look at the display effect , Bad intercept map , Set here to display... From the upper left corner .
But if it's set MID Form embedding Panel It won't work if

 #region AnimateWindow
        [DllImport("user32.dll", EntryPoint = "AnimateWindow")]
        private static extern bool AnimateWindow(IntPtr handle, int ms, int flags);
        protected override void OnLoad(EventArgs e)
        {

            base.OnLoad(e);
            //AnimateWindow(this.Handle, 1000, 0x20010); //  Center and gradually show .
            AnimateWindow(this.Handle, 1000, 0xA0000); //  Fade in / out effect .
            //AnimateWindow(this.Handle, 1000, 0x60004); //  From top to bottom .
            //AnimateWindow(this.Handle, 1000, 0x20004); //  From top to bottom .
        }
        protected override void OnFormClosing(FormClosingEventArgs e)
        {

            base.OnFormClosing(e);
            //AnimateWindow(this.Handle, 1000, 0x10010); //  Center and gradually hide .
            AnimateWindow(this.Handle, 1000, 0x90000); //  Fade in / out effect .
            //AnimateWindow(this.Handle, 1000, 0x50008); //  Bottom up .
            //AnimateWindow(this.Handle, 1000, 0x10008); //  Bottom up .
        }
        #endregion

One is the form display , One is when you close the form , But this animation effect is not many , Then the effect of fading in and out is very similar to Caton's , The original purpose of using animation effect is to enhance the user experience , Solve the problem of flashing screen for form construction and switching , But it's not very easy to use , This function , When switching between two forms, only one form can be animated , Otherwise, the two animations seem particularly deliberate .
During this period, we also found a solution to the problem of flashing screen when switching forms , But it's not easy to use , Combined with form animation, it's like a card screen .

   protected override CreateParams CreateParams
        {

            get
            {

                CreateParams cp = base.CreateParams;
                cp.ExStyle |= 0x02000000;
                return cp;
            }
        }

TileControl

One customer, one group , Customers occupy two spaces , Items occupy one space .
The background automatically instantiates groups and projects according to the database ：

      public void Group()
        {

            CustomerTile.Groups.Clear();
            sql = "select ID,CustomerName from Customer ";
            DataTable dt;
            if (!DB.AF.execSql(sql, sqlconn, out dt))
            {

                XtraMessageBox.Show(" Failed to get server client ！");
                return;
            }
            for (int i = 0; i < dt.Rows.Count; i++)
            {

                TileGroup group = new TileGroup();
                group.Text = dt.Rows[i]["ID"].ToString();
                CustomerTile.Groups.Add(group);
                TileItem item = new TileItem();
                item.Name = dt.Rows[i]["CustomerName"].ToString();
                item.Text = dt.Rows[i]["CustomerName"].ToString();
                item.ItemSize = TileItemSize.Wide;// Set group header first Item Two spaces
                // Built in some pictures of customers . When adding customers Item These pictures will be displayed , If it's not built in , It's green tiles .

                switch (item.Name)
                {

                    case "Apple": item.Image = Resources.Apple; break;
                    case "Amazon": item.Image = Resources.Amazon; break;
                    case "Facebook": item.Image = Resources.Facebook; break;
                    case "Google": item.Image = Resources.Google; break;
                    case "Huawei": item.Image = Resources.Huawei; break;
                    case "Microsoft": item.Image = Resources.Microsoft; break;
                }
                item.ImageScaleMode = TileItemImageScaleMode.Stretch;
                item.Appearance.BackColor = Color.White;// The background color of the ceramic tile is set here , Otherwise there will be a border , I didn't find out how to fill the picture completely .
                item.Appearance.ForeColor = Color.Black;
                // Tile click event , Customer and project click events are different , This is the customer's click event , Here is the of the project
                item.ItemClick += Item_Click;
                group.Items.Add(item);
                // You can add one here top, because Item Too many will be on the right , Disgraceful
                sql = "select ID,ProjectName from Projects where CusName= '" + dt.Rows[i]["CustomerName"].ToString() + "'";
                DataTable dtPro;
                if (!DB.AF.execSql(sql, sqlconn, out dtPro))
                {

                    XtraMessageBox.Show(" Failed to get server project ！");
                }
                for (int j = 0; j < dtPro.Rows.Count; j++)
                {

                    TileItem items = new TileItem();
                    items = new TileItem();
                    items.Name = dtPro.Rows[j]["ID"].ToString();
                    items.Text = dtPro.Rows[j]["ProjectName"].ToString();
                    items.ItemSize = TileItemSize.Default;
                    // Here is the click event of the project
                    items.ItemClick += Items_Click;
                    group.Items.Add(items);
                }
            }
        }

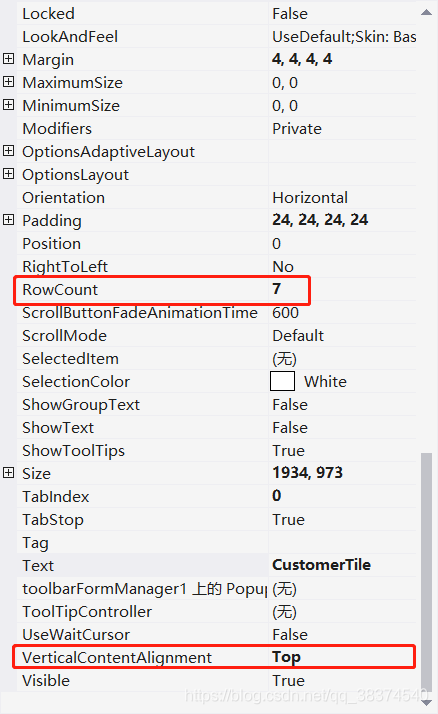

TileControl Still often do touch screen interface ,Win8 Style , The project's Item Change pictures into folders , It's also nice to put the text in the middle at the bottom , This control is still very easy to use , There are too few information available on the Internet .

Rowcount Is to change a column to show several rows Item Of .

TreeList and BreadCrumbEdit

Dev It doesn't do TreeList and BreadCrumbEdit The associated , So I can only write it myself , An example is given on the official website , I have a general look , I'll add this later .

Upload files

There are two ways to upload files ：

1. Get the path of the file from the clipboard , Directly upload when pasting in the program
2. Click the upload button , A dialog box for selecting files pops up . Select and upload
   About version management ： Making a file management system not only needs to be convenient 、 quick 、 It works 、 Share the current version of files safely , It is more necessary to manage the historical versions uploaded by users , At present, all I think of is storage , It's not in the management stage yet .
   This file management system saves files by uploading them to a shared folder , Not to binary, stored in the database .
   Therefore, the method of version management is to create two folders in the shared server , A file used to store the current version , Used to share 、 preview , In another folder, create your own folder according to the name of each file , Every time you upload a file , The file name is + Save the version number .
   If a file with the same name already exists in the shared folder, it will be directly overwritten if you continue to upload , Therefore, no other operations are required for the folder storing the current version , If the name of the uploaded file is the same as that of the previous version , Just upgrade directly , However, the version to be upgraded may be inconsistent with the name of the file on the shared server , So I made a separate interface ：

   First put a general code for operating shared folders , These functions will be used later ：

   #region  Shared folders
        public static bool connectState(string path)
        {

            return connectState(path, "", "");
        }
        /// <summary>
        ///  Connect to a remote shared folder
        /// </summary>
        /// <param name="path"> The path to the remote shared folder </param>
        /// <param name="userName"> user name </param>
        /// <param name="passWord"> password </param>
        /// <returns></returns>
        public static bool connectState(string path, string userName, string passWord)
        {

            bool Flag = false;
            System.Diagnostics.Process proc = new System.Diagnostics.Process();
            try
            {

                proc.StartInfo.FileName = "cmd.exe";
                proc.StartInfo.UseShellExecute = false;
                proc.StartInfo.RedirectStandardInput = true;
                proc.StartInfo.RedirectStandardOutput = true;
                proc.StartInfo.RedirectStandardError = true;
                proc.StartInfo.CreateNoWindow = true;
                proc.Start();
                proc.StandardInput.WriteLine("net use * /del /y");
                string dosLine = "net use " + path + " " + passWord + " /user:" + userName;
                proc.StandardInput.WriteLine(dosLine);
                proc.StandardInput.WriteLine("exit");
                while (!proc.HasExited)
                {

                    proc.WaitForExit(1000);
                }
                string errormsg = proc.StandardError.ReadToEnd();
                proc.StandardError.Close();
                if (string.IsNullOrEmpty(errormsg))
                {

                    Flag = true;
                }
                else
                {

                    MessageBox.Show(errormsg);
                }
            }
            catch (Exception ex)
            {

                MessageBox.Show(ex.Message);
            }
            finally
            {

                proc.Close();
                proc.Dispose();
            }
            return Flag;
        }
        /// <summary>
        ///  Save local content to a remote folder , Or download files from remote folders to local
        /// </summary>
        /// <param name="src"> The path of the file to save , If you save files to a shared folder , This path is the local file path ：@"D:\1.avi"</param>
        /// <param name="dst"> Path to save file , No name and extension </param>
        /// <param name="fileName"> Save the name and extension of the file </param>
        public static void Transport(string src, string dst, string fileName)
        {

            FileStream inFileStream = new FileStream(src, FileMode.Open);
            if (!Directory.Exists(dst))
            {

                Directory.CreateDirectory(dst);
            }
            dst = dst + fileName;
            if (!File.Exists(dst))
            {

                FileStream outFileStream = new FileStream(dst, FileMode.Create, FileAccess.Write);
                byte[] buf = new byte[inFileStream.Length];
                int byteCount;
                while ((byteCount = inFileStream.Read(buf, 0, buf.Length)) > 0)
                {

                    outFileStream.Write(buf, 0, byteCount);
                }
                inFileStream.Flush();
                inFileStream.Close();
                outFileStream.Flush();
                outFileStream.Close();
            }
            else if (File.Exists(dst))
            {

                File.Delete(dst);
                FileStream outFileStream = new FileStream(dst, FileMode.Create, FileAccess.Write);
                byte[] buf = new byte[inFileStream.Length];
                int byteCount;
                while ((byteCount = inFileStream.Read(buf, 0, buf.Length)) > 0)
                {

                    outFileStream.Write(buf, 0, byteCount);
                }
                inFileStream.Flush();
                inFileStream.Close();
                outFileStream.Flush();
                outFileStream.Close();
            }
        }
        /// <summary>
        ///  Download files from remote server to local
        /// </summary>
        /// <param name="src"> The file path after downloading to the local , Contains the extension of the file </param>
        /// <param name="dst"> Remote server path （ Shared folder path ）</param>
        /// <param name="fileName"> remote server （ Shared folders ） File name in , Include extension </param>
        public static void TransportRemoteToLocal(string src, string dst, string fileName)   //src： The file path after downloading to the local  dst： Remote server path  fileName: remote server dst File name under path
        {

            if (!Directory.Exists(Path.GetDirectoryName(src) + @"\")) { Directory.CreateDirectory(Path.GetDirectoryName(src) + @"\");
            }
            dst = dst + fileName;
            FileStream inFileStream = new FileStream(dst, FileMode.Open);    // Remote server files   It is assumed that this file is indeed contained in the shared folder of the remote server , Otherwise, the program reports an error
            FileStream outFileStream = new FileStream(src, FileMode.OpenOrCreate);   // File downloaded from remote server to local
            byte[] buf = new byte[inFileStream.Length];
            int byteCount;
            while ((byteCount = inFileStream.Read(buf, 0, buf.Length)) > 0)
            {

                outFileStream.Write(buf, 0, byteCount);
            }
            inFileStream.Flush();
            inFileStream.Close();
            outFileStream.Flush();
            outFileStream.Close();
        }
        #endregion

Get the code of the clipboard file path ：

if (Clipboard.ContainsFileDropList())
                {

                // Here is a page waiting for the form
                    WaitDialogForm sdf = new WaitDialogForm("", " Uploading data ......");
                    GC.Enabled = false;
                    try
                    {

                    //file Is the file path on the clipboard
                        foreach (string file in Clipboard.GetFileDropList())
                        {

                        // A method of uploading files written by yourself
                            upLoad(file);
                        }
                    }
                    catch (Exception ex)
                    {

                        XtraMessageBox.Show("Error : " + ex.Message);
                    }
                    finally
                    {

                        sdf.Close();
                        GC.Enabled = true;
                    }
                }

How to upload files , First insert data into the database , Then save the file to a shared folder

  public void upLoad(string file)
        {

            //string file = Clipboard.GetFileDropList()[0]; // Read the first file on the clipboard
            FileInfo fileInfo = null;
            try
            {

                fileInfo = new System.IO.FileInfo(file);
            }
            catch (Exception ex)
            {

                XtraMessageBox.Show(ex.Message);
                //  Other exception handling code
            }
            System.Diagnostics.FileVersionInfo info = System.Diagnostics.FileVersionInfo.GetVersionInfo(file);
            string FileName = file.Substring(file.LastIndexOf("\\") + 1);
            string FileType = file.Substring(file.LastIndexOf(".") + 1);
            DataRowView drv = FileTree.GetDataRecordByNode(FileTree.FocusedNode) as DataRowView;
            FousedeptId = drv["ID"].ToString();
            sql = "select FileURL from Folder where ID = '" + FousedeptId + "'";
            DataTable dt;
            if (!DB.AF.execSql(sql, sqlconn, out dt))
            {

                XtraMessageBox.Show(" Failed to access database ！");
                return;
            }
            string url = dt.Rows[0][0].ToString() + @"\"; // Save the database first and then the server . sql = "insert into Folder(ProID,CusName,FileName,FileType,FileURL,UpID,FileSize) values('" + ProID + "','" + CusName + "','" + FileName + "','" + FileType + " file ','" + url + FileName + "','" + FousedeptId + "','" + System.Math.Ceiling(fileInfo.Length / 1024.0) + " KB" + "')";
            if (!DB.AF.sqlExec(sql, sqlconn, out errMsg))
            {

                XtraMessageBox.Show(errMsg);
                return;
            }
            bool status = false;
            // Connect shared folders
            status = connectState(@"\\ip\Project\ERP", " account number ", " password ");
            if (status)
            {

                // Execution method , The above shared folder operation method
                Transport(file, url, FileName);
            }
            //SetGV();
        }

File preview

I checked a lot of information about document preview , But at present, there is no particularly good solution .Oracle There is a software that can preview hundreds of files , Can be embedded into C# in , Use as a control , be called AutoVue, But I don't feel so easy to use , The first is the long loading time , And it's previewing Excel When uploading files Excel There is no optimal column width ,AutoVue The display is incomplete , Zoom in and out is not very flexible , So I didn't continue to use it .
Another preview method is to call the process directly , Open the file by calling the program opened by default for this file type in the computer , However, it is not easy to determine the confidentiality of documents in this way , Because after opening, it is no longer within the controllable range of the program , Only other encryption software can be used to control the files .

System.Diagnostics.Process.Start(Localpath)//Localpath The address of the file to be previewed

File transfer XPS With the help of WPF preview
This txt、pdf、word The file needs to write a form ,excel Need to write a form .
pdf turn xps You need to turn first word, And then go xps, It takes a long time , Therefore, the cache for seven days is set xps file , When previewing again, you can directly call ：

 The front desk ：
<dx:ThemedWindow
    x:Class="Knowledge_Central.Views.XPSPreview"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
    Title="XPSPreview" Height="800" Width="1000" WindowState="Maximized"
    >
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="0" Name="cdTree"/>
            <ColumnDefinition Width="auto"/>
            <ColumnDefinition Width="3*"/>
        </Grid.ColumnDefinitions>
        <GroupBox Header=" Navigation directory ">
            <TreeView Name="tvTree" SelectedItemChanged="tvTree_SelectedItemChanged"/>
        </GroupBox>
        <GridSplitter Width="3" ResizeBehavior="PreviousAndNext" Grid.Column="1" Background="LightGray"/>
        <Grid Grid.Column="3">
            <Grid.RowDefinitions>
                <RowDefinition Height="auto"/>
                <RowDefinition Height="*"/>
            </Grid.RowDefinitions>
            <DocumentViewer Name="dvShow" Grid.Row="1" Background="#FFF0F0F0"  />

            <StackPanel Grid.Row="0" Orientation="Horizontal" HorizontalAlignment="Right">
                <CheckBox Content=" Show navigation " Margin="5,1,5,1.6" Name="cbNav" Width="75" Click="cbNav_Click" />
                <Label Content=" page " Margin="0,2,0,-2.2"/>
                <Label Name="lblCurPage" Margin="0"/>
                <Label Name="lblPage"/>
                <Button Content=" The previous page " Height="23" Name="btnPrev" Width="75" Click="btnPrev_Click" />
                <Button Content=" The next page " Height="23" Name="btnNext" Width="75" Click="btnNext_Click" />
                <!--<Label Content=" Total words :" Name="lblWordCount"/>-->
            </StackPanel>
        </Grid>
    </Grid>
</dx:ThemedWindow>

 backstage ：
using System;
using System.IO;
using System.Linq;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Xps.Packaging;
using System.Xml;
using Microsoft.Office.Interop.Word;
using DevExpress.Xpf.Core;
using DevExpress.XtraEditors;
using Microsoft.Office.Interop.Excel;
using System.Runtime.InteropServices;
using System.Diagnostics;

namespace Knowledge_Central.Views
{

    /// <summary>
    /// MainWindow.xaml  Interaction logic of
    /// </summary>
    public partial class XPSPreview : ThemedWindow
    {

        string name;
        #region  Global variables

        /// <summary>
        ///  Used to store all nodes of the directory document OutlineLevel value , And into int type
        /// </summary>
        int[] array = null;

        /// <summary>
        ///  Used to store all nodes of the directory document OutlineLevel value
        /// </summary>
        string[] array1 = null;

        /// <summary>
        ///  Used to store all nodes of the directory document Description value , Chapter information
        /// </summary>
        string[] arrayName = null;

        /// <summary>
        ///  Used to store all nodes of the directory document OutlineTarget value , Page information
        /// </summary>
        string[] pages = null;

        #endregion
        public XPSPreview()
        {

            InitializeComponent();
        }
        /// <summary>
        ///  Constructors
        /// </summary>
        /// <param name="strFilePath"> File path </param>
        public XPSPreview(string strFilePath) : this() {
     OpenFile(strFilePath); }
        #region  Method
        /// <summary>
        ///  Read the navigation directory
        /// </summary>
        private void ReadDoc(XpsDocument xpsDoc)
        {

            IXpsFixedDocumentSequenceReader docSeq = xpsDoc.FixedDocumentSequenceReader;
            IXpsFixedDocumentReader docReader = docSeq.FixedDocuments[0];
            XpsStructure xpsStructure = docReader.DocumentStructure;
            Stream stream = xpsStructure.GetStream();
            XmlDocument doc = new XmlDocument();
            doc.Load(stream);
            // Get the list of nodes
            XmlNodeList nodeList = doc.ChildNodes.Item(0).FirstChild.FirstChild.ChildNodes;
            if (nodeList.Count <= 0)// Determine whether there is a directory node
            {

                //tvTree.Visibility = System.Windows.Visibility.Hidden;
                tvTree.Items.Add(new TreeViewItem {
     Header = " No navigation directory " });
                return;
            }
            tvTree.Visibility = System.Windows.Visibility.Visible;

            array = new int[nodeList.Count];
            array1 = new string[nodeList.Count];
            arrayName = new string[nodeList.Count];
            pages = new string[nodeList.Count];
            for (int i = 0; i < nodeList.Count; i++)
            {

                array[i] = Convert.ToInt32(nodeList[i].Attributes["OutlineLevel"].Value);
                array1[i] = nodeList[i].Attributes["OutlineLevel"].Value.ToString();
                arrayName[i] = nodeList[i].Attributes["Description"].Value.ToString();
                pages[i] = nodeList[i].Attributes["OutlineTarget"].Value.ToString();
            }

            for (int i = 0; i < array.Length - 1; i++)
            {

                // Yes array Transform and assemble into a readable tree structure , adopt ASCII Value 、 transformation
                array1[0] = "A";
                if (array[i + 1] - array[i] == 1)
                {

                    array1[i + 1] = array1[i] + 'A';
                }
                if (array[i + 1] == array[i])
                {

                    char s = Convert.ToChar(array1[i].Substring((array1[i].Length - 1), 1));
                    array1[i + 1] = array1[i].Substring(0, array1[i].Length - 1) + (char)(s + 1);
                }
                if (array[i + 1] < array[i])
                {

                    int m = array[i + 1];
                    char s = Convert.ToChar(array1[i].Substring(0, m).Substring(m - 1, 1));
                    array1[i + 1] = array1[i].Substring(0, m - 1) + (char)(s + 1);
                }
            }

            // Add a node as the root node
            TreeViewItem parent = new TreeViewItem();
            TreeViewItem parent1 = null;
            parent.Header = " Directory navigation ";
            Boolean flag = false;
            for (int i = 0; i < array.Length; i++)
            {

                if (array[i] == 1)
                {

                    flag = true;
                }
                if (flag) // If the actual root node is found , Load tree
                {

                    parent1 = new TreeViewItem();
                    parent1.Header = arrayName[i];
                    parent1.Tag = array1[i];
                    parent.Items.Add(parent1);
                    parent.IsExpanded = true;
                    parent1.IsExpanded = true;
                    FillTree(parent1, array1, arrayName);
                    flag = false;
                }
            }

            tvTree.Items.Clear();
            tvTree.Items.Add(parent);

        }
        /// <summary>
        ///  How to fill the tree
        /// </summary>
        /// <param name="parentItem"></param>
        /// <param name="str1"></param>
        /// <param name="str2"></param>
        public void FillTree(TreeViewItem parentItem, string[] str1, string[] str2)
        {

            string parentID = parentItem.Tag as string;
            for (int i = 0; i < str1.Length; i++)
            {

                if (str1[i].IndexOf(parentID) == 0 && str1[i].Length == (parentID.Length + 1) && str1[i].ElementAt(0).Equals(parentID.ElementAt(0)))
                {

                    TreeViewItem childItem = new TreeViewItem();
                    childItem.Header = str2[i];
                    childItem.Tag = str1[i];
                    parentItem.Items.Add(childItem);
                    FillTree(childItem, str1, str2);
                }
            }
        }
        /// <summary>
        ///  Open file - If the incoming path is empty, the select file dialog box opens here
        /// </summary>
        /// <param name="strFilepath"> The full path of the incoming file </param>
        private void OpenFile(string strFilepath)
        {

            if (string.IsNullOrEmpty(strFilepath))
            {

                //Microsoft.Win32.OpenFileDialog openFileDialog = new Microsoft.Win32.OpenFileDialog();
                //openFileDialog.DefaultExt = ".doc|.txt|.xps";
                //openFileDialog.Filter = "*(.xps)|*.xps|Word documents (.doc)|*.doc|Word(2007-2010)(.docx)|*.docx|*(.txt)|*.txt";
                //Nullable<bool> result = openFileDialog.ShowDialog();
                //strFilepath = openFileDialog.FileName;
                //if (result != true)
                //{

                return;
                //}
            }
            this.Title = strFilepath.Substring(strFilepath.LastIndexOf("\\") + 1);
            if (strFilepath.Length > 0)
            {

                string newXPSdocName = string.Concat(Path.GetDirectoryName(strFilepath), "\\", Path.GetFileNameWithoutExtension(strFilepath), ".xps");
                XpsDocument xpsDoc = null;
                // If it is xps Open the file directly , Otherwise, the format needs to be converted
                if (!strFilepath.EndsWith(".xps"))
                {

                    string FileType = strFilepath.Substring(strFilepath.LastIndexOf(".") + 1);
                    switch (FileType)
                    {

                        case "pdf":
                        case "doc":
                        case "docx":
                        case "txt":
                            {

                                xpsDoc = ConvertWordToXPS(strFilepath, newXPSdocName);
                            }; break;
                        case "xls":
                        case "xlsx":
                            {
     xpsDoc = ConvertExcelToXps(strFilepath, newXPSdocName); }
                            ; break;
                    }

                    File.Delete(strFilepath);
                }
                else
                {

                    xpsDoc = new XpsDocument(strFilepath, System.IO.FileAccess.Read);
                }
                //}

                if (xpsDoc != null)
                {

                    dvShow.Document = xpsDoc.GetFixedDocumentSequence();

                    // Read the document directory
                    ReadDoc(xpsDoc);
                    xpsDoc.Close();
                }
                this.lblCurPage.Content = 1;
                this.lblPage.Content = "/" + dvShow.PageCount;
            }
        }

        /// <summary>
        ///  take word Document conversion to xps file
        /// </summary>
        /// <param name="wordDocName">word Document full path </param>
        /// <param name="xpsDocName">xps Document full path </param>
        /// <returns></returns>
        private XpsDocument ConvertWordToXPS(string wordDocName, string xpsDocName)
        {

            XpsDocument result = null;
            // Create a word file , And add the document to be converted to the newly created object
            Microsoft.Office.Interop.Word.Application wordApplication = new Microsoft.Office.Interop.Word.Application();
            try
            {

                wordApplication.Documents.Add(wordDocName);
                Document doc = wordApplication.ActiveDocument;
                doc.ExportAsFixedFormat(xpsDocName, WdExportFormat.wdExportFormatXPS, false, WdExportOptimizeFor.wdExportOptimizeForPrint, WdExportRange.wdExportAllDocument, 0, 0, WdExportItem.wdExportDocumentContent, true, true, WdExportCreateBookmarks.wdExportCreateHeadingBookmarks, true, true, false, Type.Missing);
                result = new XpsDocument(xpsDocName, System.IO.FileAccess.ReadWrite);
            }
            catch (Exception ex)
            {

                string error = ex.Message;
                wordApplication.Quit(WdSaveOptions.wdDoNotSaveChanges);
            }
            wordApplication.Quit(WdSaveOptions.wdDoNotSaveChanges);
            return result;
        }
        /// <summary>
        ///  take Excel The file is converted to XPS file
        /// </summary>
        /// <param name="execelFileName">Excel file name </param>
        /// <param name="xpsFileName"> The conversion xps file name </param>
        public XpsDocument ConvertExcelToXps(string excelFileName, string xpsFileName)
        {

            XpsDocument result = null;
            if (string.IsNullOrWhiteSpace(excelFileName))
                throw new ArgumentNullException(excelFileName);
            var fileInfo = new FileInfo(xpsFileName);
            Microsoft.Office.Interop.Excel.Application app = new Microsoft.Office.Interop.Excel.Application();
            app.DisplayAlerts = false;
            Workbooks wbs;
            Workbook wb;
            wbs = app.Workbooks;
            wb = wbs.Add(excelFileName);
            dynamic Nothing = System.Reflection.Missing.Value;
            wb.ExportAsFixedFormat(XlFixedFormatType.xlTypeXPS, xpsFileName, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing);
            result = new XpsDocument(xpsFileName, System.IO.FileAccess.ReadWrite);
            wb.Close(true);
            wbs.Close();
            app.Quit();
            KillExcelProcess(app);
            return result;
        }
        [DllImport("User32.dll")]
        private static extern int GetWindowThreadProcessId(IntPtr hWnd, out int ProcessId);
        /// <summary>
        ///  end Excel process
        /// </summary>
        /// <param name="obj"></param>
        private void KillExcelProcess(Microsoft.Office.Interop.Excel.Application app)
        {

            if (app == null)
                return;
            try
            {

                IntPtr intptr = new IntPtr(app.Hwnd);
                int id;
                GetWindowThreadProcessId(intptr, out id);
                var p = Process.GetProcessById(id);
                p.Kill();
            }
            catch {
     }
        }
        #endregion

        /// <summary>
        ///  Navigation tree jump event
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void tvTree_SelectedItemChanged(object sender, RoutedPropertyChangedEventArgs<object> e)
        {

            int x = 0;
            TreeViewItem selectTV = this.tvTree.SelectedItem as TreeViewItem;
            if (null == selectTV)
                return;

            if (null == selectTV.Tag)
                return;

            string page = selectTV.Tag.ToString();
            for (int i = 0; i < array1.Length; i++)
            {

                if (array1[i].Equals(page))
                {

                    x = i;
                }
            }
            string[] strPages = pages[x].Split('_');
            dvShow.GoToPage(Int32.Parse(strPages[1]));
        }

        private void cbNav_Click(object sender, RoutedEventArgs e)
        {

            this.cdTree.Width = this.cbNav.IsChecked == true ? new GridLength(300) : new GridLength(0);
        }

        private void btnPrev_Click(object sender, RoutedEventArgs e)
        {

            this.dvShow.PreviousPage();
            if (int.Parse(this.lblCurPage.Content.ToString()) > 1)
                this.lblCurPage.Content = int.Parse(this.lblCurPage.Content.ToString()) - 1;
        }

        private void btnNext_Click(object sender, RoutedEventArgs e)
        {

            this.dvShow.NextPage();
            if (int.Parse(this.lblCurPage.Content.ToString()) < int.Parse(this.lblPage.Content.ToString().Replace("/", "")))
                this.lblCurPage.Content = int.Parse(this.lblCurPage.Content.ToString()) + 1;
        }

    }
}

Excel preview ：Excel It can also be converted to xps File preview , But I didn't turn around , But with the SpreadsheetControl This control , In fact, it can be used without turning winform and wpf It's all the same , This control is used to display excel file .

<dx:ThemedWindow
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:dx="http://schemas.devexpress.com/winfx/2008/xaml/core"
    xmlns:dxsps="http://schemas.devexpress.com/winfx/2008/xaml/spreadsheet"
    x:Class="Knowledge_Central.Views.XPSPreview_Excel"
    Title="XPSPreview_Excel" Height="800" Width="1000" WindowState="Maximized"
    >
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>
        <dxsps:SpreadsheetFormulaBarControl x:Name="formulaBar" SpreadsheetControl="{Binding ElementName=spreadsheetControl1}" />
        <dxsps:SpreadsheetControl Grid.Row="1" x:Name="spreadsheetControl1"/>
    </Grid>
</dx:ThemedWindow>

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Shapes;
using DevExpress.Xpf.Core;
using DevExpress.Spreadsheet;

namespace Knowledge_Central.Views
{

    /// <summary>
    /// Interaction logic for XPSPreview_Excel.xaml
    /// </summary>
    public partial class XPSPreview_Excel : ThemedWindow
    {


        public XPSPreview_Excel(string path)
        {

            InitializeComponent();
            PreviewExcel(path);
        }
        public void PreviewExcel(string filePath)
        {

            IWorkbook workbook = spreadsheetControl1.Document;
            workbook.LoadDocument(filePath);
        }
    }
}

File download

Downloading and saving files locally is the easiest

 WaitDialogForm sdf = new WaitDialogForm("", " Downloading files , One moment please ......");
            GC.Enabled = false;
            string name = GV.GetRowCellValue(GV.FocusedRowHandle, "Name").ToString();
            string path = GV.GetRowCellValue(GV.FocusedRowHandle, "URL").ToString();
            string Localpath = @"D:\KnowledgeCentralFiles\" + name; if (File.Exists(path)) { try { bool status = false; // Connect shared folders  status = connectState(@"\\ip\Project\ERP", " Account ", " password ");
                    if (status)
                    {

                        TransportRemoteToLocal(Localpath, Path.GetDirectoryName(GV.GetRowCellValue(GV.FocusedRowHandle, "URL").ToString()) + @"\", name); } } catch (Exception ex) { XtraMessageBox.Show(ex.Message); return; } } sdf.Close(); GC.Enabled = true; if (XtraMessageBox.Show(" Download successful , Whether to open now ？", "", MessageBoxButtons.YesNo, MessageBoxIcon.Question) == DialogResult.Yes)
            {

                System.Diagnostics.Process.Start(Localpath);
            }

Rights management

Permission management is an important module of this system . There are three dimensions ： Permission group , Personnel authority , File permissions

• Permission group
  Whether to display the detailed personnel of the permission group during the general query of the permission group , Because you have to change the number of columns , So to reset GridView, Used two sentences of grammar ：
  Both the above sentence and the following sentence can be used

     //(GC.DefaultView as GridView).Columns.Clear();// You need to clear the column before switching .
            GC.DataSource = dt;
            (GC.DefaultView as GridView).PopulateColumns();

Add permission group ：

The new version of the DevExpress Of GridControl It has its own paste function , At present, it seems to be divided into update and addition , If you want to update and append , Maybe you should write it yourself .
Here, the additional... Is used directly , Because only the job number column needs to be maintained , The name is automatically brought out , It doesn't need to be updated ：

In addition, I used GridLookUpEdit Column and fuzzy query function ：

When submitting the work number column value , Automatically assign a value to the name column , I wonder if there is a simpler way , Actually, I visited the database twice .

 private void GV_CellValueChanged(object sender, DevExpress.XtraGrid.Views.Base.CellValueChangedEventArgs e)
        {

            //XtraMessageBox.Show(e.Column.ToString());
            if (e.Column.ToString().Trim() == " Job number ")
            {

                sql = "select userName  full name  from sys_userInf where userID = '" + GV.GetRowCellValue(GV.FocusedRowHandle, " Job number ").ToString().Trim() + "'";
                DataTable dt;
                if (!DB.AF.execSql(sql, sqlconnOA, out dt))
                {

                    XtraMessageBox.Show(" Failed to connect to personnel information server ！");
                    return;
                }
                if (dt.Rows.Count == 1)
                {

                    GV.SetRowCellValue(GV.FocusedRowHandle, " full name ", dt.Rows[0][0].ToString());
                   // GV.SetRowCellValue(GV.FocusedRowHandle, " Code ", txt_Code.Text.Trim());
                }
            }
        }

GridLookUpEdit Column and fuzzy query ：

  public void Initcol()
        {

            sql = "select userID  Job number ,userName  full name ,deptName  department ,companyName  company  from sys_userInf";
            DataTable dt;
            if (!DB.AF.execSql(sql, sqlconnOA, out dt))
            {

                XtraMessageBox.Show(" Failed to connect to personnel information server ！");
            }
            RepositoryItemGridLookUpEdit rc = new RepositoryItemGridLookUpEdit(); // This line is the key
            rc.DataSource = new BindingSource(dt, null);
            rc.ValueMember = " Job number ";
            rc.DisplayMember = " Job number ";
            rc.AllowNullInput = DevExpress.Utils.DefaultBoolean.True;
            rc.View.BestFitColumns();
            rc.NullText = "";
            rc.ShowFooter = false;
            rc.View.OptionsView.ShowAutoFilterRow = false; // Show not show grid The first blank line on the , It is also an application for Retrieval
            rc.AutoComplete = false;
            rc.ImmediatePopup = true;
            rc.PopupFilterMode = PopupFilterMode.Contains;
            rc.TextEditStyle = TextEditStyles.Standard;
            SetGridLookUpEditMoreColumnFilter(rc);
            GC.RepositoryItems.Add(rc);// This business is also the key
            GV.Columns[" Job number "].ColumnEdit = rc;// This business is also the key
            //if (string.IsNullOrEmpty(rc.View.GetFocusedDataRow()[" full name "].ToString()))
            // GV.SetRowCellValue(GV.FocusedRowHandle, " full name ", rc.View.GetFocusedDataRow()[" full name "].ToString());
        }

 /// <summary>
        /// GridLookupEdit Fuzzy query
        /// </summary>
        /// <param name="repGLUEdit"></param>
        private void SetGridLookUpEditMoreColumnFilter(RepositoryItemGridLookUpEdit repGLUEdit)
        {

            repGLUEdit.EditValueChanging += (sender, e) =>
            {

                BeginInvoke(new MethodInvoker(() =>
                {

                    GridLookUpEdit edit = sender as GridLookUpEdit;
                    DevExpress.XtraGrid.Views.Grid.GridView view = edit.Properties.View as DevExpress.XtraGrid.Views.Grid.GridView;
                    // obtain GriView Private variables
                    System.Reflection.FieldInfo extraFilter = view.GetType().GetField("extraFilter", System.Reflection.BindingFlags.NonPublic | System.Reflection.BindingFlags.Instance);
                    List<DevExpress.Data.Filtering.CriteriaOperator> columnsOperators = new List<DevExpress.Data.Filtering.CriteriaOperator>();
                    foreach (GridColumn col in view.VisibleColumns)
                    {

                        if (col.Visible && col.ColumnType == typeof(string))
                            columnsOperators.Add(new DevExpress.Data.Filtering.FunctionOperator(DevExpress.Data.Filtering.FunctionOperatorType.Contains,
                                new DevExpress.Data.Filtering.OperandProperty(col.FieldName),
                                new DevExpress.Data.Filtering.OperandValue(edit.Text)));
                    }
                    string filterCondition = new DevExpress.Data.Filtering.GroupOperator(DevExpress.Data.Filtering.GroupOperatorType.Or, columnsOperators).ToString();
                    extraFilter.SetValue(view, filterCondition);
                    // obtain GriView A private method that handles column filtering in
                    System.Reflection.MethodInfo ApplyColumnsFilterEx = view.GetType().GetMethod("ApplyColumnsFilterEx", System.Reflection.BindingFlags.NonPublic | System.Reflection.BindingFlags.Instance);
                    ApplyColumnsFilterEx.Invoke(view, null);
                }));
            };
        }

After the group is built , Then set permissions for the group ：

The permissions here are for folders , preview 、 Upload 、 An updated version 、 download 、 Delete

• Personnel authority
  Personnel permissions are relatively simple

• File permissions
  File permissions are not ready yet , Do a good job and then update
