Performance --- Front end performance monitoring

2019-06-05 22:23 Longen 0707 read (4429) Comment on (1) edit Collection report

    Performance ---  Front end performance monitoring
</div>

Read the directory

One ： What is? Performance？
Two ： Use performance.timing To calculate the value
3、 ... and ： How to optimize the front-end performance ？
Four ：Performance Medium method
5、 ... and ： Use performane Write gadgets

Back to the top

One ： What is? Performance？

Performance It's front-end performance monitoring API. It can detect the performance in the page ,W3C The performance team introduced a new API, It can detect white screen time 、 First screen time 、 User operable time nodes , The total download time of the page 、DNS The time of the query 、TCP Link time, etc . So let's learn about this API.

So before studying , The main test points of front-end performance are as follows ：

White screen time ： From the time we open the website to the time when the content is rendered .
First screen time ： Time node after rendering the first screen content .
Users can operate time nodes ：domready Trigger node .
Total download time ：window.onload The trigger node of .

We're in html Let's use it simply performance The basic code of ： As shown in the following code ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
</head>
<body>
  <script type="text/javascript">
    var performance = window.performance ||
    window.msPerformance ||
    window.webkitPerformance;
    if (performance) {
      console.log(performance);
    }
  </script>
</body>
</html>

Then in the browser will print the following performance The basic information is as follows ：

As you can see above ,performance Contains three objects , Respectively memory、navigation、timing. among memory It's about memory ,navigation It means source related , That is to say, I jumped from that place .timing It's the critical time . Let's introduce the specific property values of this object .

performance.memory The meaning is to show the memory usage at the moment , As you can see from the picture above , The object has three properties , Respectively ：

jsHeapSizeLimit The meaning of this attribute is ： Memory size limit .
totalJSHeapSize Express Total memory size .
usedJSHeapSize Indicates the amount of memory available .
If usedJSHeapSize Greater than totalJSHeapSize Words , Then there will be a memory leak problem , Therefore, it is not allowed to exceed this value .

performance.navigation Meaning is the source information of the page , The object has 2 Attribute values , Namely ：redirectCount and type.

redirectCount： The value means ： If there is a redirect , The page comes through several redirects , The default is 0;
type： The meaning of this value indicates how the page is opened . The default is 0. It can be taken as 0、1、2、255.

0（TYPE_NAVIGATE）： Indicates normal access to the page ( Non refresh 、 No redirection ).
1（TYPE_RELOAD）： Said by window.location.reload Refresh the page . If I refresh the next page now , If you look at the value, it becomes 1 了 .
2（TYPE_BACK_FORWARD ）： Represents progress through the browser 、 Back button to enter the page . If I advance to the next page at this time , Back to the page , Check the printed value , Discovery becomes 2 了 .
255（TYPE_RESERVED）： It means not entering the page in the above way .

As shown in the figure below ：

performance.onresourcetimingbufferfull; The screenshot above also has this property , The meaning of this property is in a callback function . The callback function will execute when the browser's resource time performance buffer is full .

performance.timeOrigin： It's a series of time points , To the nearest millisecond . The value in the screenshot above is ：1559526951495.139, The value is
A dynamic , Refresh , This value will change .

performance.timing： It's a series of key points in time , It contains the Internet 、 Analysis and so on a series of time data .

For convenience , I got a picture from the Internet , To analyze the meaning of each key time point as follows ：

In the order shown above , Let's take a look at the meanings of each field as follows ：

navigationStart： It means ： Timestamp at the end of a page uninstall on the same browser . If there is no previous page , Then the value will go with fetchStart The value of is the same .

redirectStart: The meaning of this value is the first http Timestamp at the beginning of redirection , If there is no redirection , Or redirect to a different source , Then the value is returned as 0.

redirectEnd: the last one HTTP Timestamp when redirection is complete . If there is no redirection , Or redirect to a different source , The value is also returned as 0.

fetchStart: The browser is ready to use http The time when the document was requested ( Before checking the local cache ).

domainLookupStart: DNS Domain name query start time , If local caching is used , or Persistent links , This value is related to fetchStart Same value .

domainLookupEnd: DNS Time of domain name query completion , If local caching is used , or Persistent links , This value is related to fetchStart Same value .

connectStart: HTTP Time to start connection , If it's a persistent link , The value is the same as fetchStart Same value , If an error occurs at the transport layer and a connection needs to be reestablished , So here is the start time of the new link .

secureConnectionStart: HTTPS Connection start time , If it's not a secure connection , Then the value is 0

connectEnd：HTTP Time to complete connection ( Complete the handshake ). If it's a persistent link , The value is the same as fetchStart Same value , If an error occurs at the transport layer and a connection needs to be reestablished , So here is the new link completion time .

requestStart: http The time when the request to read the real document started , Including reading cache from local , When link error reconnects .

responseStart: Time to start receiving response ( When we get the first byte ). Including reading cache from local .

responseEnd： HTTP Time when the response is all received ( Get the last byte ). Including reading cache from local .

unloadEventStart: Previous page （ Same domain as current page ）unload The timestamp , If there is no previous page or the previous page is a different domain , So the value is 0.

unloadEventEnd: and unloadEventStart Corresponding , Back to the previous page unload Time stamp of the completion of the callback function of event binding .

domLoading: Start parsing rendering DOM Tree time .

domInteractive: Finish parsing DOM Tree time （ It's just DOM Tree parsing complete , But it didn't start loading the web resources ）.

domContentLoadedEventStart：DOM After parsing , Start time of loading resources in the web page .
domContentLoadedEventEnd: DOM After parsing , The time when the resources in the web page are loaded .
domComplete: DOM Tree parsing complete , And when the resources are ready .Document.readyState Turn into complete, And will throw readystatechange Related events .

loadEventStart: load Event sent to document . That is to say load When the callback function starts executing , If there is no binding load event , The value is 0.
loadEventEnd: load The time when the callback function of the event finished executing , If there is no binding load event , The value is 0.

Above is the meaning of each value , Let's have a brief look at , Just get to know , Don't worry too much . Use these values to calculate the white screen time 、 First screen time 、 User operable time nodes , The total download time of the page 、DNS The time of the query 、TCP Link time before , Let's first look at how the traditional scheme is done ？

Traditional scheme

In the API Before appearance , If we want to calculate the performance of the front-end above , We need to use time stamps to approximate how long it will take . For example, use :(new Date()).getTime() To calculate the values before and after , Then the difference between the two values is the time spent in this period . But there are errors in this method , inaccurate . Let's take a look at the traditional scheme as follows ：

1.1 White screen time

White screen time ： It means that the user enters the website ( For example, refresh the page 、 Jump to a new page etc. by this way ) Time to start counting , Until the time node before the content of the page is displayed . As we can see above , This process includes dns Inquire about 、 establish tcp link 、 Send the first http Request and so on 、 return html file .
For example, the following code ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
  <script type="text/javascript">
    var startTime = (new Date()).getTime();
  </script>
  <link href="xx1.css" rel="stylesheet" />
  <link href="xx2.css" rel="stylesheet" />
  <script type="text/javascript" src="xx1.js"></script>
  <script type="text/javascript" src="xx2.js"></script>
  <script type="text/javascript">
    var endTime = (new Date()).getTime();
  </script>
</head>
<body>
  <script type="text/javascript">

</script>
</body>
</html>

Code above ,endTime - startTime The value of can be used as the estimation of white screen time .

1.2 First screen time

To get the calculation of the first screen time , First of all, we need to know that there are 2 Ways of planting ：

1. After loading the resource file, pass js Get interface data dynamically , Then the data comes back to render the content .

So there will be an infographic like this ： As shown below ：

2. Isomorphism straight out front page , As shown below ：

css Calculation of loading time of resource file , We can do this as shown above ：t2-t1 It's all css Loading time .

So if our current project file code index.html The code is as follows ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>

</head>
<body>

<h1> computing time </h1>
<script type=“text/javascript”>
// load js Start time of
var JsStartTime = (new Date()).getTime();
</script>

</body>
</html>

Code above , You can get the start time of the page pageStartTime, Load resource file css The time after that is cssEndTime - pageStartTime, load jquery Plug in time jsPluginTime - cssEndTime 了 . however js Is the load time of = JsEndTime - JsStartTime Do you ？ It must not be , because JS There needs to be time to execute . such as js A lot has been done inside dom operation , that dom It takes time to operate , that js Loading and execution time = JsEndTime - JsStartTime; Do you ？ It's also wrong , Because browsers load resource files in parallel , perform js Files are serial . Then if css File or jquery Document origination http Never returned after the request , Then it will block the follow-up js The execution of the document . But right now js The file load has been returned for a long time , But due to server or network reasons css File loading is slow , So it's clogging up js Execution of documents .

So we can sum it up as ：js Loading time It's not equal to JsEndTime - JsStartTime; Empathy js The actual loading and execution Also is not equal to JsEndTime - JsStartTime. Because of the chain css Medium http request , It will clog js Implementation , So a lot of websites will link out css File changed to inline css File code , inline css The code is serial . For example, Baidu. , Taobao official website, etc . Let's take a look at the source code of these two websites ：

Baidu source ：

We open Baidu search page , Then we right-click to see the source code of the web page as follows ：

Let's take a look at the Internet of Baidu search page css The request for is as follows , There is no such thing as css Chain operation , be-all css The code is all inline , When we check the Internet, we can see that there is only one css Outer chain request , And it's time to css It's not inside Baidu css file , As shown below ：

Taobao official website source code ：

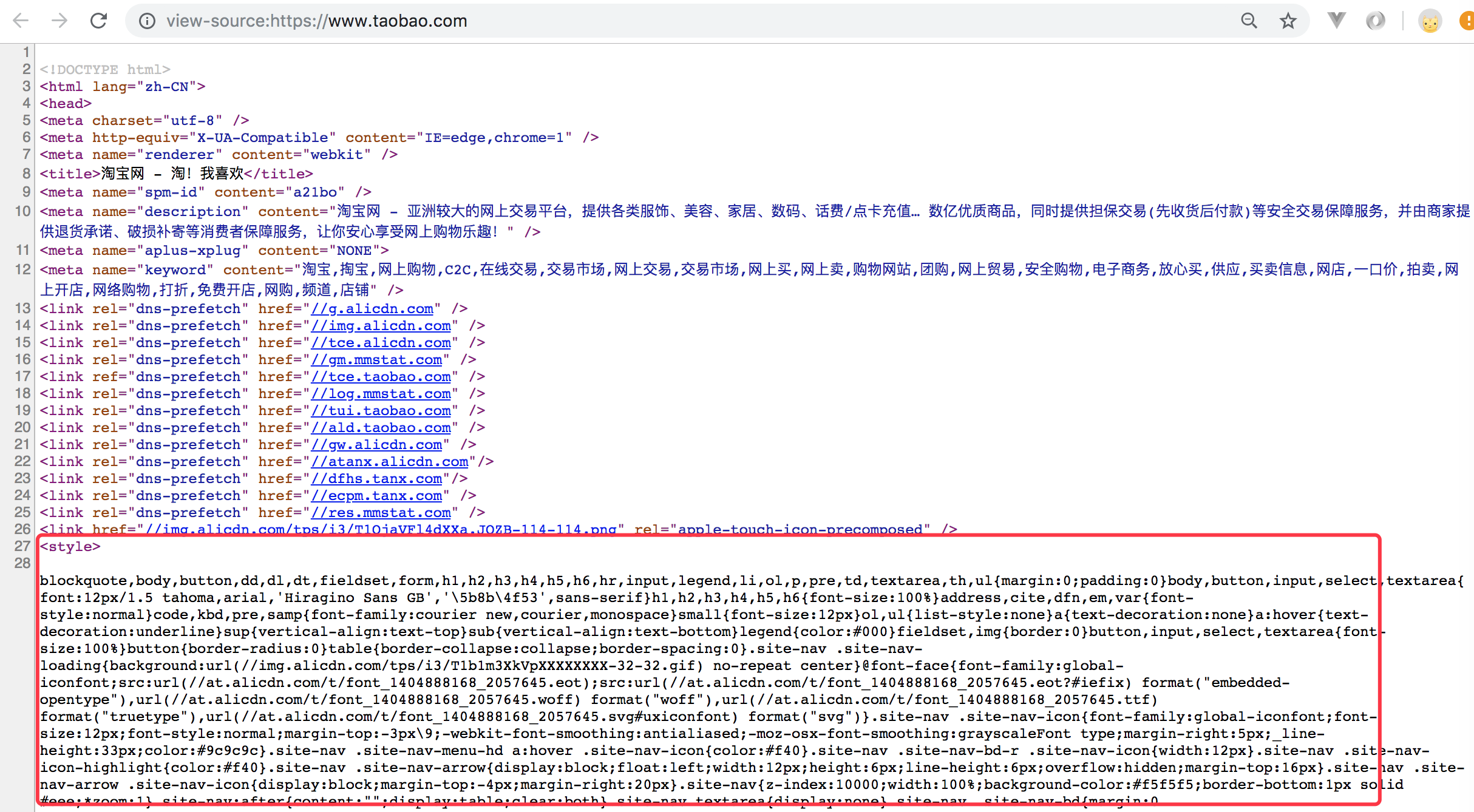

We operate as shown above , Open Taobao official source code to see the following ：

And we see only two requests from Taobao official website css Outer chain request , And the two outer chain requests are not under the same domain name in Taobao css request ,
As shown below ：

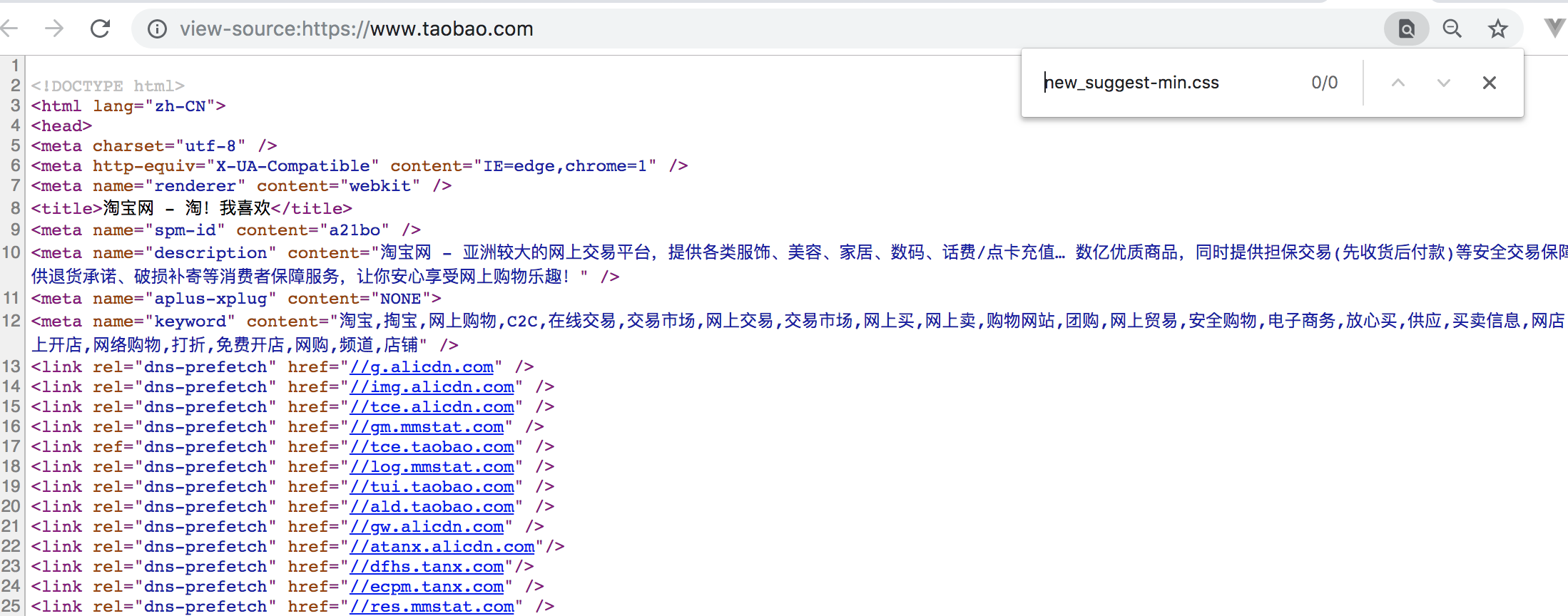

also The css The file named new_suggest-min.css file , I search through the source code , I didn't find out css Document chain , So it is certain that css The document is passed js Dynamically loaded , As shown below ：

Bear in mind ： If body There are more than one js Word of the file , And there are ajax Dynamic rendering of the file , Then try to put him at the front , Because of the others js Loading will prevent the rendering of the page , Causes rendering js It can't be played up all the time , The data of the page will be blank for a period of time .

Back to the top

Two ： Use performance.timing To calculate the value

performance The object has a timing attribute , This property contains many property values , Let's take a look at the diagram before , As shown below ：

From the diagram above we can see ：

 Redirection takes time  = redirectEnd - redirectStart;
DNS Query time consuming  = domainLookupEnd - domainLookupStart;
TCP Link time consuming  = connectEnd - connectStart;
HTTP The request takes time  = responseEnd - responseStart;
 analysis dom Trees take time  = domComplete - domInteractive;
 White screen time  = responseStart - navigationStart;
DOMready Time  = domContentLoadedEventEnd - navigationStart;
onload Time  = loadEventEnd - navigationStart;

That's how it's calculated , For convenience we can now encapsulate them as a function , Then calculate the corresponding value , Then we can optimize according to the corresponding data value .

Let's wrap this up js Calculation method of , The code is as follows ：

function getPerformanceTiming() {
  var performance = window.performance;
  if (!performance) {
    console.log(' Your browser does not support it performance attribute ');
    return;
  }
  var t = performance.timing;
  var obj = {
    timing: performance.timing
  };
  //  Redirection takes time
  obj.redirectTime = t.redirectEnd - t.redirectStart;

// DNS Query time consuming
obj.lookupDomainTime = t.domainLookupEnd - t.domainLookupStart;

// TCP Link time consuming
obj.connectTime = t.connectEnd - t.connectStart;

// HTTP The request takes time
obj.requestTime = t.responseEnd - t.responseStart;

// analysis dom Trees take time
obj.domReadyTime = t.domComplete - t.domInteractive;

// White screen time consuming
obj.whiteTime = t.responseStart - t.navigationStart;

// DOMready Time
obj.domLoadTime = t.domContentLoadedEventEnd - t.navigationStart;

// Page load time namely ：onload Time
obj.loadTime = t.loadEventEnd - t.navigationStart;

return obj;
}
var obj = getPerformanceTiming();
console.log(obj);

Back to the top

3、 ... and ： How to optimize the front-end performance ？

1. In the web page ,css Try to inline resource files , Don't chain , The specific reasons are explained above .

2. Redirect optimization , Redirection has 301( Permanent redirection )、302（ Temporary redirection ）、304（Not Modified）. The first two kinds of redirection should be avoided as much as possible .304 It's for caching . Redirection takes time .

3. DNS Optimize , How do you optimize it ？ There are generally two points ： The first is to reduce DNS Number of requests , The second is to carry on DNS Pre acquisition of (Prefetching). stay PC End normal parsing DNS It costs... At a time 20-120 Time in milliseconds . So we can reduce DNS Number of parsing , And then there will be less DNS Time of resolution .
The second one is DNS Pre acquisition of , What is pre acquisition ？DNS Prefetching is when the browser attempts to resolve the domain name before the user accesses the link . For example, there are many links in our website , But these links are not under the same domain name , We can resolve the domain name when the browser loads , When the user actually clicks the pre parsed link , Can be reduced on average 200 Time in milliseconds ( The first time you visit the domain name , Without caching ). This can reduce the waiting time of users , Improve user experience .
We can see the code of Taobao's official website as follows DNS Of Prefetch 了 , As shown below ：

DNS Prefetch You should try to put it in front of the page , It's recommended to put it in <meta charset="UTF-8"> Back . The specific use method is as follows ：

<link rel="dns-prefetch" href="//xxx.abc.com">
<link rel="dns-prefetch" href="//yyy.def.com">
<link rel="dns-prefetch" href="//bdimg.share.zhix.net">

4. TCP Request to optimize

TCP Optimization is to reduce HTTP The number of requests . For example, front-end resource merging , picture , Resource file compression and so on .

stay http1.0 Short links are used by default , That is to say, the client and the server will have one session http On request , A link will be created , The link will be broken at the end of the task . Then there will be 3 Time TCP Ask for a handshake and 4 Time TCP Request release operation .

stay http1.1 in , stay http The response header will add Connection: keep-alive, The meaning of the code is ： When the page is finished , The link will not be closed immediately ,
When we visit the link again , Will continue to use this long connection . This reduces TCP The number of handshakes and releases . It only needs to be established once TCP Link to , For example, let's look at Baidu's request as follows ：

5. Rendering optimization

Before we do vue or react Project time , Our common template page is through js To render . Instead of isomorphism html page , For this rendering process, there will be a great loss for our first screen , White screen time will increase . So we can use isomorphic direct out to render on the server side html The page will be better , Or we can use some webpack Tool execution html Isomorphic rendering ,webpack Rendering can see This article .

Back to the top

Four ：Performance Medium method

First, we print it in the console performance What are the ways of , The following code ：

var performance = window.performance;
console.log(performance);

As shown below ：

4.1 performance.getEntries()

This method contains an array list of all static resources .

For example, I am now html The code is as follows ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
</head>
<body>
  <h1> computing time </h1>
  <img src="http://img.alicdn.com/tps/TB1EMhjIpXXXXaPXVXXXXXXXXXX.jpg" />
  <script type="text/javascript">
    window.onload = function() {
      var performance = window.performance;
      console.log(performance);
      console.log(performance.getEntries())
    }
  </script>
</body>
</html>

Code above , My page contains a Taobao cdn The picture above , Because this method will get all the HTTP request .
Then we see printing in the browser performance.getEntries() The information is as follows ：

The object's properties include the resource load time , There are several common properties as follows ：

name: Resource name , It's the absolute path of resources , This is Taobao cdn The path of the picture above . We can go through performance.getEntriesByName(name Property value ), To get the specific properties of the resource load .

startTime: Starting time
duration: Indicates the load time , It's a millisecond number , Only time points in the same domain can be obtained , If it's cross domain , Then the time is 0.
entryType: The resource type "resource", also "navigation", "mark" and "measure" These three .
initiatorType: A label indicating the source of the request , such as link label 、script label 、img Labels etc. .

So we can look like getPerformanceTiming The method is the same , Encapsulate a method , Time to acquire a resource . Here's how to encapsulate the code ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
</head>
<body>
  <h1> computing time </h1>
  <img src="http://img.alicdn.com/tps/TB1EMhjIpXXXXaPXVXXXXXXXXXX.jpg" />
  <script type="text/javascript">
    //  Calculate load time
    function getEntryTiming (entry) {
      var obj = {};
      //  Get redirection time
      obj.redirectTime = entry.redirectEnd - entry.redirectStart;
      //  obtain DNS Query time consuming
      obj.lookupDomainTime = entry.domainLookupEnd - entry.domainLookupStart;
      //  obtain TCP Link time consuming
      obj.connectTime = entry.connectEnd - entry.connectStart;
      // HTTP The request takes time
      obj.requestTime = entry.responseEnd - entry.responseStart;
  obj.name </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)">=</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> entry.name;
  obj.entryType </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)">=</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> entry.entryType;
  obj.initiatorType </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)">=</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> entry.initiatorType;
  obj.duration </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)">=</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> entry.duration;
  </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 255, 1)">return</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> obj;
}
window.onload </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)">=</span> <span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 255, 1)">function</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)">() {
  </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 255, 1)">var</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> entries </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)">=</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> window.performance.getEntries();
  console.log(entries);
  entries.forEach(</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 255, 1)">function</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)">(item) {
    </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 255, 1)">if</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> (item.initiatorType) {
      </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 255, 1)">var</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> curItem </span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)">=</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 0, 0, 1)"> getEntryTiming(item);
      console.log(curItem);
    }
  });
}

</script>
</body>
</html>

Then there will be 2 individual console.log Print data , We see the print information in the console as follows ：

As shown in the figure above , We can see through getEntryTiming Method after calculation , I will get the corresponding values .

4.2 performance.now()
This method will return a timestamp of the execution time of the current page , Can be used to accurately calculate the actual execution of the program .
Such as the following , I cycle 100 Ten thousand times , Then return an array , Let's look at the code as follows ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
</head>
<body>
  <h1> computing time </h1>
  <img src="http://img.alicdn.com/tps/TB1EMhjIpXXXXaPXVXXXXXXXXXX.jpg" />
  <script type="text/javascript">
    function doFunc() {
      var arrs = [];
      for (var i = 0; i < 1000000; i++) {
        arrs.push({
          'label': i,
          'value': i
        });
      }
      return arrs;
    }
    var t1 = window.performance.now();
    console.log(t1);
    doFunc();
    var t2 = window.performance.now();
    console.log(t2);
    console.log('doFunc Function executed at ：'+ (t2 - t1) + ' millisecond ');
  </script>
</body>
</html>

Then we'll print doFunc() How long did this function last , As shown below ：

We also know that we have another time Date.now(), however performance.now() And Date.now() The difference is ：
This method uses a floating-point number , Returned in milliseconds , Decimal point accurate to the delicate level of time . be relative to Date.now() More precise , And will not be affected by system program blocking .
Let's take a look at using Date.now() Method used demo as follows ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
</head>
<body>
  <h1> computing time </h1>
  <img src="http://img.alicdn.com/tps/TB1EMhjIpXXXXaPXVXXXXXXXXXX.jpg" />
  <script type="text/javascript">
    function doFunc() {
      var arrs = [];
      for (var i = 0; i < 1000000; i++) {
        arrs.push({
          'label': i,
          'value': i
        });
      }
      return arrs;
    }
    var t1 = Date.now();
    console.log(t1);
    doFunc();
    var t2 = Date.now();
    console.log(t2);
    console.log('doFunc Function executed at ：'+ (t2 - t1) + ' millisecond ');
  </script>
</body>
</html>

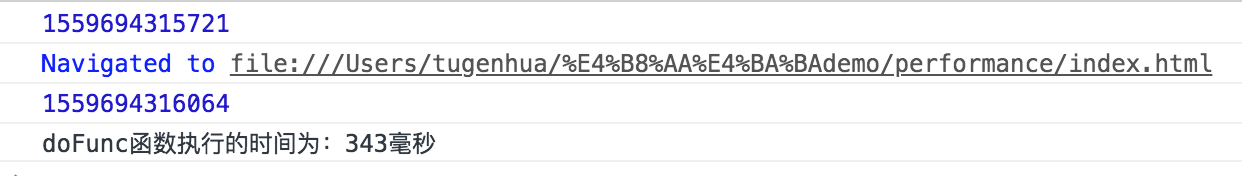

The results of the implementation are as follows ：

Be careful ：performance.timing.navigationStart + performance.now() About equal to Date.now();

4.3 performance.mark()

The meaning of this method is to customize the time when the tag is added , It is convenient for us to calculate the running time of the program . The method is used as follows ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
</head>
<body>
  <h1> computing time </h1>
  <img src="http://img.alicdn.com/tps/TB1EMhjIpXXXXaPXVXXXXXXXXXX.jpg" />
  <script type="text/javascript">
    function doFunc() {
      var arrs = [];
      for (var i = 0; i < 1000000; i++) {
        arrs.push({
          'label': i,
          'value': i
        });
      }
      return arrs;
    }
    //  Make a mark before function execution
    var mStart = 'mStart';
    var mEnd = 'mEnd';
    window.performance.mark(mStart);
    doFunc();
    //  After the function is executed, make a mark
    window.performance.mark(mEnd);
    //  Then measure the distance between the two marks , And save it
    var name = 'myMeasure';
    window.performance.measure(name, mStart, mEnd);
    //  So let's go through  performance.getEntriesByName  Method to get the value
    console.log(performance.getEntriesByName('myMeasure'));
    console.log(performance.getEntriesByType('measure'));
  </script>
</body>
</html>

Code above , We go through window.performance.measure(name, mStart, mEnd); After this method is marked , We can use performance.getEntriesByName('myMeasure') and performance.getEntriesByType('measure') Get the value .

As shown in the figure below ：

4.4 performance.getEntriesByType()

This method returns a PerformanceEntry List of objects , Based on a given entry type, Code above performance.getEntriesByType('measure') You can get the value .

4.5 performance.clearMeasures()

Remove the custom added... From the browser's performance input buffer measure. The code is as follows ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
</head>
<body>
  <h1> computing time </h1>
  <img src="http://img.alicdn.com/tps/TB1EMhjIpXXXXaPXVXXXXXXXXXX.jpg" />
  <script type="text/javascript">
    function doFunc() {
      var arrs = [];
      for (var i = 0; i < 1000000; i++) {
        arrs.push({
          'label': i,
          'value': i
        });
      }
      return arrs;
    }
    //  Make a mark before function execution
    var mStart = 'mStart';
    var mEnd = 'mEnd';
    window.performance.mark(mStart);
    doFunc();
    //  After the function is executed, make a mark
    window.performance.mark(mEnd);
    //  Then measure the distance between the two marks , And save it
    var name = 'myMeasure';
    window.performance.measure(name, mStart, mEnd);
    //  So let's go through  performance.getEntriesByName  Method to get the value
    console.log(performance.getEntriesByName('myMeasure'));
    console.log(performance.getEntriesByType('measure'));
</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 128, 0, 1)">//</span><span style="background-color: rgba(245, 245, 245, 1); color: rgba(0, 128, 0, 1)">  Use  performance.clearMeasures()  Method to clear   Custom added  measure</span>

performance.clearMeasures();
console.log(performance.getEntriesByType(‘measure’));

</script>
</body>
</html>

As above we use in the final code performance.clearMeasures() Method clears all custom measure. And then we use it again later console.log(performance.getEntriesByType('measure')); Print , See the following information ：

4.6 performance.getEntriesByName(name The value of the property )

This method returns a PerformanceEntry List of objects , Based on a given name and entry type.

4.7 performance.toJSON()

The method is a JSON Format converter , return Performance Object's JSON object . As shown in the following code ：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
</head>
<body>
  <h1> computing time </h1>
  <img src="http://img.alicdn.com/tps/TB1EMhjIpXXXXaPXVXXXXXXXXXX.jpg" />
  <script type="text/javascript">
    console.log(window.performance);
    var js = window.performance.toJSON();
    console.log("json = " + JSON.stringify(js));
  </script>
</body>
</html>

Then print the information as follows ：

Back to the top

5、 ... and ： Use performane Write gadgets

First html The usage code is as follows ( Remember to put the initial code in window.onload Inside , Because make sure the image is loaded )：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>performance demonstration </title>
</head>
<body>
  <h1> computing time </h1>
  <img src="http://img.alicdn.com/tps/TB1EMhjIpXXXXaPXVXXXXXXXXXX.jpg" />
  <img src="https://aecpm.alicdn.com/simba/img/TB1XotJXQfb_uJkSnhJSuvdDVXa.jpg" />
  <script type="text/javascript" src="./js/performance.js"></script>
  <script type="text/javascript">
    window.onload = function() {
      window.performanceTool.getPerformanceTiming();
    };
  </script>
</body>
</html>

Then preview the page as follows ：

As shown in the picture above, we can see clearly , The basic information of the page , such as ： Redirection takes time 、Appcache Time consuming 、DNS Query time consuming 、TCP Link time consuming 、HTTP The request takes time 、 The request is over DOM Loading time 、 analysis DOM Trees take time 、 White screen time consuming 、load The event took time 、 And Page load time . Page load time It's the sum of all the time above . And below , We can also see clearly ,js、css、image、video、 How long does it take to load the information resources .

js The basic code is as follows ：

src/utils.js The code is as follows ：

export function isObject(obj) {
  return obj !== null && (typeof obj === 'object')
}

// Format in milliseconds
export function formatMs(time) {
if (typeof time !== ‘number’) {
console.log(‘ Time must be a number ’);
return;
}
// Millisecond to second return
if (time > 1000) {
return (time / 1000).toFixed(2) + ‘s’;
}
// Default return milliseconds
return Math.round(time) + ‘ms’;
}

export function isImg(param){
if (/.(gif|jpg|jpeg|png|webp|svg)/i.test(param)) {
return true;
}
return false;
}

export function isJS(param){
if (/.(js)/i.test(param)) {
return true;
}
return false;
}

export function isCss(param){
if (/.(css)/i.test(param)) {
return true;
}
return false;
}

export function isVideo(param){
if (/.(mp4|rm|rmvb|mkv|avi|flv|ogv|webm)/i.test(name)) {
return true;
}
return false;
}

export function checkResourceType(param){
if (isImg(param)) {
return ‘image’;
}
if (isJS(param)) {
return ‘javascript’;
}
if (isCss(param)) {
return ‘css’;
}
if (isVideo(param)) {
return ‘video’;
}
return ‘other’
}

js/index.js The code is as follows ：

var utils = require('./utils');
var formatMs = utils.formatMs;
var isObject = utils.isObject;
var checkResourceType = utils.checkResourceType;

function Performance() {};

Performance.prototype = {
// Get data information
getPerformanceTiming: function() {
// Initialization data
this.init();
if (!isObject(this.timing)) {
console.log(‘ Value needs to be an object type ’);
return;
}
// Early acquisition loadEventEnd The value would be 0
var loadTime = this.timing.loadEventEnd - this.timing.navigationStart;
if (loadTime < 0) {
setTimeout(() => {
this.getPerformanceTiming();
}, 200);
return;
}
// Get the parsed data
this.afterDatas.timingFormat = this._setTiming(loadTime);
this.afterDatas.enteriesResouceDataFormat = this._setEnteries();
this._show();
},
init: function() {
this.timing = window.performance.timing;
// The type of access resource is resource All data for
this.enteriesResouceData = window.performance.getEntriesByType(‘resource’);
},
// Save original data
timing: {},
// original enteries data
enteriesResouceData: [],
// Save the parsed data
afterDatas: {
timingFormat: {},
enteriesResouceDataFormat: {},
enteriesResouceDataTiming: {
“js”: 0,
“css”: 0,
“image”: 0,
“video”: 0,
“others”: 0
}
},
_setTiming: function(loadTime) {
var timing = this.timing;
// Calculate the data
var data = {
“ Redirection takes time ”: formatMs(timing.redirectEnd - timing.redirectStart),
“Appcache Time consuming ”: formatMs(timing.domainLookupStart - timing.fetchStart),
“DNS Query time consuming ”: formatMs(timing.domainLookupEnd - timing.domainLookupStart),
“TCP Link time consuming ”: formatMs(timing.connectEnd - timing.connectStart),
“HTTP The request takes time ”: formatMs(timing.responseEnd - timing.responseStart),
“ The request is over DOM Loading time ”: formatMs(timing.domInteractive - timing.responseEnd),
“ analysis DOM Trees take time ”: formatMs(timing.domComplete - timing.domInteractive),
“ White screen time consuming ”: formatMs(timing.responseStart - timing.navigationStart),
“load The event took time ”: formatMs(timing.loadEventEnd - timing.loadEventStart),
“ Page load time ”: formatMs(loadTime)
};
return data;
},
_setEnteries: function() {
var enteriesResouceData = this.enteriesResouceData;
var imageArrs = [],
jsArrs = [],
cssArrs = [],
videoArrs = [],
otherArrs = [];
enteriesResouceData.map(item => {
var d = {
‘ Resource name ’: item.name,
‘HTTP Protocol type ’ : item.nextHopProtocol,
“TCP Link time consuming ” : formatMs(item.connectEnd - item.connectStart),
“ Loading time ” : formatMs(item.duration)
};
switch(checkResourceType(item.name)) {
case ‘image’:
this.afterDatas.enteriesResouceDataTiming.image += item.duration;
imageArrs.push(d);
break;
case ‘javascript’:
this.afterDatas.enteriesResouceDataTiming.js += item.duration;
jsArrs.push(d);
break;
case ‘css’:
this.afterDatas.enteriesResouceDataTiming.css += item.duration;
cssArrs.push(d);
break;
case ‘video’:
this.afterDatas.enteriesResouceDataTiming.video += item.duration;
videoArrs.push(d);
break;
case ‘others’:
this.afterDatas.enteriesResouceDataTiming.others += item.duration;
otherArrs.push(d);
break;
}
});
return {
‘js’: jsArrs,
‘css’: cssArrs,
‘image’: imageArrs,
‘video’: videoArrs,
‘others’: otherArrs
}
},
_show: function() {
console.table(this.afterDatas.timingFormat);
for( var key in this.afterDatas.enteriesResouceDataFormat ){
console.group(key + “— Total load time ” + formatMs(this.afterDatas.enteriesResouceDataTiming[key]));
console.table(this.afterDatas.enteriesResouceDataFormat[key]);
console.groupEnd(key);
}
}
};

var Per = new Performance();
module.exports = Per;

github Source check

Be careful ： hold github After downloading the source code , need perform npm run build pack , After packing , hold dist/ Under the js Copy the file to your project , Then introduce the js file , Then you can see some information effects in the console .

notes ： The basic code also refers to github On some code . It doesn't matter , It's important to learn , And can be used in projects . Increase of efficiency .

A good article is the best Pay attention to me Collect the article

Longen 0707
Focus on - 22
fans - 1463

+ Pay more attention to

<div class="clear"></div>
<div id="post_next_prev">

<a href="https://www.cnblogs.com/tugenhua0707/p/10945934.html" class="p_n_p_prefix">« </a>  Last one ：    <a href="https://www.cnblogs.com/tugenhua0707/p/10945934.html" title=" Published on  2019-05-29 20:17">nginx Turn on HSTS Let the browser force a jump HTTPS visit </a>
<br>
<a href="https://www.cnblogs.com/tugenhua0707/p/10991363.html" class="p_n_p_prefix">» </a>  Next ：    <a href="https://www.cnblogs.com/tugenhua0707/p/10991363.html" title=" Published on  2019-06-08 18:49"> understand serverless No service architecture principle ( One )</a>
