"Demand optimization" uses PostMessage to solve the cross domain problem of localstorage

background

earlier , There's a need in the project ： Other platforms need to carry data to jump to our platform , And automatically open the pop-up window and render the carried data .

My initial plan was  localStorage, Before other platforms jump over , Store data localStorage, Jump to our platform , I'll judge first  localStorage Is there a specified “ key ”（ It is required to deposit localStorage Medium “ key ” Be special and unique ）, If there is , I will take out the data for processing and open the pop-up window to render the number .

//  Save the data before jumping to other platforms  localStorage
localStorage.setItem("popDataList",JSON.stringify(data))

//  Jump to our platform , from  localStorage  Take out the data
let popDataList = JSON.parse(localStorage.getItem("popDataList"))
if(popDataList){
   //  If it exists, process it and open the pop-up window to render data
}

//  Close the pop-up window , Clear cache , Avoid affecting the normal function of the page
localStorage.removeItem("popDataList")

When conducting joint commissioning with other platforms at first , Deo gratias . But there is a problem these two days ： When conducting joint commissioning with a platform , It is found that the data is stored in localStorage, But after jumping to our platform localStorage There's no data , That is, the deposit failed . After locating, we found that the domain name of their platform is different from ours , That is, cross domain , and localStorage Cross domain is not supported , Therefore, our platform has no corresponding localStorage. The reason why it was successful before , Because the platform domain name of the joint commissioning is the same , For different domain names, this scheme is not applicable .

Optimize

What do I do ？ Only secondary optimization can be carried out . Obviously , We need to choose a scheme that supports cross domain , therefore , I chose postMessage.

postMessage() For secure cross source communication .

Send a message

The syntax is as follows ：

otherWindow.postMessage(message, targetOrigin, [transfer]);

receive messages

The receiver has an event listener , monitor "message" event , At the same time, we can also verify the source address , To ensure that it is a trusted sending address .

window.addEventListener('message', function (e) {   //  monitor  message  event
  if (e.origin !== "https://www.myTest.com") {   //  Verify message source address
    return;
  }
  //  Take out the data
  console.log(e.data)
});

Secondary optimization of the project

The following simulates a real project scenario

Other platforms ：http://localhost:8080

Our platform ：http://localhost:8081

Other platforms pass data before jumping postMessage Send out

window.open("http://localhost:8081")
window.postMessage("postMessage send data ！","http://localhost:8081")

Our platform monitors on the designated page , get data

window.addEventListener("message",function(e){
  console.log(e,'123')
  alert(e.data)
})

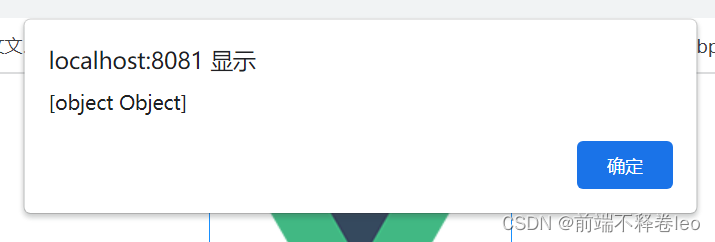

When I thought No problem, There's another problem , When I jumped from other platforms to our platform , The effect is as follows ：

The console prints as follows ：

Obviously , Sending failed ,data Follow origin It's not true . So I figured it out , Try modifying the code

let popWindow = window.open("http://localhost:8081")
popWindow.postMessage("postMessage send data ！","http://localhost:8081")

To verify again , The result is the same as above , I'm curious , Why is that? ？ The receiver did not listen to the specified message.

I was thinking , Is it possible that we are using postMessage Page Jump while sending data , The newly opened page has not been monitored at this time , So I can't monitor , And when we set up monitoring ,postMessage The action has expired .

So I try to modify the code of sending data , Add the timer to delay sending

let popWindow = window.open("http://localhost:8081")
setTimeout(() => {
  popWindow.postMessage("postMessage send data ！","http://localhost:8081")
},1000)

Try again , Something interesting happened , The prompt box appears twice .

The first result is still consistent with the above , The prompt and printing are incorrect

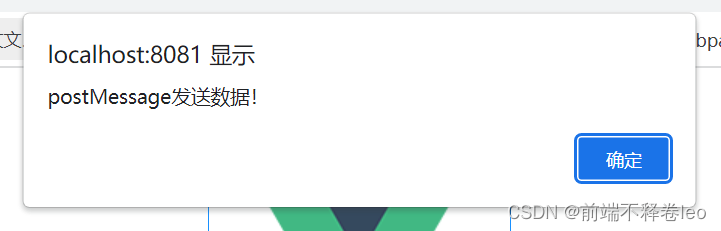

But I got the data sent for the second time

Console printing ,data Follow origin It's all right

Adding a timer can solve the problem of sending data and opening a new page to get data at the same time , Also verified my guess .

Come here , Our problem has been basically solved , The requirements are basically completed , Of course, it can be further optimized , For example, verify the message source address , To ensure that it is a trusted sending address

window.addEventListener("message",function(e){
  if(e.origin !== "http://localhost:8080"){
    return
  }
  console.log(e,'123')
  alert(e.data)
})

Above optimization , It can ensure that the source is credible , At the same time, unnecessary treatment is reduced , Such as error prompt box after optimization

It won't pop up again , Because judging from the error printing information above , its origin We didn't specify , That is, the source is not credible .

Of course , You can also reduce the timer extension time when sending messages , Reduce user wait time , Ensure a good experience

let popWindow = window.open("http://localhost:8081")
setTimeout(() => {
  popWindow.postMessage("postMessage send data ！","http://localhost:8081")
},200)

After the above optimization , The demand goal is achieved , Good user experience , bernays .

The complete code is attached （ It's simple ）

The sender

let popWindow = window.open("http://localhost:8081")
setTimeout(() => {
  popWindow.postMessage("postMessage send data ！","http://localhost:8081")
},200)

//  Be careful ： A timer must be used , If the data sent is an object type , You can use it first  JSON.stringify()  serialize

The receiver

window.addEventListener("message",function(e){
  if(e.origin !== "http://localhost:8080"){   //  Verify that the source is trusted
    return;
  }
  console.log(e.data)
  //  Be careful ： If  e.data  yes  JSON.stringify()  Serialized data , Need to use  JSON.parse()  To restore
  //  Follow up operation ...
})
