U-Net Model

unet.py Network construction

unet.py Code

【 Paper notes 】—U-Net—2015-MICCAI

【 Video Explanation 】： Use Pytorch build U-Net Network and based on DRIVE Dataset training ( Semantic segmentation )

U-Net Model

Using bilinear interpolation instead of transpose convolution in the original paper .

unet.py Network construction

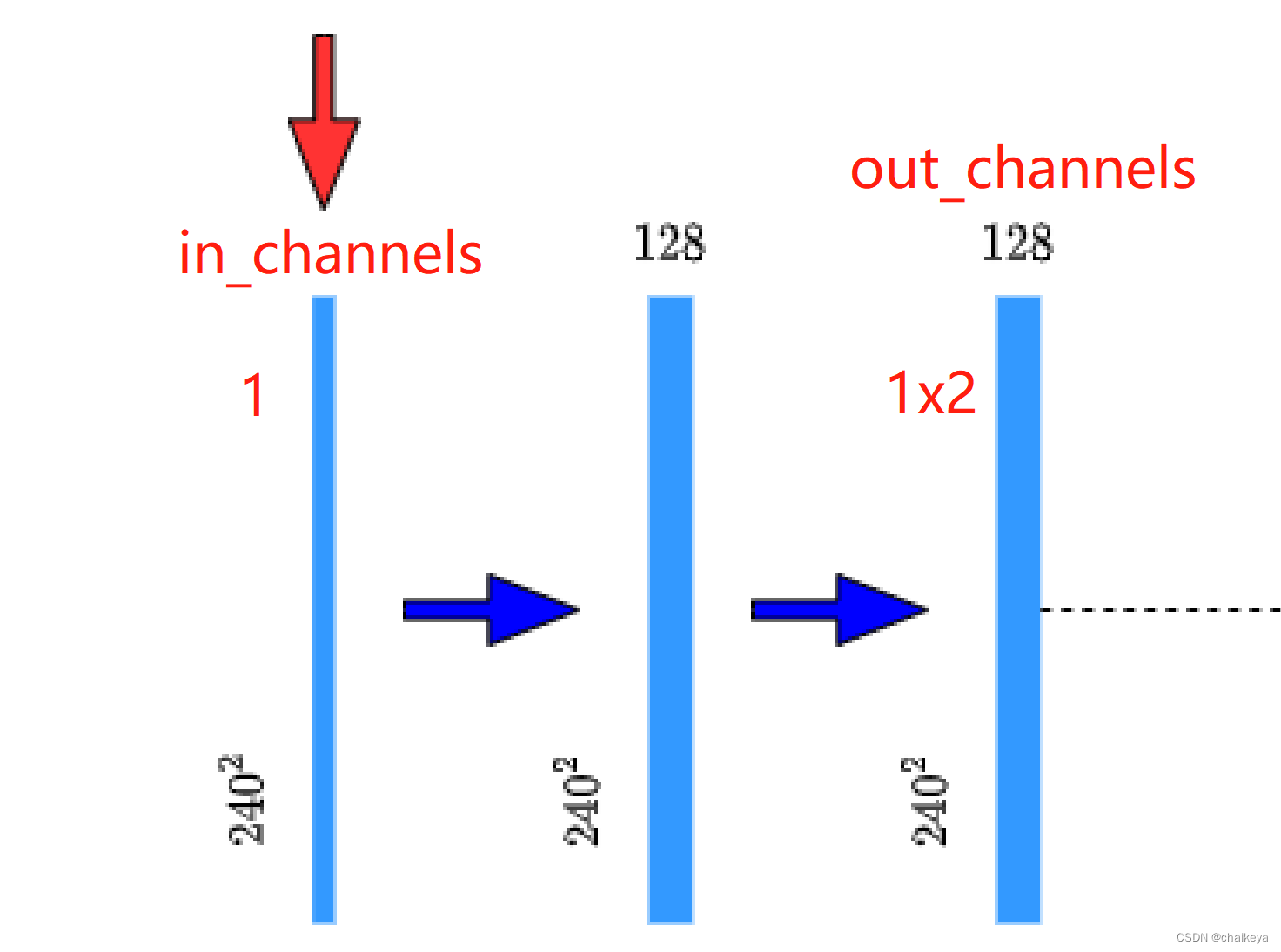

1、 First , Define a DoubleConv modular , It contains two （ Convolution +BN+Relu） The combination of .

Parameters ：in_channels,out_channels, There is also an intermediate parameter mid_channels;

Corresponding to the operation of two blue arrows in the network .

contracting path：

expanding path：

2、 Define a Down modular , It contains （ Down sampling +DoubleConv）.

Parameters ：in_channels,out_channels.

3、 Define a Up modular , It contains （ On the sampling + context Splicing + Two layers of convolution ）

Parameters ：in_channels,out_channels, Default bilinear=True（ When upsampling, bilinear interpolation is used instead of transpose convolution ）

In the original paper, the sampling method uses transpose convolution .

Bilinear interpolation ： Get the characteristic matrix channel（ In the figure 1） and context Stitched characteristic matrix channel（ In the figure 2） Agreement .

4、 Define a OutConv modular , Contains a 1x1 The convolution of layer , There is no activation function .

Parameters ：in_channels,,num_classes（ The number of classification categories in the segmentation task ）

5、 Definition UNet Model

initialization , assignment ,DoubleConv,Down,Down,Down,Down,Up,Up,Up,Up,OutConv.

unet.py Code

from typing import Dict
import torch
import torch.nn as nn
import torch.nn.functional as F


class DoubleConv(nn.Sequential):
    def __init__(self, in_channels, out_channels, mid_channels=None):
        if mid_channels is None:    #  If the middle tier is not defined channel And the output layer channel equally
            mid_channels = out_channels
        #  Call initial Method .
        #  Join in BN Layer so bias=0.
        super(DoubleConv, self).__init__(
            nn.Conv2d(in_channels, mid_channels, kernel_size=3, padding=1, bias=False),
            nn.BatchNorm2d(mid_channels),
            nn.ReLU(inplace=True),
            nn.Conv2d(mid_channels, out_channels, kernel_size=3, padding=1, bias=False),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(inplace=True)
        )


class Down(nn.Sequential):
    def __init__(self, in_channels, out_channels):
        #  Down sampling maxpool,kernel_size=2,stride=2.
        super(Down, self).__init__(
            nn.MaxPool2d(2, stride=2),
            DoubleConv(in_channels, out_channels)
        )

#  On the sampling  + context Splicing  +  Two layers of convolution
class Up(nn.Module):
    # in_channels Corresponding context The number of feature layers after splicing ,bilinear Whether to use bilinear interpolation instead of transpose convolution
    def __init__(self, in_channels, out_channels, bilinear=True):
        super(Up, self).__init__()
        if bilinear:    #  Bilinear interpolation , Get the characteristic matrix channel and context Stitched characteristic matrix channel Agreement
            self.up = nn.Upsample(scale_factor=2, mode='bilinear', align_corners=True)
            self.conv = DoubleConv(in_channels, out_channels, in_channels // 2)
        else:   #  Transposition convolution
            self.up = nn.ConvTranspose2d(in_channels, in_channels // 2, kernel_size=2, stride=2)
            self.conv = DoubleConv(in_channels, out_channels)

    # x2： Stitched feature layer
    def forward(self, x1: torch.Tensor, x2: torch.Tensor) -> torch.Tensor:
        x1 = self.up(x1)
        # [N, C, H, W]
        diff_y = x2.size()[2] - x1.size()[2]    #  Difference in height direction
        diff_x = x2.size()[3] - x1.size()[3]    #  Difference in width

        # pad Ensure that the pictures after sampling and context The height and width of the stitched picture are equal , And is 16 Integer multiple
        # padding_left, padding_right, padding_top, padding_bottom
        x1 = F.pad(x1, [diff_x // 2, diff_x - diff_x // 2,
                        diff_y // 2, diff_y - diff_y // 2])

        x = torch.cat([x2, x1], dim=1)
        x = self.conv(x)
        return x


class OutConv(nn.Sequential):
    def __init__(self, in_channels, num_classes):
        super(OutConv, self).__init__(
            nn.Conv2d(in_channels, num_classes, kernel_size=1)
        )


class UNet(nn.Module):
    def __init__(self,
                 in_channels: int = 1,  #  Instantiation time , Incoming color pictures =3
                 num_classes: int = 2,  #  The number of classification categories in the segmentation task
                 bilinear: bool = True, # bilinear Whether to use bilinear interpolation instead of transpose convolution
                 base_c: int = 64):     #  The number of convolution kernels used in the first convolution layer
        super(UNet, self).__init__()
        self.in_channels = in_channels
        self.num_classes = num_classes
        self.bilinear = bilinear

        self.in_conv = DoubleConv(in_channels, base_c)
        self.down1 = Down(base_c, base_c * 2)
        self.down2 = Down(base_c * 2, base_c * 4)
        self.down3 = Down(base_c * 4, base_c * 8)
        # bilinear=true,bilinear=2, Bilinear interpolation ： The fourth one down Module inputs and outputs channel unchanged
        # bilinear=false,bilinear=1, Transpose convolution ： The fourth one down Output module channel Twice the input
        factor = 2 if bilinear else 1
        self.down4 = Down(base_c * 8, base_c * 16 // factor)
        self.up1 = Up(base_c * 16, base_c * 8 // factor, bilinear)
        self.up2 = Up(base_c * 8, base_c * 4 // factor, bilinear)
        self.up3 = Up(base_c * 4, base_c * 2 // factor, bilinear)
        self.up4 = Up(base_c * 2, base_c, bilinear)
        self.out_conv = OutConv(base_c, num_classes)

    def forward(self, x: torch.Tensor) -> Dict[str, torch.Tensor]:
        x1 = self.in_conv(x)
        x2 = self.down1(x1)
        x3 = self.down2(x2)
        x4 = self.down3(x3)
        x5 = self.down4(x4)
        x = self.up1(x5, x4)
        x = self.up2(x, x3)
        x = self.up3(x, x2)
        x = self.up4(x, x1)
        logits = self.out_conv(x)   # 1x1 Convolution

        return {"out": logits}  #  The form of a dictionary returns

nn.Sequential

In short ,nn.Sequential() You can package a series of operations , These operations can include Conv2d()、ReLU()、Maxpool2d() etc. , It's convenient to call after packaging , It's like a black box ,forward() Just call the black box when .

nn.Sequential() understand 、nn.Sequential() Use
