The previous several articles in my series introduced MyBatis、Spring、SpringMVC Basic introduction to the framework and some common knowledge points , Since each framework has its own advantages , So can we integrate these frameworks ？

Now let's teach you how to build SSM frame , Before that, let's summarize these three frameworks .

2、 Basic concepts

2.1 MyBatis

MyBatis It's an excellent foundation java The persistence layer framework , It encapsulates jdbc, Let the developer only need to pay attention sql Statement itself , It doesn't take much effort to deal with the load driver 、 Create connection 、 establish statement And so on .

2.2 Spring

Spring Is an open source heavyweight application development framework , The goal is to simplify enterprise application development , Reduce the development difficulty of developers

Spring Provided IOC and AOP application , You can minimize the coupling of the build （ Decoupling ）, It is convenient for future maintenance and upgrading of the system

Spring It provides an overall solution for the system , Developers can take advantage of the functions provided by itself , It can also be integrated with third-party frameworks and technologies , You can freely choose which technology to use for development

2.3 SpringMVC

SpringMVC yes Spring A module of the framework ,Spring and SpringMVC No mid tier integration

SpringMVC Provides the basis for MVC（ Model — View — controller ） Architecture and for developing flexible and loosely coupled web Components of the application

3、 Development environment construction

Create one based on maven Of web engineering

Click on File, newly build Project project

Choose Maven, On the hook Creater from archetype Options , Select according to the numerical order in the figure and click Next button

Fill in... In turn groupid and artifactid Then click next that will do

Select the one configured in advance maven, Click on next

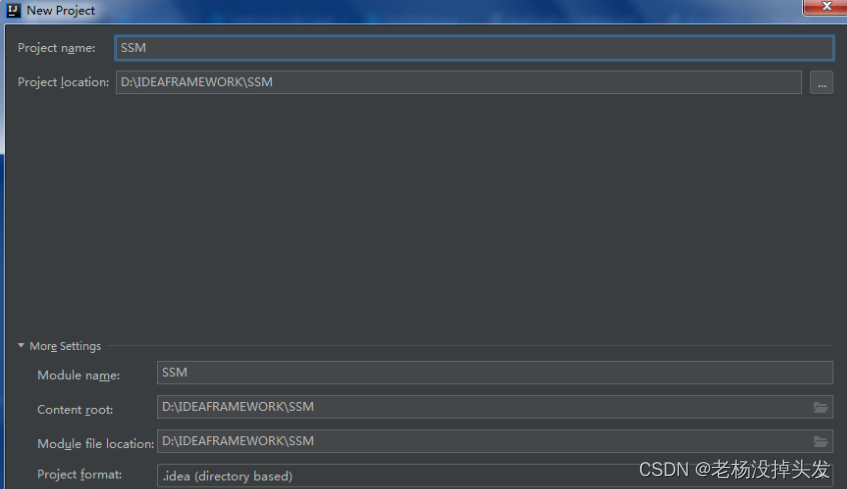

Enter the project name Spring, Click on Finish that will do

In this way, a name named SSM Of maven web project , The structure is as follows: ：

There is nothing left after the project is created java,resources,test Create the package yourself
We can see that the package is gray after it is created , You need to select the corresponding folder and right-click Mark Directory as, Select the corresponding color
Now the structure of the project is as follows ：

3.1 Integrate Spring frame

stay pom.xml Import the required jar package

<dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
        <!--Spring  Basic core tool classes of framework -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>5.1.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.1.5.RELEASE</version>
        </dependency>
        <!--Junit Simple encapsulation of test framework -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.1.5.RELEASE</version>
            <scope>test</scope>
        </dependency>
        <!--Aop section -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>5.1.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>aopalliance</groupId>
            <artifactId>aopalliance</artifactId>
            <version>1.0</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjrt</artifactId>
            <version>1.9.2</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.9.2</version>
            <scope>runtime</scope>
        </dependency>
        <!--Spriing jdbc-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.1.5.RELEASE</version>
        </dependency>
        <!-- Business -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>5.1.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.8</version>
        </dependency>

3.2 Integrate SpringMVC box

stay pom.xml Import the required jar package

       <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>5.1.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.1.5.RELEASE</version>
        </dependency>

3.3 add to SpringMVC Framework support

In the project name SpringMVC Right click to select Add framework support

Click ok button

Be careful ： If we are clicking Add framework support I can't find it in China. Spring, Then there may already exist in the project Spring file , But not necessarily perfect , We just need to delete it and add it again

Method ： Click on File, choice Project Structure, choice Facets, You'll see one Spring, Right click on it , Just click delete , Then go back to the previous step and re Add framework support,Spring It will come out .

add to SpringMVC After support , We will find two more files in the project directory , I created another one alone views Used to store mapping files JSP etc.

3.4 To configure SpringMVC Core controller

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
  http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

    <!--  register springmvc Framework core controller  -->
    <servlet>
        <servlet-name>springMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <!-- To configure dispatcher.xml As mvc Configuration file for -->
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/dispatcher-servlet.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
        <async-supported>true</async-supported>
    </servlet>
    <servlet-mapping>
        <servlet-name>springMVC</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!-- hold applicationContext.xml Add to the configuration file -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/applicationContext.xml</param-value>
    </context-param>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
</web-app>

stay web.xml Middle configuration SpringMVC Core information
To configure SpringMVC Scrambling filter

<!--  solve POST Submit Chinese garbled code problem  -->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <!--  Set the encoding format  -->
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

To configure dispatcher-servlet.xml file information

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/mvc
            http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
            http://www.springframework.org/schema/beans
            http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
            http://www.springframework.org/schema/context
                  http://www.springframework.org/schema/context/spring-context-4.0.xsd">

    <!-- This document is responsible for the whole mvc Configuration in -->

    <!-- 1. Configure the front-end controller to release static resources (html/css/js etc. , Otherwise static resources will not be accessible ) -->
    <mvc:default-servlet-handler/>

    <!-- 2. Configure annotation driver , Used to identify comments （ such as @Controller） -->
    <mvc:annotation-driven></mvc:annotation-driven>

    <!-- 3. Configure packages that need to be scanned ：spring Auto scan  base-package  Next class ,
         If the scanned class has  @Controller、@Service、@Component Etc ,
         The class will be automatically registered as bean
     -->
    <context:component-scan base-package="com.cn.controller"></context:component-scan>

    <!-- 4. Configure the internal resource view parser
        prefix: Configure path prefixes
        suffix: Profile suffix
     -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
</beans>

3.5 test SpringMVC frame

Create and write HelloController class

@Controller
public class HelloController {
     /**
     *  This annotation is used for ： Map the requested resource path (/hello) And current methods (hello) Correspondence of
     *  When the browser requests  /hello  When the path ,  Will visit ( perform ) The current method
     */
    @RequestMapping("/hello")
    public String hello() {
        System.out.println("hello springmvc...");
        return "home";
    }
}

stay WEB-INF/views/ Create under directory home.jsp

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
</head>
<body>
<h1>hello springmvc~~~</h1>
</body>
</html>

4、 Deploy Tomcat And related environment

stay Run Find... Under the menu item Edit Configurations

To configure Tomcat Environmental Science

Choose the local one Tomcat And modify the name

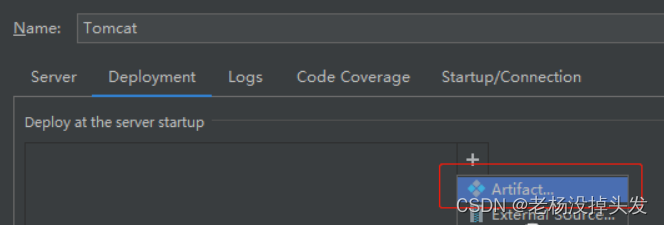

stay Deployment Complete the following operations under the page

Select... In the pop-up box SSM:war exploded Then click OK

start-up Tomcat The server , To test

The data content in the page is successfully displayed on the browser page

5、 Integrate MyBtis frame

I wrote an article about MyBatis A quick start tutorial for , Please refer to the following links ：

Full stack development practice | MyBatis Framework quick start Chapter 1

stay pom.xml Import the required jar package

<!--  Integrate MyBatis frame  -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.4.4</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.2</version>
        </dependency>
        <!-- MySql drive   -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.16</version>
        </dependency>

stay resources Create... Under package db.properties file

database.driver=com.mysql.jdbc.Driver
database.url=jdbc:mysql://localhost:3306/db1
database.username=root
database.password=erp1234

We were in MyBatis The quick start tutorial is in mybatis-config.xml Configuration in file MyBatis Core information , Now we have to do SSM Framework integration , Can be MyBatis The configuration of is given to Spring To deal with

To configure applicationContext.xml file information

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/mvc
            http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
            http://www.springframework.org/schema/beans
            http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
            http://www.springframework.org/schema/context
                  http://www.springframework.org/schema/context/spring-context-4.0.xsd">

    <!-- 1. load jdbc.properties The location of the file  -->
    <context:property-placeholder location="classpath:jdbc.properties"></context:property-placeholder>

    <!--2. Configure database connections  -->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="${db.driverClassName}"/>
        <property name="url" value="${db.url}"/>
        <property name="username" value="${db.username}"/>
        <property name="password" value="${db.password}"/>
    </bean>

    <!-- 3. Integrate spring and mybatis frame
     take SqlSession Wait for the creation of objects to Spring Containers
    id value (sqlSessionFactory) It's a fixed value
   -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 3.2. Configure connection pool ( data source ) ref Point to connection pool bean Object's id value  -->
        <property name="dataSource" ref="dataSource"></property>
    </bean>

    <!--4.Mapper scanning , Auto import mapper class  -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--  Scan all XxxMapper Interface , Hand over the creation of interface instances to spring Containers  -->
        <property name="basePackage" value="com.cn"/>
    </bean>
</beans>

5.1 test MyBatis frame

establish Student Entity class , And use lombok Note in place of get、set、 Methods of parametric construction and nonparametric construction

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Student  {
    private String id;
    private String name;
    private String birth;
    private String sex;
}

establish StudentMapper Interface class , And provide getStudentById Method

package com.cn.dao;
import com.cn.pojo.Student;

public interface StudentMapper {

    Student getStudentById(String id);

}

establish StudentMapper.xml file （ Mapping files for entity classes ）

<?xml version="1.0" encoding="utf-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.cn.dao.StudentMapper">

    <!-- according to id Search for student information -->
    <select id="getStudentById" parameterType="string" resultType="com.cn.pojo.Student">
        SELECT * from Student where id= #{id};
    </select>
</mapper>

Create and write TestSSM class

/**
 *  test SSM development environment
 */
@Controller
public class TestSSM {

    @Autowired
    StudentMapper studentMapper;

    @RequestMapping("/testSSM")
    public void testSSM(){
        Student student = studentMapper.getStudentById("01");
        System.out.println(student);
    }
}

Output results

We saw the abnormal report , I can't find it mapper Map file of , in other words JAVA When compiling mapper.xml The document is missing , The solution is pom.xml Add the following code to the file ：

<build>
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>true</filtering>
      </resource>
    </resources>
  </build>

Revisit , Output results

Here's the simple ssm Even if the framework is finished , It seems like a long process , But the actual operation should not be too difficult , Just be careful

This article is an integration between frameworks based on the previous article , Convenient for our future development , If you are interested in the previous article, you can click the following link :

Full stack development practice | MyBatis Framework quick start Chapter 1

Full stack development practice | MyBatis Framework quick start Chapter 2

Full stack development practice | Spring Framework quick start Chapter 1

Full stack development practice | Spring Framework quick start Chapter 2

Full stack development practice | Spring Framework quick start Chapter 3

Full stack development practice | SpringMVC Framework quick start Chapter 1

Full stack development practice | SpringMVC Framework quick start Chapter 2

Full stack development practice | SpringMVC Framework quick start Chapter 3

原网站

版权声明
本文为[Lao Yang didn't lose his hair]所创，转载请带上原文链接，感谢
https://yzsam.com/2022/202/202207202001467466.html
