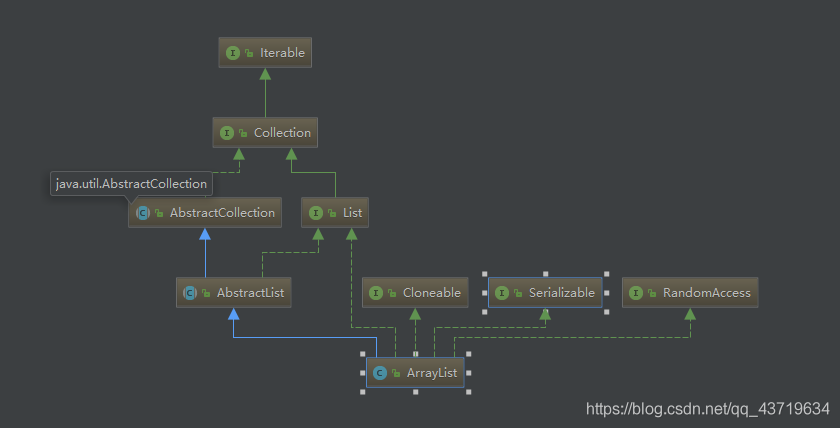

1.ArrayList继承关系

2. ArrayList类成员变量

public class ArrayList<E> extends AbstractList<E>
        implements List<E>, RandomAccess, Cloneable, java.io.Serializable
{
    private static final long serialVersionUID = 8683452581122892189L;

    /**
     * Default initial capacity. 默认初始化存储容量
     */
    private static final int DEFAULT_CAPACITY = 10;

    /**
     * Shared empty array instance used for empty instances.
     */
    private static final Object[] EMPTY_ELEMENTDATA = {};

    /**
     * Shared empty array instance used for default sized empty instances. We
     * distinguish this from EMPTY_ELEMENTDATA to know how much to inflate when
     * first element is added.    空参构造器创建的对象
     */
    private static final Object[] DEFAULTCAPACITY_EMPTY_ELEMENTDATA = {};

    /**
     * The array buffer into which the elements of the ArrayList are stored.
     * The capacity of the ArrayList is the length of this array buffer. Any
     * empty ArrayList with elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA
     * will be expanded to DEFAULT_CAPACITY when the first element is added.
     */
    transient Object[] elementData; // non-private to simplify nested class access

    /**
     * The size of the ArrayList (the number of elements it contains).
     *
     * @serial     数组存储的元素个数
     */
    private int size;

3. ArrayList构造器

3.1 无参构造器

会把成员变量的空数组赋值。


    private static final Object[] DEFAULTCAPACITY_EMPTY_ELEMENTDATA = {};
    /**
     * Constructs an empty list with an initial capacity of ten.
     */
    public ArrayList() {
        this.elementData = DEFAULTCAPACITY_EMPTY_ELEMENTDATA;
    }

3.2 带有初始容量的构造器

• 如果设置的参数大于0，就会创建指定大小容量的object数组。如果为0，赋值为空数组。否则出现异常。

/**
     * Constructs an empty list with the specified initial capacity.
     *
     * @param  initialCapacity  the initial capacity of the list
     * @throws IllegalArgumentException if the specified initial capacity
     *         is negative
     */
    public ArrayList(int initialCapacity) {
        if (initialCapacity > 0) {
            this.elementData = new Object[initialCapacity];
        } else if (initialCapacity == 0) {
            this.elementData = EMPTY_ELEMENTDATA;
        } else {
            throw new IllegalArgumentException("Illegal Capacity: "+
                                               initialCapacity);
        }
    }

3.3 带有集合参数的构造器

 public ArrayList(Collection<? extends E> c) {
        elementData = c.toArray();
        if ((size = elementData.length) != 0) {
            // c.toArray might (incorrectly) not return Object[] (see 6260652)
            if (elementData.getClass() != Object[].class)
                elementData = Arrays.copyOf(elementData, size, Object[].class);
        } else {
            // replace with empty array.
            this.elementData = EMPTY_ELEMENTDATA;
        }
    }



public static <T,U> T[] copyOf(U[] original, int newLength, Class<? extends T[]> newType) {
        @SuppressWarnings("unchecked")
        T[] copy = ((Object)newType == (Object)Object[].class)
            ? (T[]) new Object[newLength]
            : (T[]) Array.newInstance(newType.getComponentType(), newLength);
        System.arraycopy(original, 0, copy, 0,
                         Math.min(original.length, newLength));
        return copy;
    }

4. ArrayList方法解析

4.1 add方法解析

 public boolean add(E e) {
        ensureCapacityInternal(size + 1);  // Increments modCount!!
        elementData[size++] = e;
        return true;
    }

4.2 get方法

    public E get(int index) {
        rangeCheck(index);

        return elementData(index);
    }


  private void rangeCheck(int index) {
        if (index >= size)
            throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
    }

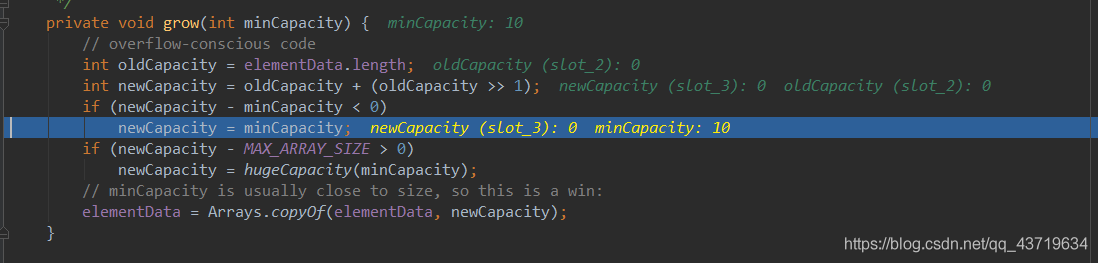

5. ArrayList扩容

第一次扩容容量变为10.

后续扩容每次扩容为前一次的1.5倍（oldCapacity + (oldCapacity >> 1)）。

    private void grow(int minCapacity) {
        // overflow-conscious code
        int oldCapacity = elementData.length;
        int newCapacity = oldCapacity + (oldCapacity >> 1);
        if (newCapacity - minCapacity < 0)
            newCapacity = minCapacity;
        if (newCapacity - MAX_ARRAY_SIZE > 0)
            newCapacity = hugeCapacity(minCapacity);
        // minCapacity is usually close to size, so this is a win:
        elementData = Arrays.copyOf(elementData, newCapacity);
    }

6.ArrayList相关知识点

思考一：ArrayList如何扩容的?  (参考第五节)

 思考二：ArrayList频繁扩容会造成性能急剧下降，如何让解决？

答：可以通过创建ArrayList时指定数组的容量，减少扩容次数。

思考三：ArrayList插入和删除元素一定比LinkedList慢吗？

 答：不一定慢。

以删除为例：

在ArrayList底层删除元素，首先根据数组下标索引找到元素，然后把索引后面是所有数据进行前移。

在LinkedList底层使用双向链表，删除元素，首先根据下标索引，判断是从头遍历链表还是从尾部遍历链表，然后在遍历链表，找到相关节点，然后改变节点前后节点的指针索引。

 public E removeFirst() {
        final Node<E> f = first;
        if (f == null)
            throw new NoSuchElementException();
        return unlinkFirst(f);
    }

    /**
     * Removes and returns the last element from this list.
     *
     * @return the last element from this list
     * @throws NoSuchElementException if this list is empty
     */
    public E removeLast() {
        final Node<E> l = last;
        if (l == null)
            throw new NoSuchElementException();
        return unlinkLast(l);
    }

    private E unlinkFirst(Node<E> f) {
        // assert f == first && f != null;
        final E element = f.item;
        final Node<E> next = f.next;
        f.item = null;
        f.next = null; // help GC
        first = next;
        if (next == null)
            last = null;
        else
            next.prev = null;
        size--;
        modCount++;
        return element;
    }

    /**
     * Unlinks non-null last node l.
     */
    private E unlinkLast(Node<E> l) {
        // assert l == last && l != null;
        final E element = l.item;
        final Node<E> prev = l.prev;
        l.item = null;
        l.prev = null; // help GC
        last = prev;
        if (prev == null)
            first = null;
        else
            prev.next = null;
        size--;
        modCount++;
        return element;
    }

思考四：ArrayList是线程安全的吗？

 答:不是线程安全的。

解决方法：

1. 使用Vector类
2. 使用Collections.synchronizedList() 转换list集合
3. 使用CopyOnWriteArrayList，这个使用了读写分离的思想，写时复制，牺牲数据实时性，换取数据最终一致性。上面两种方式通过synchronized的方式，在读写时都会加锁，效率较低。这种方式效率较高，但是底层会进行内存占用过大。

cow原理：

        Object[] elements;
        if (c.getClass() == CopyOnWriteArrayList.class)
            elements = ((CopyOnWriteArrayList<?>)c).getArray();
        else {
            elements = c.toArray();
            // c.toArray might (incorrectly) not return Object[] (see 6260652)
            if (elements.getClass() != Object[].class)
                elements = Arrays.copyOf(elements, elements.length, Object[].class);
        }
        setArray(elements);

思考五：怎么实现从一个ArrayList复制到另一个ArrayList？

答：

1. clone（）
2. new ArrayList（list）
3. addAll（list）；

思考六：ArrayList和LinkedList的区别？
