故障006：连接排序去重结果不如人愿

2022-07-19 07:59:00 【帅ちいさい宝】

故障006：连接排序去重结果不如人愿

DM技术交流QQ群：940124259

1. 问题描述

百无聊赖而又炎热的下午，同事发消息问我某个查询SQL返回的结果集不对头，单从逻辑上看SQL写得没问题。后来远程过去查看执行计划，让wo大吃一惊，好好的左连接可以自动转为内连接，可活脱脱被转成左外半连接，结果集不如人愿。考虑到现在大量人使用咱达梦数据库，可能有人会遇到这种情况，提前通知揭晓一下。

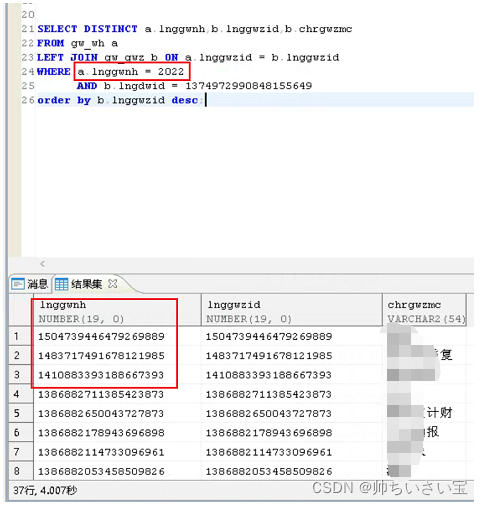

上图见真相：a表lnggwnh字段明明在where中指定过滤只保留2022年的内容，结果是把b表的lnggwzid字段的值再复制一份放到a表lnggwnh上，返回的字段类型也不对。
此次不但解决了实际问题，同时加快查询速度。
客户环境：1-1-134-20.09.30-127948-ENT 单机 标红，特地强调同志别再用这个版本啦。

在这里插入图片描述
错误的执行计划

1   #NSET2: [145, 40, 168]
2     #PRJT2: [145, 40, 168]; exp_num(3), is_atom(FALSE)
3       #SORT3: [145, 40, 168]; key_num(1), is_distinct(TRUE), top_flag(0), is_adaptive(0)
4          #HASH LEFT SEMI JOIN2: [138, 68261, 168]; KEY_NUM(1); KEY(b.LNGGWZID=a.LNGGWZID) KEY_NULL_EQU(0) -- ERROR
5             #SLCT2: [1, 40, 108]; b.LNGDWID = var1
6               #CSCN2: [1, 387, 108]; INDEX33563314(GW_GWZ as b)
7             #SLCT2: [94, 612647, 60]; a.LNGGWNH = var2
8               #CSCN2: [94, 741641, 60]; INDEX33563302(GW_WH as a)

2. 分析过程

2.1 去掉distinct

结论：左连接正确地转换为内连接，返回结果集除了重复行外，大体上结果集是正确的。

SELECT /* DISTINCT*/ a.lnggwnh,b.lnggwzid,b.chrgwzmc
FROM gw_wh a
LEFT JOIN gw_gwz b ON a.lnggwzid = b.lnggwzid
WHERE a.lnggwnh = 2022
      AND b.lngdwid = 1374972990848155649
order by b.lnggwzid desc;

/* 1 #NSET2: [144, 68261, 168] 2 #PRJT2: [144, 68261, 168]; exp_num(3), is_atom(FALSE) 3 #SORT3: [144, 68261, 168]; key_num(1), is_distinct(FALSE), top_flag(0), is_adaptive(0) 4 #HASH2 INNER JOIN: [138, 68261, 168]; LKEY_UNIQUE KEY_NUM(1); KEY(b.LNGGWZID=a.LNGGWZID) KEY_NULL_EQU(0) 5 #SLCT2: [1, 40, 108]; b.LNGDWID = var1 6 #CSCN2: [1, 387, 108]; INDEX33563314(GW_GWZ as b) 7 #SLCT2: [94, 612647, 60]; a.LNGGWNH = var2 8 #CSCN2: [94, 741641, 60]; INDEX33563302(GW_WH as a) */

2.2 去掉order by

去掉order by，连接类型变得正常（即：内连接），说明此bug的触发是平级主体查询distinct +　order by + 表连接。

SELECT DISTINCT a.lnggwnh,b.lnggwzid,b.chrgwzmc
FROM gw_wh a
LEFT JOIN gw_gwz b ON a.lnggwzid = b.lnggwzid
WHERE a.lnggwnh = 2022
      AND b.lngdwid = 1374972990848155649
/* order by b.lnggwzid desc */;

-- 执行计划
/* 1 #NSET2: [144, 68261, 168] 2 #PRJT2: [144, 68261, 168]; exp_num(3), is_atom(FALSE) 3 #DISTINCT: [144, 68261, 168] 4 #HASH2 INNER JOIN: [138, 68261, 168]; LKEY_UNIQUE KEY_NUM(1); KEY(b.LNGGWZID=a.LNGGWZID) KEY_NULL_EQU(0) 5 #SLCT2: [1, 40, 108]; b.LNGDWID = var1 6 #CSCN2: [1, 387, 108]; INDEX33563314(GW_GWZ as b) 7 #SLCT2: [94, 612647, 60]; a.LNGGWNH = var2 8 #CSCN2: [94, 741641, 60]; INDEX33563302(GW_WH as a) */

2.3 改为索引连接

左连接正常转成内连接，但在此场景走嵌套循环索引连接的效率很低。

SELECT /*+ enable_hash_join(0)*/ a.lnggwnh,b.lnggwzid,b.chrgwzmc
FROM gw_wh a
LEFT JOIN gw_gwz b ON a.lnggwzid = b.lnggwzid
WHERE a.lnggwnh = 2022
      AND b.lngdwid = 1374972990848155649
group by a.lnggwnh,b.lnggwzid,b.chrgwzmc
order by b.lnggwzid desc;


/* 1 #NSET2: [73762, 1, 168] 2 #PRJT2: [73762, 1, 168]; exp_num(3), is_atom(FALSE) 3 #SORT3: [73762, 1, 168]; key_num(2), is_distinct(TRUE), top_flag(0), is_adaptive(0) 4 #SLCT2: [73637, 612647, 168]; b.LNGDWID = var1 5 #NEST LOOP INDEX JOIN2: [73637, 612647, 168] 6 #SLCT2: [94, 612647, 60]; a.LNGGWNH = var2 7 #CSCN2: [94, 741641, 60]; INDEX33563302(GW_WH as a) 8 #BLKUP2: [4001, 1, 0]; INDEX33563315(b) 9 #SSEK2: [4001, 1, 0]; scan_type(ASC), INDEX33563315(GW_GWZ as b), scan_range[a.LNGGWZID,a.LNGGWZID] */

3. 解决方法

3.1 distinct换用group by去重

结论：结果集是正确的。是因为将排序与去重分开操纵，即先分组去重，再排序。

SELECT a.lnggwnh,b.lnggwzid,b.chrgwzmc
FROM gw_wh a
LEFT JOIN gw_gwz b ON a.lnggwzid = b.lnggwzid
WHERE a.lnggwnh = 2022
      AND b.lngdwid = 1374972990848155649
group by a.lnggwnh,b.lnggwzid,b.chrgwzmc
order by b.lnggwzid desc;

-- 执行计划
/* 1 #NSET2: [145, 40, 168] 2 #PRJT2: [145, 40, 168]; exp_num(3), is_atom(FALSE) 3 #SORT3: [145, 40, 168]; key_num(1), is_distinct(FALSE), top_flag(0), is_adaptive(0) 4 #HAGR2: [144, 40, 168]; grp_num(2), sfun_num(0); slave_empty(0) keys(b.LNGGWZID, b.CHRGWZMC) 5 #HASH LEFT SEMI JOIN2: [138, 68261, 168]; KEY_NUM(1); KEY(b.LNGGWZID=a.LNGGWZID) KEY_NULL_EQU(0) 6 #SLCT2: [1, 40, 108]; b.LNGDWID = var2 7 #CSCN2: [1, 387, 108]; INDEX33563314(GW_GWZ as b) 8 #SLCT2: [94, 612647, 60]; a.LNGGWNH = var3 9 #CSCN2: [94, 741641, 60]; INDEX33563302(GW_WH as a) */

3.2 表子查询延迟排序

先让其正常变为内连接后去重，最后再排序。

select * from (
SELECT DISTINCT a.lnggwnh,b.lnggwzid,b.chrgwzmc
FROM gw_wh a
LEFT JOIN gw_gwz b ON a.lnggwzid = b.lnggwzid
WHERE a.lnggwnh = 2022
      AND b.lngdwid = 1374972990848155649
) t
order by t.lnggwzid desc;

/* 1 #NSET2: [145, 80, 168] 2 #PRJT2: [145, 80, 168]; exp_num(3), is_atom(FALSE) 3 #SORT3: [145, 80, 168]; key_num(1), is_distinct(FALSE), top_flag(0), is_adaptive(0) 4 #PRJT2: [144, 80, 168]; exp_num(3), is_atom(FALSE) 5 #DISTINCT: [144, 80, 168] 6 #HASH2 INNER JOIN: [138, 68261, 168]; LKEY_UNIQUE KEY_NUM(1); KEY(b.LNGGWZID=a.LNGGWZID) KEY_NULL_EQU(0) 7 #SLCT2: [1, 40, 108]; b.LNGDWID = var1 8 #CSCN2: [1, 387, 108]; INDEX33563314(GW_GWZ as b) 9 #SLCT2: [94, 612647, 60]; a.LNGGWNH = var2 10 #CSCN2: [94, 741641, 60]; INDEX33563302(GW_WH as a) */

3.3 降低优化器版本

数据库全局生效：SP_SET_PARA_VALUE(1, ‘OPTIMIZER_VERSION’, 70081); – OLD
VALUE:70097 通常以最新版本
虽说属于会话级的参数，但需要重启数据库生效，影响所有会话连接，否则只影响当前会话的查询环境（hint或者alter session）。

SELECT /*+ OPTIMIZER_VERSION(70081)*/
    DISTINCT
        A.LNGGWNH,
        B.LNGGWZID,
        B.CHRGWZMC
FROM
        GW_WH A
LEFT JOIN GW_GWZ B
ON
        A.LNGGWZID = B.LNGGWZID
WHERE
        A.LNGGWNH = 2022
    AND B.LNGDWID = 1374972990848155649
ORDER BY
        B.LNGGWZID DESC;

/* 1 #NSET2: [157, 40, 168] 2 #PRJT2: [157, 40, 168]; exp_num(3), is_atom(FALSE) 3 #SORT3: [157, 40, 168]; key_num(3), is_distinct(TRUE), top_flag(0), is_adaptive(0) 4 #HASH2 INNER JOIN: [138, 222244, 168]; LKEY_UNIQUE KEY_NUM(1); KEY(B.LNGGWZID=A.LNGGWZID) KEY_NULL_EQU(0) 5 #SLCT2: [1, 40, 108]; B.LNGDWID = var1 6 #CSCN2: [1, 381, 108]; INDEX33563314(GW_GWZ as B) 7 #SLCT2: [93, 611173, 60]; A.LNGGWNH = var2 8 #CSCN2: [93, 740368, 60]; INDEX33563302(GW_WH as A) */

3.4 修改优化器模式

SELECT /*+ OPTIMIZER_MODE(0)*/
     DISTINCT
        A.LNGGWNH,
        B.LNGGWZID,
        B.CHRGWZMC
FROM
        GW_WH A
LEFT JOIN GW_GWZ B
ON
        A.LNGGWZID = B.LNGGWZID
WHERE
        A.LNGGWNH = 2022
    AND B.LNGDWID = 1374972990848155649
ORDER BY
        B.LNGGWZID DESC;

/* 1 #NSET2: [157, 40, 168] 2 #PRJT2: [157, 40, 168]; exp_num(3), is_atom(FALSE) 3 #SORT3: [157, 40, 168]; key_num(3), is_distinct(TRUE), top_flag(0), is_adaptive(0) 4 #HASH2 INNER JOIN: [138, 222244, 168]; LKEY_UNIQUE KEY_NUM(1); KEY(B.LNGGWZID=A.LNGGWZID) KEY_NULL_EQU(0) 5 #SLCT2: [1, 40, 108]; B.LNGDWID = var1 6 #CSCN2: [1, 381, 108]; INDEX33563314(GW_GWZ as B) 7 #SLCT2: [93, 611173, 60]; A.LNGGWNH = var2 8 #CSCN2: [93, 740368, 60]; INDEX33563302(GW_WH as A) */

3.5 升级稳定版本

在数据库版本1-1-144以后版本修复此bug，本人已验证，执行计划如3.3/3.4相同。 切记： 升级数据库版一定要慎重，尤其是线上生产库，已经运行很长时间。 如果随意升级，当时只是解决已知问题，而不能预见新问题，轻易升级可能导致未知大量错误，所以做任何修改操作前，一定要有回退方案和评估范围。

4. 案例再现

4.1 错误再现

测试版本：1-1-126-20.09.04-126608-ENT
模拟SQL

SELECT DISTINCT
        a.ID id1,
        B.ID id2,
        B.NAME
FROM
        sysobjects a
LEFT JOIN sysobjects b on 1=1
WHERE
        a.id =  1
and b.TYPE$ = 'SCH'
ORDER BY
        B.ID DESC;

-- 执行计划
/* 1 #NSET2: [1, 1, 104] 2 #PRJT2: [1, 1, 104]; exp_num(3), is_atom(FALSE) 3 #SORT3: [1, 1, 104]; key_num(2), is_distinct(TRUE), top_flag(0), is_adaptive(0) -- SORT + DISTINCT 4 #NEST LOOP SEMI JOIN2: [0, 34, 104]; 5 #CSEK2: [0, 34, 100]; scan_type(ASC), SYSINDEXSYSOBJECTS(SYSOBJECTS as B), scan_range[('SCH',min,min),('SCH',max,max)) 6 #SSEK2: [0, 1, 4]; scan_type(ASC), SYSINDEXIDSYSOBJECTS(SYSOBJECTS as A), scan_range[1,1] */

在这里插入图片描述

4.2 解决手段

-- 1. DISTINCT -> 2. SORT
select * from (
SELECT DISTINCT
        a.ID id1,
        B.ID id2,
        B.NAME
FROM
        sysobjects a
LEFT JOIN sysobjects b on 1=1
WHERE
        a.id =  1
and b.TYPE$ = 'SCH'
) t
ORDER BY
        t.ID2 DESC;


/* 1 #NSET2: [2, 1, 104] 2 #PRJT2: [2, 1, 104]; exp_num(3), is_atom(FALSE) 3 #SORT3: [2, 1, 104]; key_num(1), is_distinct(FALSE), top_flag(0), is_adaptive(0) 4 #PRJT2: [1, 1, 104]; exp_num(3), is_atom(FALSE) 5 #DISTINCT: [1, 1, 104] 6 #NEST LOOP INNER JOIN2: [0, 34, 104]; 7 #SSEK2: [0, 1, 4]; scan_type(ASC), SYSINDEXIDSYSOBJECTS(SYSOBJECTS as A), scan_range[1,1] 8 #CSEK2: [0, 34, 100]; scan_type(ASC), SYSINDEXSYSOBJECTS(SYSOBJECTS as B), scan_range[('SCH',min,min),('SCH',max,max)) */

在这里插入图片描述

-- INNER JOIN -> DISTINCT + SORT
SELECT /*+ optimizer_mode(0)*/ DISTINCT
        a.ID ID1,
        b.ID ID2,
        b.NAME
FROM
        sysobjects a
LEFT JOIN sysobjects b on 1=1
WHERE
        a.id =  1
and b.TYPE$ = 'SCH'
ORDER BY
        b.id DESC;

/* 1 #NSET2: [1, 1, 104] 2 #PRJT2: [1, 1, 104]; exp_num(3), is_atom(FALSE) 3 #SORT3: [1, 1, 104]; key_num(2), is_distinct(TRUE), top_flag(0), is_adaptive(0) 4 #NEST LOOP INNER JOIN2: [0, 34, 104]; 5 #SSEK2: [0, 1, 4]; scan_type(ASC), SYSINDEXIDSYSOBJECTS(SYSOBJECTS as A), scan_range[1,1] 6 #CSEK2: [0, 34, 100]; scan_type(ASC), SYSINDEXSYSOBJECTS(SYSOBJECTS as B), scan_range[('SCH',min,min),('SCH',max,max)) */

在这里插入图片描述

SELECT /*+ optimizer_version(70081)*/ DISTINCT
        a.ID ID1,
        b.ID ID2,
        b.NAME
FROM
        sysobjects a
LEFT JOIN sysobjects b on 1=1
WHERE
        a.id =  1
and b.TYPE$ = 'SCH'
ORDER BY
        b.id DESC;
/* 1 #NSET2: [1, 1, 104] 2 #PRJT2: [1, 1, 104]; exp_num(3), is_atom(FALSE) 3 #SORT3: [1, 1, 104]; key_num(3), is_distinct(TRUE), top_flag(0), is_adaptive(0) 4 #NEST LOOP INNER JOIN2: [0, 34, 104]; 5 #SSEK2: [0, 1, 4]; scan_type(ASC), SYSINDEXIDSYSOBJECTS(SYSOBJECTS as A), scan_range[1,1] 6 #CSEK2: [0, 34, 100]; scan_type(ASC), SYSINDEXSYSOBJECTS(SYSOBJECTS as B), scan_range[('SCH',min,min),('SCH',max,max)) */

在这里插入图片描述
