HCIA_OSPF实验

1.实验题目及要求

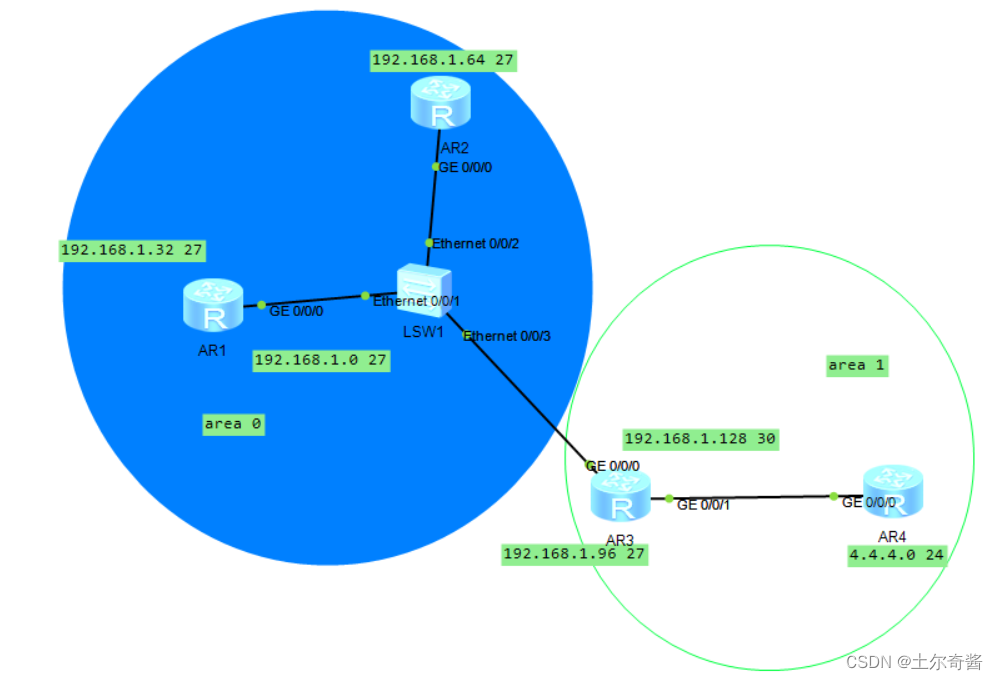

2.拓扑图

3.配置内容

​
R1:
[Huawei]sysname r1
[r1]int g 0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.1.1 27
[r1-GigabitEthernet0/0/0]int l0
[r1-LoopBack0]ip add 192.168.1.33 27
[r1]ospf 1 router-id 1.1.1.1
[r1-ospf-1]area 0
[r1-ospf-1-area-0.0.0.0]network 192.168.1.32 0.0.0.63
[r1-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.63
[r1]int g 0/0/0
[r1-GigabitEthernet0/0/0]ospf dr-priority 0
​

R2:
[Huawei]sysname r2
[r2]int g 0/0/0
[r2-GigabitEthernet0/0/0]ip add 192.168.1.2 27
[r2-GigabitEthernet0/0/0]int l0
[r2-LoopBack0]ip add 192.168.1.65 27
[r2]ospf 1 router-id 2.2.2.2
[r2-ospf-1]area 0
[r2-ospf-1-area-0.0.0.0]network 192.168.1.64 0.0.0.63
[r2-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.63
[r2]int g 0/0/0
[r2-GigabitEthernet0/0/0]ospf dr-priority 0

R3:
[Huawei]sysname r3
[r3]int g 0/0/0
[r3-GigabitEthernet0/0/0]ip add 192.168.1.3 27
[r3-GigabitEthernet0/0/0]int l0
[r3-LoopBack0]ip add 192.168.1.97 27
[r3]int g 0/0/1
[r3-GigabitEthernet0/0/1]ip add 192.168.1.129 30
[r3]ospf 1 router-id 3.3.3.3
[r3-ospf-1]area 0
[r3-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.63
[r3-ospf-1-area-0.0.0.0]network 192.168.1.96 0.0.0.63
[r3-ospf-1]area 1
[r3-ospf-1-area-0.0.0.1]network 192.168.1.128 0.0.0.3
[r3-ospf-1]area 0
[r3-ospf-1-area-0.0.0.0]abr-summary 192.168.1.0 255.255.255.128
[r3]ip route-static 192.168.1.0 25 NULL 0

R4:
[Huawei]sysname r4
[r4]int g 0/0/0
[r4-GigabitEthernet0/0/0]ip add 192.168.1.130 30
[r4-GigabitEthernet0/0/0]int l0
[r4-LoopBack0]ip add 4.4.4.4 24
[r4]ospf 1 router-id 4.4.4.4
[r4-ospf-1]area 1
[r4-ospf-1-area-0.0.0.1]network 192.168.1.128 0.0.0.3
[r4]ospf
[r4-ospf-1]default-route-advertise always
