Why is there dynamic memory

  The memory development methods we have mastered are ：

int val = 20;// Open up four bytes in the stack space
char arr[10] = {0};// Open up on the stack space 10 Bytes of contiguous space

  But there are two characteristics of the way to open up space :

1. The size of the space opening is fixed .
2. Arrays are declared , You must specify the length of the array , The memory it needs is allocated at compile time .

  But the need for space , It's not just that . Sometimes the amount of space we need is known when the program is running , The way to open up space when compiling arrays is not enough . At this time, you can only try dynamic storage development .

The introduction of dynamic memory function

1.malloc and free

  malloc yes C Language provides a dynamic memory development function , The function prototype is as follows ：

void* malloc (size_t size);

 malloc The function requests a contiguous available space from memory , And return the pointer to this space . about malloc function , We need to pay attention to a few points ：

• If the development is successful , Then return a pointer to open a good space .
• If the development fails , Returns a NULL The pointer , therefore malloc The return value of must be checked .
• The type of return value is void* , therefore malloc Function doesn't know the type of open space , The user will decide when using it .
• If parameters size by 0,malloc The standard is undefined , Depends on the compiler .

  C Language provides another function free, It is specially used to release and reclaim dynamically developed memory , The function prototype is as follows ：

void free (void* ptr);

  about free function , We need to pay attention to a few points ：

• If parameters ptr The pointed space is not opened dynamically , that free The behavior of a function is undefined .
• If parameters ptr yes NULL The pointer , Then the function does nothing .
• free Function releases dynamically opened space , Be sure to set the pointer to this space as a null pointer NULL.

  Be careful ：malloc and free The declarations of functions are in stdlib. h Header file .

Code example ：

// Dynamic memory development
#include <stdio.h>
#include <stdlib.h>
int main()
{
	// Suppose 10 An integer space
	//int arr[10];// The stack area
	// Dynamic memory development
	int* p = (int*)malloc(10 * sizeof(int));//void*
	// When using these spaces
	if (p == NULL)
	{
		//strerror Convert error codes into error messages
		perror("main");// Print error messages  main:××××××  for example ： Insufficient space for development failure
		return 0;
	}
	// Use
	int i = 0;
	for (i = 0; i < 10; i++)
	{
		*(p + i) = i;
	}
	for (i = 0; i < 10; i++)
	{
		printf("%d ", p[i]);//p[i]<==>*(p+i)
	}
	// Recycle space
	free(p);
	p = NULL;// Do it yourself p Set to null pointer

	return 0;
}

  The above code has two points to pay attention to ： First of all , After applying for dynamic memory , Be sure to determine whether the pointer to the space is a null pointer NULL. Because when dynamic memory development fails ,malloc The function returns a null pointer NULL. second , use free Function releases and reclaims dynamically opened memory , Be sure to set the pointer to the space as a null pointer NULL. Because the pointer also remembers the address of this space , If you dereference the pointer , It will cause the problem of wild pointer .

  After knowing this , Let's take another look at the code .

Code example ：

#include <stdio.h>
#include <stdlib.h>
int main()
{
	int a = 10;
	int* p = &a;
	free(p);//err

	return 0;
}

  Be careful ： The above code is an error code , The reason is that free Function is used to release memory that is not dynamically opened . When we write code, we must pay attention to ,free Function can only be used to free and reclaim dynamically opened memory , Otherwise the program will crash ！！！

2.calloc

  except malloc function ,C The language also provides a function calloc,calloc Function can also be used for dynamic memory development . The function prototype is as follows ：

void* calloc (size_t num, size_t size);

  about calloc function , We need to pay attention to a few points ：

• The function is for num Size is size The elements of open up a space , And initialize each byte of the space to 0.
• And malloc The difference between functions is calloc There are two arguments to the function , and malloc The function has only one argument ; And that is calloc The function initializes each byte of the requested space to full... Before returning the address 0.

Code example ：

#include <stdio.h>
#include <stdlib.h>
int main()
{
	int* p = (int*)calloc(10,sizeof(int));
	if (p == NULL)
	{
		perror("main");
		return 1;
	}
	int i = 0;
	for (i = 0; i < 10; i++)
	{
		*(p + i) = i;
	}
	free(p);
	p = NULL;

	return 0;
}

  therefore , If we need to initialize the contents of the requested memory space , So use calloc Function can easily complete the task .

3.realloc

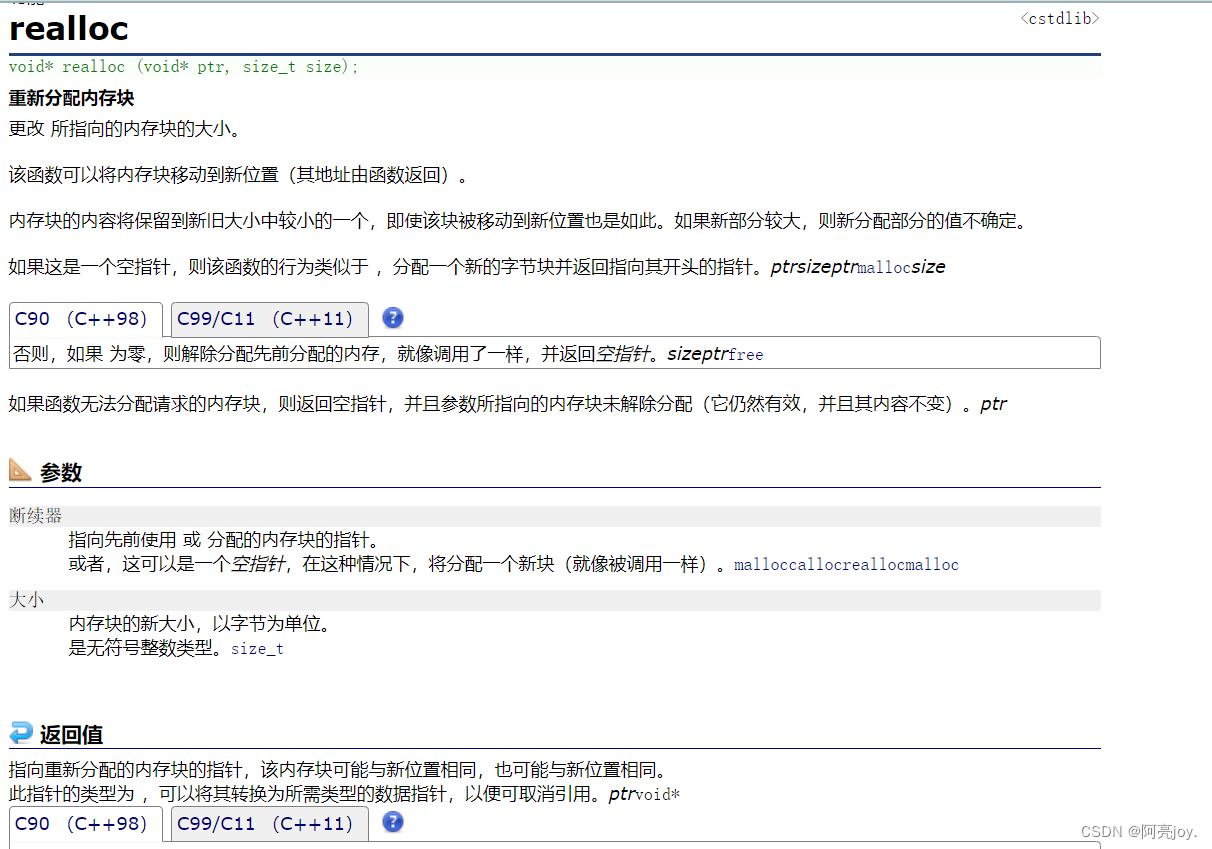

  realloc Functions make dynamic memory management more flexible . Sometimes we find that the application space is too small in the past , Sometimes we think the application space is too large , That's for reasonable time memory , We will make flexible adjustments to the size of memory . and realloc Function can be used to adjust the dynamic memory size . The function prototype is as follows ：

void* realloc (void* ptr, size_t size);

  about realloc function , We need to pay attention to a few points ：

• ptr Is the memory address to be adjusted .
• size For the new size after adjustment .
• The return value is the starting memory position after adjustment .
• This function adjusts the size of the original memory space , It will also move the data in the original memory to a new space .
• realloc There are two ways to adjust memory space ：

1. situation 1： There is enough space behind the original space .
2. situation 2： There is not enough space after the original space .

situation 1：
  When it's the case 1 When , To expand memory, add space directly after the original memory , The original spatial data does not change .
situation 2：
  When it's the case 2 When , When there is not enough space after the original space , The way to expand is ： In the heap space to find another suitable size of continuous space to use . This function returns a new memory address .
  Because of the above two situations ,realloc We should pay attention to the use of functions .

Code example ：

#include <stdio.h>
#include <stdlib.h>
int main()
{
	int* p = (int*)calloc(10,sizeof(int));
	if (p == NULL)
	{
		perror("main");
		return 1;
	}
	int i = 0;
	for (i = 0; i < 10; i++)
	{
		*(p + i) = i;
	}
    // Need here p Point to more space , need 20 individual int Space
	//relloc Adjust the space
	int* ptr = (int*)realloc(p, 20 * sizeof(int));// prevent p Set to null pointer
	if (ptr != NULL)
	{
		p = ptr;
	}
	for (i = 10; i < 20; i++)
	{
		*(p + i) = i;
	}
	// Change the size of the application space , Observe p Will your address change
	free(p);
	p = NULL;

	return 0;
}

  Case 2 code example ：

  Another thing to note is ,realloc Functions can also act as malloc Function to use .

int* p = (int*)realloc(NULL, 10 * sizeof(int));
<= = > int* p = (int*)malloc(10 * sizeof(int));

  I believe you already know realloc Function , Next, let's introduce the common dynamic memory errors .

Common dynamic memory errors

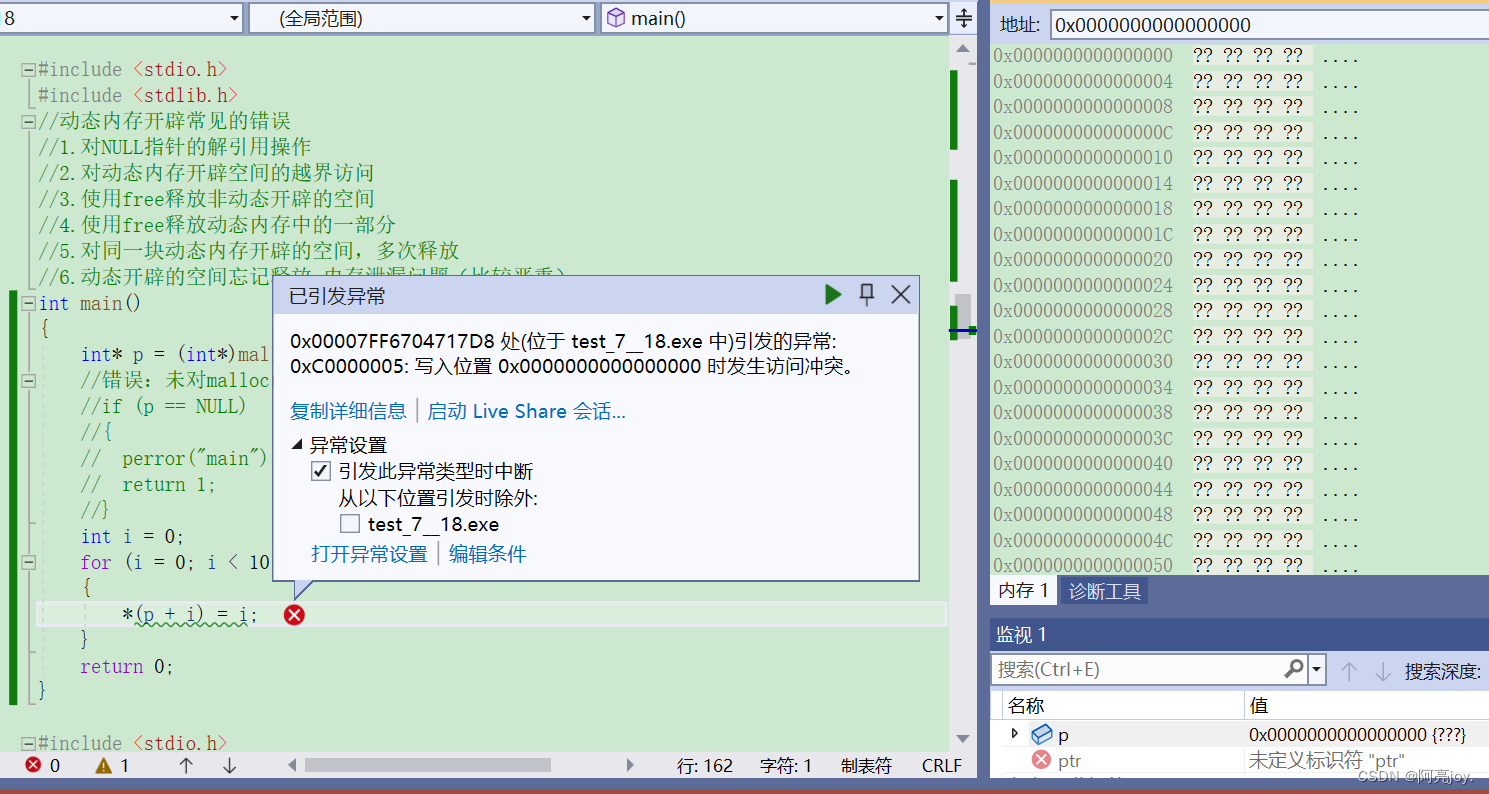

1. Yes NULL Dereference operation of pointer

int main()
{
	int* p = (int*)malloc(100000000000000000);
	// error ： Not right malloc Judge the return value of the function , Just dereference
	int i = 0;
	for (i = 0; i < 10; i++)
	{
		*(p + i) = i;
	}
	return 0;
}

  modify ：

int main()
{
	int* p = (int*)malloc(100000000000000000);
	// error ： Not right malloc Judge the return value of the function , Just dereference
	if (p == NULL)
	{
		perror("main");
		return 1;
	}
	int i = 0;
	for (i = 0; i < 10; i++)
	{
		*(p + i) = i;
	}
	return 0;
}

2. Cross border access to dynamic open space

#include <stdio.h>
#include <stdlib.h>
int main()
{
	int* p = (int*)malloc(10 * sizeof(int));
	if (p == NULL)
	{
		return 1;
	}
	int i = 0;
	// A cross-border visit
	for (i = 0; i < 40; i++)
	{
		*(p + i) = i;
	}
	free(p);
	p = NULL;
	return 0;
}

modify ：

#include <stdio.h>
#include <stdlib.h>
int main()
{
	int* p = (int*)malloc(10 * sizeof(int));
	if (p == NULL)
	{
		return 1;
	}
	int i = 0;
	// A cross-border visit
	for (i = 0; i < 10; i++)
	{
		*(p + i) = i;
	}
	free(p);
	p = NULL;
	return 0;
}

3. Use of non dynamic memory free Release

#include <stdio.h>
#include <stdlib.h>
int main()
{
	int arr[10] = { 0 };
	int* p = arr;
	// Use
	// Release
	free(p);
	p = NULL;
	return 0;
}

 4. Use free Release a piece of dynamic memory

#include <stdio.h>
#include <stdlib.h>
int main()
{
	int* p = (int*)malloc(10 * sizeof(int));
	if (p == NULL)
	{
		return 1;
	}
	int i = 0;
	for (i = 0; i < 5; i++)
	{
		*p++ = i;
	}
	free(p);//p No longer points to the start of dynamic memory
	//
	p = NULL;
}

  Be careful ：free The released dynamic memory space must be the starting address of the space , Otherwise the program will crash .

5. Multiple releases of the same dynamic memory

#include <stdio.h>
#include <stdlib.h>
int main()
{
	int* p = (int*)malloc(100);
	// Use
	// Release
	free(p);
 //p=NULL; Empty in time
	// Release again
	free(p);
	return 0;
}

  Be careful ： After releasing the dynamically opened memory , Be sure to set the pointer to the space as a null pointer NULL. Otherwise, it is easy to release the same dynamic memory multiple times , Cause the program to crash .

6. Dynamic memory forget to release （ Memory leak ）

#include <stdio.h>
#include <stdlib.h>
void test()
{
	int* p = (int*)malloc(100);
	if (p == NULL)
	{
		return;
	}
	// Use
}
int main()
{
	test();
	//...
	return 0;

}

  The above code runs , There will be no mistakes . But forget to release the dynamically opened memory , Will cause memory leaks , In this way, your memory will be less and less . This is a very serious problem , So after using the dynamically opened memory , Be sure to free the memory and empty it in time .

Two recycling methods of dynamically opened space ：

• Take the initiative free
• Program end

Several classic written examination questions

Topic 1

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
void GetMemory(char* p)
{
	p = (char*)malloc(100);
}
void Test(void)
{
	char* str = NULL;
	GetMemory(str);
	strcpy(str, "hello world");
	printf(str);
}
int main()
{
	Test();
	return 0;
}

Output results ：

The code analysis ：

modify ：

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
char* GetMemory(char* p)
{
	p = (char*)malloc(100);
	return p;
}
void Test(void)
{
	char* str = NULL;
	str = GetMemory(str);
	strcpy(str, "hello world");
	printf(str);
	//printf("hello world"); // It's a character h The address of
	free(str);
	str = NULL;
}
int main()
{
	Test();
	return 0;
}

void GetMemory(char** p)
{
	*p = (char*)malloc(100);
}
void Test(void)
{
	char* str = NULL;
	GetMemory(&str);
	strcpy(str, "hello world");
	printf(str);
	//printf("hello world"); // The message is h The address of
	free(str);
	str = NULL;
}
int main()
{
	Test();
	return 0;
}

Topic two

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
char* GetMemory(void)
{
	char p[] = "hello world";
	return p;
}
void Test(void)
{
	char* str = NULL;
	str = GetMemory();
	printf(str);
}
int main()
{
	Test();
	return 0;
}

  Output results ：

The code analysis ：

Topic three

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
void GetMemory(char** p, int num)
{
	*p = (char*)malloc(num);
}
void Test(void)
{
	char* str = NULL;
	GetMemory(&str, 100);
	strcpy(str, "hello");
	printf(str);
}

int main()
{
	Test();
	return 0;
}

Output results ：

The code analysis ：

modify ：

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
void GetMemory(char** p, int num)
{
	*p = (char*)malloc(num);
}
void Test(void)
{
	char* str = NULL;
	GetMemory(&str, 100);
	strcpy(str, "hello");
	printf(str);
	free(str);
	str = NULL;
}
int main()
{
	Test();
	return 0;
}

Topic four

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
void Test(void)
{
	char* str = (char*)malloc(100);
	strcpy(str, "hello");
	free(str);
	if (str != NULL)
	{
		strcpy(str, "world");
		printf(str);
	}
}
int main()
{
	Test();
	return 0;
}

Output results ：

The code analysis ：

modify ：

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
void Test(void)
{
	char* str = (char*)malloc(100);
	strcpy(str, "hello");
	free(str);
	// After dynamic internal release, empty it in time
	str = NULL;
	if (str != NULL)
	{
		strcpy(str, "world");
		printf(str);
	}
}
int main()
{
	Test();
	return 0;
}

C/C++ Program memory development

C/C++ Several areas of program memory allocation ：

1. The stack area （stack）： When executing a function , The memory units of local variables in the function can be created on the stack , At the end of the function, these storage units are automatically released . Stack memory allocation operations are built into the processor's instruction set , It's very efficient , But the allocated memory capacity is limited . The stack area mainly stores the local variables allocated by running functions 、 Function parameter 、 Return the data 、 Return address, etc .
2. Heap area （heap）： Release is usually assigned by the programmer , If programmers don't release , At the end of the program, the OS Recycling . The distribution is similar to a linked list .
3. Data segment （ Static zone ）（static） Store global variables 、 Static data . Released by the system at the end of the program .
4. Code segment ： Store function body （ Class member functions and global functions ） The binary code of .

   With this picture , We can better understand static Keywords modify local variables .

In fact, ordinary local variables allocate space in the stack area , The characteristic of stack area is that the variables created above are destroyed when they are out of scope . But be static The modified variables are stored in the data section （ Static zone ）, Data segments are characterized by variables created above , Not until the end of the program , So the life cycle gets longer .

Flexible array

   Maybe you've never heard of flexible arrays （flexible array） The concept , But it does exist .C99 in , The last element in the structure is allowed to be an array of unknown size , This is called 『 Flexible array 』 member .

for instance ：

struct S
{
	int n;
	int arr[];// The size is unknown
};

  Some compilers will report errors and cannot compile. They can be changed to ：

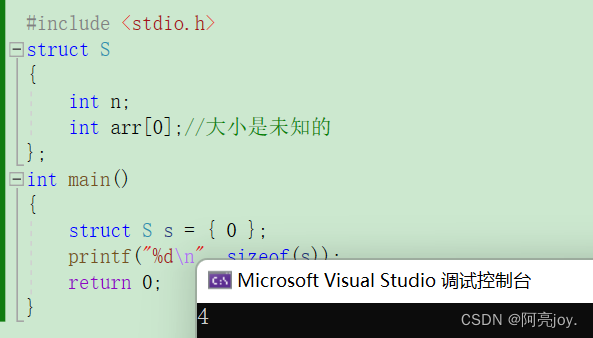

struct S
{
	int n;
	int arr[0];// The size is unknown
};

1. The characteristics of flexible arrays

• A flexible array member in a structure must be preceded by at least one other member .
• sizeof The returned size does not include the memory of the flexible array .
• Structures that contain flexible array members use malloc Function to dynamically allocate memory , And the allocated memory should be larger than the size of the structure , To fit the expected size of the flexible array .

  Code example ：

#include <stdio.h>
struct S
{
	int n;
	int arr[0];// The size is unknown
};
int main()
{
	struct S s = { 0 };
	printf("%d\n", sizeof(s));
	return 0;
}

Output results ：

2. The use of flexible arrays

Use method 1 ：

#include <stdio.h>
#include <stdlib.h>
struct S
{
	int n;
	int arr[0];// The size is unknown
};
int main()
{
	// expect arr Its size is 10 An integer
	struct S* ps = (struct S*)malloc(sizeof(struct S) + 10 * sizeof(int));
	ps->n = 10;
	int i = 0;
	for (i = 0; i < 10; i++)
	{
		ps->arr[i] = i;
	}
	// increase capacity
	struct S* ptr = (struct S*)realloc(ps, sizeof(struct S) + 20 * sizeof(int));
	if (ptr != NULL)
	{
		ps = ptr;
	}
	// Use

	// Release
	free(ps);
	ps = NULL;

	return 0;
}

Use method 2 ：

#include <stdio.h>
#include <stdlib.h>
struct S
{
	int n;
	int* arr;
};

int main()
{
	struct S* ps = (struct S*)malloc(sizeof(struct S));
	if (ps == NULL)
		return 1;
	ps->n = 10;
	ps->arr = (int*)malloc(10 * sizeof(int));
	if (ps->arr == NULL)
		return 1;
	int i = 0;
	for (i = 0; i < 10; i++)
	{
		ps->arr[i] = i;
	}
	for (i = 0; i < 10; i++)
	{
		printf("%d ", ps->arr[i]);
	}
	// increase capacity
	int* ptr = (int*)realloc(ps->arr, 20 * sizeof(int));
	if (ptr != NULL)
	{
		ps->arr = ptr;
	}
	// Use

	// Release takes two
	free(ps->arr);
	ps->arr = NULL;
	free(ps);
	ps = NULL;

	return 0;
}

  Be careful ： The above two methods of use , I recommend the first . Because if our code is in a function for others , You do a secondary memory allocation in it , And return the whole structure to the user . The user calls free You can release the structure , But the user doesn't know that the members in the structure also need free, You can't expect users to discover this . therefore , If we allocate the memory of the structure and the memory of its members at one time , And return a structure pointer to the user , The user does it once free You can also free up all the memory , There is less chance of error . At the same time, the first method can access memory faster , Because continuous memory is beneficial to improve access speed , It also helps reduce memory fragmentation .

  That's all about this blog , If you think you've got something , You can support it with a compliment ！
