• Project directory structure description


One 、 Create user table structure

• 1、 Database creation ：

• 2、user_srv\model\user.go

package model

import (
	"time"

	"gorm.io/gorm"
)

type BaseModel struct {

	ID        int32     `gorm:"primarykey"`
	CreatedAt time.Time `gorm:"column:add_time"`
	UpdatedAt time.Time `gorm:"column:update_time"`
	DeletedAt gorm.DeletedAt
	IsDeleted bool
}

type User struct {

	BaseModel
	Mobile   string     `gorm:"index:idx_mobile;unique;type:varchar(11);not null"`
	Password string     `gorm:"type:varchar(100);not null"`
	NickName string     `gorm:"type:varchar(20)"`
	Birthday *time.Time `gorm:"type:datetime"`
	Gender   string     `gorm:"column:gender;default:male;type:varchar(6) comment 'female For a woman , male Male '"`
	Role     int        `gorm:"column:role;default:1;type:int comment '1 For ordinary users , 2 Represents an administrator '"`
}

• 3、user_srv\model\main\main.go： User name and password can be modified by yourself

package main

import (
	"log"
	"nd/user_srv/model"
	"os"
	"time"

	"gorm.io/driver/mysql"
	"gorm.io/gorm"
	"gorm.io/gorm/logger"
	"gorm.io/gorm/schema"
)

func main() {

	dsn := "root:[email protected](192.168.124.51:3306)/mxshop_user_srv?charset=utf8mb4&parseTime=True&loc=Local"

	newLogger := logger.New(
		log.New(os.Stdout, "\r\n", log.LstdFlags), // io writer
		logger.Config{

			SlowThreshold: time.Second, //  slow  SQL  threshold
			LogLevel:      logger.Info, // Log level
			Colorful:      true,        //  Disable color printing
		},
	)

	//  Global mode
	db, err := gorm.Open(mysql.Open(dsn), &gorm.Config{

		NamingStrategy: schema.NamingStrategy{

			SingularTable: true,
		},
		Logger: newLogger,
	})
	if err != nil {

		panic(err)
	}
	//  transfer  schema
	_ = db.AutoMigrate(&model.User{
    }) // There should be sql sentence
}

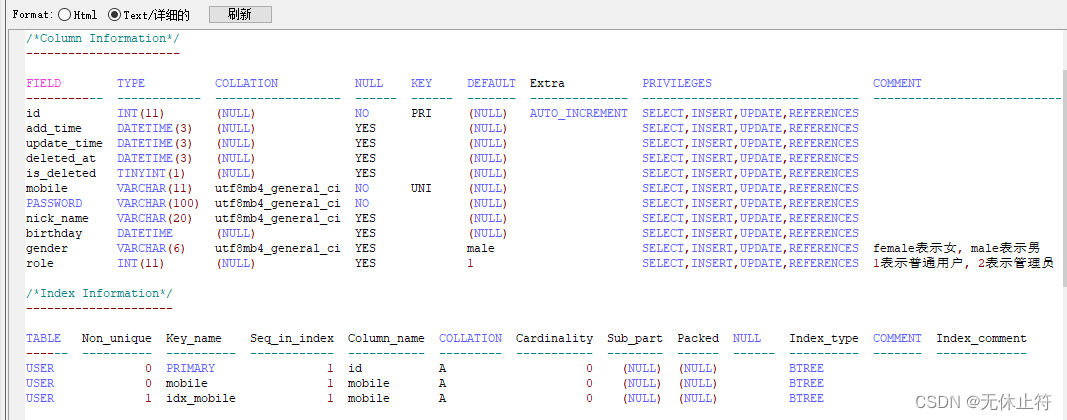

• 4、 perform user_srv\model\main\main.go： Use gorm Automatically create user tables

Two 、md5 Salt value encryption

1 - encryption algorithm

• Why md5 Salt value encryption ： Because the user's password is saved in the database , We don't want it to be stored in the database in clear text
• Generally, ciphertext is used to save user passwords ： Because the password saved by the ciphertext cannot be reversed
• Ciphertext encryption method
  • Symmetric encryption ： The same key is used for encryption and decryption , hidden danger -> As long as you get the key, you can crack the passwords of all databases
  • Asymmetric encryption ： The same key is not used for encryption and decryption , If the password is not satisfied, it cannot be reversed
  • md5 Algorithm ： Strictly speaking, it is not an encryption algorithm , Information summarization algorithm ; It can ensure that the password cannot be reversed （ If the password cannot be reversed , In other words, users cannot retrieve their passwords ; The modern approach is to provide a link for users to reset their passwords ）

2 - md5 encryption algorithm

• What is? md5：Message Digest Algorithm 5, Information digest algorithm
• md5 The advantages of the algorithm
  • ①. compressibility ： Any length of data , Work out md5 The values are fixed in length
  • ②. Easy to calculate ： From the original data md5 Value is easily
  • ③. Resistance to change ： Make any changes to the original data , Even if the 1 Bytes ,md5 Values vary widely
  • ④. Strong collision ： I want to find two different data , So that they have the same md5 value , Very difficult
  • ⑤. Irreversibility ： Irresolvable
• What is? md5 Add salt
  • By generating random numbers and md5 Generating strings to combine
  • The database also stores md5 Values and salt value , Verify the correctness of using salt Conduct md5 that will do

package main

import (
	"crypto/md5"
	"encoding/hex"
	"fmt"
	"io"
)

func genMd5(code string) string {

	Md5 := md5.New()
	_, _ = io.WriteString(Md5, code)
	return hex.EncodeToString(Md5.Sum(nil))
}

func main() {

	fmt.Println(genMd5("123456"))
}

3 - md5 Salt value encryption

• Use md5 Salt encryption of ：https://github.com/anaskhan96/go-password-encoder

package main

import (
	"crypto/sha512"
	"fmt"

	"github.com/anaskhan96/go-password-encoder"
)

func main() {

	options := &password.Options{
    SaltLen: 16, Iterations: 100, KeyLen: 32, HashFunction: sha512.New}
	salt, encodedPwd := password.Encode("generic password", options)
	fmt.Println(salt)
	fmt.Println(encodedPwd)
	check := password.Verify("generic password", salt, encodedPwd, options)
	fmt.Println(check) // true
}

// Output
//lJSijLVv22RCvDqP
//04440c79158eaa04e1ef7e1d45b00e6724d264624a75eded308269366c221f13
//true

4 - Stitching algorithm 、salt、encodedPwd

• Algorithm 、salt、encodedPwd：
  • Splice this 3 Strings are saved together in the database
  • It needs to be separated when parsing
  • And need Note that the length after splicing should not exceed the length defined in the database

package main

import (
	"crypto/sha512"
	"fmt"
	"strings"

	"github.com/anaskhan96/go-password-encoder"
)

func main() {

	options := &password.Options{
    SaltLen: 16, Iterations: 100, KeyLen: 32, HashFunction: sha512.New}
	salt, encodedPwd := password.Encode("generic password", options)

	newPassword := fmt.Sprintf("$pbkdf2-sha512$%s$%s", salt, encodedPwd) // pbkdf2-sha512 It's an algorithm , Use $ To splice
	fmt.Println(len(newPassword))                                        //  Make sure that the length does not exceed the definition of the database field
	fmt.Println(newPassword)

	// analysis
	passwordInfo := strings.Split(newPassword, "$")
	fmt.Println(passwordInfo)

	check := password.Verify("generic password", passwordInfo[2], passwordInfo[3], options)
	fmt.Println(check) // true
}

3、 ... and 、proto Definition

• user_srv\proto\user.proto： Generate command -> protoc --go_out=. --go_opt=paths=source_relative --go-grpc_out=. --go-grpc_opt=paths=source_relative *.proto

syntax = "proto3";
import "google/protobuf/empty.proto";
option go_package = ".;proto";

service User{

    rpc GetUserList(PageInfo) returns (UserListResponse); //  User list
    rpc GetUserByMobile(MobileRequest) returns (UserInfoResponse); // adopt mobile Query the user
    rpc GetUserById(IdRequest) returns (UserInfoResponse); // adopt id Query the user
    rpc CreateUser(CreateUserInfo) returns (UserInfoResponse); //  Add users
    rpc UpdateUser(UpdateUserInfo) returns (google.protobuf.Empty); //  Update user
    rpc CheckPassWord(PasswordCheckInfo) returns (CheckResponse); // Check the password
}

message PageInfo {

    uint32 pn = 1;
    uint32 pSize = 2;
}

message UserInfoResponse {

    int32 id = 1;
    string passWord = 2;
    string mobile = 3;
    string nickName = 4;
    uint64 birthDay = 5;
    string gender = 6;
    int32 role = 7;
}

message UserListResponse {

    int32 total = 1;
    repeated UserInfoResponse data = 2;
}

message CreateUserInfo {

    string nickName = 1;
    string passWord = 2;
    string mobile = 3;
}

message MobileRequest{

    string mobile = 1;
}

message IdRequest {

    int32 id = 1;
}

message UpdateUserInfo {

    int32 id = 1;
    string nickName = 2;
    string gender = 3;
    uint64 birthDay = 4;
}

message PasswordCheckInfo {

    string password = 1;
    string encryptedPassword = 2;
}

message CheckResponse{

    bool success = 1;
}

Four 、 User interface implementation

1 - Query user list interface

• user_srv\global\global.go： Global initialization db, The password needs to be modified by yourself

package global

import (
	"log"
	"os"
	"time"

	"gorm.io/driver/mysql"
	"gorm.io/gorm"
	"gorm.io/gorm/logger"
	"gorm.io/gorm/schema"
)

var (
	DB *gorm.DB
)

func init() {

	dsn := "root:[email protected](192.168.0.101:3306)/mxshop_user_srv?charset=utf8mb4&parseTime=True&loc=Local"

	newLogger := logger.New(
		log.New(os.Stdout, "\r\n", log.LstdFlags), // io writer
		logger.Config{

			SlowThreshold: time.Second, //  slow  SQL  threshold
			LogLevel:      logger.Info, // Log level
			Colorful:      true,        //  Disable color printing
		},
	)

	//  Global mode
	var err error
	DB, err = gorm.Open(mysql.Open(dsn), &gorm.Config{

		NamingStrategy: schema.NamingStrategy{

			SingularTable: true,
		},
		Logger: newLogger,
	})
	if err != nil {

		panic(err)
	}
}

• user_srv\handler\user.go： It's used here gorm The paging function of , And simple transformation

package handler

import (
	"context"
	"fmt"

	"nd/user_srv/global"
	"nd/user_srv/model"
	"nd/user_srv/proto"

	"gorm.io/gorm"
)

type UserServer struct {

	proto.UnimplementedUserServer
}

func Paginate(page, pageSize int) func(db *gorm.DB) *gorm.DB {

	return func(db *gorm.DB) *gorm.DB {

		if page == 0 {

			page = 1
		}

		switch {

		case pageSize > 100:
			pageSize = 100
		case pageSize <= 0:
			pageSize = 10
		}

		offset := (page - 1) * pageSize
		return db.Offset(offset).Limit(pageSize)
	}
}

func ModelToRsponse(user model.User) proto.UserInfoResponse {

	// stay grpc Of message The fields in have default values , You can't assign values randomly nil go in , It's easy to make mistakes
	// Here we need to find out ,  Which fields have default values
	userInfoRsp := proto.UserInfoResponse{

		Id:       user.ID,
		PassWord: user.Password,
		NickName: user.NickName,
		Gender:   user.Gender,
		Role:     int32(user.Role),
		Mobile:   user.Mobile,
	}
	if user.Birthday != nil {

		userInfoRsp.BirthDay = uint64(user.Birthday.Unix())
	}
	return userInfoRsp
}

func (s *UserServer) GetUserList(ctx context.Context, req *proto.PageInfo) (*proto.UserListResponse, error) {

	// Get the list of users
	var users []model.User
	result := global.DB.Find(&users)
	if result.Error != nil {

		return nil, result.Error
	}
	fmt.Println(" User list ")
	rsp := &proto.UserListResponse{
    }
	rsp.Total = int32(result.RowsAffected)

	global.DB.Scopes(Paginate(int(req.Pn), int(req.PSize))).Find(&users)

	for _, user := range users {

		userInfoRsp := ModelToRsponse(user)
		rsp.Data = append(rsp.Data, &userInfoRsp)
	}
	return rsp, nil
}

2 - according to id and mobile Query user interface

• user_srv\handler\user.go

func (s *UserServer) GetUserByMobile(ctx context.Context, req *proto.MobileRequest) (*proto.UserInfoResponse, error) {

	// Query users through mobile phone numbers
	var user model.User
	result := global.DB.Where(&model.User{
    Mobile: req.Mobile}).First(&user)
	if result.RowsAffected == 0 {

		return nil, status.Errorf(codes.NotFound, " The user doesn't exist ")
	}
	if result.Error != nil {

		return nil, result.Error
	}

	userInfoRsp := ModelToRsponse(user)
	return &userInfoRsp, nil
}

func (s *UserServer) GetUserById(ctx context.Context, req *proto.IdRequest) (*proto.UserInfoResponse, error) {

	// adopt id Query the user
	var user model.User
	result := global.DB.First(&user, req.Id)
	if result.RowsAffected == 0 {

		return nil, status.Errorf(codes.NotFound, " The user doesn't exist ")
	}
	if result.Error != nil {

		return nil, result.Error
	}

	userInfoRsp := ModelToRsponse(user)
	return &userInfoRsp, nil
}

3 - A new user

func (s *UserServer) CreateUser(ctx context.Context, req *proto.CreateUserInfo) (*proto.UserInfoResponse, error) {

	// A new user
	var user model.User
	result := global.DB.Where(&model.User{
    Mobile: req.Mobile}).First(&user)
	if result.RowsAffected == 1 {

		return nil, status.Errorf(codes.AlreadyExists, " The user already exists ")
	}

	user.Mobile = req.Mobile
	user.NickName = req.NickName

	// Password encryption
	options := &password.Options{
    SaltLen: 16, Iterations: 100, KeyLen: 32, HashFunction: sha512.New}
	salt, encodedPwd := password.Encode(req.PassWord, options)
	user.Password = fmt.Sprintf("$pbkdf2-sha512$%s$%s", salt, encodedPwd)

	result = global.DB.Create(&user)
	if result.Error != nil {

		return nil, status.Errorf(codes.Internal, result.Error.Error())
	}

	userInfoRsp := ModelToRsponse(user)
	return &userInfoRsp, nil
}

4 - Update user

func (s *UserServer) UpdateUser(ctx context.Context, req *proto.UpdateUserInfo) (*empty.Empty, error) {

	// Personal center updates users
	var user model.User
	result := global.DB.First(&user, req.Id)
	if result.RowsAffected == 0 {

		return nil, status.Errorf(codes.NotFound, " The user doesn't exist ")
	}

	birthDay := time.Unix(int64(req.BirthDay), 0)
	user.NickName = req.NickName
	user.Birthday = &birthDay
	user.Gender = req.Gender

	result = global.DB.Save(&user)
	if result.Error != nil {

		return nil, status.Errorf(codes.Internal, result.Error.Error())
	}
	return &empty.Empty{
    }, nil
}

5 - Check the password

func (s *UserServer) CheckPassWord(ctx context.Context, req *proto.PasswordCheckInfo) (*proto.CheckResponse, error) {

	// Check the password
	options := &password.Options{
    SaltLen: 16, Iterations: 100, KeyLen: 32, HashFunction: sha512.New}
	passwordInfo := strings.Split(req.EncryptedPassword, "$")
	check := password.Verify(req.Password, passwordInfo[2], passwordInfo[3], options)
	return &proto.CheckResponse{
    Success: check}, nil
}

5、 ... and 、flag start-up grpc

• user_srv\main.go

package main

import (
	"flag"
	"fmt"
	"nd/user_srv/handler"
	"nd/user_srv/proto"
	"net"

	"google.golang.org/grpc"
)

func main() {

	IP := flag.String("ip", "0.0.0.0", "ip Address ")
	Port := flag.Int("port", 50051, " Port number ")
	flag.Parse()
	fmt.Println("ip...", *IP)
	fmt.Println("port...", *Port)

	server := grpc.NewServer()
	proto.RegisterUserServer(server, &handler.UserServer{
    })
	lis, err := net.Listen("tcp", fmt.Sprintf("%s:%d", *IP, *Port))
	if err != nil {

		panic("failed to listen:" + err.Error())
	}
	err = server.Serve(lis)
	if err != nil {

		panic("failed to start grpc:" + err.Error())
	}
}

• The terminal starts to use flag Methods ：
  • Use go build main.go Generate main.exe
  • Use main.exe -port 50052 The start port is 50052 Of grpc service

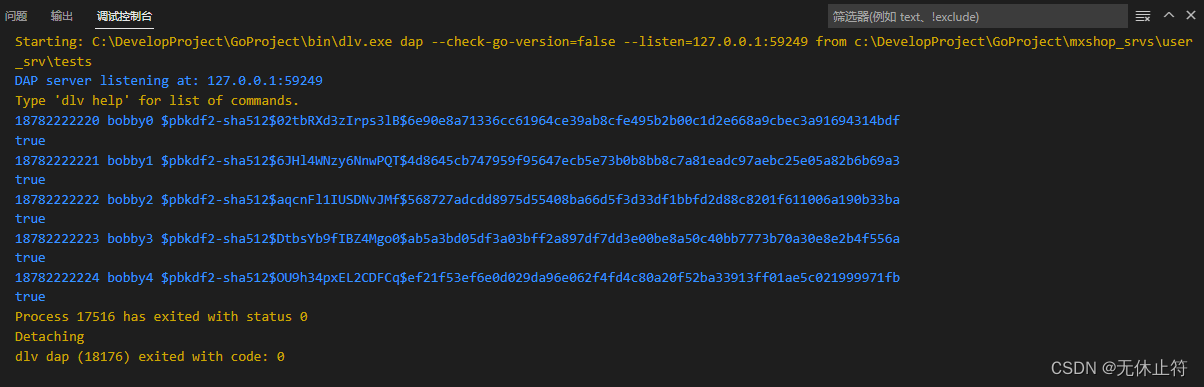

6、 ... and 、 The interface test

• user_srv\tests\user.go：

package main

import (
	"context"
	"fmt"
	"nd/user_srv/proto"

	"google.golang.org/grpc"
	"google.golang.org/grpc/credentials/insecure"
)

var userClient proto.UserClient
var conn *grpc.ClientConn

func Init() {

	var err error
	conn, err = grpc.Dial("127.0.0.1:50051", grpc.WithTransportCredentials(insecure.NewCredentials()))
	if err != nil {

		panic(err)
	}
	userClient = proto.NewUserClient(conn)
}

func TestGetUserList() {

	rsp, err := userClient.GetUserList(context.Background(), &proto.PageInfo{

		Pn:    1,
		PSize: 5,
	})
	if err != nil {

		panic(err)
	}
	for _, user := range rsp.Data {

		fmt.Println(user.Mobile, user.NickName, user.PassWord)
		checkRsp, err := userClient.CheckPassWord(context.Background(), &proto.PasswordCheckInfo{

			Password:          "admin123",
			EncryptedPassword: user.PassWord,
		})
		if err != nil {

			panic(err)
		}
		fmt.Println(checkRsp.Success)
	}
}

func TestCreateUser() {

	for i := 0; i < 10; i++ {

		rsp, err := userClient.CreateUser(context.Background(), &proto.CreateUserInfo{

			NickName: fmt.Sprintf("bobby%d", i),
			Mobile:   fmt.Sprintf("1878222222%d", i),
			PassWord: "admin123",
		})
		if err != nil {

			panic(err)
		}
		fmt.Println(rsp.Id)
	}
}

func main() {

	Init()
	// TestCreateUser()
	TestGetUserList()

	conn.Close()
}
