Dynamics crm: how to monitor and manage workflow processes and view their running history

Workflow Divided into two : background workflow( Asynchronous workflow ), real-time workflow( Synchronize workflow ).

These two workflows are used in state tracking and log There are differences in the viewing methods of :

• Background workflow

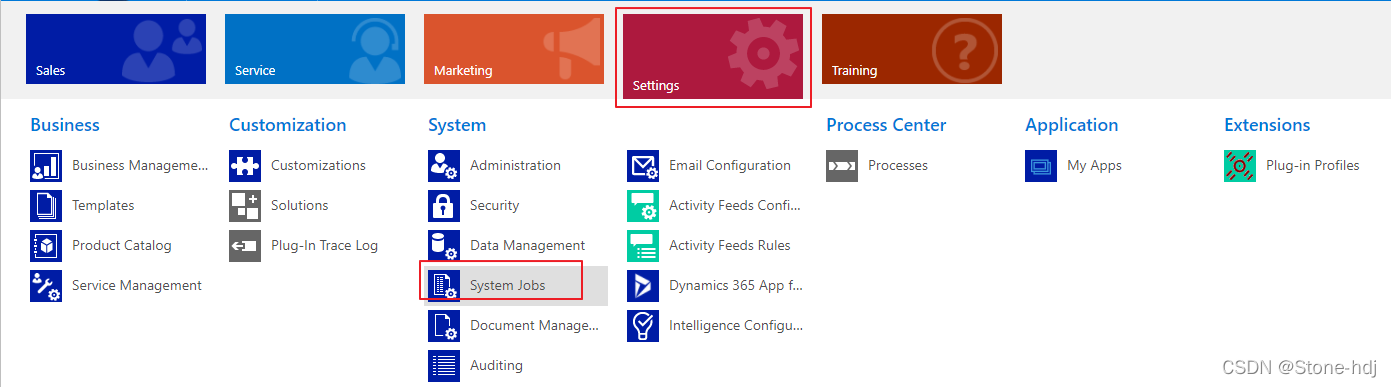

adopt Setting -> System Jobs

By entering workflow In itself , choice Process Sessions

By opening a message that needs to be viewed and executed workflow In the record of status , Click the down arrow next to the record name , Process Sessions -> Background Processes

Note: If your Process Sessions This one is empty , Need to be in Form Editor Lieutenant general Background Processes Drag it in like this

For specific settings, please refer to my blog :(2 Bar message ) Dynamics CRM: stay Form Add Process Sessions For easy viewing workflow Running history of _Stone-hdj The blog of -CSDN Blog https://blog.csdn.net/djstone/article/details/122826215?spm=1001.2014.3001.5501

• Real-time workflow

Real-time workflow Unlike background workflow That can be in system job View the execution log , Because it will be executed immediately , Usually when an error occurs "Business Process Error"

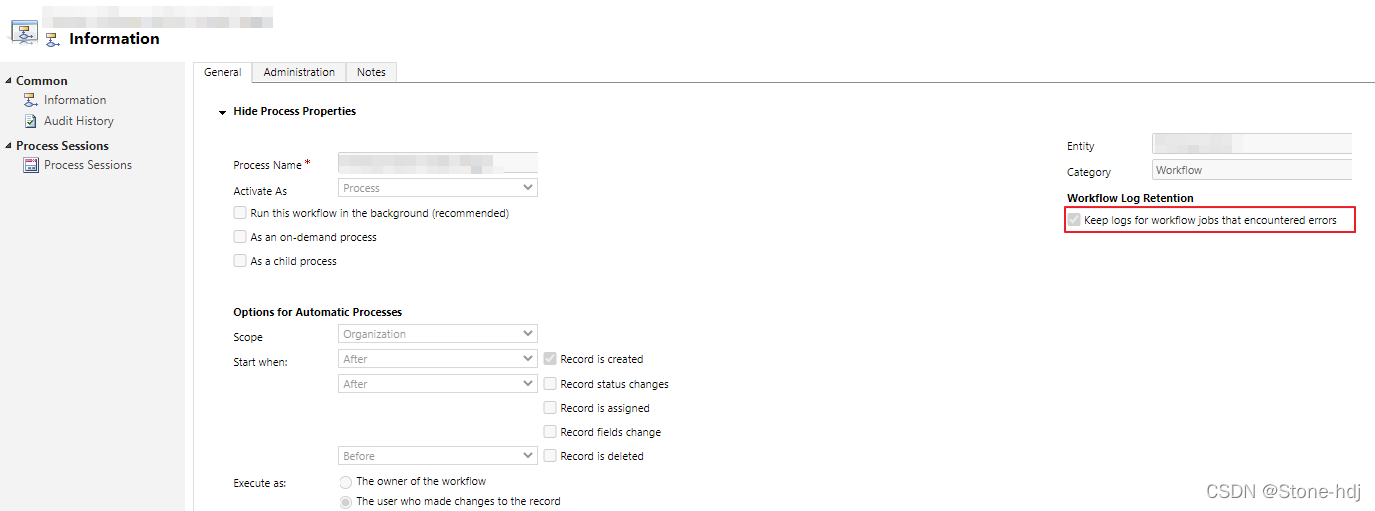

Real-time workflow There is no log of successful execution , For this kind of real-time workflow, we can workflow Set in "Keep logs for workflow jobs that encountered errors" To capture the log of errors

  To view the error log of a real-time workflow , Please open the real-time workflow and go to Process Session tab . This will show any errors logged by this process .

 Note: adopt Advanced Find Search for Process Sessions Entity , We can find all Workflow occurs error The record of .
