Deep understanding of JUC concurrency (IX) deep understanding of CAS

In depth understanding of CAS

What is? CAS

Compare and exchange ： Compare the current Values in working memory and The value in main memory , If this value is expected , Then perform the operation ！ If not, keep cycling , Using a spin lock

public class casDemo {

    //CAS : CompareAndSet  Compare and exchange
    public static void main(String[] args) {

        AtomicInteger atomicInteger = new AtomicInteger(2020);

        //boolean compareAndSet(int expect, int update)
        // Expectations 、 Update value
        // If the actual value   and   My expectations are the same , Then update
        // If the actual value   and   My expectations are different , Then don't update
        System.out.println(atomicInteger.compareAndSet(2020, 2021));
        System.out.println(atomicInteger.get());

        // Because the expectation is 2020  The actual value becomes 2021  So it will fail to modify
        //CAS  yes CPU The concurrent primitives of
        atomicInteger.getAndIncrement(); //++ operation
        System.out.println(atomicInteger.compareAndSet(2020, 2021));// This place uses a spin lock ！
        System.out.println(atomicInteger.get());
    }
}

shortcoming

• The loop takes time
• Only the atomicity of one shared variable can be guaranteed at one time
• It will exist ABA problem

Atomic reference

solve ABA problem ~

ABA problem

If another thread modifies the value, assume that it turns out to be A, Change it to B, And then change it back to A. Of the current thread CAS The operation cannot distinguish the current V Whether the value has changed .

public class casDemo {

    //CAS : compareAndSet  Compare and exchange
    public static void main(String[] args) {

        AtomicInteger atomicInteger = new AtomicInteger(2020);

        // Change the past and then change it back , Cause deception
        System.out.println(atomicInteger.compareAndSet(2020, 2021));
        System.out.println(atomicInteger.get());
        System.out.println(atomicInteger.compareAndSet(2021, 2020));
        System.out.println(atomicInteger.get());

        //ABA problem , Output true, Cause mistakes
        System.out.println(atomicInteger.compareAndSet(2020, 6666));
        System.out.println(atomicInteger.get());
    }
}

Optimism lock

Atomic operations with version numbers ： Use version number , To control the update of data , To avoid “ cheating ”~

package com.marchsoft.lockdemo;

import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicStampedReference;

/** * Description： * * @author jiaoqianjin * Date: 2020/8/12 22:07 **/

public class CASDemo {

    /**AtomicStampedReference  Be careful , If a generic is a wrapper class , Pay attention to the reference of objects  *  Normal operation in business , It's all about objects  */
    static AtomicStampedReference<Integer> atomicStampedReference = new
            AtomicStampedReference<>(1, 1);

    // CAS compareAndSet :  Compare and exchange ！
    public static void main(String[] args) {

        new Thread(() -> {

            int stamp = atomicStampedReference.getStamp(); // Get version number

            System.out.println("a1=>" + stamp);
            try {

                TimeUnit.SECONDS.sleep(1);
            } catch (InterruptedException e) {

                e.printStackTrace();
            }

            //  When modifying operations , The version number is updated for the first time  + 1
            atomicStampedReference.compareAndSet(1, 2,
                    atomicStampedReference.getStamp(),
                    atomicStampedReference.getStamp() + 1);
            System.out.println("a2=>" + atomicStampedReference.getStamp());

            //  Change the value back ,  The version number is updated again  + 1
            System.out.println(atomicStampedReference.compareAndSet(2, 1,
                    atomicStampedReference.getStamp(),
                    atomicStampedReference.getStamp() + 1));
            System.out.println("a3=>" + atomicStampedReference.getStamp());

        }, "a").start();

        new Thread(() -> {

            int stamp = atomicStampedReference.getStamp(); // Get version number

            System.out.println("b1=>" + stamp);
            try {

                TimeUnit.SECONDS.sleep(2);
            } catch (InterruptedException e) {

                e.printStackTrace();
            }

            // Because of the control of version number , So the output here is false, Will not cause deception
            System.out.println(atomicStampedReference.compareAndSet(1, 3,
                    stamp, stamp + 1));
            System.out.println("b2=>" + atomicStampedReference.getStamp());
        }, "b").start();
    }
}

Explanation of other locks

Fair lock / Not fair lock

Fair lock ： Multiple threads acquire locks in the order of applying for locks , The thread goes directly into the queue to queue , Always be the first in the queue to get the lock

• advantage ： All threads have access to resources , Don't starve to death in the queue
• shortcoming ： Throughput will drop a lot , Except for the first thread in the queue , Other threads will block ,cpu The cost of waking up blocked threads can be very high

Not fair lock ： When multiple threads get locks , Will directly try to get , If you can't get it, go into the waiting queue , If you can get it, you can get the lock directly

• advantage ： Can reduce the CPU Wake up thread overhead , The overall throughput efficiency will be high ,CPU You don't have to wake up all threads , It reduces the number of threads that evoke
• shortcoming ： You may also find that , This may result in the thread in the middle of the queue unable to obtain the lock or cannot obtain the lock for a long time , Leading to starvation

Reentrant lock

The house has a gate and an inner gate , You took The key to the gate , It's automatic The key to the inner door

synchronized

public class Demo01 {

    public static void main(String[] args) {

        Phone phone = new Phone();
        new Thread(()->{

            phone.sms();
        },"A").start();
        new Thread(()->{

            phone.sms();
        },"B").start();
    }

}

class Phone{

    public synchronized void sms(){

        System.out.println(Thread.currentThread().getName()+"=> sms");
        call();// There is also a lock here
    }
    public synchronized void call(){

        System.out.println(Thread.currentThread().getName()+"=> call");
    }
}

lock

//lock
public class Demo02 {


    public static void main(String[] args) {

        Phone2 phone = new Phone2();
        new Thread(()->{

            phone.sms();
        },"A").start();
        new Thread(()->{

            phone.sms();
        },"B").start();
    }

}
class Phone2{


    Lock lock=new ReentrantLock();

    public void sms(){

        lock.lock(); // details ： These are two locks , Two keys
        //lock Locks must be paired , Otherwise it will be locked in
        try {

            System.out.println(Thread.currentThread().getName()+"=> sms");
            call();// There is also a lock here
        } catch (Exception e) {

            e.printStackTrace();
        }finally {

            lock.unlock();
        }
    }
    public void call(){

        lock.lock();
        try {

            System.out.println(Thread.currentThread().getName() + "=> call");
        }catch (Exception e){

            e.printStackTrace();
        }
        finally {

            lock.unlock();
        }
    }
}

Be careful ：

• lock Locks must be paired , amount to lock and unlock The quantity must be the same
• Lock on the outside , You can also unlock it inside ; The lock added inside , It can also be unlocked outside ~

spinlocks

do-while loop , Spin

public final int getAndAddInt(Object var1, long var2, int var4) {

    int var5;
    do {

        var5 = this.getIntVolatile(var1, var2);
    } while(!this.compareAndSwapInt(var1, var2, var5, var5 + var4));
    return var5;
}

Anatomic design

public class SpinlockDemo {


    //  Default
    // int 0
    //thread null
    AtomicReference<Thread> atomicReference=new AtomicReference<>();

    // Lock
    public void myLock(){

        Thread thread = Thread.currentThread();
        System.out.println(thread.getName()+"===> mylock");

        // spinlocks
        while (!atomicReference.compareAndSet(null,thread)){

            System.out.println(Thread.currentThread().getName()+" ==>  Spinning ~");
        }
    }


    // Unlock
    public void myUnlock(){

        Thread thread=Thread.currentThread();
        System.out.println(thread.getName()+"===> myUnlock");
        atomicReference.compareAndSet(thread,null);
    }

}
class TestSpinLock {

    public static void main(String[] args) throws InterruptedException {

        ReentrantLock reentrantLock = new ReentrantLock();
        reentrantLock.lock();
        reentrantLock.unlock();


        // Use CAS Spin lock
        SpinlockDemo spinlockDemo=new SpinlockDemo();
        new Thread(()->{

            spinlockDemo.myLock();
            try {

                TimeUnit.SECONDS.sleep(3);
            } catch (Exception e) {

                e.printStackTrace();
            } finally {

                spinlockDemo.myUnlock();
            }
        },"t1").start();

        TimeUnit.SECONDS.sleep(1);


        new Thread(()->{

            spinlockDemo.myLock();
            try {

                TimeUnit.SECONDS.sleep(3);
            } catch (Exception e) {

                e.printStackTrace();
            } finally {

                spinlockDemo.myUnlock();
            }
        },"t2").start();
    }
}

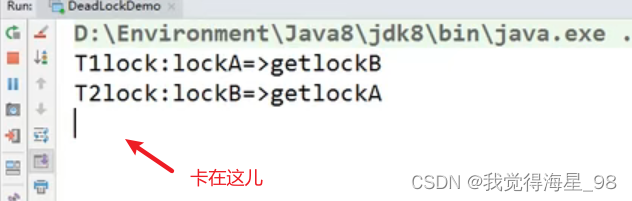

Deadlock

While holding the lock , Try to get the other party's lock

package com.ogj.lock;

import java.util.concurrent.TimeUnit;

public class DeadLock {

    public static void main(String[] args) {

        String lockA= "lockA";
        String lockB= "lockB";

        new Thread(new MyThread(lockA,lockB),"t1").start();
        new Thread(new MyThread(lockB,lockA),"t2").start();
    }
}

class MyThread implements Runnable{


    private String lockA;
    private String lockB;

    public MyThread(String lockA, String lockB) {

        this.lockA = lockA;
        this.lockB = lockB;
    }

    @Override
    public void run() {

        synchronized (lockA){

            System.out.println(Thread.currentThread().getName()+" lock"+lockA+"===>get"+lockB);
            try {

                TimeUnit.SECONDS.sleep(2);
            } catch (InterruptedException e) {

                e.printStackTrace();
            }
            synchronized (lockB){

                System.out.println(Thread.currentThread().getName()+" lock"+lockB+"===>get"+lockA);
            }
        }
    }
}

solve

Mainly for troubleshooting , Solve code problems after troubleshooting

• Use jps Locate the process number , Find our process

  jps -l




• Use jstack Process number , Deadlock information found
