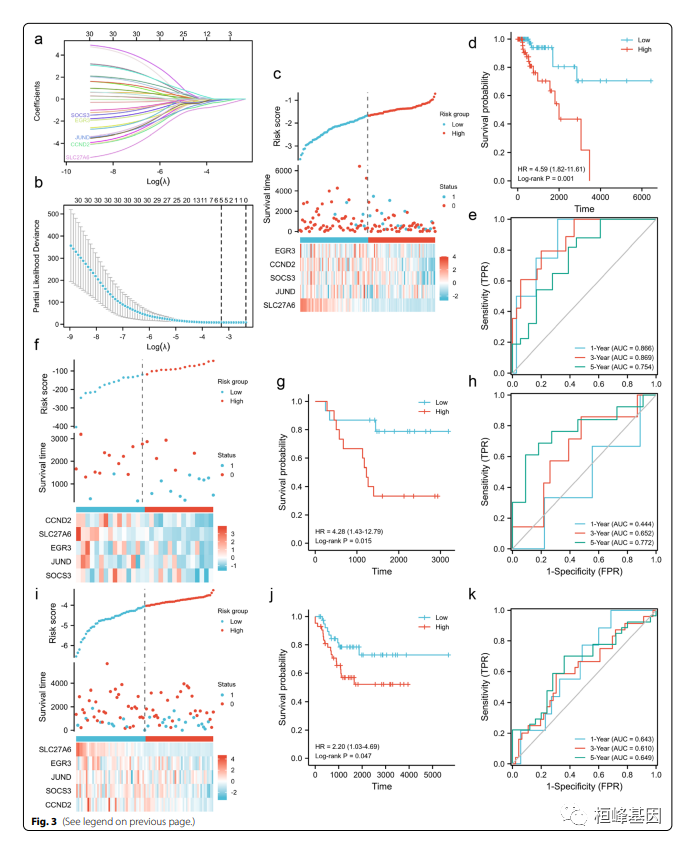

Yesterday I shared an article IF：4+ Iron metabolism and immune related gene markers predict clinical outcomes and molecular characteristics of triple negative breast cancer , A teacher asked questions , Say... In the article Fig.3 c,f,i How to draw the correlation diagram of risk factors ？ In fact, there are ready-made software packages , Super easy , Let's see ！！！

Preface

Risk map is probably one of the most commonly used graphs for tumor gene data analysis . We can draw the following two conclusions : Compare the prediction results of the model with the actual survival situation to observe whether the survival rate of the high-risk group is lower than that of the low-risk group , Whether the survival time is shorter than that of the low-risk group . The other is to compare the heat map and the scatter diagram , Look at the correlation between predictors and results . Risk factor correlation diagrams are common in cox Risk proportion model , It is commonly seen in the following figure, which shows the combination of three figures , It is shown by cox The proportion of high-risk and low-risk groups distinguished by the risk model 、 Time to live （ raw / die ） And gene expression of concern （ It is usually the genes involved in model construction ） Differences in distribution . Of course, when the model does not involve gene expression , Often, the risk factor correlation diagram only shows the upper two parts .

Software installation

In the absence of this ggrisk Before the bag , Drawing still requires that each diagram be drawn separately in the group diagram , There is now a ggrisk The software package is very convenient , Read in the data and you can get the result , and ABC The picture numbers are all there , Open not happy ？

if (!require(ggrisk)) install.packages("ggrisk")

library(ggrisk)
library(survival)
library(survminer)

data fetch

We use ggrisk Package built-in data set LIRI Liver cancer from Japan ICGC database , Including time 、 Events and four genes were tested .

ICGC Liver Data from Japan Description This data is a liver cancer data from Japan Data released in ICGC database (Link). It cantains time, event and four genes. An object of class data.frame with 232 rows and 6 columns.

data(LIRI)
head(LIRI)
##        time status      ANLN     CENPA     GPR182      BCO2
## 1 3.0410959      1  6.821354 3.0366550 0.00000000 0.2248344
## 2 2.5479452      0  1.073527 0.4654169 0.17895040 5.8924860
## 3 4.0273973      0  2.579530 0.7732644 0.06809686 3.5994330
## 4 0.1643836      1 14.183630 7.7239000 0.03749626 1.1194870
## 5 0.8219178      0  3.588320 2.3237710 0.16762610 2.6660850
## 6 2.8767123      0  6.079665 3.6674980 0.21788230 0.7691067
#  Construct multifactor using four genes cox The regression model ：

Example operation

1. structure COX Return to

We use four genes to construct multifactor cox The regression model ：

library(rms)
fit <- cph(Surv(time, status) ~ ANLN + CENPA + GPR182 + BCO2, LIRI)

2. Risk factor linkage map drawing

ggrisk(fit, cutoff.value = "median", cutoff.x = 145, cutoff.y = -0.8)

3. Adjust the risk score cutoff And position

ggrisk(fit,
       cutoff.value='cutoff', # Optional ‘median’, ’roc’ or ’cutoff’
       cutoff.x = 150,  #“cutoff” The horizontal position of the text
       cutoff.y = -1#“cutoff” The vertical position of the text
)
##    --
##    ==
##    Combination:  185
##    Combination:  43

4. Other parameter settings

Other parameter settings include color , label , Modification of drawing elements such as legend , Specific instructions can be used directly ?ggrisk Check usage .

ggrisk(fit,
       code.highrisk = 'High Risk',# High risk label , The default is  ’High’
       code.lowrisk = 'Low Risk', # Low risk label , The default is  ’Low’
       title.A.ylab='Risk Score', #A chart  y Axis name
       title.B.ylab='Survival Time(year)', #B chart  y Axis name , Pay attention to distinguish between year month day
       title.A.legend='Risk Group', #A Figure legend name
       title.B.legend='Status',     #B Figure legend name
       title.C.legend='Expression', #C Figure legend name
       relative_heights=c(0.1,0.1,0.01,0.15), #A、B、 Heat map annotation and heat map C The relative height of
       color.A=c(low='green',high='red'),#A The color of the midpoint in the figure
       color.B=c(code.0='green',code.1='red'), #B The color of the midpoint in the figure
       color.C=c(low='green',median='white',high='red'), #C The color of the heat map
       vjust.A.ylab=1, #A In the figure y Axis label to y Distance of coordinate axis , The default is 1
       vjust.B.ylab=2#B In the figure y Axis label to y Distance of coordinate axis , The default is 2
)

5. Assign heat maps to show genes

We can also specify which genes to display the heat map , as follows ：

ggrisk(fit, heatmap.genes = c("GPR182", "CENPA", "BCO2"))

6. Don't show the heat map

Show only the scatter chart , Don't show the heat map , Use it directly two_scatter() function , as follows ：

two_scatter(fit, cutoff.value = "median", cutoff.x = 142, cutoff.y = -0.5)

Is this very simple , Follow the Huanfeng gene tutorial , Cast a successful you , Remember to pay attention to us , If you find it difficult to make a letter , Come and contact Huanfeng gene ！！！

References:

1. Li XF, Fu WF, Zhang J, Song CG. An iron metabolism and immune related gene signature for the prediction of clinical outcome and molecular characteristics of triple-negative breast cancer. BMC Cancer. 2022;22(1):619. Published 2022 Jun 7. doi:10.1186/s12885-022-09679-x
