One 、Modules:Modules

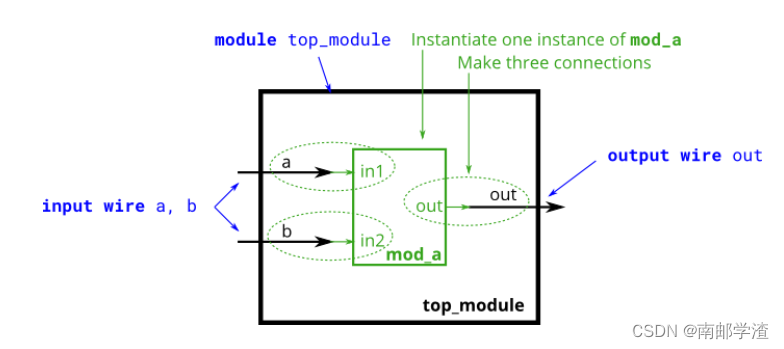

Instantiate the module inside the code , This is particularly common in top-level file code

• RTL Code

module top_module ( input a, input b, output out );

    mod_a instance2 (
        .out(out),
        .in1(a),
        .in2(b)
    );

endmodule

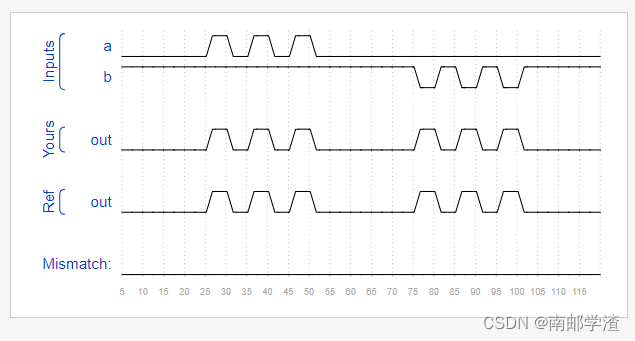

• Simulation oscillogram

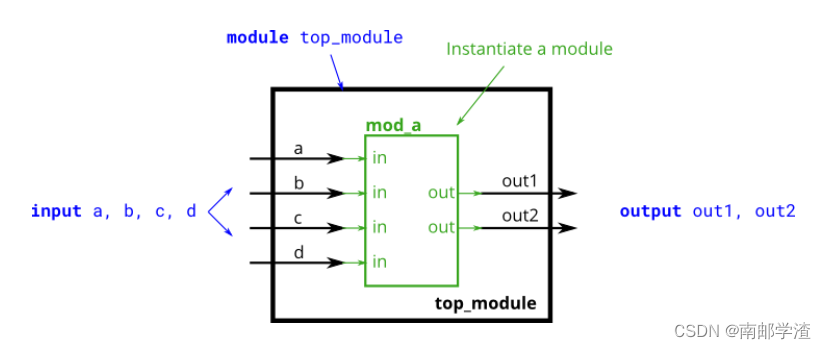

Two 、Module:conneting ports by position

• RTL Code

module top_module (
    input a,
    input b,
    input c,
    input d,
    output out1,
    output out2
);
    mod_a mod_a_inst( out1, out2, a, b, c, d );
endmodule

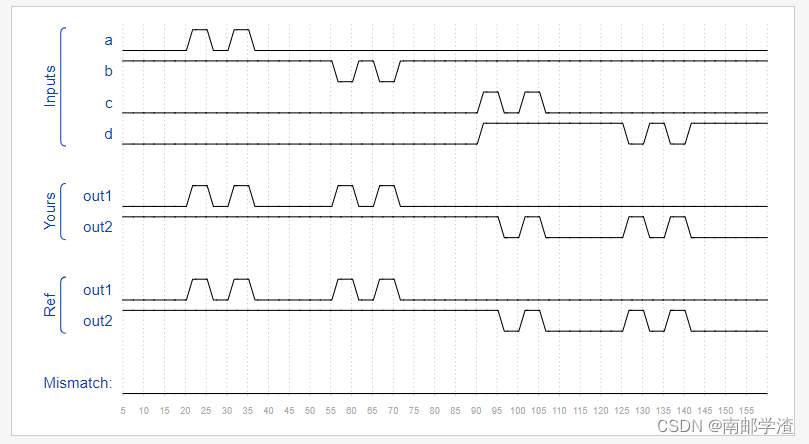

• Simulation oscillogram


3、 ... and 、Modules:Connecting ports by name

• RTL Code

module top_module (
    input a,
    input b,
    input c,
    input d,
    output out1,
    output out2
);
	mod_a mod_a_inst(
        .out1(out1),
        .out2(out2),
        .in1(a),
        .in2(b),
        .in3(c),
        .in4(d)
    );
endmodule

• Simulation oscillogram


Four 、Modules:Three modules

Instantiate three modules , Pay attention to the connection of ports

• RTL Code

module top_module ( input clk, input d, output q );

    wire q1,q2;

    my_dff my_dff_inst1(
        .clk(clk),
        .d(d),
        .q(q1)
    );

     my_dff my_dff_inst2(
        .clk(clk),
         .d(q1),
         .q(q2)
    );

     my_dff my_dff_inst3(
        .clk(clk),
         .d(q2),
        .q(q)
    );

endmodule

• Simulation oscillogram


5、 ... and 、Modules:Modules and vectors

Instantiate three modules , And use always Block and case Statement to select output

• RTL Code

module top_module (
    input clk,
    input [7:0] d,
    input [1:0] sel,
    output [7:0] q
);
    wire [7:0]q1;
    wire [7:0]q2;
    wire [7:0]q3;

    my_dff8 my_dff_inst1(
        .clk(clk),
        .d(d),
        .q(q1)
    );

     my_dff8 my_dff_inst2(
        .clk(clk),
         .d(q1),
         .q(q2)
    );

     my_dff8 my_dff_inst3(
        .clk(clk),
         .d(q2),
         .q(q3)
     );
    always @(*)
        case(sel)
            2'b00:q = d;
            2'b01:q = q1;
            2'b10:q = q2;
            2'b11:q = q3;
        endcase

endmodule

• Simulation oscillogram


6、 ... and 、Modules:Adder1

• RTL Code

module top_module(
    input [31:0] a,
    input [31:0] b,
    output [31:0] sum
);
    wire cin;
    wire [15:0]a1,a2,b1,b2;
    wire [15:0]sum1;
    wire [15:0]sum2;
    wire cout;

    assign a1 = a[15:0];
    assign a2 = a[31:16];
    assign b1 = b[15:0];
    assign b2 = b[31:16];

    add16 add16_inst1(
        .a(a1),
        .b(b1),
        .cin(cin),
        .sum(sum1),
        .cout(cout)
    );

    add16 add16_inst2(
        .a(a2),
        .b(b2),
        .cin(cout),
        .sum(sum2),
        .cout()
    );

    assign sum[15:0] = sum1;
    assign sum[31:16] = sum2;

endmodule

• Simulation oscillogram


7、 ... and 、Modules:Adder2

• RTL Code

module top_module (
    input [31:0] a,
    input [31:0] b,
    output [31:0] sum
);//
    wire [15:0]sum1;
    wire [15:0]sum2;
    wire cout;

    add16	addr16_inst1(
        .a(a[15:0]),
        .b(b[15:0]),
        .cin(1'b0),
        .sum(sum1),
        .cout(cout)
    );
    add16	addr16_inst2(
        .a(a[31:16]),
        .b(b[31:16]),
        .cin(cout),
        .sum(sum2),
        .cout()
    );

    assign sum = {
    sum2,sum1};

endmodule

module add1 ( input a, input b, input cin, output sum, output cout );
    assign sum = a^b^cin;
    assign cout = a&b | a&cin |b&cin;
endmodule

• Simulation oscillogram

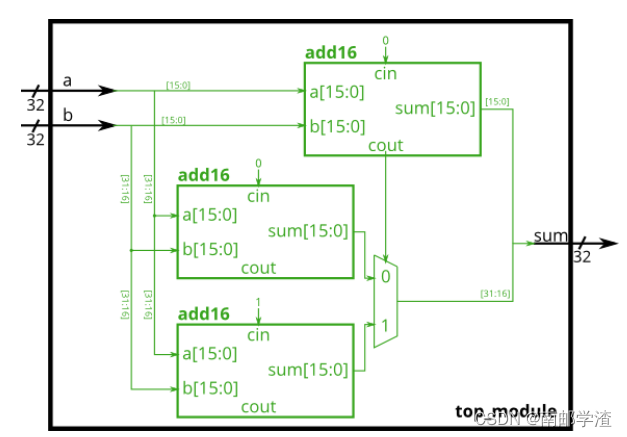

8、 ... and 、Modules:Carry-select addr

Selective output , use case Statements and two choice judgment statements are ok

• RTL Code

module top_module(
    input [31:0] a,
    input [31:0] b,
    output [31:0] sum
);
	wire cin;
    wire [15:0]sum1;
    wire [15:0]sum2;
    wire [15:0]sum3;
    wire cout;

    add16 add16_inst1(
        .a(a[15:0]),
        .b(b[15:0]),
        .cin(1'b0),
        .sum(sum1),
        .cout(cout)
    );

    add16 add16_inst2(
        .a(a[31:16]),
        .b(b[31:16]),
        .cin(1'b0),
        .sum(sum2),
        .cout()
    );

    add16 add16_inst3(
        .a(a[31:16]),
        .b(b[31:16]),
        .cin(1'b1),
        .sum(sum3),
        .cout()
    );

    assign sum = (!cout)? {
    sum2,sum1}:{
    sum3,sum1};

endmodule

• Simulation oscillogram


Nine 、Modules:Adder-subtractor

• RTL Code

module top_module(
    input [31:0] a,
    input [31:0] b,
    input sub,
    output [31:0] sum
);
	wire [15:0]sum1;
    wire [15:0]sum2;
    wire cout;
    wire [31:0]b_s;

    add16	addr16_inst1(
        .a(a[15:0]),
        .b(b_s[15:0]),
        .cin(sub),
        .sum(sum1),
        .cout(cout)
    );
    add16	addr16_inst2(
        .a(a[31:16]),
        .b(b_s[31:16]),
        .cin(cout),
        .sum(sum2),
        .cout()
    );

    assign b_s = b ^ {
    32{
    sub}};
    assign sum = {
    sum2,sum1};

endmodule

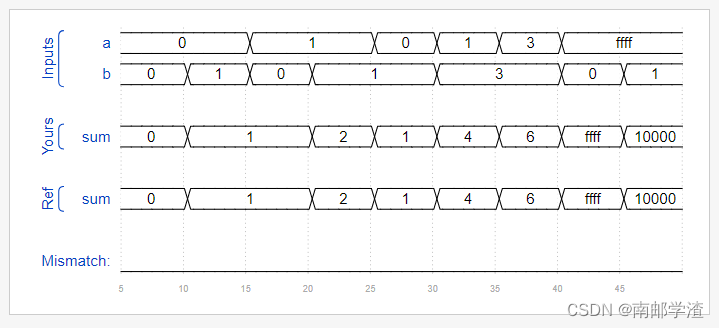

• Simulation oscillogram
