Baidu map, Gaode map, Tencent map Trinity map positioning development

1、 Development background
2、 development environment
2.1 Basic development environment
2.2 Baidu map environment
2.3 Gaode Map Environment
2.4 Tencent map environment
3、 Engineering configuration
3.1 add to jar package
3.2 add to so file
3.3 AndroidMainfest.xml To configure
4. Baidu map and positioning
5. Gaode map and positioning
6. Tencent map and positioning

1、 Development background
Because the company is developing Android projects , Positioning function is needed , So we need to choose a map with high positioning accuracy SDK. Now integrate the three most widely used map services in the market into one APP On , Realize Baidu map 、 Gould map 、 Tencent map comparison . Now the whole development steps are recorded .
2、 development environment
2.1 Basic development environment
AndroidStudio 3.4.2
Gradle Version:gradle-5.1.1-all.zip
Gradle plug-in:3.4.2
2.2 Baidu map environment
Baidu map developers open platform links ： Official website
Baidu basic map SDK Download address ： Download address
Baidu map positioning SDK Download address ： Download address
Baidu map development jar package ：BaiduLBS_Android.jar
Baidu map development so file ：
liblocSDK7b.so
libBaiduMapSDK_base_v5_2_1.so
libBaiduMapSDK_map_v5_2_1.so
2.3 Gaode Map Environment
Gaud open platform ： Official website
Gaode basic map SDK： Download address
Gaud map positioning SDK： Download address
Gaode map development jar package ：
AMap_Location_V4.7.0_20190708.jar
Android_Map3D_SDK_V6.9.2_20190709.jar
Gaode map development so file ： Unwanted
2.4 Tencent map environment
Tencent open platform ： Official website
Tencent basic map SDK： Download address
Tencent map positioning SDK： Download address
Tencent map development jar package ：
tencent-mapsdk-library-MainRelease-4.2.5.15519d1.jar
TencentLocationSdk_v7.1.7_r02c4bb5a_20190523_115148.jar
Tencent map development so file ：
libtencentloc.so
libtxmapengine.so
3、 Engineering configuration
3.1 add to jar package
Use AndroidStudio Create a new project . And then I'll download jar copy to libs Under the table of contents .

after File->Project Structure

Click on + Number , choice jar Dependency.

add to libs Under the jar package . after ,OK.
stay app In the catalog build.gradle You can see the added content in .

3.2 add to so file
stay main Under the table of contents , Create a new folder jniLibs.
Will download so File copy to jniLibs In the folder .

Here we are , The environment on which the development depends is ready .
3.3 AndroidMainfest.xml To configure

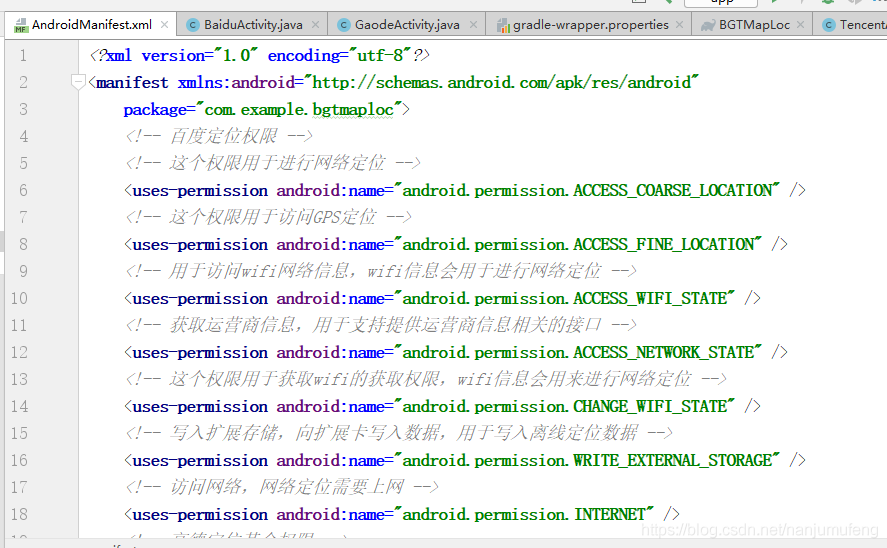

Map development requires the permission of the mobile phone , stay xml Add the following permissions to the file .

<!--  Baidu positioning Authority  -->
<!--  This permission is used for network location  -->
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<!--  This permission is used to access GPS location  -->
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<!--  Used to access the wifi Internet Information ,wifi Information will be used for network location  -->
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<!--  Access to operator information , It is used to support the interface related to providing operator information  -->
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<!--  This permission is used to obtain wifi Access to ,wifi Information will be used for network location  -->
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
<!--  Write to extended storage , Write data to expansion card , Used to write offline positioning data  -->
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<!--  Access the network , Network positioning needs Internet access  -->
<uses-permission android:name="android.permission.INTERNET" />
<!--  Gaode locates other permissions  -->
<!--  Used to read the current status of the phone  -->
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<!--  Write to extended storage , Write data to expansion card , Used to write cache location data  -->
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<!--  Used to apply for calling A-GPS modular  -->
<uses-permission android:name="android.permission.ACCESS_LOCATION_EXTRA_COMMANDS" />
<!--  It is used to apply for obtaining Bluetooth information for indoor positioning  -->
<uses-permission android:name="android.permission.BLUETOOTH" />
<uses-permission android:name="android.permission.BLUETOOTH_ADMIN" />
<!--  Tencent locates other permissions  -->
<!--  Changes in access to the Internet ,  Need some information for network location  -->
<uses-permission android:name="android.permission.CHANGE_NETWORK_STATE" />

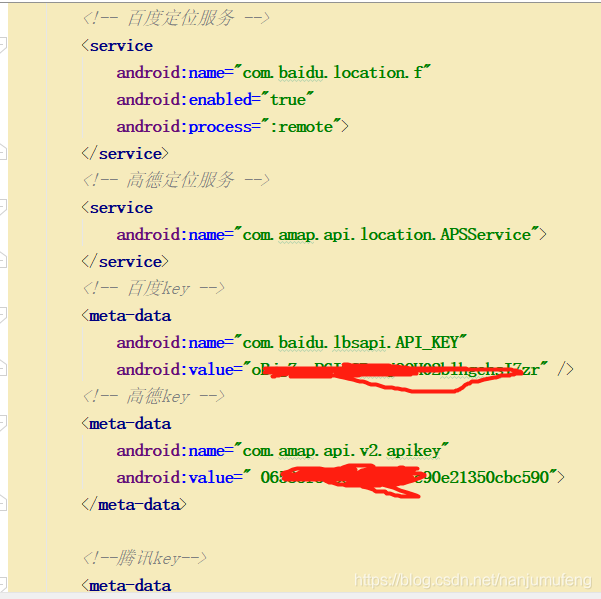

Add the development secret key applied in the three development platforms .

So far, the basic environment of development has been completed .
4. Baidu map and positioning
In Baidu map xml Add... To the file MapView Control

<com.baidu.mapapi.map.MapView
    android:id="@+id/bmapView"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:clickable="true"/>

stay BaiduActivity.java Code in .
Add compass 、 Scale and other controls

 public void mapSetting(){
        if(mBaiduMap==null){
            mBaiduMap=mBaiduMapView.getMap();
            UiSettings settings=mBaiduMap.getUiSettings();// Set the display positioning button , And you can click
            //aMap.setLocationSource(this);// Set the location monitoring , Realize here LocationSource Interface
            settings.setCompassEnabled(true);// Add compass
            mBaiduMap.setMyLocationEnabled(true);
        }
    }

Open the method of positioning

private void baiDuLocation() {
        // Locate the client of the service . The host program declares this class on the client , And call , Currently, it only supports starting in the main thread
        LocationClient locationClient = new LocationClient(getApplicationContext());
        // Statement LocationClient Class instance and configure positioning parameters
        LocationClientOption locationOption = new LocationClientOption();
        MyLocationListener myLocationListener = new MyLocationListener();
        // Register listening function
        locationClient.registerLocationListener(myLocationListener);
        // Optional , Default high precision , Set positioning mode , High precision , low power consumption , Device only
        locationOption.setLocationMode(LocationClientOption.LocationMode.Hight_Accuracy);
         // Optional , Default gcj02, Set the coordinate system of the returned positioning result , If used with Baidu map , Recommended setting is bd09ll;
        locationOption.setCoorType("bd09ll");
        // Optional , Default 0, That is to say, only once , Set the interval between sending continuous positioning requests to be greater than or equal to 1000ms That's what works
        locationOption.setScanSpan(1000);
         // Optional , Set whether address information is required , By default, you don't need
        locationOption.setIsNeedAddress(true);
        // Optional , Set whether address description is required
        locationOption.setIsNeedLocationDescribe(true);
        // Optional , Set whether the device direction result is required
        locationOption.setNeedDeviceDirect(false);
        // Optional , Default false, Set if gps When valid, follow 1S1 Secondary frequency output GPS result
        locationOption.setLocationNotify(true);
        // Optional , Default true, location SDK Inside is a SERVICE, And put it in an independent process , Is the setting stop Kill the process while you're in the process , Default not to kill
        locationOption.setIgnoreKillProcess(true);
        // Optional , Default false, Set whether location semantic results are required , Can be in BDLocation.getLocationDescribe Get in , The result is similar to “ It's near Tiananmen in Beijing ”
        locationOption.setIsNeedLocationDescribe(true);
        // Optional , Default false, Set whether you need POI result , Can be in BDLocation.getPoiList Get in
        locationOption.setIsNeedLocationPoiList(true);
        // Optional , Default false, Set whether to collect CRASH Information , Default collection
        locationOption.SetIgnoreCacheException(false);
        // Optional , Default false, Set whether to turn on Gps location
        locationOption.setOpenGps(true);
        // Optional , Default false, Whether altitude information is required for positioning , By default, you don't need , All versions are available except the basic positioning version
        locationOption.setIsNeedAltitude(false);
        // Set to turn on the automatic callback position mode , When the switch is turned on , During this period, just locate SDK If you detect a location change, you will actively call back to the developer , In this mode, developers no longer need to care about the positioning interval , location SDK If you find that the location changes, you will call back to the developer in time
        locationOption.setOpenAutoNotifyMode();
        // Set to turn on the automatic callback position mode , When the switch is turned on , During this period, just locate SDK If you detect a location change, you will actively call back to the developer
        locationOption.setOpenAutoNotifyMode(3000,1, LocationClientOption.LOC_SENSITIVITY_HIGHT);
        // The LocationClientOption object , adopt setLocOption Methods are passed to LocationClient Object use
        locationClient.setLocOption(locationOption);
        // Start positioning
        locationClient.start();
    }

How to move the positioning window

public void moveTo(double lat,double lon){
    LatLng cenpt=new LatLng(lat,lon);
    MapStatus mMapStatus=new MapStatus.Builder().target(cenpt)
            .zoom(17)
            .build();
    // Definition MapStatusUpdate object , To describe the changes that will take place in the map state
    MapStatusUpdate mMapStatusUpdate = MapStatusUpdateFactory.newMapStatus(mMapStatus);
    // Change the map state
    mBaiduMap.setMapStatus(mMapStatusUpdate);
    BitmapDescriptor bitmap= BitmapDescriptorFactory.fromResource(R.mipmap.ic_location);
    OverlayOptions option = new MarkerOptions()
            .position(cenpt)
            .icon(bitmap);
    mBaiduMap.addOverlay(option);
}

5. Gaode map and positioning
In Gaode map xml Add... To the file MapView

<com.amap.api.maps.MapView
    android:id="@+id/gaodemap"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
</com.amap.api.maps.MapView>

Set compass 、 Scale, etc

public void mapSetting(){
    if(aMap==null){
        aMap=mGaodeMaoView.getMap();
        UiSettings settings=aMap.getUiSettings();// Set the display positioning button , And you can click
        //aMap.setLocationSource(this);// Set the location monitoring , Realize here LocationSource Interface
        settings.setCompassEnabled(true);// Add compass
        settings.setMyLocationButtonEnabled(true);
        aMap.getCameraPosition();// Method can obtain the rotation angle of the map
        settings.setLogoPosition(AMapOptions.LOGO_POSITION_BOTTOM_LEFT);// Set up LOGO
        settings.setScaleControlsEnabled(true);// Set the scale
        aMap.setMyLocationEnabled(true);
    }
}

Open positioning method

private void gaoDeLocation() {
    mLocationClient=new AMapLocationClient(getApplicationContext());// Initialize positioning
    mLocationClient.setLocationListener(mLocationListener);// Set location callback listening
    mLocationOption=new AMapLocationClientOption();// initialization AMapLocationClientOption object             mLocationOption.setLocationMode(AMapLocationClientOption.AMapLocationMode.Hight_Accuracy);// Select positioning mode
    mLocationOption.setOnceLocation(false);// Get multiple positioning
    mLocationOption.setOnceLocationLatest(true);// obtain 3S The first positioning with the highest internal accuracy
    mLocationOption.setInterval(2000);// Set the positioning interval
    mLocationOption.setNeedAddress(true);// Set whether to return address information
    mLocationOption.setMockEnable(true);// Sets whether analog locations are allowed
    mLocationOption.setHttpTimeOut(20000);// Set positioning timeout
    mLocationClient.setLocationOption(mLocationOption);// Set the location parameters for the location client
    mLocationClient.startLocation();// Start positioning
}

Monitor callback methods

public AMapLocationListener mLocationListener=new AMapLocationListener() {
    @Override
    public void onLocationChanged(AMapLocation aMapLocation) {
        if(aMapLocation !=null){
            if(aMapLocation.getErrorCode()==0){
                aMapLocation.getLocationType();// Get the source of the current positioning result
                double lat=aMapLocation.getLatitude();// Get latitude
                double lon=aMapLocation.getLongitude();// Get longitude
                float accuracy=aMapLocation.getAccuracy();// Get accuracy information
                String adress=aMapLocation.getAddress();// Address , If option Set in isNeedAddress by false, There is no such result , There will be address information in the network location results ,GPS Location does not return address information .
                String country=aMapLocation.getCountry();// National Information
                String province=aMapLocation.getProvince();// Save information
                String city=aMapLocation.getCity();// City Information
                String district=aMapLocation.getDistrict();// City Information
                String street=aMapLocation.getStreet();// Street information
                String streetNum=aMapLocation.getStreetNum();// Street number information
                String cityCode=aMapLocation.getCityCode();// City Code
                String adCode=aMapLocation.getAdCode();// Area code
                String aoiName=aMapLocation.getAoiName();// Gets the of the current anchor point AOI Information
                String buildingId=aMapLocation.getBuildingId();// Get the current indoor location of the building Id
                String floor=aMapLocation.getFloor();// Get the floor of the current indoor location
                int gpsAccuracyStatus=aMapLocation.getGpsAccuracyStatus();// obtain GPS Current state
                SimpleDateFormat df = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");// Get location time
                Date date = new Date(aMapLocation.getTime());
                String dt=df.format(date);
                String add=adress+country+province+city+district+street+streetNum;
                loc_gaode.setText(" Gaud positioning : latitude :"+lat+"|"+" longitude :"+lon+"|"+" precision ："+accuracy+"|"+" Address information :"+add+" At present GPS state :"+gpsAccuracyStatus+"|"+" Location time :"+dt);
                if(isFirstLoc){
                    MyLocationStyle myLocationStyle=new MyLocationStyle();// Initialize the positioning small blue dot style
                    myLocationStyle.interval(1000);
                    myLocationStyle.showMyLocation(true);
                    aMap.setMyLocationStyle(myLocationStyle);// Set the location of the blue dot style
                    aMap.setMyLocationEnabled(true);// The setting indicates that the blue dot is displayed at startup
                    aMap.moveCamera(CameraUpdateFactory.zoomTo(zoomlevel));// Set zoom level
                    aMap.moveCamera(CameraUpdateFactory.changeLatLng(new LatLng(aMapLocation.getLatitude(),aMapLocation.getLongitude())));// Move the map to the anchor point
                    mListener.onLocationChanged(aMapLocation);// Click button , It can move the center of the map to the positioning point
                    isFirstLoc=false;
                }
            }else{
                // seek failed , It can be done by ErrCode The reason for the failure of code information determination
                Log.e("AmapError","Location Error,Error:"
                        +aMapLocation.getErrorCode()
                        +",errInfo:"+aMapLocation.getErrorInfo());
            }
        }

    }
};

6. Tencent map and positioning
On Tencent map xml Add... To the file MapView

<com.tencent.tencentmap.mapsdk.maps.MapView
    android:id="@+id/tencentMap"
    android:layout_width="match_parent"
    android:layout_height="match_parent"/>

Add compass 、 Scale and other controls

public void userSetting(){
    tencentMap.setMapStyle(TencentMap.MAP_TYPE_NORMAL);// Set the type of display map ： Ordinary 、 satellite 、 Live traffic
    UiSettings mysetting=tencentMap.getUiSettings();
    mysetting.setZoomControlsEnabled(true);// Set zoom in and zoom out
    mysetting.setCompassEnabled(true);// Turn on the compass
    tencentMap.setMyLocationEnabled(true);
}

Turn on Positioning

public void tencentLocation(){
    TencentLocationRequest request = TencentLocationRequest.create();
    request.setInterval(1000);
    request.setRequestLevel(4);
    request.setAllowCache(true);
    Context context=this;
    TencentLocationListener tencentLocationListener=this;
    TencentLocationManager locationManager=TencentLocationManager.getInstance(context);
    int error=locationManager.requestLocationUpdates(request,tencentLocationListener);
    if(error==0){
        Log.v("this"," Registration of location listener succeeded ！");
    }else {
        Log.v("this"," Failed to register location listener ！");
    }
}

Callback during location update

@Override
public void onLocationChanged(TencentLocation tencentLocation, int i, String s) {
    if (TencentLocation.ERROR_OK == i) {
        //  Positioning successful
        if(tencentLocation!=null){
            double lat=tencentLocation.getLatitude();
            double lon=tencentLocation.getLongitude();
            double accuracy=tencentLocation.getAccuracy();// precision
            String nation=tencentLocation.getNation();// Country
            String province=tencentLocation.getProvince();// Province
            String city =tencentLocation.getCity();// City
            String district=tencentLocation.getDistrict();// District
            String town=tencentLocation.getTown();// The town of
            String street=tencentLocation.getStreet();// The street
            String streetNo=tencentLocation.getStreetNo();// House number
            String add=nation+province+city+district+town+street+streetNo;
            loc_tencent.setText(" Tencent positioning ："+" latitude ："+lat+"|"+" longitude ："+lon+"|"
                    +" precision ："+accuracy+"|"+" Address information :"+add);
            moveTo(lat,lon,town,add);
        }
    } else {
        //  seek failed
        Log.v("this", " seek failed ！");
    }
}

Locate the center and move the window

public void moveTo(double lat,double lon,String street,String add){
    LatLng centPosition = new LatLng(lat,lon);
    CameraUpdate cameraSigma=CameraUpdateFactory.newCameraPosition(new CameraPosition(
            centPosition,// New center point coordinates
            17,// New zoom level
            0,// Pitch angle 0~45°（ The vertical map is 0）
            0// Yaw angle 0~360°（ Due north 0）
    ));
    final Marker marker = tencentMap.addMarker(new MarkerOptions().
            position(centPosition).
            title(street).
            snippet(add));
    marker.setIcon(BitmapDescriptorFactory.fromResource(R.mipmap.ic_location));// Create icons
    tencentMap.moveCamera(cameraSigma);
}

7.DEMO example

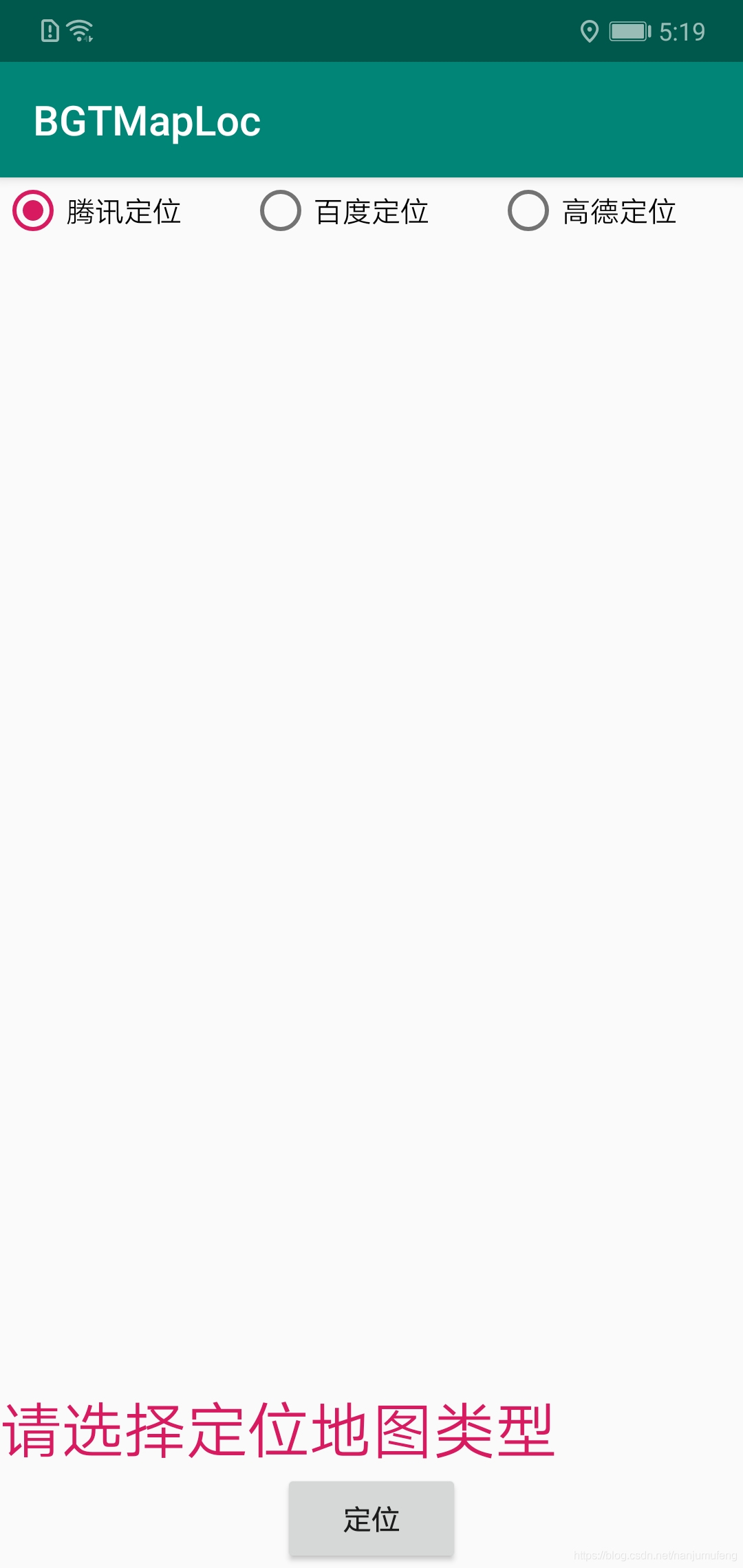

Screenshot of effect display



Interested students , Sure Click here to download Source code .
