Preface

Recently, I learned from the tutorial of Bai Yue Heiyu pyside2, Learn the embedded browser part , His demo The code can only be added when clicking the link tab Page function . So what I learned is just for him demo Code modification , Make it more like a browser .

One 、 Add functionality

1、 Add one url Input box , After entering the website address, click enter to jump to the corresponding page
2、 Every tab Added a close button

Two 、 Realization

One 、 Interface and function code

Interface code , First add an input box control and tab Control , In order for the control to follow The page zooms in and out , So the page should be set to vertical layout ( Upper and lower layout )

class MainWindow(QMainWindow):
	#  initialization
    def __init__(self):
        super(MainWindow, self).__init__()
        #  Set the initialization size of the window
        self.resize(1000, 800)

        self.centralwidget = QWidget(self)
        self.centralwidget.setObjectName("centralwidget")

        #  Setting up layout , Add to the overall layout
        self.verticalLayout = QVBoxLayout(self.centralwidget)
        self.verticalLayout.setObjectName("verticalLayout")

        #  Web page input box control
        self.web_url_edt = QLineEdit(self)
        self.web_url_edt.setObjectName("web_url_edt")
        #  Add a web page input box to the layout
        self.verticalLayout.addWidget(self.web_url_edt)

        # tab Control
        self.web_tabWidget = QTabWidget(self)
        # tab Add close button
        self.web_tabWidget.setTabsClosable(True)
        self.web_tabWidget.setObjectName("web_tabWidget")
        # tab Box is added to the layout
        self.verticalLayout.addWidget(self.web_tabWidget)

        #  Set the overall layout of the form
        self.setCentralWidget(self.centralwidget)

Here we will use pyside2 Medium QWebEnginePage To visit the website , The kernel is the same as Google browser , Create a class to specifically access websites and create new windows

class HtmlView(QWebEngineView):
	#  initialization
    def __init__(self, *args, **kwargs):
        #  Initializes the parent class
        QWebEngineView.__init__(self, *args, **kwargs)
        #  Call the parent class QObject Of parent() Method
        self.tab = self.parent()

	#  Visit the website and create a window
    def createWindow(self, windowType):
        if windowType == QWebEnginePage.WebBrowserTab:
            webView = HtmlView(self.tab)
            ix = self.tab.addTab(webView, " Loading  ...")
            self.tab.setCurrentIndex(ix)
            return webView
        return QWebEngineView.createWindow(self, windowType)

For a better user experience , So create a web page first when initializing , The complete code is as follows
tabedBrowserTab.py

from PySide2.QtCore import *
from PySide2.QtWidgets import *
from PySide2.QtGui import *
from PySide2.QtWebEngineWidgets import *


class MainWindow(QMainWindow):
    def __init__(self):
        super(MainWindow, self).__init__()
        #  Set the initialization size of the window
        self.resize(1000, 800)

        self.centralwidget = QWidget(self)
        self.centralwidget.setObjectName("centralwidget")

        #  Setting up layout , Add to the overall layout
        self.verticalLayout = QVBoxLayout(self.centralwidget)
        self.verticalLayout.setObjectName("verticalLayout")

        #  Web page input box control
        self.web_url_edt = QLineEdit(self)
        self.web_url_edt.setObjectName("web_url_edt")
        #  Add a web page input box to the layout
        self.verticalLayout.addWidget(self.web_url_edt)

        # tab Control
        self.web_tabWidget = QTabWidget(self)
        # tab Add close button
        self.web_tabWidget.setTabsClosable(True)
        self.web_tabWidget.setObjectName("web_tabWidget")
        # tab Box is added to the layout
        self.verticalLayout.addWidget(self.web_tabWidget)

        #  Set the overall layout of the form
        self.setCentralWidget(self.centralwidget)

        #  encapsulation url
        self.url = QUrl("https://www.baidu.com")
        #  Instantiation HtmlView
        view = HtmlView(self.web_tabWidget)
        #  Call the parent class QWebEngineView Of load Method loading url
        view.load(self.url)
        #  Call the superclass method QTabWidget Of addTab Method to add a new tab page
        ix = self.web_tabWidget.addTab(view, "https://www.baidu.com")

        self.web_url_edt.returnPressed.connect(self.to_web)			#  Listen for the enter button click event in the input box , Click to execute to_web function
        self.web_tabWidget.tabCloseRequested.connect(self.close_tab)    #  Listen for the close button click event , Click to execute close_tab function

	#  Create a new tab Page and visit
    def to_web(self):
        self.url = QUrl("https://" + self.web_url_edt.text())
        #  Instantiation HtmlView
        view = HtmlView(self.web_tabWidget)
        #  Call the parent class QWebEngineView Of load Method loading url
        view.load(self.url)
        #  Call the superclass method QTabWidget Of addTab Method to add a new tab page
        ix = self.web_tabWidget.addTab(view, "https://" + self.web_url_edt.text())

        self.web_tabWidget.setCurrentIndex(ix)  #  Jump to the current tab page

	#  close tab page
    def close_tab(self, index):
        self.web_tabWidget.removeTab(index)     #  close tab page


class HtmlView(QWebEngineView):
    def __init__(self, *args, **kwargs):
        #  Initializes the parent class
        QWebEngineView.__init__(self, *args, **kwargs)
        #  Call the parent class QObject Of parent() Method
        self.tab = self.parent()

    def createWindow(self, windowType):
        if windowType == QWebEnginePage.WebBrowserTab:
            webView = HtmlView(self.tab)
            ix = self.tab.addTab(webView, " Loading  ...")
            self.tab.setCurrentIndex(ix)
            return webView
        return QWebEngineView.createWindow(self, windowType)


if __name__ == "__main__":
    import sys
    app = QApplication(sys.argv)
    #  Add an icon to the window
    app.setWindowIcon(QIcon('network.ico'))
    # main = TabWidget()
    main = MainWindow()
    main.show()
    sys.exit(app.exec_())

Two 、 Running results

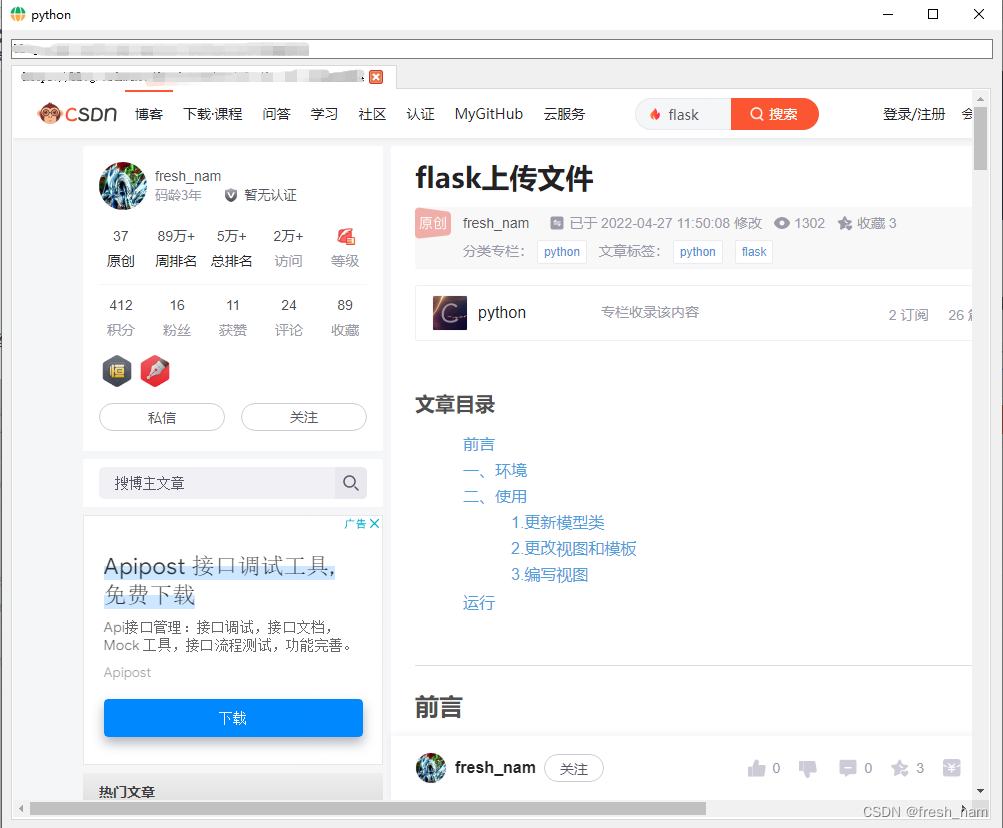

Visit your blog address , It can be displayed normally like a browser ( Don't write the URL https://, The code has been automatically supplemented )

Clicking the link will also jump to a new page

3、 ... and 、 problem

When you click on a link on a web page , Because the link cannot be extracted url, The title can only be loading , If there is a solution, please leave a message in the comment area .
