Download method of European Meteorological Center data (ERA)

2022-07-20 19:00:00 【A-Chin】

List of articles

1 Get into ERA website
2 land
3 Select data type

1 Get into ERA website

ERA website ：http://apps.ecmwf.int/datasets/
Insert picture description here

2 land

Insert picture description here

3 Select data type

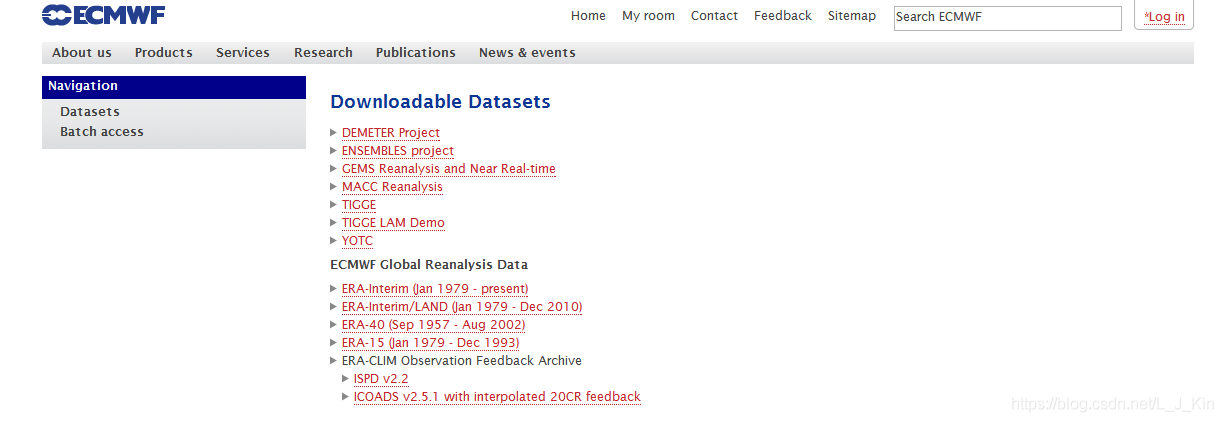

Go back to the home page , General choice ERA-Interim (Jan 1979 - present) , This is a ERA A set of newly developed materials , The data is complete , The update speed is also very fast . Of course, if you have other needs, you can also look at other data types . such as ERA-40 (Sep 1957 - Aug 2002) , This advantage is the heavy variety of data 1957 Year begins , But only until 2002 year . And there are not as many data variables as the former , The accuracy is not as high as the former , So it is suggested to use the former . Get into ERA-Interim (Jan 1979 - present) The interface is as follows ：
Insert picture description here

3.1 Click on the top left Type of level, ERA Interim Fields

Insert picture description here

3.2 ERA Interim Fields

ERA Interim Fields Choose... According to your own needs ,daily There are four times a day （ Time is universal time ）.

3.2.1 Type of level -> pressure levels

Type of level choose pressure levels( Multi tier data , Like the wind , Pressure , Temperature etc. ）,Surface levels（ Surface variable , There are quite a few variables , Including commonly used MSLP,SST etc. ）.
Insert picture description here

3.2.2 Type of level -> Surface levels and daily

Insert picture description here
step=0 It's real-time data , The latter should be all forecast data , I understand it according to the explanation of his website , If anyone has different opinions , Welcome to correct .

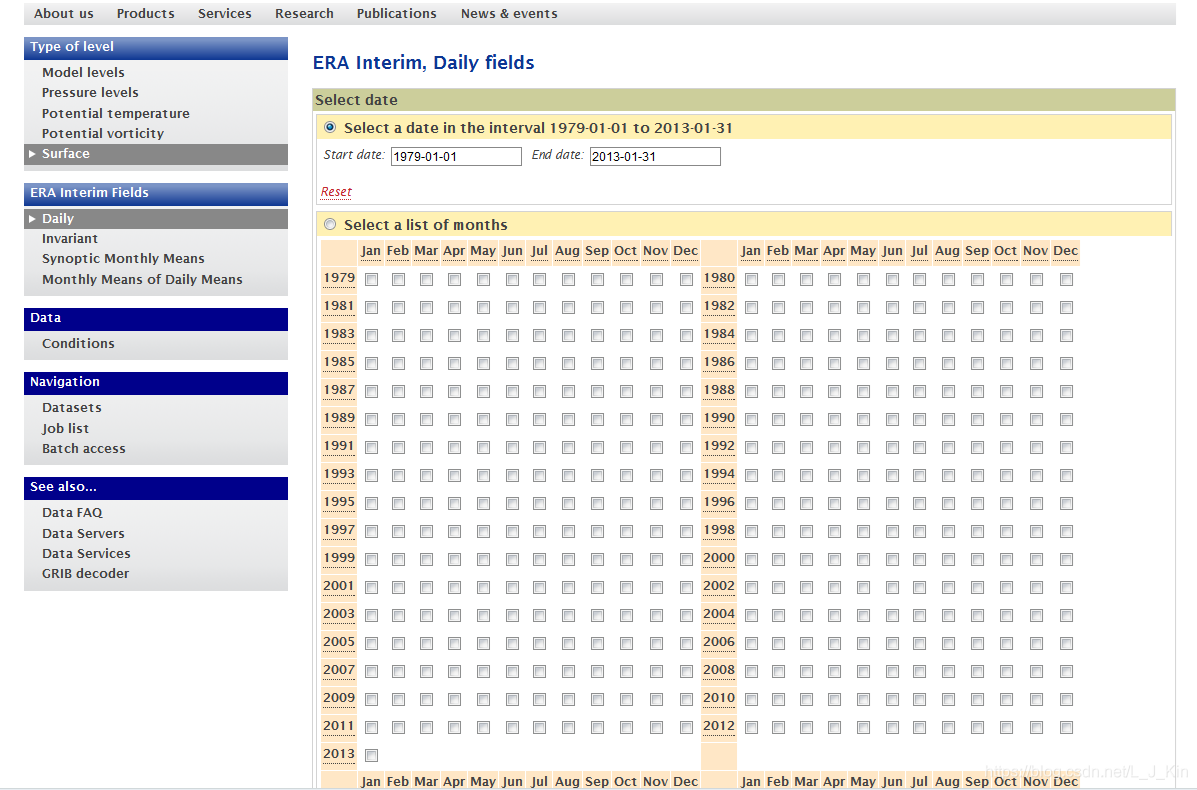

3.2.3 Type of level -> pressure levels and daily

You can check the level you need , Variables and time .（ Be careful not to choose too many at a time , Otherwise, the following data cannot be generated , The data generated at one time should be less than 2G）
Insert picture description here

3.3 Select the data format and download

Insert picture description here

Then enter the following interface ,Area: The default is global , Other options for you to see .Grid It's quite advanced , The highest accuracy is 0.25*0.25

Insert picture description here

After selecting, click retrieve now

Insert picture description here

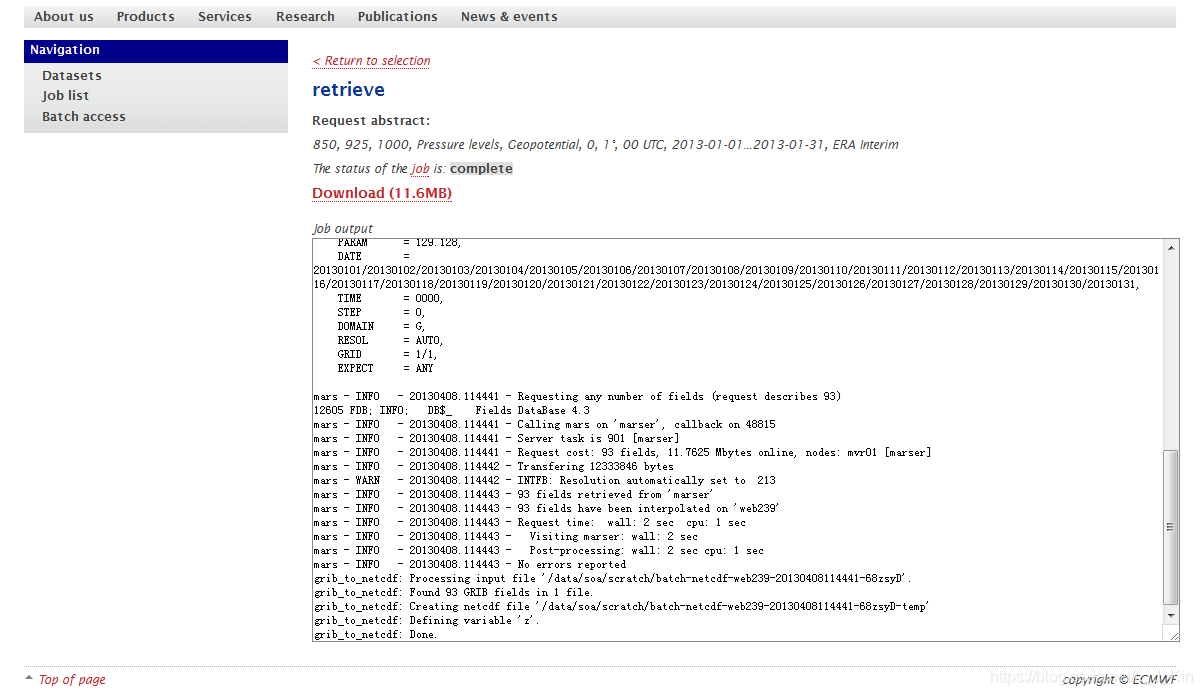

The running time is proportional to the size of the selected data , Finally, the following interface appears , Click on download,（ Remember not to use download tools such as Xunlei ）

Insert picture description here
