Jenkins linked flybook pushes the test report notification message in the form of signature verification

1、 obtain anonymous letter Bot webhook and secret.

2、python Script , Reference resources @Song_Estelle  The article , Here we rewrite part of the code , Send notification by signature verification （ Remember to install related dependencies ）.

#! /usr/bin/python3
#-*- encoding: utf-8 -*-

import sys
import requests
import time
import hmac
import base64
import hashlib
from datetime import datetime


class JenkinsInfo(object):
    def __init__(self, feis_webhook, feis_secret, job_url, job_name, build_number):
        self.feis_webhook = feis_webhook
        self.feis_secret = feis_secret
        self.currenttime = time.strftime("%Y-%m-%d %H:%M:%S", time.localtime())
        self.timestamp = int(time.time())    # datetime.timestamp(datetime.now())
        self.JOB_URL = job_url
        self.JOB_NAME = job_name
        self.BUILD_NUMBER = build_number

    def gen_sign(self):
        #  Splicing timestamp  and  secret
        string_to_sign = '{}\n{}'.format(self.timestamp, self.feis_secret)
        hmac_code = hmac.new(string_to_sign.encode("utf-8"), digestmod=hashlib.sha256).digest()

        #  Proceed with the result base64 Handle
        sign = base64.b64encode(hmac_code).decode('utf-8')
        return sign

    def feis_post(self):
        method = 'post'
        headers = {
            'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/70.0.3538.25 Safari/537.36 Core/1.70.3775.400 QQBrowser/10.6.4209.400',
            'Content-Type': 'application/json'
        }
        json = {
            "timestamp": self.timestamp,
            "sign": self.gen_sign(),
            "msg_type": "interactive",
            "card": {
                "config": {
                    "wide_screen_mode": True,
                    "enable_forward": True
                },
                "elements": [{
                    "tag": "div",
                    "text": {
                        "content": " Project name ：" + JOB_NAME + "\n Build number ： The first " + BUILD_NUMBER + " Time to build \n The elapsed time ：" + self.currenttime,
                        "tag": "lark_md"
                    }
                }, {
                    "actions": [{
                        "tag": "button",
                        "text": {
                            "content": " Check the report ",
                            "tag": "lark_md"
                        },
                        "url": JOB_URL,
                        "type": "default",
                        "value": {}
                    }],
                    "tag": "action"
                }],
                "header": {
                    "title": {
                        "content": JOB_NAME + "  Build reports ",
                        "tag": "plain_text"
                    }
                }
            }
        }
        res = requests.request(method=method, url=self.feis_webhook, headers=headers, json=json)
        print(res, "=======>>", res.json())


if __name__ == "__main__":
    feis_webhook = r"https://open.feishu.cn/open-apis/bot/v2/hook/"
    feis_secret = "YPkEsfe"

    JOB_URL = sys.argv[1]
    JOB_NAME = sys.argv[2]
    BUILD_NUMBER = sys.argv[3]

    # JOB_URL = JOB_NAME = BUILD_NUMBER = "123"

    t = JenkinsInfo(feis_webhook, feis_secret, JOB_URL, JOB_NAME, BUILD_NUMBER)
    t.feis_post()

 3、Jenkins Add configuration to the project

In the build in the configuration Add a line of command

python3 /usr/local/jenkinsInfo/feishutongzhi.py $JOB_URL $JOB_NAME $BUILD_NUMBER

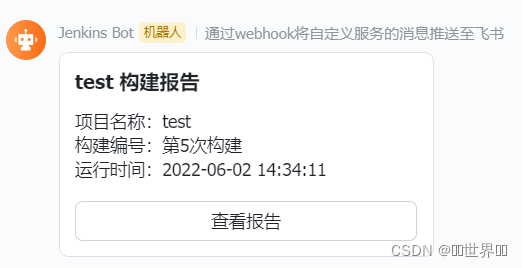

 4、 verification

Click on “ Check the report ” You can jump to Jenkins
