Create k26 SOM minimum system

2022-07-21 05:13:00 【Hard code Nong Er Mao brother】

This article describes how to use K26 SOM Create a new minimum system , And how to solve the problems that often appear in the project .

newly build Vivado engineering

choice K26 SOM Veneer

stay Vivado New construction in China , Choose board Medium Kria K26C SOM.

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-lFZlQ5OM-1657955566261)(./pic/1.png)]

newly build bd file

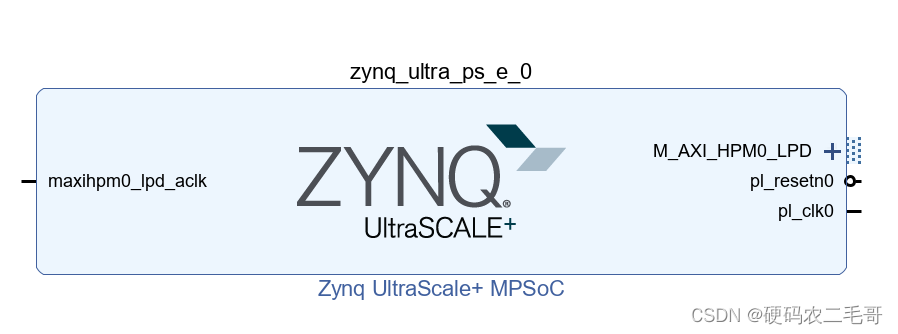

In the new bd Add... To the file Zynq UltraScale+MPSoC

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-vAbrlluG-1657955566262)(./pic/2.png)]

At this time Zynq UltraScale+MPSoC The configuration information in is not SOM Board information .

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-M3o28blT-1657955566262)(./pic/3.png)]

function Run Block Automation

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-i4Qppi7d-1657955566263)(./pic/4.png)]

Check... By default Apply Board Preset, After running Zynq UltraScale+MPSoC Import K26 SOM To configure , This is an important step .

Complete the connection shown in the figure below ：

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-BScHp1EP-1657955566264)(./pic/5.png)]

Join in UART

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-PYJl3zxV-1657955566266)(./pic/9.png)]

Create HDL Wrapper

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-cxRqYrxs-1657955566268)(./pic/6.png)]

Generate Bitstream

Compiler Engineering , Generate bit file .

newly build Vitis engineering

Export Hardware Platform

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-Bm4eg9DL-1657955566269)(./pic/7.png)]

Lauch Vitis IDE

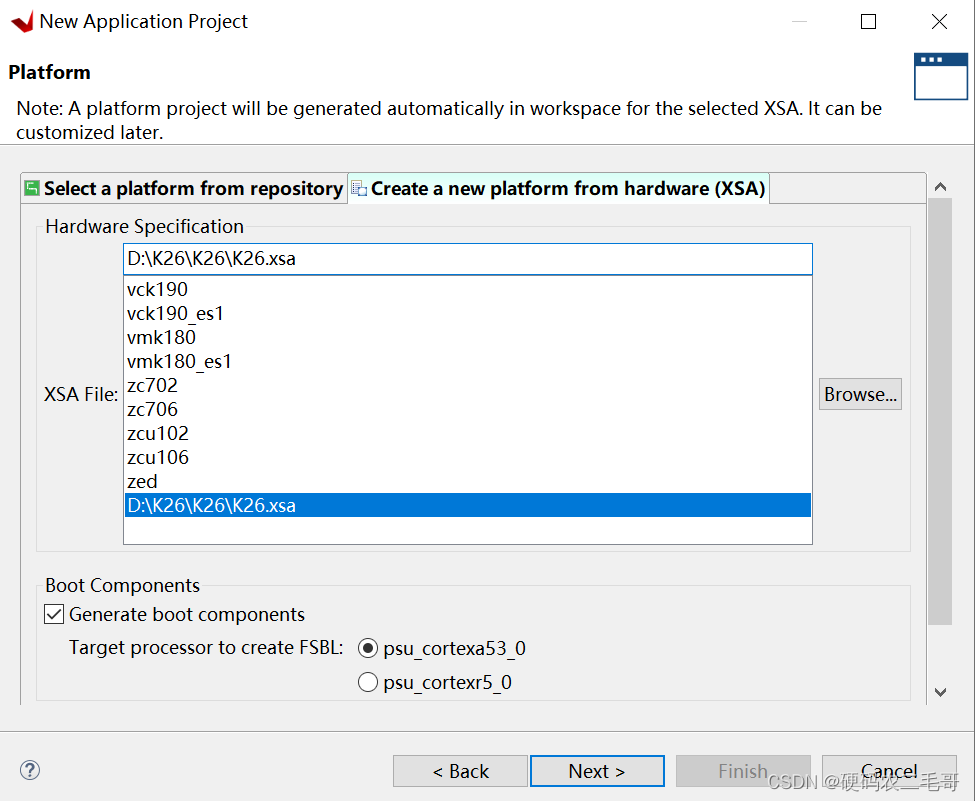

New project

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-qCdOsXQm-1657955566269)(./pic/8.png)]

Vitis Project path change

When the project file path changes , open Vitis You need to re select the project path . After entering the project , Need to choose again Platform

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-jBzWRBz9-1657955566269)(./pic/11.png)]

Click on Manage

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-nQ7luMZ1-1657955566270)(./pic/12.png)]

choice xpfm file location

[ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-KwYtnCpB-1657955566270)(./pic/13.png)]
