Hi, Hello everyone .Appium combination Pytest Develop App When automating tests , Do you know how to run use cases automatically and execute concurrently ？ Don't talk too much , Go straight to the code , After all, it's not easy for everyone to see , So attach the code , Interested in their own research , To get the source code of the framework, you can go to ITester Software testing official account background reply “APP frame ”.

One 、 Project introduction

1、 Project environment

The project environment is as follows ：

• Python
• pytest
• allure
• appium
• node
• Night God Simulator

2、 Project environment

The screenshot of the project structure is as follows ：

Project structure description ：

• base： The basic method of storage ;
• cases： Store test cases ;
• common： Some common methods ;
• config： Store the configuration file ;
• log： Log files ;
• image： Store test screenshots ;
• Page： The location element of the test ;
• report： Test report ;
• pytest.ini：pytest Startup profile ;
• requirements.txt： What needs to be installed py modular ;
• run.py： Run the file .

Two 、 Project implementation

1、base_page.py
base/base_page.py： Encapsulate some methods , Element Click 、 Input 、 lookup , There are also some public methods that you need to encapsulate here .

2、check_port.py

common/check_port.py： Check whether the port is occupied , If occupied, release .

#！/usr/bin/python3
# -*- coding:utf-8 -*-
# @Software:PyCharm
# @File : check_port.py

import socket
import os

def check_port(host, port):
    """ Detect whether the specified port is occupied """
    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)  #  establish socket object
    try:
        s.connect((host, port))
        s.shutdown(2)
    except OSError:
        print('port %s is available! ' % port)
        return True
    else:
        print('port %s already be in use !' % port)
        return False


def release_port(port):
    """ Release the specified port """
    cmd_find = 'netstat -aon | findstr {}'.format(port)  #  Find the... Of the corresponding port pid
    print(cmd_find)

    #  Returns the result after the command is executed
    result = os.popen(cmd_find).read()
    print(result)

    if str(port) and 'LISTENING' in result:
        #  Get the corresponding port pid process
        i = result.index('LISTENING')
        start = i + len('LISTENING') + 7
        end = result.index('\n')
        pid = result[start:end]
        cmd_kill = 'taskkill -f -pid %s' % pid  #  Close the of the occupied port pid
        print(cmd_kill)
        os.popen(cmd_kill)
    else:
        print('port %s is available !' % port)

if __name__ == '__main__':
    host = '127.0.0.1'
    port = 4723
    if not check_port(host, port):
        print(" Port occupied ")
        release_port(port)

3、get_main_js.py

common/get_main_js.py: obtain main.js, Use main.js start-up appium server.

#！/usr/bin/python3
# -*- coding:utf-8 -*-
# @Software:PyCharm
# @File : get_main_js.py

import subprocess
from config.root_config import LOG_DIR

"""
 obtain main.js The location of , Use main.js start-up appium server
"""

class MainJs(object):
    """ Get started appium Service main.js command """

    def __init__(self, cmd: str = "where main.js"):
        self.cmd = cmd

    def get_cmd_result(self):
        p = subprocess.Popen(self.cmd,
                             stdin=subprocess.PIPE,
                             stdout=subprocess.PIPE,
                             stderr=subprocess.PIPE,
                             shell=True)
        with open(LOG_DIR + "/" + "cmd.txt", "w", encoding="utf-8") as f:
            f.write(p.stdout.read().decode("gbk"))
        with open(LOG_DIR + "/" + "cmd.txt", "r", encoding="utf-8") as f:
            cmd_result = f.read().strip("\n")
        return cmd_result

if __name__ == '__main__':
    main = MainJs("where main.js")
    print(main.get_cmd_result())

4、desired_caps.yaml

config/desired_caps.yml：app Automation test project related yaml.

5、root_config.py

config/root_config.py： Project file and path configuration information .

6、conftest.py

conftest.py：

#！/usr/bin/python3
# -*- coding:utf-8 -*-
# @Software:PyCharm
# @File : root_config.py

from drivers.app_driver import BaseDriver
import pytest
import time

from common.check_port import release_port
base_driver = None

def pytest_addoption(parser):
    parser.addoption("--cmdopt", action="store", default="device_info", help=None)

@pytest.fixture(scope="session")
def cmd_opt(request):
    return request.config.getoption("--cmdopt")

@pytest.fixture(scope="session")
def common_driver(cmd_opt):
    cmd_opt = eval(cmd_opt)
    print("cmd_opt", cmd_opt)
    global base_driver
    base_driver = BaseDriver(cmd_opt)
    time.sleep(1)
    driver = base_driver.get_base_driver()
    yield driver
    # driver.close_app()
    driver.quit()
    release_port(cmd_opt["server_port"])

7、test_concurrent.py

cases/test_concurrent.py： Draw the password and unlock .

#！/usr/bin/python3
# -*- coding:utf-8 -*-
# @Software:PyCharm
# @File : test_concurrent.py

import pytest
import time
from appium.webdriver.common.mobileby import MobileBy
from base.base_page import Base

class TestGesture(object):
    def test_gesture_password(self, common_driver):
        """ Simply do a process of drawing gesture password """
        driver = common_driver
        base = Base(driver)
        base.skip_welcome_page('left', 3)  #  Sliding screen
        time.sleep(3)  #  To see the effect of the slide screen
        driver.start_activity(app_package="com.xxzb.fenwoo",
                              app_activity=".activity.user.CreateGesturePwdActivity")
        commit_btn = (MobileBy.ID, 'com.xxzb.fenwoo:id/right_btn')
        password_gesture = (MobileBy.ID, 'com.xxzb.fenwoo:id/gesturepwd_create_lockview')
        element_commit = base.find_element(commit_btn)
        element_commit.click()
        password_element = base.find_element(password_gesture)
        base.gesture_password(password_element, 1, 2, 3, 6, 5, 4, 7, 8, 9)
        time.sleep(5)  #  See the effect

if __name__ == '__main__':
    pytest.main()

8、run_case.py

run_case.py： Run the file .

#！/usr/bin/python3
# -*- coding:utf-8 -*-
# @Software:PyCharm
# @File : run_case.py

import pytest
import os
from multiprocessing import Pool

device_infos = [
    {
        "platform_version": "5.1.1",
        "server_port": "4723",
        "device_port": "62001",
    },
    {
        "platform_version": "5.1.1",
        "server_port": "4725",
        "device_port": "62025",
    }
]

def main(device_info):
    pytest.main(["--cmdopt={}".format(device_info),
                 "--alluredir", "./allure-results", "-vs"])
    os.system("allure generate allure-results -o allure-report --clean")

if __name__ == "__main__":
    with Pool(2) as pool:
        pool.map(main, device_infos)
        pool.close()
        pool.join()

3、 ... and 、 Project summary

1、 Project effect

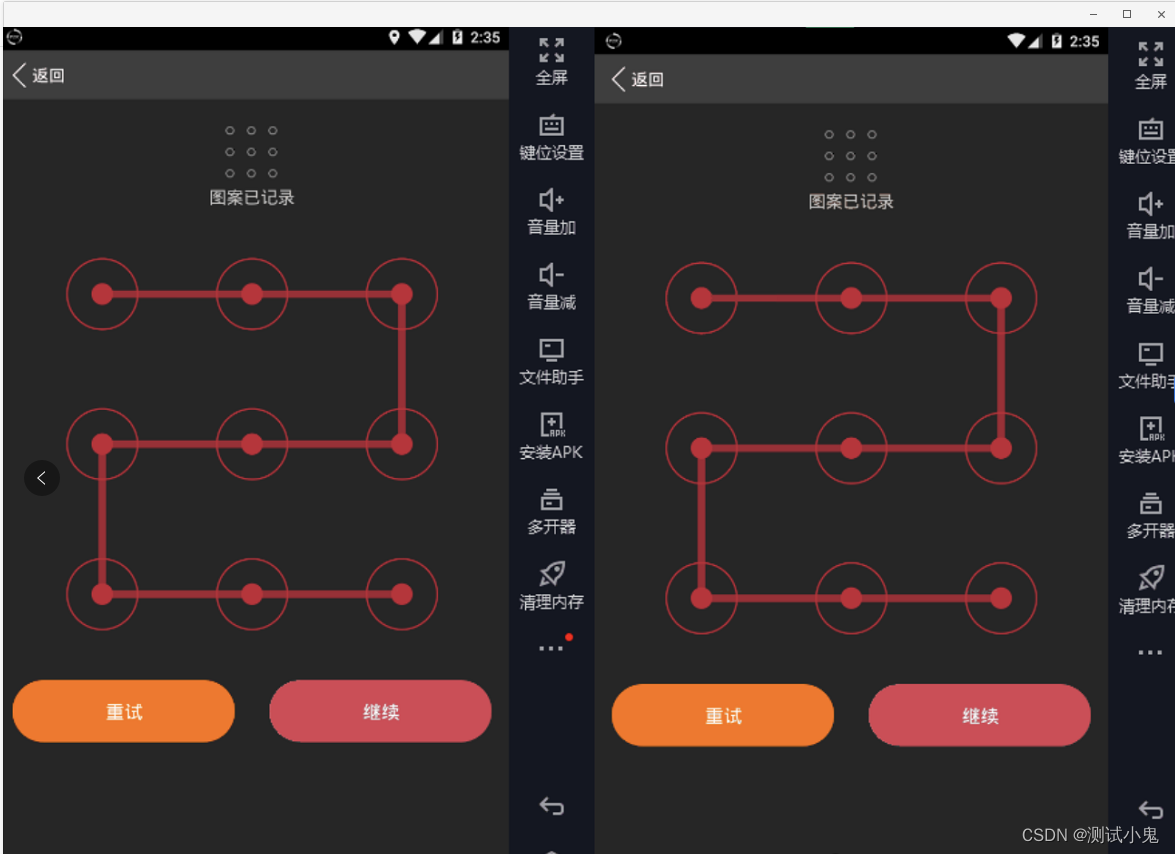

As shown below , Finally, start APP, Draw unlock pattern , Get into APP Home page .

2、 Project ideas

Pytest As a unit testing framework , To complete the App Test automation requires Pytest and Appium Integration , Simultaneous utilization Allure Complete the output of test report . To write App The steps of automated testing are as follows :

1） Design to be tested APP Automated test cases for ;

2） newly build app Test project ;

3） To configure conftestpy Documents, etc. ;

4） Write the whole app Test case run file ;

5） Turn the designed automated test cases into scripts ;

3、 Project summary

The above is only a preliminary implementation of the requirement of multi mobile phone concurrency , It is hoped that more specifications of the project need to be introduced PO Design patterns , secondly base_page.py You can also encapsulate more methods , Only a few methods are encapsulated in the above code , If this concurrency is really introduced into the project, it certainly needs to be improved , Interested partners can try .
