Required documents

Assembly drawings

BOM Table file

Gerber file

Document arrangement

Output of assembly drawing

The output of assembly documents is mainly used for the welding of components , From the output file diagram, you can know where to place what components .

Method 1 ：

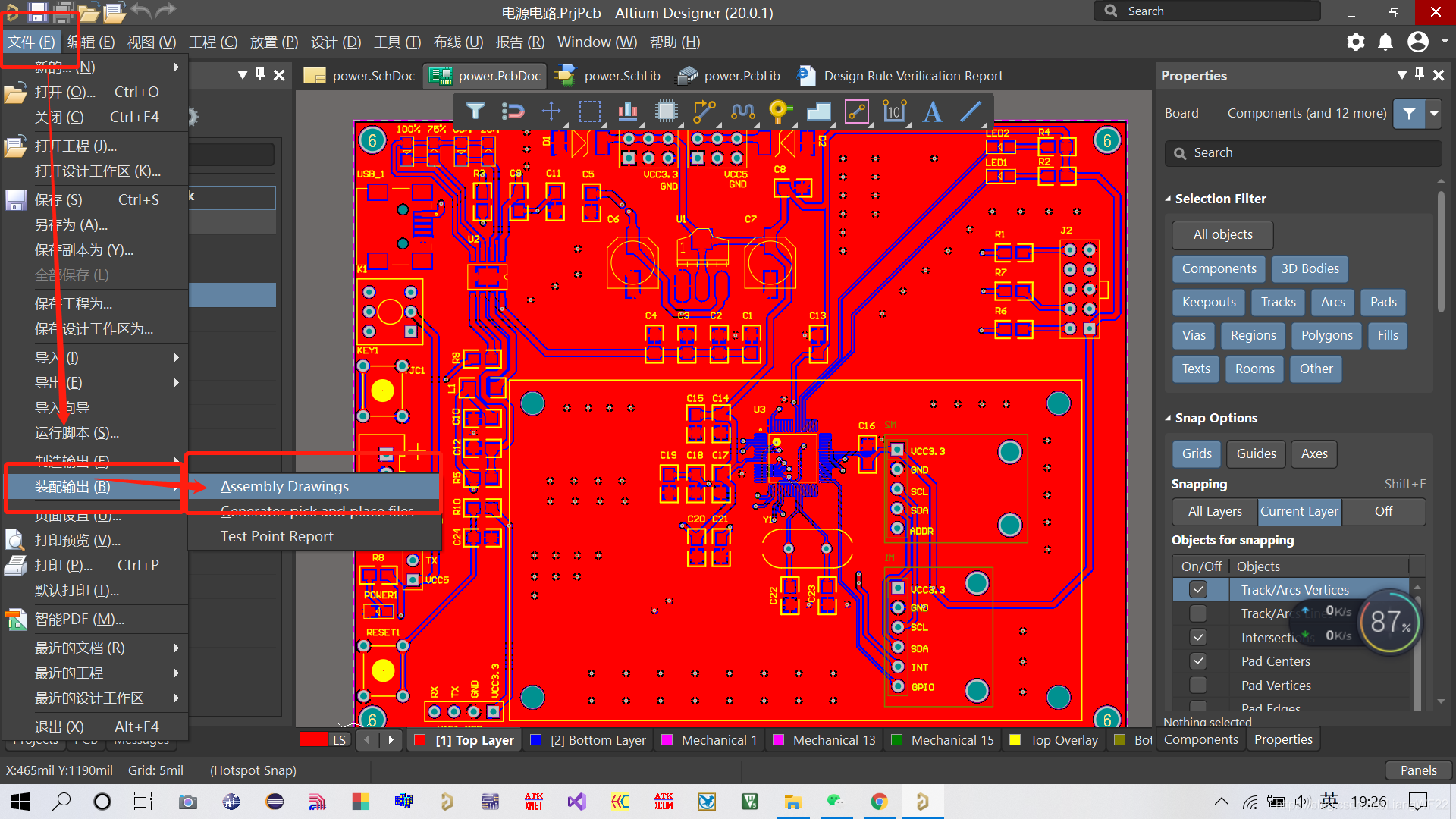

file – Assembly output –Assembly Drawings– Print

This file contains the top-level and bottom-level component information .

Method 2 ：

file – intelligence PDF–Next– Fill in the name of the document –Next

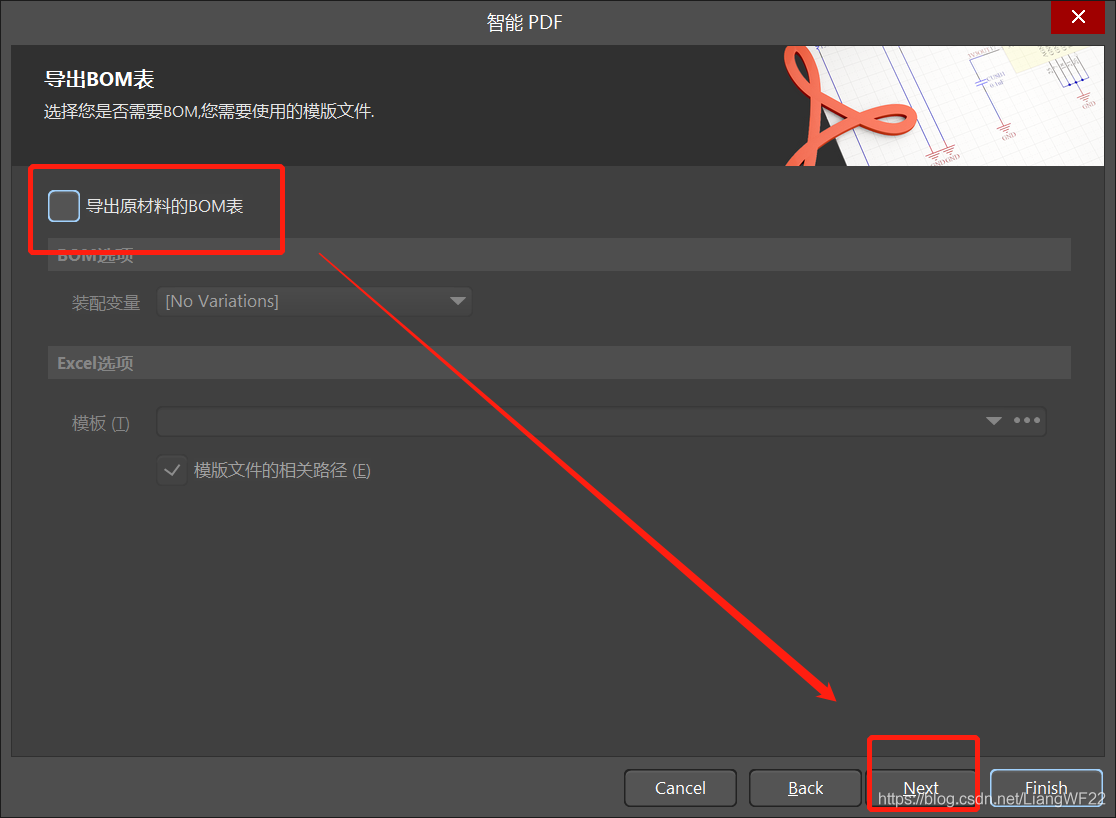

Do not export temporarily BOM surface , If you check this , Will be exported together BOM surface , But the file is PDF Format .

Click on Next Then the print settings will pop up , As shown in the figure below , Right click on the Multilayer Composite Print choice Create Assembly Drawings

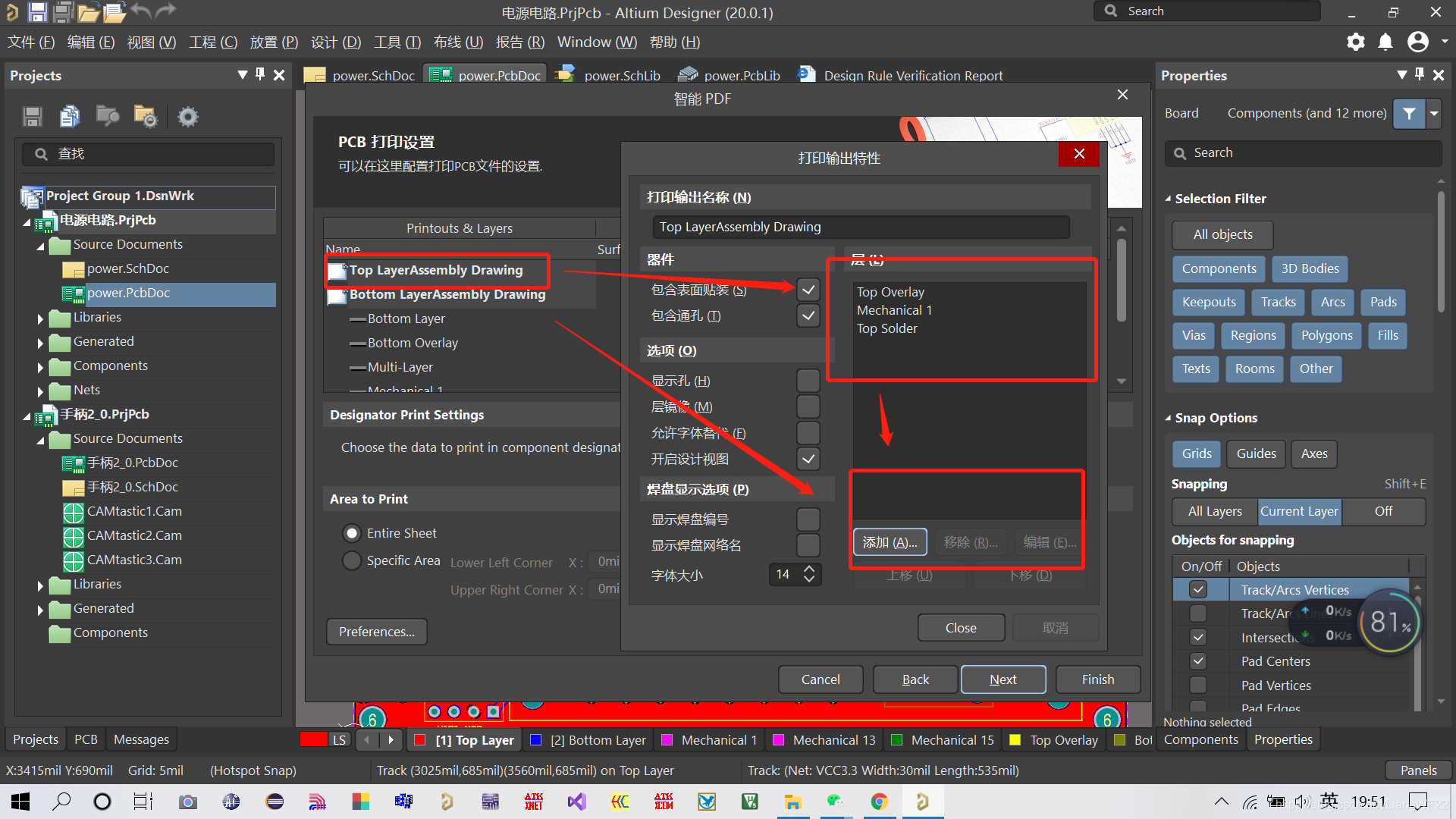

double-click Top LayerAssembly Drawings Retain Top Overlay、Machine 1 And add Top Solder layer

alike , double-click Bottom LayerAssembly Drawings Retain Bottom Overlay、Machine 1 And add Bottom Solder layer

After finishing, put Holes Check on , Bottom check Mirror Mirror image , choice Entire Sheet Click on Next.


Finally, click Finsh Then you can output the assembly file .

BOM File output

In the circuit schematic diagram and PCB The interface can output BOM surface .

The report –Bill of Materials

stay Columns Next , We can choose the output we need , such as Designator、Footprint、Comment and Quantity We usually choose output for these items .

Finally, click Exprot You can export BOM The table .

Of course, if you don't choose manually , You can choose a template to output BOM surface .

Gerber And other document output

Just play the board , You can only output this file to the board factory , In fact, some companies can directly send the whole project documents to them for punching , But it may lack confidentiality .

Gerber Files

stay PCB Next

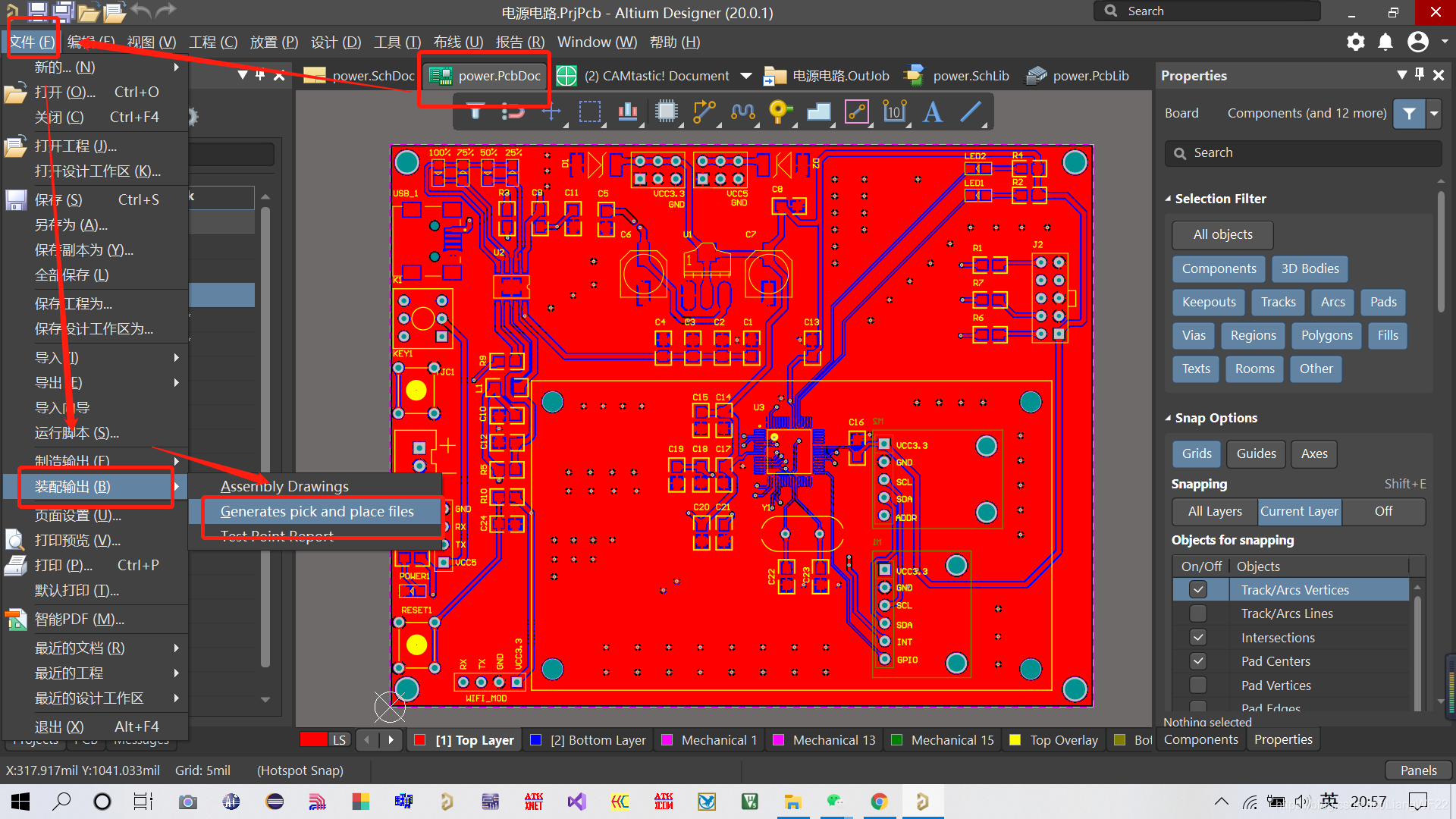

file – Manufacturing output –Gerber Files

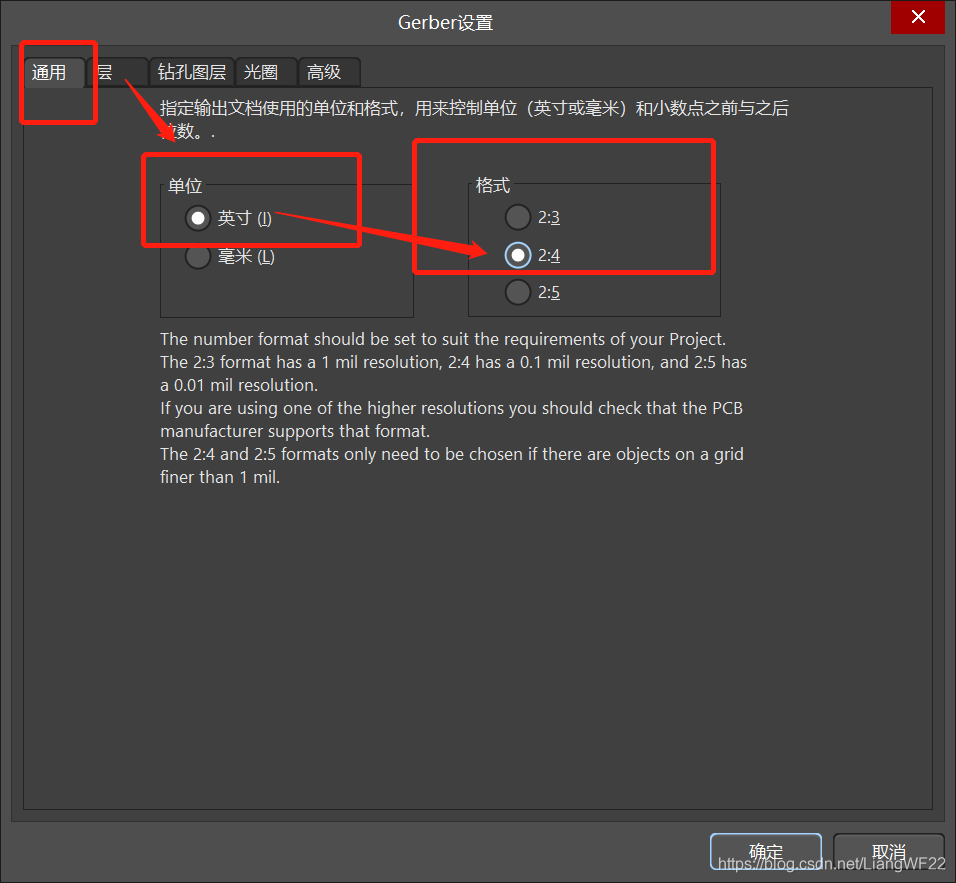

Paint layer select the layer to use , Select remove all mirror layers , The machine can be 1 Layers are added to all layers .

Drilling layers , Tick both the drilling drawing and the drilling guide drawing

The default setting of aperture is ok , Don't have to change .

I heard that if the board is more complex , Add a 0, Better .

Drilling documents

PCB Next
file – Manufacturing output –NC Drill Files

Coordinate file

if necessary SMT Patch service , Coordinate files are required .

IPC Net watch

Can output or not output .

file – Manufacturing output –Test Print Report

So far, the output of the file has been completed , You can put the temporary CAM The file is closed .

Document arrangement

In fact, if it is directly sent to the plate factory , Put... Directly Output Just package the folder and send it to the board factory , If you want the file to look better , Build a CAM Folder , hold Output All the files in the folder are copied, packaged and sent to the plate factory .

The student party fought 10cm*10cm Jialichuang is recommended as a model , It seems that there are two opportunities to make models cheaply in a month .
