Feign Research on the best scheme

First of all, let's take a look Feign Connection pool configuration

Feign Connection pool usage optimization

Feign By default URLConnection Client connection pool .

Feign Bottom layer initiation http request , Rely on other frameworks . Its underlying client implementation includes ：

So improve Feign The main means of performance is to use Other connection pools Instead of default URLConnection.

Switch to Apache HttpClient client

We use it Apache Of HttpClient Let's operate it .

1） Introduce dependencies

stay order-service Of pom Introduce in the file Apache Of HttpClient rely on ：

<!--httpClient Dependence  -->
<dependency>
    <groupId>io.github.openfeign</groupId>
    <artifactId>feign-httpclient</artifactId>
</dependency>

2） Configure connection pool

stay order-service Of application.yml Add configuration in ：

feign:
  client:
    config:
      default: # default Global configuration
        loggerLevel: BASIC #  The level of logging ,BASIC Is the basic request and response information
  httpclient:
    enabled: true #  Turn on feign Yes HttpClient Support for
    max-connections: 200 #  Maximum number of connections
    max-connections-per-route: 50 #  Maximum number of connections per path

Next , stay FeignClientFactoryBean Medium loadBalance Break in the method ：

Debug Mode start order-service service , You can see... Here client, The bottom is Apache HttpClient：

OK 了 , The rest of the calls are the same as the original , His bottom layer calls by default Apache HttpClient The connection pool of the client

Feign Optimization summary of ：

1. Try to use the log level basic

2. Use HttpClient or OKHttp Instead of URLConnection：
① introduce feign-httpClient rely on
② Profile on httpClient function , Set connection pool parameters

Feign Best practices

Problem introduction

The so-called recent practice , Is the experience summarized in the process of use , The best way to use .

Self study observation can find ,Feign Client and service provider controller The code is very similar ：

feign client ：

UserController：

Is there a way to simplify this repetitive coding ？

We thought of two ways to solve this problem ：

• First, it can be inherited , The same code can be shared through inheritance , Reduce the writing of repetitive code
• The second method is to Feign Of Client Extracted as a separate module , And the interface related POJO、 default Feign The configuration is put into this module , Available to all consumers , Achieve the architecture of module separation

Now let's take a detailed look at which of these two methods is the best ：

Inheritance mode

The same code can be shared through inheritance ：

1） Define a API Interface , Use the definition method , And based on SpringMVC Comment make a statement .

2）Feign Client and Controller All integrated interfaces

Such writing makes the code very simple and realizes code sharing

But this will create new problems ：

• service provider 、 Service consumers are tightly coupled

• Annotation mappings in the parameter list do not inherit , therefore Controller Method must be declared again in 、 parameter list 、 annotation

Extraction method

take Feign Of Client Extracted as a separate module , And the interface related POJO、 default Feign The configuration is put into this module , Available to all consumers .

for example , take UserClient、User、Feign The default configuration is extracted into a feign-api In bag , All microservices reference the dependent package , It can be used directly .

This way will be better than the first on the whole , Achieve low coupling between modules

Implement extraction based best practices

The practical steps are as follows ：

1） extract

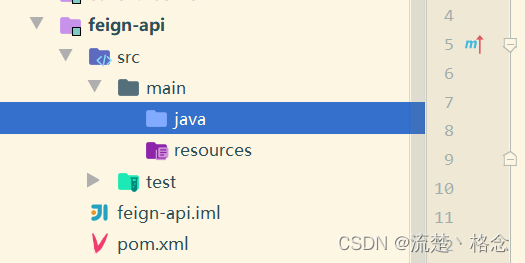

First create a module, Name it feign-api：

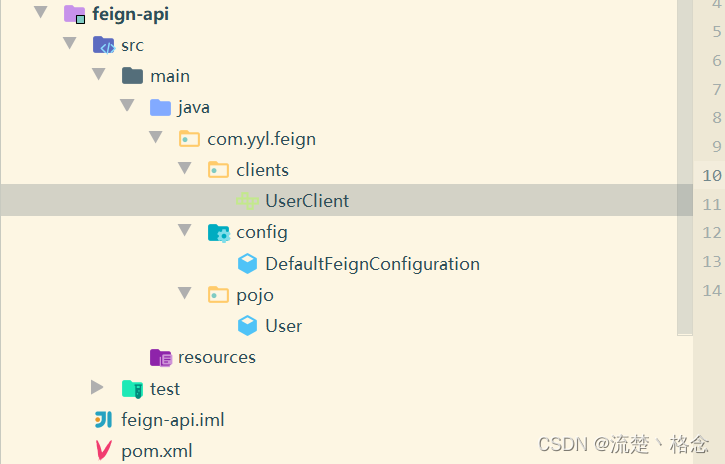

Project structure ：

stay feign-api And then introduce feign Of starter rely on

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>

then ,order-service Writing in the UserClient、User、DefaultFeignConfiguration All copied to feign-api In the project

UserClient

package com.yyl.feign.clients;

import com.yyl.feign.pojo.User;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;

@FeignClient(value = "userservice")
public interface UserClient {


    @GetMapping("/user/{id}")
    User findById(@PathVariable("id") Long id);
}

DefaultFeignConfiguration

package com.yyl.feign.config;

import feign.Logger;
import org.springframework.context.annotation.Bean;

public class DefaultFeignConfiguration {

    @Bean
    public Logger.Level logLevel(){

        return Logger.Level.BASIC;
    }
}

User

package com.yyl.feign.pojo;

import lombok.Data;

@Data
public class User {

    private Long id;
    private String username;
    private String address;
}

2） stay order-service Use in feign-api

First , Delete order-service Medium UserClient、User、DefaultFeignConfiguration And other classes or interfaces .

stay order-service Of pom Introduce... Into the file feign-api Dependence ：

<dependency>
    <groupId>com.yyl.demo</groupId>
    <artifactId>feign-api</artifactId>
    <version>1.0</version>
</dependency>

modify order-service All the guide package parts related to the above three components , Change to import feign-api In the package

3） Restart test

After restart , Found that the service reported an error ：

This is because UserClient Now in com.yyl.feign.clients It's a bag ,

and order-service Of @EnableFeignClients The note is in com.yyl.order It's a bag , Not in the same bag , Can't scan UserClient.

4） Solve the problem of scanning package

Mode one ：

Appoint Feign Packages that should be scanned ：

@EnableFeignClients(basePackages = "cn.itcast.feign.clients")

Mode two ：

Specify the Client Interface ：

@EnableFeignClients(clients = {
    UserClient.class})

Restart the access , No problem
