Prometheus prometheus+grafana, monitoring setup and basic interface configuration
2022-07-22 14:29:00 【The, only】
One 、Prometheus brief introduction
gitlab Official address :https://github.com/prometheus/prometheus
Prometheus( Prometheus ) Is a set of open source monitoring & Call the police & Combination of time series databases , from SoundCloud Companies to develop .
Prometheus The basic principle is through HTTP Protocol periodically grabs the status of monitored components , The advantage of this is that any component only provides HTTP The interface can be connected to the monitoring system , No need for any SDK Or other integration processes . This is ideal for virtualized environments like VM perhaps Docker .
Prometheus There should be a few suits Docker、Mesos、Kubernetes One of the environmental monitoring systems .
Prometheus Infrastructure
Pictured above ,Prometheus It is mainly composed of the following parts :
- Prometheus Server: Mainly responsible for storage 、 Grab 、 polymerization 、 In terms of inquiry .( Server side )
- Alertemanager: It is mainly responsible for realizing the alarm function .
- Pushgateway: Mainly to achieve the reception of Client-push The past indicator data , At a specified time interval , There is a main program to grab .
- *_exporter: Mainly responsible for collecting physical machines 、 Middleware information .( client )
Two 、Prometheus Server side installation
preparation :
Server side :192.168.152.103 ubuntu
client :192.168.152.101 ubuntu
1: download
stay 192.168.152.103, Server side download address :https://github.com/prometheus/prometheus/releases
Find yourself Linux edition , I'm here for Linux-amd64, Most of them are basically this .
# download
wget https://github.com/prometheus/prometheus/releases/download/v2.37.0/prometheus-2.37.0.linux-amd64.tar.gz
# decompression
tar -zxvf prometheus-2.37.0.linux-amd64.tar.gz
# Rename folder , name too long , Convenient follow-up operation
mv prometheus-2.37.0.linux-amd64 prometheus
# Enter folder
cd prometheus/
Check the file to see the following file .
[email protected]:~/prometheus$ ls
console_libraries consoles LICENSE NOTICE prometheus prometheus.yml promtool
Just pay attention prometheus( Startup file ), prometheus.yml( The configuration file ), These two files are sufficient .
The default configuration file content is
cat prometheus.yml
# my global config
global:
scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute. By default , Every time 15s Pull the target sampling point data once .
evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute. Every time 15 Evaluate the rule every second . The default value is per 1 minute
# scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
alertmanagers:
- static_configs:
- targets:
# - alertmanager:9093
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
# - "first_rules.yml"
# - "second_rules.yml"
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
# The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
- job_name: "prometheus"
# metrics_path defaults to '/metrics'
# scheme defaults to 'http'.
static_configs:
- targets: ["localhost:9090"]
2: Start the test server
start-up
./prometheus --config.file=prometheus.yml
When to start Prometheus after , You can go through 9090 Port to access Prometheus Self contained UI Interface :
Open in browser http://192.168.152.103:9090/, Can access UI Interface .
3、 ... and 、 install Node_Exporter client
1: Download decompression
stay 192.168.152.101, Client download address :https://github.com/prometheus/node_exporter/releases
Find the same Linux-amd64 This version , Download and unzip
# download
wget https://github.com/prometheus/node_exporter/releases/download/v1.3.1/node_exporter-1.3.1.linux-amd64.tar.gz
# decompression
tar -zxvf node_exporter-1.3.1.linux-amd64.tar.gz
# rename
mv node_exporter-1.3.1.linux-amd64 node_exporter
2: start-up Node_Exporter client
client , There are no other configuration files , It can be started directly by default
./node_exporter
After starting , The default listening port is 9100, Type in the browser ,192.168.152.101:9100 You can view and visit Client Monitoring indicators of .
Click on Metrics Enter to see relevant information .
Four 、 Add a connection client to the server
Just type in the server configuration file , add to job_name that will do , There are several clients , Just add a few . Name yourself .
Change the server configuration file
vim prometheus.yml
Add the last side .[‘192.168.152.101:9100’] For client information .
# my global config
global:
scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute. By default , Every time 15s Pull the target sampling point data once .
evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute. Every time 15 Evaluate the rule every second . The default value is per 1 minute
# scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
alertmanagers:
- static_configs:
- targets:
# - alertmanager:9093
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
# - "first_rules.yml"
# - "second_rules.yml"
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
# The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
- job_name: "prometheus"
# metrics_path defaults to '/metrics'
# scheme defaults to 'http'.
static_configs:
- targets: ["localhost:9090"]
- job_name: "linux"
static_configs:
- targets: ['192.168.152.101:9100']
Restart the server , that will do
./prometheus --config.file=prometheus.yml
test , See if it is added successfully , Log in to the browser UI Interface , stay Status >> Targets You can view all client information and server information .
state UP It's normal .
5、 ... and 、 Third party interface installation
because prometheus Bring their own UI The interface is relatively simple , So we need to use third-party tools Grafana In management , This is more friendly , More intuitive .
The testing machine here is limited , So it is also installed in 192.168.152.103 Server side , You can also install it on other machines .
1:Grafana install
Official installation documentation :https://grafana.com/docs/grafana/next/setup-grafana/installation/debian/
Choose your own system , You can choose the enterprise version (Enterprise) Or open source version (OSS), I'm here for Ubuntu Install enterprise , So the installation is as follows :
Get the latest version of key( Enterprise Edition )
wget -q -O - https://packages.grafana.com/gpg.key | sudo apt-key add -
Add the latest stable warehouse
echo "deb https://packages.grafana.com/enterprise/deb stable main" | sudo tee -a /etc/apt/sources.list.d/grafana.list
If you want to install the latest beta , Add the warehouse as follows
echo "deb https://packages.grafana.com/enterprise/deb beta main" | sudo tee -a /etc/apt/sources.list.d/grafana.list
The last update , install
sudo apt-get update
sudo apt-get install grafana-enterprise
Of course, you can also install the open source version OSS, The document also has configuration , The installation is the same .
2: start-up Grafana, And add prometheus
start-up Grafana, The default port is 3000.
sudo systemctl start grafana-server.service
visit Grafana, Sign in http://192.168.152.103:3000/, Default password :admin,admin
Add data add data source
choice prometheus
add to prometheus Server for IP Address , The default port is 9090
Other default , Save it .
After saving , stay explore You can see what you just added prometheus data .
Of course, at this time , I still can't understand , At this time, you need to configure the next step Dashboards Interface , More friendly and intuitive .
3:Grafana Configuration add Dashboards
There are many official templates , You can choose according to your needs and preferences . Of course, you can only choose prometheus The template of .
Official module address :https://grafana.com/grafana/dashboards/
Here I 1 One is prometheus The template of , Most people watch downloads , So I choose this , Click in . You can see this code , copying , The code is 1860.

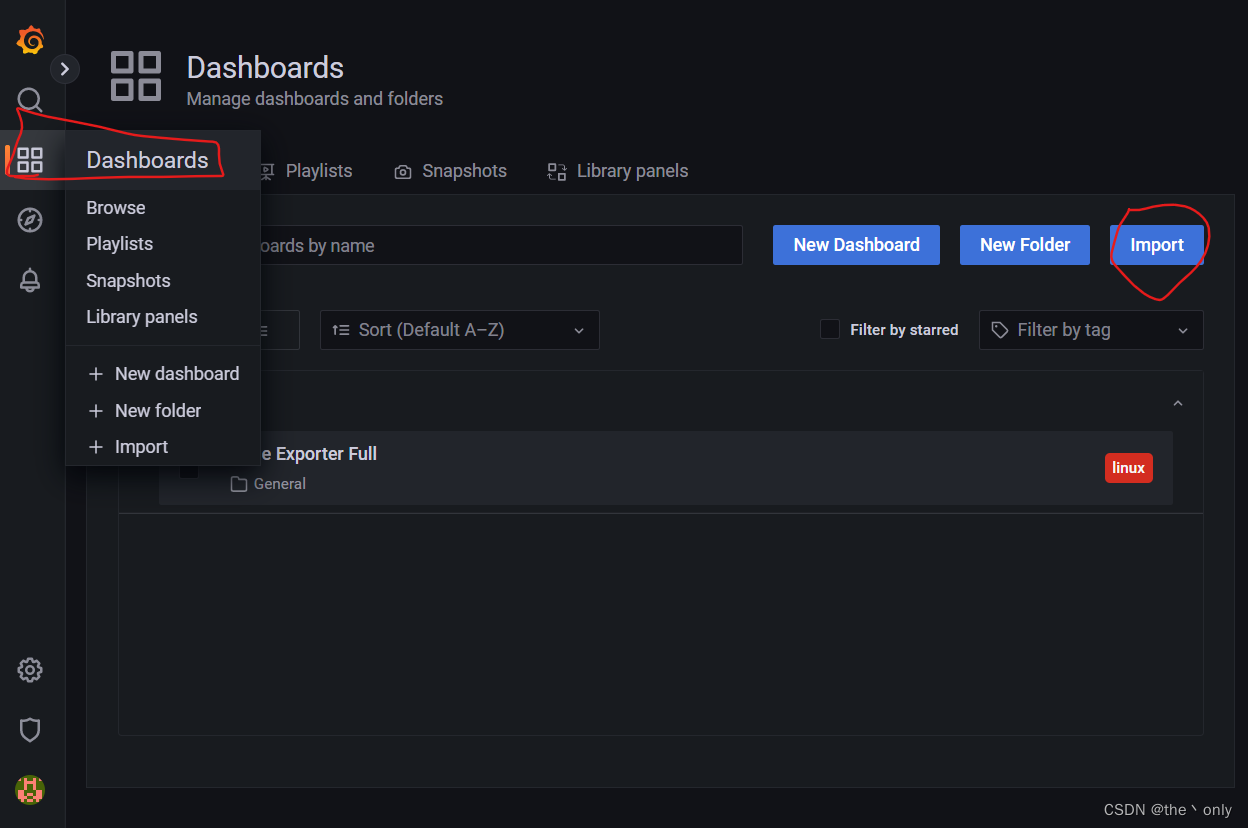

go back to Grafana, stay Dashboards in , choice Import Just import .
Fill in 1860,load Can finish .
When I'm done , Press host And time in the selection of graphics to watch .
Here the interface is basically configured .
6、 ... and 、 Background start
Configuration complete , You also need to configure background startup , Direct use nohup Just go
Server side :
# Don't save logs
nohup ./prometheus --config.file=prometheus.yml >/dev/null 2>&1 &
# Save log to /var/log/prometheus.log
nohup ./prometheus --config.file=prometheus.yml >/var/log/prometheus.log 2>&1 &
client :
# Don't save logs
nohup ./node_exporter >/dev/null 2>&1 &
# Save log to /var/log/node_exporter.log
nohup ./node_exporter >/var/log/node_exporter.log 2>&1 &
Of course, you can also write services into systemd, Set power on self start , You can do your own research .
The next step is to configure the alarm sending , I'll introduce it in the next article .
