Main path coverage and base path coverage

1. Simple path

The English of simple path is ：Simple Path : A path from node ni to nj is simple if no n ode appears more than once, except possibly the first an d last nodes are the same. Translated into Chinese, it means ： In addition to the initial node and the termination node , No node in the path appears twice , Then it's a simple path

2. The main path

Prime Path : A simple path that does not appear as a proper subpath of any other simple path .

The main path ： This means that this simple path cannot be a sub path of a longer simple path , That is, it cannot be included by other simple paths , We call this path the main path .

The difference in dc-path, Definition - The cleanup path has the initial node DEF(V,M) And final node USE(V,N) Of path In the path , Make the path No other node is v Definition node of .

3. Base path

Independent path ： It refers to a path of a group of statements or conditions that have not been processed before .

The basic path ： The set of all independent paths in the control flow graph constitutes the basic path set

4. give an example

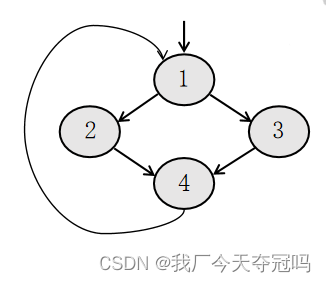

  Simple path ： Only one node :[1],[2],[3],[4]        There are two nodes ：[1,2],[1,3],[2,4],[3,4],[4,1]        There are three nodes ：[1,2,4],[1,3,4],[2,4,1],[3,4,1],[4,1,2],[4,1,3]       There are four nodes ：[1,2,4,1],[1,3,4,1],[2,4,1,2],[2,4,1,3],[3,4,1,2],[3,4,1,3],[4,1,2,4],[4,1,3,4]

The main path ：[1,2,4,1],[1,3,4,1],[2,4,1,2],[2,4,1,3],[3,4,1,2],[3,4,1,3],[4,1,2,4],[4,1,3,4]

5. Compare the differences

Simple path coverage ：[1],[2],[3],[4],[5],[6],[1,2],[2,3],[2,4],[3,5],[4,5],[5,2],[2,6][1,2,3],[1,2,4],[2,3,5],[2,4,5],[3,5,2],[4,5,2],[5,2,6],[1,2,3,5],[1,2,4,5],[2,3,5,2] [2,4,5,2],[3,5,2,6],[4,5,2,6],[2,3,5,2,6],[2,4,5,2,6]

  Main path coverage ：[2,3,5,2,6],[2,4,5,2,6]

basis path coverage ：[1,2,3,5,2,6],[1,2,4,5,2,6],[1,2,6]

summary ：

• The main path coverage is to program design test cases , Make as many test cases pass through the edges of the control flow diagram as possible without forming a ring . List all paths with each node in the main path as the starting point .
• Base path testing refers to analyzing the loop complexity of control structure , Export the collection of basic executable paths , So the way to design test cases . The designed test case should ensure that every executable statement of the program is executed at least once in the test .   It includes 5 In terms of ： 1. Design the source code according to the detailed design , Draw the program flow chart of the program .  2. According to the program flow chart , Draw the control flow diagram of the program       3. Calculate the loop complexity of the program       4. Find the independent path       5. Design test cases
