Chisel Combinational circuit （ Two ）——Chisel Encoder and decoder implementation

The last article talked about Chisel The basic writing method of combinational circuit in , It also introduces Chisel Conditional statement in when/elsewhen/otherwise structure , It should be noted that Chisel The conditional statement block in is not conditional execution , Instead, it corresponds to a multiplexer . In this article, we will use Chisel Realize encoder and decoder , Simultaneous introduction Chisel Medium switch sentence .

decoder （Decoder） Realization

The decoder is used to put a n Bit binary number is decoded into m Circuit of bit signal , among m No more than $2^n$. What we want to achieve here is 2-4 Unique decoder of , It is used to generate the unique heat corresponding to two binary numbers （One-hot） code , There is and only one bit in the single hot code 1, The rest are 0.

The picture below is 2-4 Schematic diagram of the single heat decoder ：

If we use the truth table to describe the function of this decoder , The truth table is as follows ：

Of course, we can use what we learned in the last article when Statement to implement ：

result := 0.U

when(sel === 0.U) {

    result := 1.U
}.elsewhen (sel === 1.U) {

    result := 2.U
}.elsewhen (sel === 2.U) {

    result := 4.U
}.otherwise {

    result := 8.U
}

Although it looks ok , But it's not very simple . because when There is only one signal , Can we have one like other languages switch perhaps case Sentence? ？Chisel China provides switch structure , To use switch The statement first needs to contain chisel3.util package ：

import chisel3.util._

And then you can use it switch Statement to describe ：

result := 0.U

switch(sel) {

    is (0.U) {
     result := 1.U}
    is (1.U) {
     result := 2.U}
    is (2.U) {
     result := 4.U}
    is (3.U) {
     result := 8.U}
}

This grammar is also very easy to understand , according to sel Signal to assign different decoded values to result The signal . It should be noted that , Even if we are switch Statement enumerates all possible values ,Chisel This still needs to be assigned a default value , For example, the code above is assigned 0.U to result. But this assignment will not be activated , Therefore, the back-end tools will be optimized . This is done to avoid combinational circuits （Chisel Medium Wire） Incomplete assignment in , Undefined cases will be described in other hardware description languages, such as Verilog Generate unwanted latches in （latch）, therefore Chisel Incomplete assignment is not allowed in .

But the above example doesn't seem so easy to understand , Writing decimal values into binary will make the decoder function look clearer . The following is the complete code described in binary ：

class Decoder_2_4 extends Module {

    val io = IO(new Bundle {

        val sel = Input(UInt(2.W))
        val result = Output(UInt(4.W))
    })

    io.result := 0.U

    switch(io.sel) {

        is("b00".U) {
     io.result := "b0001".U}
        is("b01".U) {
     io.result := "b0010".U}
        is("b10".U) {
     io.result := "b0100".U}
        is("b11".U) {
     io.result := "b1000".U}
    }
}

This statement looks much clearer , Just like the truth table , Output is as follows ：

module Decoder_2_4(
  input        clock,
  input        reset,
  input  [1:0] io_sel,
  output [3:0] io_result
);
  wire [3:0] _GEN_0 = 2'h3 == io_sel ? 4'h8 : 4'h0; // @[hello.scala 12:15 14:20 18:33]
  wire [3:0] _GEN_1 = 2'h2 == io_sel ? 4'h4 : _GEN_0; // @[hello.scala 14:20 17:33]
  wire [3:0] _GEN_2 = 2'h1 == io_sel ? 4'h2 : _GEN_1; // @[hello.scala 14:20 16:33]
  assign io_result = 2'h0 == io_sel ? 4'h1 : _GEN_2; // @[hello.scala 14:20 15:33]
endmodule

This is actually the case with encoder , But the above code can be simpler . It can be noted that ,0/1/2/3 The corresponding outputs are 0001 Move left 0/1/2/3 position , So we can directly use a basis sel The signal 0001 To achieve , use Chisel Shift operator in << Can be realized ：

result := 1.U << sel

Decoder is usually used as building block of multiplexer , Take the output of the decoder as an enable signal , Data input through an and gate as another multiplexer . No, I didn't Chisel There is no need to manually construct a multiplexer , because Mux stay Chisel There are some in the Library . The decoder can also be used for address decoding , Then take the output as the selection signal , For example, different for connecting to the processor IO Selection of equipment .

Encoder （Encoder） Realization

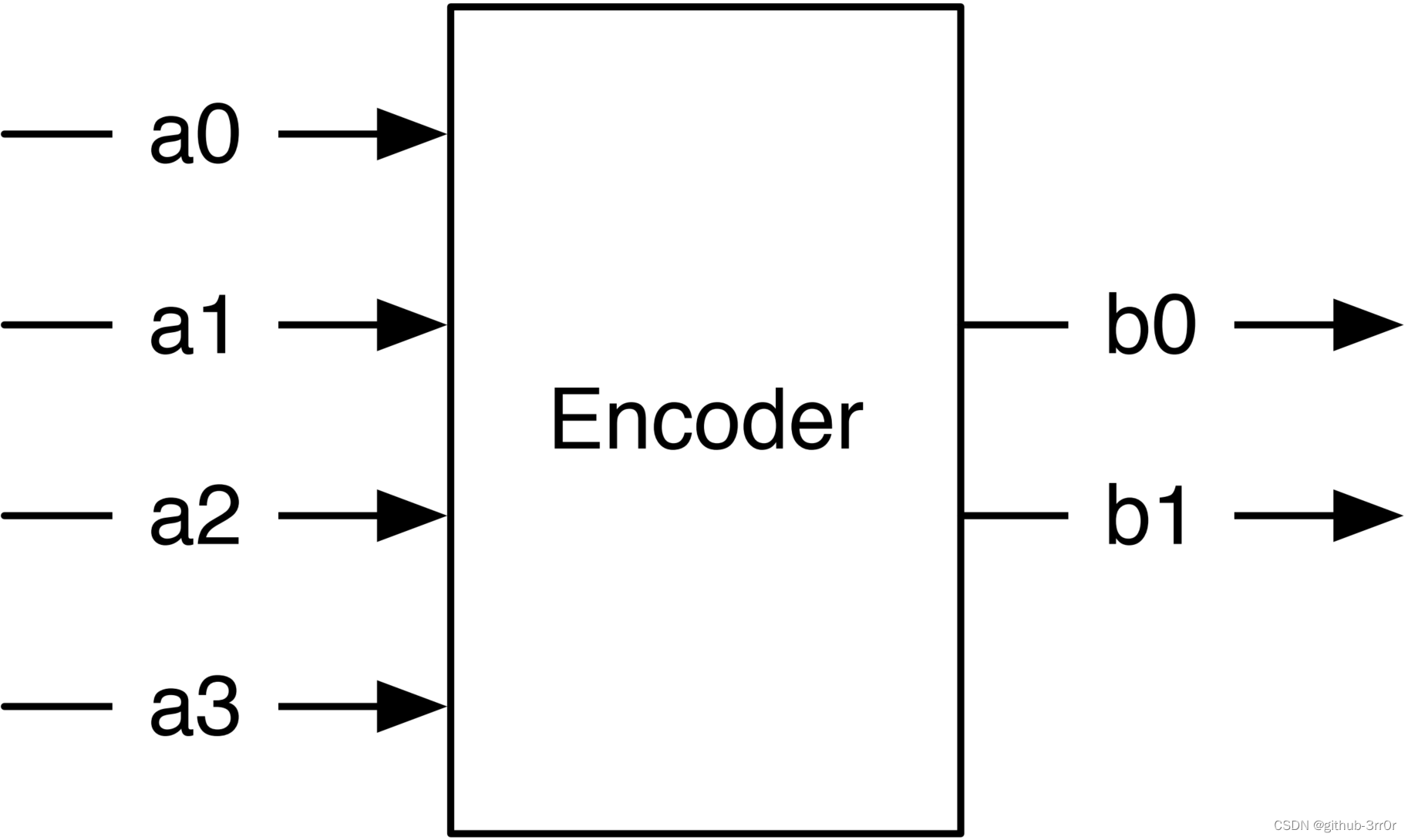

The encoder here looks like the decoder in the previous section turned over , That is, the coding circuit from a four bit single hot coding to a two bit binary coding signal . The picture below shows 4-2 Schematic diagram of single heat encoder ：

The corresponding truth table is also the reverse of the decoder ：

The difference is that there is one more line at the bottom , Because the single heat encoder only defines the above four cases , That is, the input must be a unique heat code , For any other input , The output is undefined . Because we can't describe a function with undefined output , We must use the default assignment to capture all undefined input patterns .

Below Chisel The code is assigned a default value 00, And then use switch Statement assignment assigns values to all legal inputs and outputs ：

b := "b00".U

switch(a) {

    is ("b0001".U) {
     b := "b00".U}
    is ("b0010".U) {
     b := "b01".U}
    is ("b0100".U) {
     b := "b10".U}
    is ("b1000".U) {
     b := "b11".U}
}

Conclusion

This article takes decoder and encoder as examples to practice the construction of combinational circuit modules , At the same time, it introduces switch Use of statements . We can also try to write more complex combinational circuits , For example, the code from four bit binary input to seven segment nixie tube code / Decoding function module , It can be further used for 16 Display of hexadecimal digits . In the next part, we will study sequential circuits , Start with the basic register , And then to the counter 、 timer 、 shift register , Finally, memory . End of sequential circuit , The basic content is over , Later, we will introduce higher-level content , Coming soon .
