Preface

• This series is about CANoePanel The design of the , This chapter explains ,Panel Control layout, etc , Lay the foundation for the next control explanation article .

• Demonstrate hardware and software environment Windows11 x64 ; CANoe 11 SP2 x64


Panel View （Views）

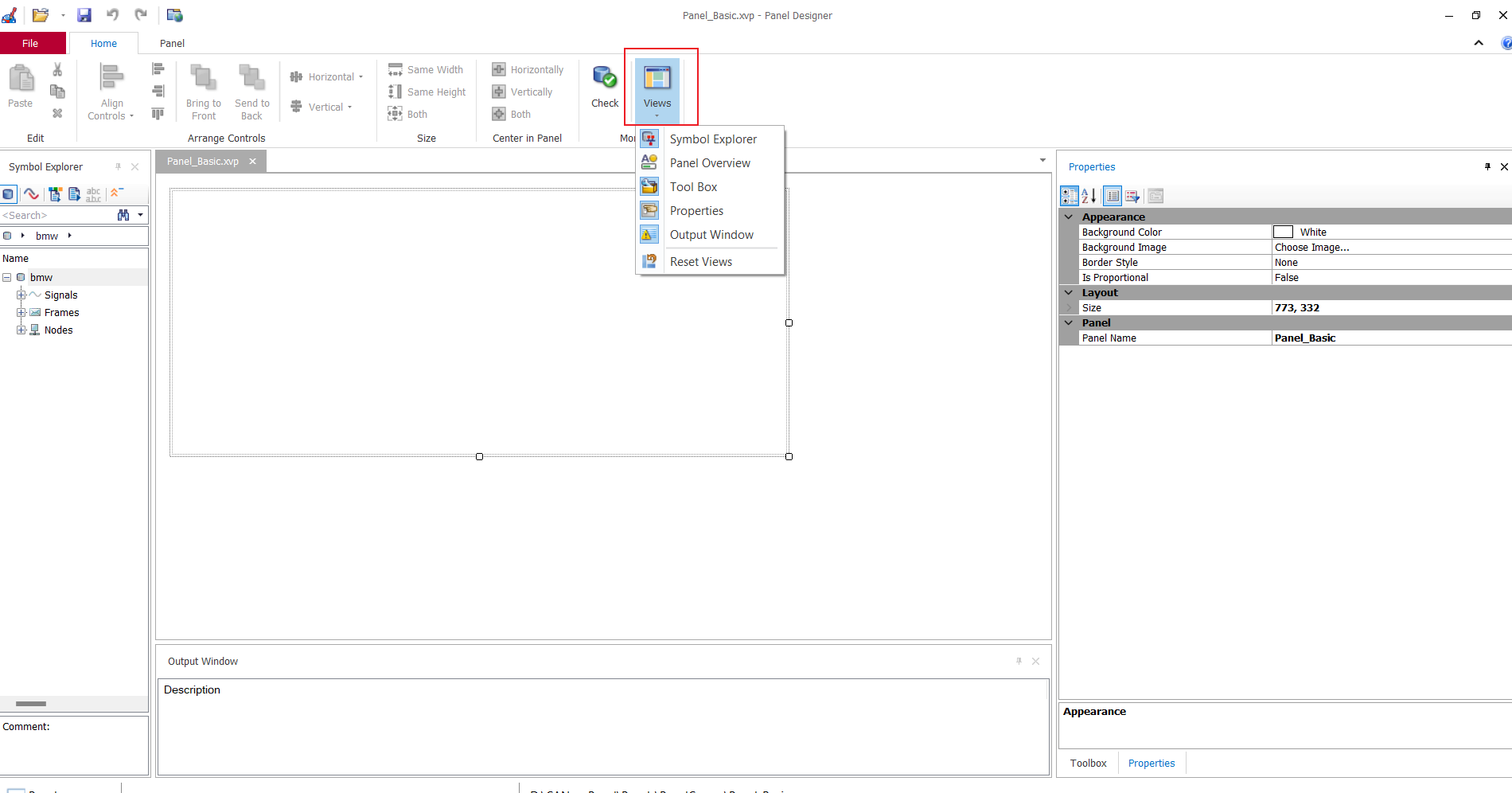

1️⃣ When we build a new one Panel when , There is only one canvas , No controls , We only have Views Properties can be set

• Reset Window Positions : Reset the display view , By default, they are all displayed .
• Symbol Explorer ： and CANoe Same as the middle view , You can search for signals and variables , For quick binding of controls
• Toolbox ： Collection of controls , All the controls used are here , It must be shown
• Properties ： When setting properties for a control , You need to set the face in this view .
• Output Window ： Design Panel The error report and prompt information are here
• Panel Overview ： General control overview , What controls are used , Control Name , What's bound symbol All at a glance

Control layout

1️⃣ Home The settings circled under the menu bar are related to the control layout

• Since the layout , So select at least two controls , Control layout buttons can be used

• Now let's put a few casually Button Control ( Method 1： Select control , Double click the left mouse button ; Method 2： Select control Hold down the left mouse button , Drag in panel)

1.1 Align layout

1️⃣ Here's the picture , Hold down Ctrl + left-click You can select multiple controls , When aligning and laying out multiple controls , Be sure to pay attention to the first selected control

Because the reference control of other controls is your first selected control

2️⃣ Choose 4 After control , Click align left , So this 4 The controls are aligned to the left , Align in other directions , It's the same thing , I won't repeat .

1.2 Front and back stacked layout

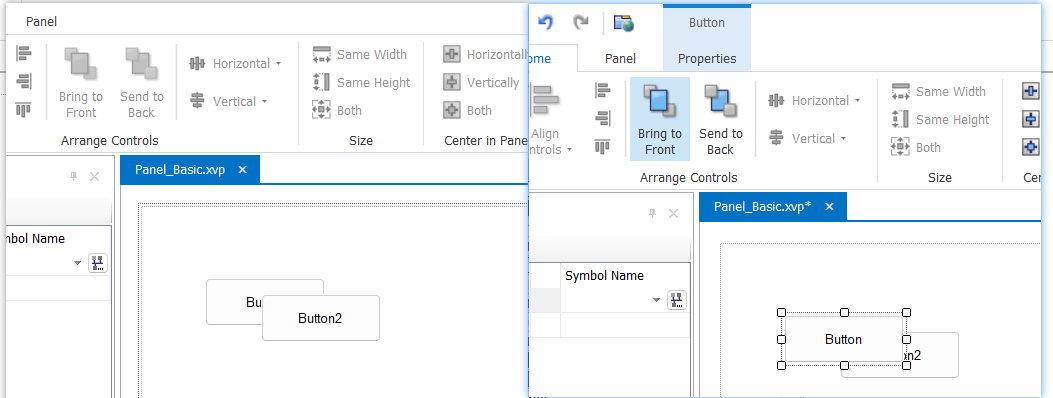

1️⃣ As shown on the left of the figure below ,Button2 Press on Button , Click. Bring To Front after Button Just move to the top

1.3 Control spacing layout

1️⃣ As shown on the left of the figure below ,Button2 Press on Button , Click. horizontal -> Remove Spaceing （ Remove the gap of the selected control horizontally ） and vertically-> Remove Spaceing （ Remove the gap of the selected control vertically ）, It becomes the style of the figure on the right

• Simply put, it is to adjust the horizontal and vertical spacing between two controls

1.4 Control size layout

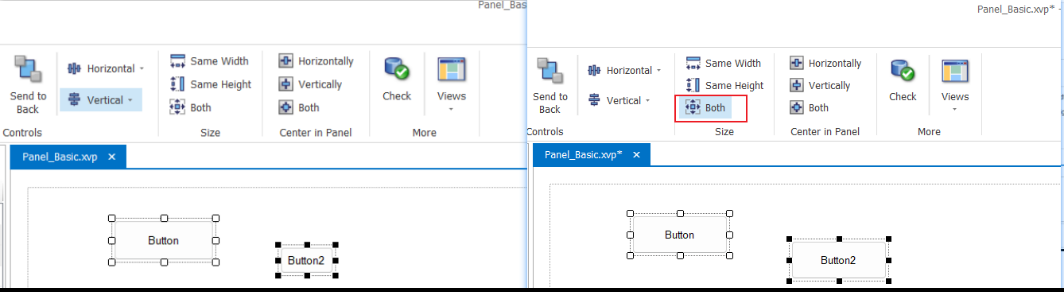

1️⃣ As shown on the left of the figure below ,Button2 and Button Different sizes Select first Button, Choose again Button2, Then press Both,Button2 It is adjusted to and Button The same size .

• If you just want to adjust the length or width , You can press the corresponding Same Width and Same Hight Layout button

• The reference control is your first selected control .

1.5 Central layout

1️⃣ As shown on the left of the figure below ,4 individual button All in Panel Top left corner of , O 'clock Both after , Have been moved to the center

• There is no special need to explain

Panel Property settings

1.1 Background color and background picture

• 1️⃣ Here's the picture , In the design Panel when , You can set different background colors for the canvas , Or choose a background picture

• The image size of this example is 800x400px

1.2 adjustment Panel Canvas size

• 1️⃣ Here's the picture , Dragging the lower right corner can adjust Panel size , Or change the toolbar's Width and Height.


• 2️⃣ If I check that Resize Proportionally, be Panel Width and height , Will be changed in the same proportion
• Resize Proportionally and Properties Medium Is Proportional It means the same thing
• Click Next Fit Image Size ,Panel The size of the canvas is set to the pixel size of the picture .


summary

• It needs to be used in the demonstration demo engineering , You can follow the official account online disk below to get it by yourself , Thank you for reading .
